CCD CAMERA CCCD-5000

Weswox is the leading Supplier Manufacturer Exporter of CCD Camera in Ambala India. We deal in all types of Microscopes, Microscope Parts and Laboratory Scientific Instruments.

Weswox
Download Presentation

CCD CAMERA CCCD-5000

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

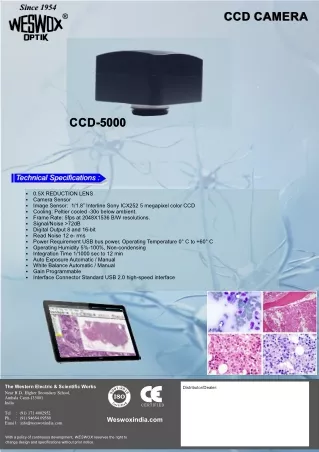

  1. Since 1954 Since 1954 CCD CAMERA CCD CAMERA ® ® CCD-5000 CCD-5000 Technical Specifications : Technical Specifications : 0.5X REDUCTION LENS Camera Sensor Image Sensor: 1/1.8” Interline Sony ICX252 5 megapixel color CCD Cooling: Peltier cooled -30o below ambient. Frame Rate: 5fps at 2048X1536 B/W resolutions. Signal/Noise >72dB Digital Output 8 and 16-bit Read Noise 12 e- rms Power Requirement USB bus power, Operating Temperature 0° C to +60° C Operating Humidity 5%-100%, Non-condensing Integration Time 1/1000 sec to 12 min Auto Exposure Automatic / Manual White Balance Automatic / Manual Gain Programmable Interface Connector Standard USB 2.0 high-speed interface § § § § § § § § § § § § § § § The Western Electric & Scientific Works Near B.D. Higher Secondary School, Ambala Cantt-133001 India Distributor/Dealer: :2 1 0 0 1 5 0 9 Tel : (91) 171 4002952 Ph. : (91) 94664 09560 Emai l: info@weswoxindia.com Weswoxindia.com With a policy of continuous development, WESWOX reserves the right to change design and specifications without prior notice.
