BINOCULAR STEREOZOOM MICROSCOPE SZM-95

Weswox Is The Leading Supplier Manufacturer Exporter Of WESWOX BINOCULAR STEREOZOOM MICROSCOPE Based In Ambala India. We Are One Of The Leading Manufacturers And Suppliers Of Centrifuge Machines, Pathological Instruments.

Weswox
Download Presentation

BINOCULAR STEREOZOOM MICROSCOPE SZM-95

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

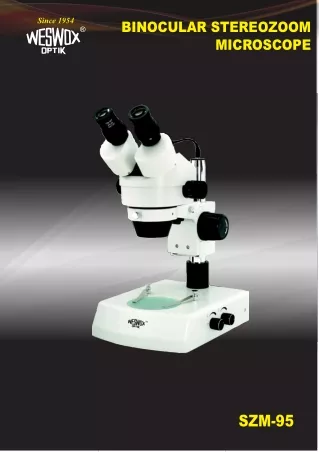

  1. Since 1954 BINOCULAR STEREOZOOM MICROSCOPE ® SZM-95

  2. BINOCULAR STEREOZOOM MICROSCOPE ® SZM-95 Technical Specifications : STAND : Pole Dual light stable stand with focusing knob. Incorporates Clip for holding specimen and lateral zoom control movement. Optional stand with co-axial coarse & fine focusing mechanism.  OBSERVATION HEAD : Binocular/Trinocular zoom pod 450 inclined 3600 rotatable. Interpupillary distance adjustable between 54-75mm. Diopter adjustment ring on ocular provides correction for eye acuity. EYEPIECES : Wide Field Eyepiece 10x FOV 20mm with eye-guards. OBJECTIVES : Zoom 0.7X to 4.5X with magnification ratio of 6:4:1. MAGNIFICATION RANGE : 7X -45X WORKING DIATANCE : 100mm ILLUMINATION : Built in illumination both for incident light 15W halogen & transmitted Flourescent lamp 7W with variable intensity control. On/Off switch to provide flexibility to use either both light or any of them. AUXILIARY OBJECTIVE : 0.5X, 1.5X & 2X OPTIONAL. OPTIONAL ACCESSORIES : Dark Field Attachment, Polarising Kit, Ring Light, Fiber Optic Illumination. The Western Electric & Scientific Works Near B.D. Higher Secondary School, Ambala Cantt-133001 India Distributor/Dealer: :2 1 0 0 1 5 0 9 Tel : (91) 171 4002952 Ph. : (91) 94664 09560 Emai l: info@weswoxindia.com Weswoxindia.com With a policy of continuous development, WESWOX reserves the right to change design and specifications without prior notice.
