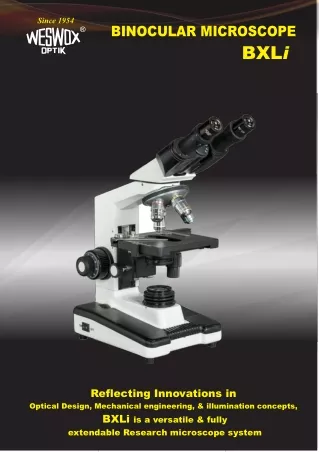

  1. Since 1954 BINOCULAR MICROSCOPE ® BXLi Reflecting Innovations in Optical Design, Mechanical engineering, & illumination concepts, BXLi is a versatile & fully extendable Research microscope system

  2. BINOCULAR MICROSCOPE ® BXLi Technical Specifications : Head : Ergonomic Siedentopf Binocular head inclined at 30º rotatable at 360º. Suitable for eyepieces upto field of view 20mm. Diopter adjustment ring on ocular tube. Interpupillary distance 48-75mm adjustable. Standard ergonomically designed rugged stand for long time comfortable usage. Keowa WF 10x/FOV 18mm (PAIRED) with high point and eye guards offer maximum resolution and high colour fidelity as all of them are A.R. coated and perfectly designed for a FLAT FIELD. Keowa high resolution S-Plan Achromatic objectives, anti-fungus treated 4x NA 0.10, 10x NA 0.25, 40x (Spring Loaded) NA 0.65 100x (Spring Loaded) oil immersion NA 1.25 Dust proof Quadruple nosepiece revolves on ball bearing with rubber grip and positive click stop. Double Layer Mechanical stage size 120mm X 140mm having right sand side low positioned co-axial controls on ball bearing with fine vernier graduation. Spring clip specimen holder Cross movement travelling range : 75mm X 30mm. System Low position Co-axial focusing system with Tension Adjustment Ring provides a soft and sophisticated touch to the microscope. Focusable Abbe Condenser center able NA 1.25 with rack & pinion, aspheric lens, swing out filter holder, Iris Diaphragm with BLUE filter. Built-in-base transmitted illumination system 6V20W Halogen lamp or 3W LED lamp. Universal power supply (AC input 100V-240V, 50/60 Hz) ISO 9001, CE approved. Complete in a STYROFOAM molded box with dust cover, and -other accessories like mirror unit & power cord 1.5m in length. 2 Years. Eyepiece : Objectives : Nosepiece : Mechanical Stage : Focusing : Condenser : Illumination : Power : Packaging : Warranty : The Western Electric & Scientific Works Near B.D. Higher Secondary School, Ambala Cantt-133001 India Distributor/Dealer: Tel : (91) 171 4002952 Ph. : (91) 94664 09560 Emai l: info@weswoxindia.com Weswoxindia.com With a policy of continuous development, WESWOX reserves the right to change design and specifications without prior notice.
