AUTOMATIC POLARIMETER WITH TOUCH SCREEN HLX-201

Weswox Is The Leading Supplier Manufacturer Exporter Of AUTOMATIC POLARIMETER WITH TOUCH SCREEN Based In Ambala India. We Are One Of The Leading Manufacturers And Suppliers Of Centrifuge Machines.

Weswox
Download Presentation

AUTOMATIC POLARIMETER WITH TOUCH SCREEN HLX-201

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

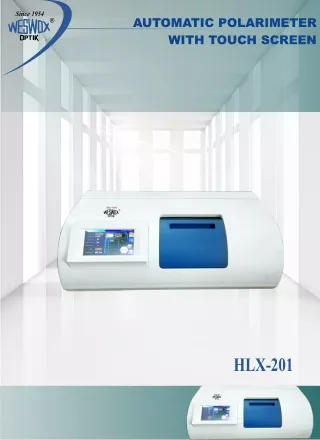

  1. AUTOMATIC POLARIMETER WITH TOUCH SCREEN HLX-201

  2. HLX-201 Discription : Technical Specification : 4 Test modes optical rotation, sugar degree The Automatic touch screen polarimeter HLX-201 provide excellent application modes Without Sacricing accuracy and precision it is an ideal instrument for various application. Light source LED Measurement range 589.44nm Wavelength ±45° (optical rotation) ±120º Z (sugar) Feature : Minimum indicating value 0.001° (optical rotation) 0.01º Z (sugar) Accuracy a). +0.010 (-150 < optical rotation <+150) b). +0.020 (optical rotation<-150 or optical rotation)      Touch Screen Color Display Temperature Display Need not prewarm when turning on. Measuring specic rotation, optical rotation, sugar degree and concentration Automatic repetition-measurement for 6 times, and calculation of average value and means square root Measurement of dark-colored sample USB & RS232 Response Time 3°/sec. Faraday mangneto-optical modulator Polarizer Polarizing lm Digital Polarimeter based on Optical null principle No warm-up time is required when instrument is switched on Insulated Sample chamber to keep sample temp. constant Photodiode Detector Purity method - saccharic concentration Repeatability 0.002º (optical rotation) Display Color Touch Screen Test tube 200mm, 100mm           Sample transmittance > 1% Interface USB & RS232 Operation voltage 220V+ 22V, 50Hz Overall Dimensions 850mm x 500mm x 470mm Weight (Grass) 38kg Software Yes Standard Accessories : 1. Software Kit : RS232 Cable, Software CD 2. Main Lead 3. Fuse 4. Instruction manual Optional Accessories : Sample Tubes 100mm, 200mm The Western Electric & Scientific Works Near B.D. Higher Secondary School, Ambala Cantt-133001 India Distributor/Dealer: Tel : (91) 171 4002952 Ph. : (91) 94664 09560 Weswoxindia.com 22 With a policy of continuous development, WESWOX reserves the right to change design and specifications without prior notice.
