ADVANCE ROTARY MANUAL MICROTOME-armt-1090a

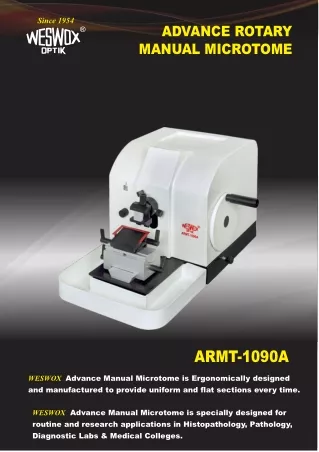

1. Since 1954 ADVANCE ROTARY MANUAL MICROTOME ® ARMT-1090A WESWOX Advance Manual Microtome is Ergonomically designed and manufactured to provide uniform and flat sections every time. WESWOX Advance Manual Microtome is specially designed for routine and research applications in Histopathology, Pathology, Diagnostic Labs & Medical Colleges.

2. ADVANCE MANUAL ROTARY MICROTOME ® For Over 60 years, WESWOX MICROTOMES have been the classic sectioning machine in virtually every medical teaching and research laboratory and it's still unequalled in performance. ARMT-1090a Features :  Robust and stable base plate for maximum stability to the microtome.  Manual Microtome with SSC specimen feed system.  Ergonomic and user friendly design.  Section thickness is selected via a turning control knob and indicated in the small window.  Section waste tray to collect section waste and is easily removable for cleaning purposes.  A mechanical trimming function activated via lever and featuing 10um and 50um trimming thickness.  During the return stroke the specimen is pulled back from the knife by 220um.  High Precision Specimen feed based on Stainless Steel guiderail providing lifelong protection to the instrument.  Advanc and vertical strock mechanism run on cross roller guides with Rust Proof Construction.  JP Series robust disposable blade holder designed to hold either high or low profile disposable blades or both.  Lateral knife adjustment to ensure that the entire width of the blade is used without releasing the blade clamping mechanism.  Large storage capacity on the top of the instrument for easy access of tools.  Finger protection guard to protect the user from any injuries caused due to blade.  Coarse feed function is operated via the coarse feed wheel on the left side of the instrument housing.  Lock-able handwheel at any position allowing change of blade/specimen easier and safer. Standard Accessories :  High Profile Disposable blade packet of 50 no.s.  Dust Cover. ` Section Waste Tray.  Instruction Manual. Technical Specifications :            Certification  Weight  Dimension  Working Height knife edge : Section Thickness Range Setting Values Operating temperature range: +10 c to +40 c Minimum Setting Value Horizontal specimen feed Vertical stroke Specimen Orientation Max. Specimen size Operation : 1 um-60um : 0.5 to 60 um in 1um increments 10 to 20 um in 2 um increments; 20 to 60 um in 5 um increment 0 0 : 0.5um : 25mm : 59mm : x- and y-axes : universal 8 Z-axis: upto 360 : 50x66x30mm. : Manual. : ISO, CE approved : 30kg. : 400x470x295mm 105mm 0 0 The Western Electric & Scientific Works Near B.D. Higher Secondary School, Ambala Cantt-133001 India Distributor/Dealer: 1 :2 0 0 1 5 0 9 Tel : (91) 171 4002952 Ph. : (91) 94664 09560 Emai l: info@weswoxindia.com Weswoxindia.com With a policy of continuous development, WESWOX reserves the right to change design and specifications without prior notice.
