ADVANCE RESEARCH TRINOCULAR MICROSCOPE mp-20

Weswox Is The Leading Supplier Manufacturer Exporter Of WESWOX Advance Research Microscope Based In Ambala India. We Are One Of The Leading Manufacturers And Suppliers Of Centrifuge Machines, Pathological Instruments.

Weswox
Download Presentation

ADVANCE RESEARCH TRINOCULAR MICROSCOPE mp-20

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

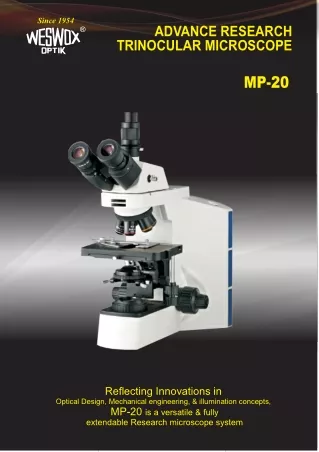

  1. Since 1954 ADVANCE RESEARCH TRINOCULAR MICROSCOPE ® MP-20 Reflecting Innovations in Optical Design, Mechanical engineering, & illumination concepts, MP-20 is a versatile & fully extendable Research microscope system

  2. ADVANCE RESEARCH BINOCULAR MICROSCOPE ® MP-20 Technical Specifications : MECHANICAL BODY : Stage height movement by roller guide (rock & pinion) with Upper limit stopper. Tension adjustable on coarse focus adjustment knob, vertical stage movement 25mm or more per coarse stroke. Vertical stage movement 1 micron or less per Fine stroke. Reversed sextuple revolving nosepiece. Ceramic coated surface mechanical stage with right/left hand Infinity corrected optical system. : Lamp House for LED with connecting cable having life Span of 20000 hrs approximately. : Abbe type, Numerical aperture : 1.25, Built in adjustable aperture iris diaphragm usable for 2x-100X. : Wide field Trinocular Eyepiece tube with 10X eyepiece of 25mm F.O.V. : All DIN type, plan Achromat 2X, 4X, 10X, 20X, 40X, 100X (Oil). : Camera &amp:- Digital Cooled CCD Camera approximately 15MP pixel size 4.65 mm x 4.65mm. with 12 bit digitization, HDMI port. Fire wire port. Software to capture and image processing, Computer System :- is processor, 4GB RAM, 500GB HDD, DVR R/W, TFT 21”, Fluorescence attachment with 6 filters positions, Digital 40” HD LED projection panel, Dual head attachment, The equipment is USA-FDA/European- CE Certified. : Power supply power input to be 220-240V AC. 50 Hz. Fitted with Indian plug. : The microscope is packed inside a STYROFOAM box with Dust Cover. : 2 Years warranty and after that 3years CMC. ILLUMINATION SUB STAGE CONDENSER EYEPIECES OBJECTIVES OPTIONAL ACCESSORIES POWER PACKAGING WARRANTY The Western Electric & Scientific Works Near B.D. Higher Secondary School, Ambala Cantt-133001 India Distributor/Dealer: 1 :2 0 0 1 5 0 9 Tel : (91) 171 4002952 Ph. : (91) 94664 09560 Emai l: info@weswoxindia.com Weswoxindia.com With a policy of continuous development, WESWOX reserves the right to change design and specifications without prior notice.
