ADVANCE RESEARCH MICROSCOPE PRIMA Plus

Weswox Is The Leading Supplier Manufacturer Exporter Of WESWOX ADVANCE RESEARCH BINOCULAR MICROSCOPE Based In Ambala India. We Are One Of The Leading Manufacturers And Suppliers Of Centrifuge Machines, Pathological Instruments.

Weswox
Download Presentation

ADVANCE RESEARCH MICROSCOPE PRIMA Plus

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

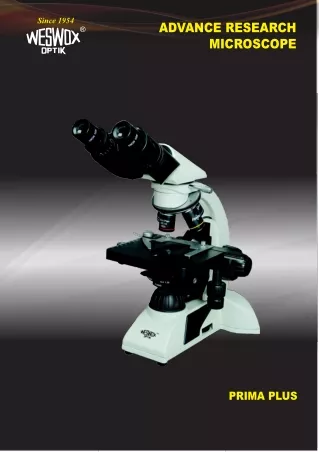

  1. Since 1954 ADVANCE RESEARCH MICROSCOPE ® PRIMA PLUS

  2. ADVANCE RESEARCH MICROSCOPE ® PRIMA PLUS TR PRIMA PLUS Technical Specifications :  Stand : Stable & sturdy C shaped stand with well-contoured modular base, corrosion resistant paint and heat resistant pads. Head : Siedentopf Binocular/Trinocular tube, inclined at 30° rotatable through 360° with IPD 55-75 mm and Dioptric adjustment on both eyepieces. Anti fungus treated, anti-reflection coated prism, compensating. Eyepiece : Eyepiece WF 10x FN 18 paired with eye guards. Nosepiece : Low friction & fully parafocal Quadruple Revolving inward facing nosepiece (Ball Bearing type). Objective : KEOWA VA series All New High Definition DIN Plan Achromatic, anti fungus treated parafocal objectives: PLAN ACHROMAT 4x PLAN ACHROMAT 10x PLAN ACHROMAT 40x(SL) PLAN ACHROMAT 100x (SL, Oil)/1.25 Stage : Double layer graduated hard coated mechanical rectangular stage size 142 x 133mm cross travel 75 (X) x 50 (Y) mm on ball bearing with right hand co-axial low drive controls & spring clip double specimen holder. Focusing : Ergonomic low position co-axial coarse and fine focusing system on ball bearing guideways. Tension adjustment ring provided. Upper limit stopper to prevent the specimen in high magnification observation. Condenser : Moveable ABBE Condenser, NA 1.25 with aspheric lens. IRIS DIAPHRAGM focusable with rack & pinion. Filter : Special day light blue filter in holder. Illumination : Illumination, long life LED lamp with variable illumination control. Power : Input 220V, 50/60 Hz or 110v AC as per ISO 9001 & CE standards & International Build Quality. Packaging Content : The microscope is packed inside a STYROFOAM box with Dust Cover, Styrofoam molded box. The Western Electric & Scientific Works Near B.D. Higher Secondary School, Ambala Cantt-133001 India Distributor/Dealer: 1 :2 0 0 1 5 0 9 Tel : (91) 171 4002952 Ph. : (91) 94664 09560 Emai l: info@weswoxindia.com Weswoxindia.com With a policy of continuous development, WESWOX reserves the right to change design and specifications without prior notice.
