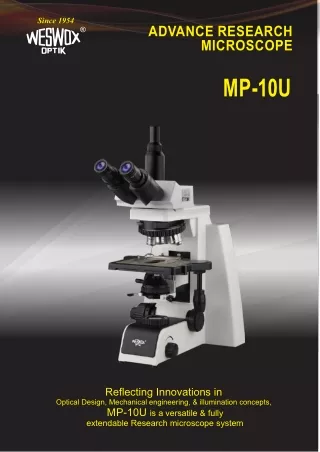

  1. Since 1954 ADVANCE RESEARCH MICROSCOPE ® MP-10U ® Reflecting Innovations in Optical Design, Mechanical engineering, & illumination concepts, MP-10U is a versatile & fully extendable Research microscope system

  2. ADVANCE RESEARCH MICROSCOPE ® MP-10U ® Technical Specifications : Optical System : Infinity corrected optical system Obsevation Head : Sidentopf Trinocular observation head inclined at 30° rotatable at 360°. Vertical phototube for micro photography. Diopter adjustment ring on ocular tube. (±5) Interpupillary distance from 50mm to 75mm Eyepiece : WF 10x eyepiece of 22mm F.O.V, anti-fungus treated. Nosepiece : Reverse angle sextuple nosepiece revolving on ball bearings. Objective : Infinity Corrected anti mold, anti-fungus treated: CCIS Plan Achromatic 2X N.A 0.06 CCIS Plan Achromatic 4X N.A 0.15 CCIS Plan Achromatic 10X N.A 0.25 CCIS Plan Achromatic 40X (S.L.) N.A 0.65 CCIS Plan Achromatic 100X Oil (S.L.) N.A 1.25 Mechanical Stage : Ceramic coated low drive Rackless Mechanical stage size 187mm x 167mm & having low positioned co-axial controls on ball bearing guide ways. Double specimen holder on left side for two slides. Condenser : Swing out abbe condenser N.A. 0.9/1.25, filter holder and iris diaphragm for objcctives (2X- 100x). Focusing : Co-axial focusing control with large knob, pre-focusing lever & tension adjustment ring. Fine div 0.001mm, coarse stroke 37.7mm per rotation, Fine stroke 1micron/rotation .Moving range 25mm. Illumination : Koehler's illumination system with LED with life of 20000 Hrs. Aspherical collector. Brightness control knob. Universal Power Supply 100 V to 240 V,AC 50-60 Hertz, CE Compliant. Sub Stage Condenser : Swing out front lens, abbe condenser N.A. 0.9/1.25, filter holder and iris diaphragm. Standard Accessories : Dust cover, blue filter, guarantee card operating manual and Styrofoam molded pack. OptionalAccessories : Upgradeable to Fluorescence Attachment at least 6 filter position on a turret at a time. Branded computer system with i7 processor, 8b ram, 1tb HDD, DVD R/R 21 inch, genuine window 10. Certifications : European CE certified. Warranty : Two Years and One Year on electronics. Extended warranty can be given on specific requirements. The Western Electric & Scientific Works Near B.D. Higher Secondary School, Ambala Cantt-133001 India Distributor/Dealer: 1 :2 0 0 1 5 0 9 Tel : (91) 171 4002952 Ph. : (91) 94664 09560 Emai l: info@weswoxindia.com Weswoxindia.com With a policy of continuous development, WESWOX reserves the right to change design and specifications without prior notice.

  3. Since 1954 Since 1954 CCD CAMERA CCD CAMERA ® ® CCD-5000 CCD-5000 Technical Specifications : Technical Specifications : 0.5X REDUCTION LENS Camera Sensor Image Sensor: 1/1.8” Interline Sony ICX252 5 megapixel color CCD Cooling: Peltier cooled -30o below ambient. Frame Rate: 5fps at 2048X1536 B/W resolutions. Signal/Noise >72dB Digital Output 8 and 16-bit Read Noise 12 e- rms Power Requirement USB bus power, Operating Temperature 0° C to +60° C Operating Humidity 5%-100%, Non-condensing Integration Time 1/1000 sec to 12 min Auto Exposure Automatic / Manual White Balance Automatic / Manual Gain Programmable Interface Connector Standard USB 2.0 high-speed interface § § § § § § § § § § § § § § § The Western Electric & Scientific Works Near B.D. Higher Secondary School, Ambala Cantt-133001 India Distributor/Dealer: :2 1 0 0 1 5 0 9 Tel : (91) 171 4002952 Ph. : (91) 94664 09560 Emai l: info@weswoxindia.com Weswoxindia.com With a policy of continuous development, WESWOX reserves the right to change design and specifications without prior notice.
