ADVANCE RESEARCH BINOCULAR MICROSCOPE PRIMA

Weswox Is The Leading Supplier Manufacturer Exporter Of WESWOX ADVANCE RESEARCH BINOCULAR MICROSCOPE Based In Ambala India. We Are One Of The Leading Manufacturers And Suppliers Of Centrifuge Machines, Pathological Instruments.<br>

Weswox
Download Presentation

ADVANCE RESEARCH BINOCULAR MICROSCOPE PRIMA

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

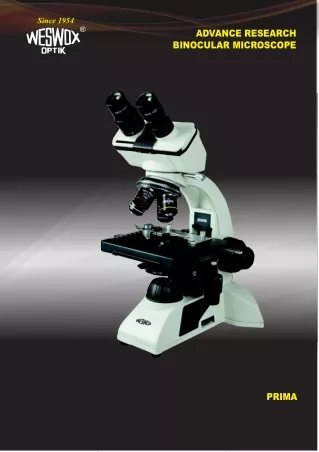

  1. Since 1954 ® ADVANCE RESEARCH BINOCULAR MICROSCOPE PRIMA

  2. ADVANCE RESEARCH BINOCULAR MICROSCOPE ® PRIMA Technical Specifications :  STAND : Stable & sturdy C shaped stand with well-contoured modular base, corrosion resistant paint and heat resistant pads.  VIEWING HEAD : Standardized Binocular tube, inclined at 45° rotatable through 360° with IPD 55-75 mm and Dioptric adjustment. Anti fungus treated.  EYEPIECES : Eyepiece WF 10x FN 18mm paired with eye guards.  NOSEPIECE : Low friction & fully parafocal Quadruple Revolving nosepiece (Ball Bearing type).  OBJECTIVES : KEOWA VA series All New High Definition DIN S-plan Achromatic, anti fungus treated objectives:4x/0.10, 10x/0.25, 40x(SL)/0.65, 100x(SL, Oil)/1.25.  STAGE : Double layer graduated mechanical rectangular stage size 142 x 133mm cross travel 75 (X) x 50 (Y) mm on ball bearing co-axial controls spring clip specimen holder.  FOCUSING MODULE : Ergonomic low position co-axial coarse and fine focusing system on ball bearing guideways. Tension adjustment ring and Auto Focus provided.  CONDENSER : Moveable rack & pinion mounted ABBE Condenser, NA 1.25 with aspheric lens.  IRIS DIAPHRAGM : Special day light blue filter in holder.  ILLUMINATION : Illumination, 6V 20W Halogen or 3W LED Lamp illumination with variable illumination control  POWER : Power Input 220V, 50/60 Hz or 110v AC as per ISO 9001 & CE standards.  PACKAGING CONTENTS : The microscope is packed inside a STYROFOAM with Dust Cover no. user instruction manual. The Western Electric & Scientific Works Near B.D. Higher Secondary School, Ambala Cantt-133001 India Distributor/Dealer: :2 1 0 0 1 5 0 9 Tel : (91) 171 4002952 Ph. : (91) 94664 09560 Emai l: info@weswoxindia.com Weswoxindia.com With a policy of continuous development, WESWOX reserves the right to change design and specifications without prior notice.
