Presentation Transcript

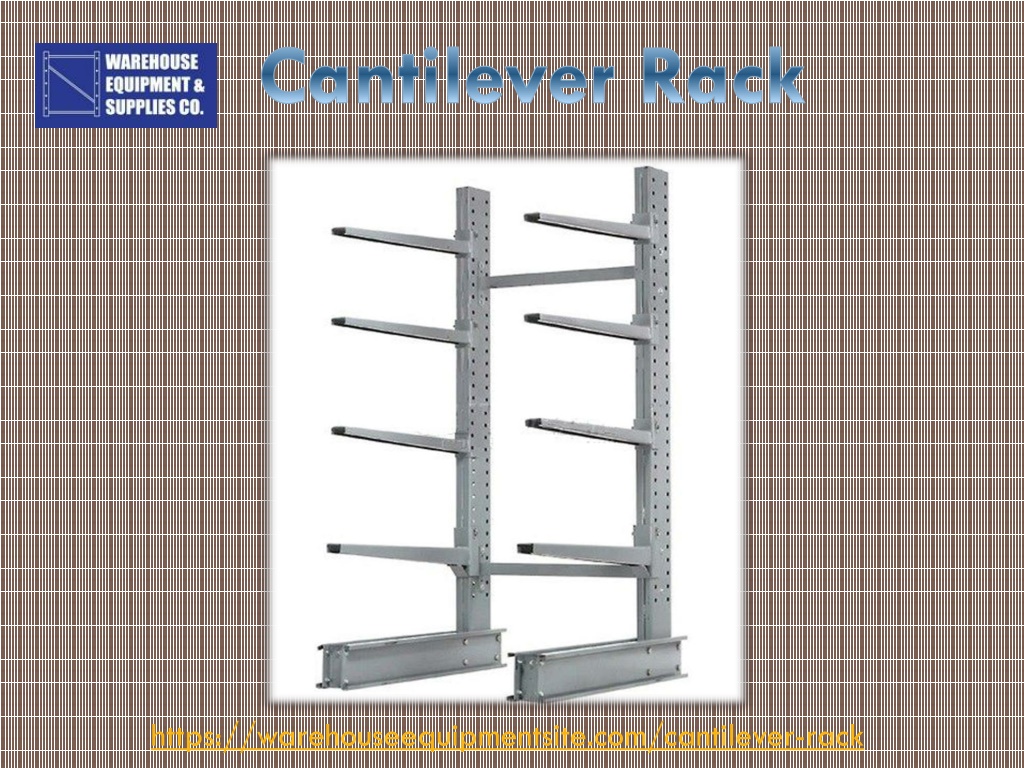

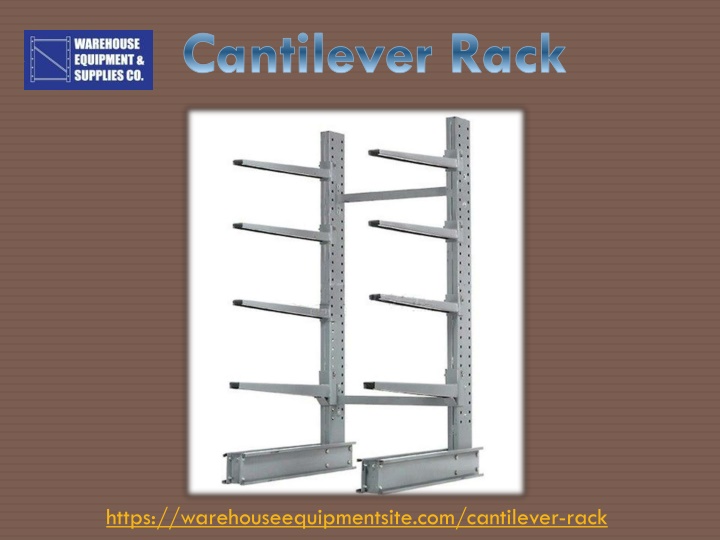

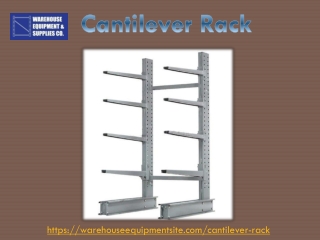

  1. Cantilever Rack https://warehouseequipmentsite.com/cantilever-rack

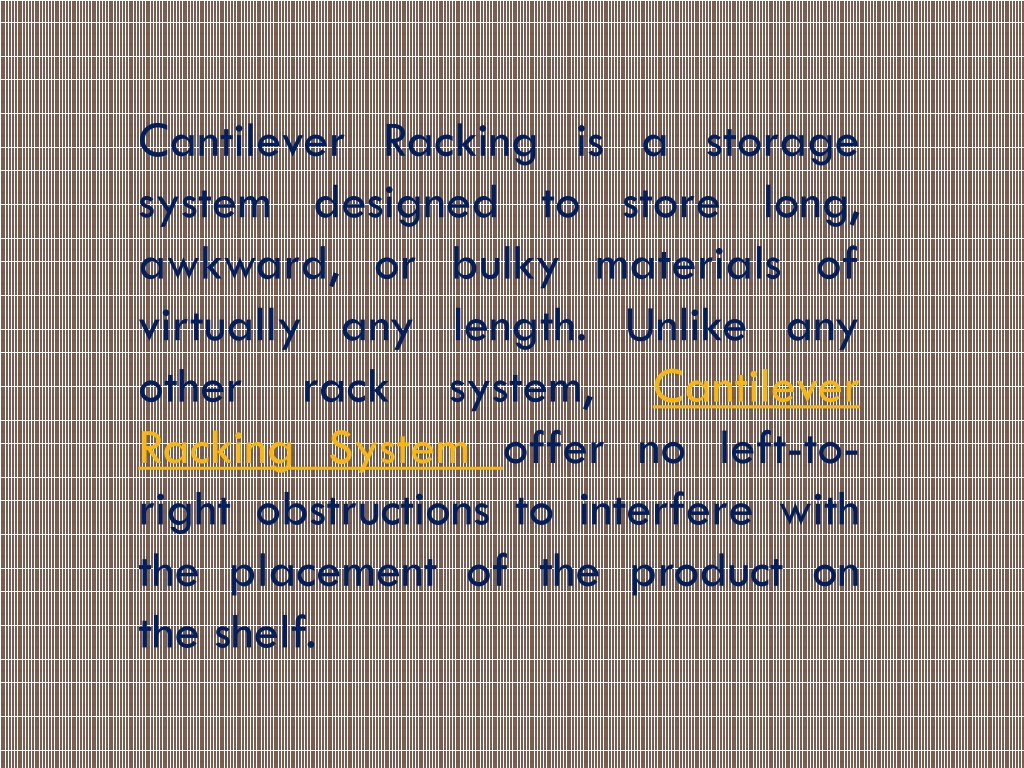

  2. Cantilever Rackingis a storage system designed to store long, awkward, or bulky materials of virtually any length. Unlike any other rack system, Cantilever Racking System offer no left-to-right obstructions to interfere with the placement of the product on the shelf.

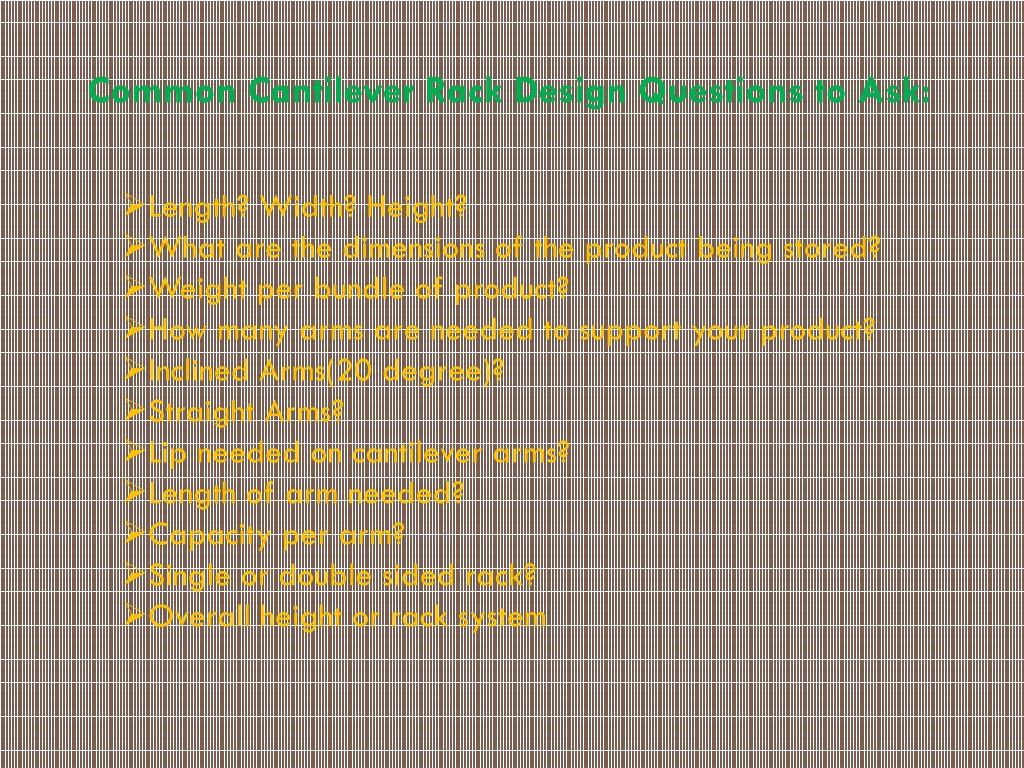

  3. Common Cantilever Rack Design Questions to Ask: • Length? Width? Height? • What are the dimensions of the product being stored? • Weight per bundle of product? • How many arms are needed to support your product? • Inclined Arms(20 degree)? • Straight Arms? • Lip needed on cantilever arms? • Length of arm needed? • Capacity per arm? • Single or double sided rack? • Overall height or rack system

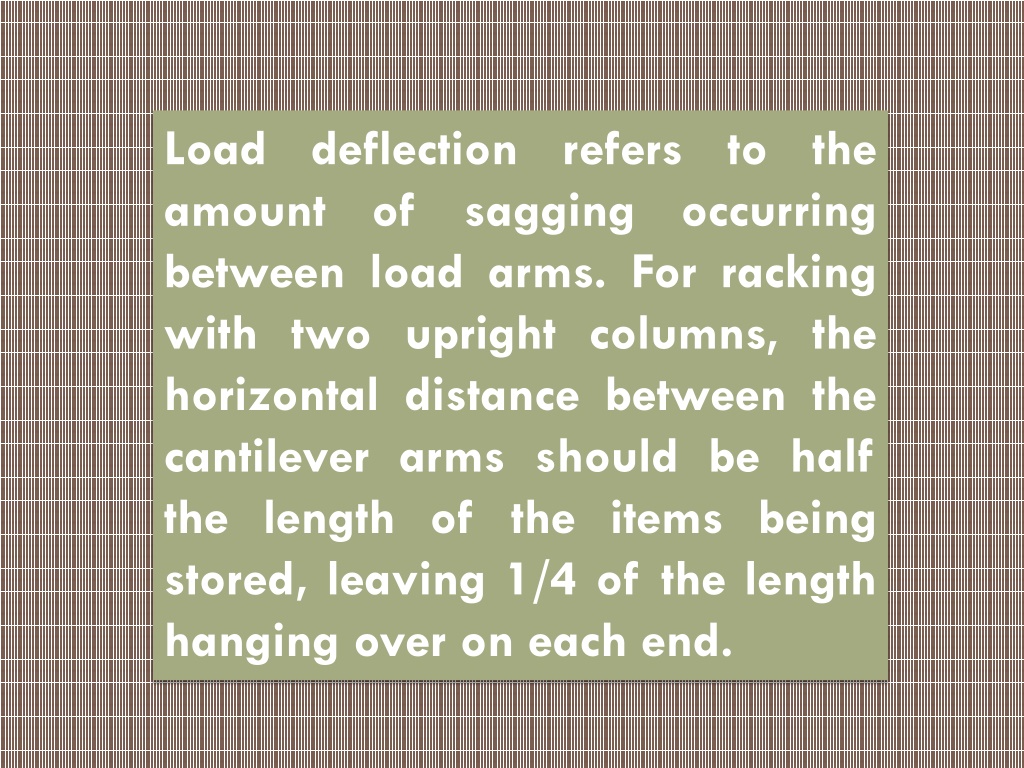

  4. Load deflection refers to the amount of sagging occurring between load arms. For racking with two upright columns, the horizontal distance between the cantilever arms should be half the length of the items being stored, leaving 1/4 of the length hanging over on each end.

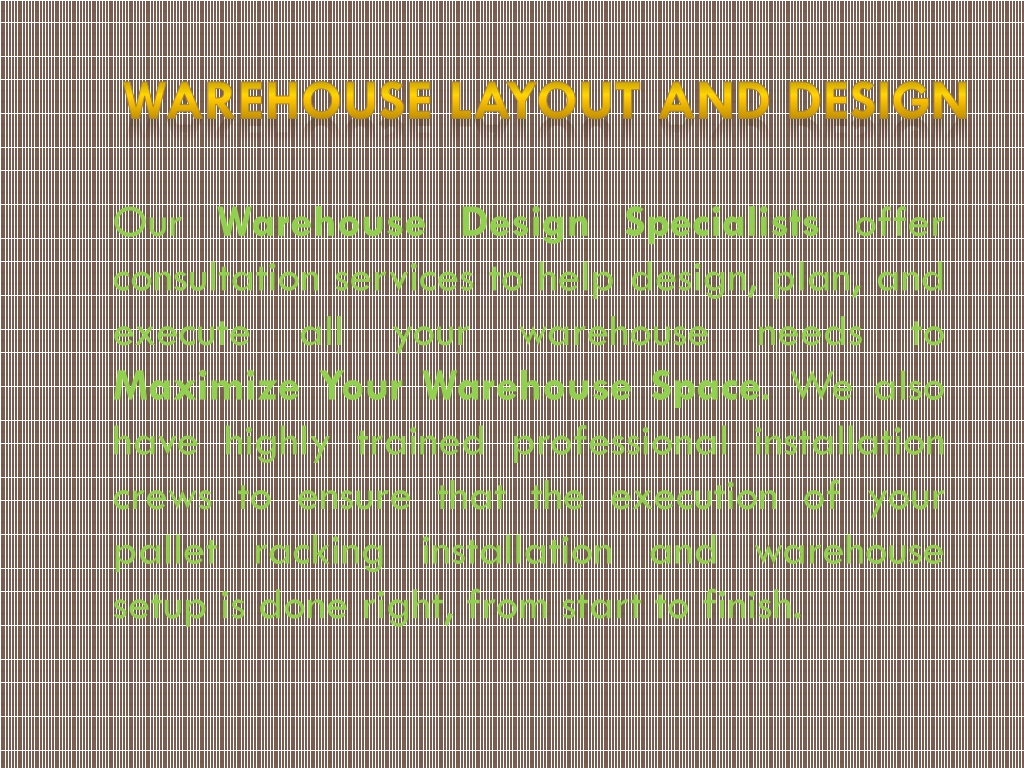

  5. Warehouse Layout and Design Our Warehouse Design Specialists offer consultation services to help design, plan, and execute all your warehouse needs to Maximize Your Warehouse Space. We also have highly trained professional installation crews to ensure that the execution of your pallet racking installation and warehouse setup is done right, from start to finish.
