What are the Types of Industrial Couplings

Couplings are essential for connecting rotating shafts in machinery. Chain couplings use roller chains for heavy-duty applications, while disc couplings employ flexible discs to handle misalignment in high-speed setups. Encoder couplings connect rotary encoders to shafts for precise signal transmission. Flexible couplings manage slight misalignment and absorb shocks, suitable for various machines. Gear couplings handle high torque and are used in heavy industries. Grid couplings absorb shock and vibration in high-torque settings. Pin bush couplings dampen vibrations with rubber bushes.

Vinod71
Download Presentation

What are the Types of Industrial Couplings

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

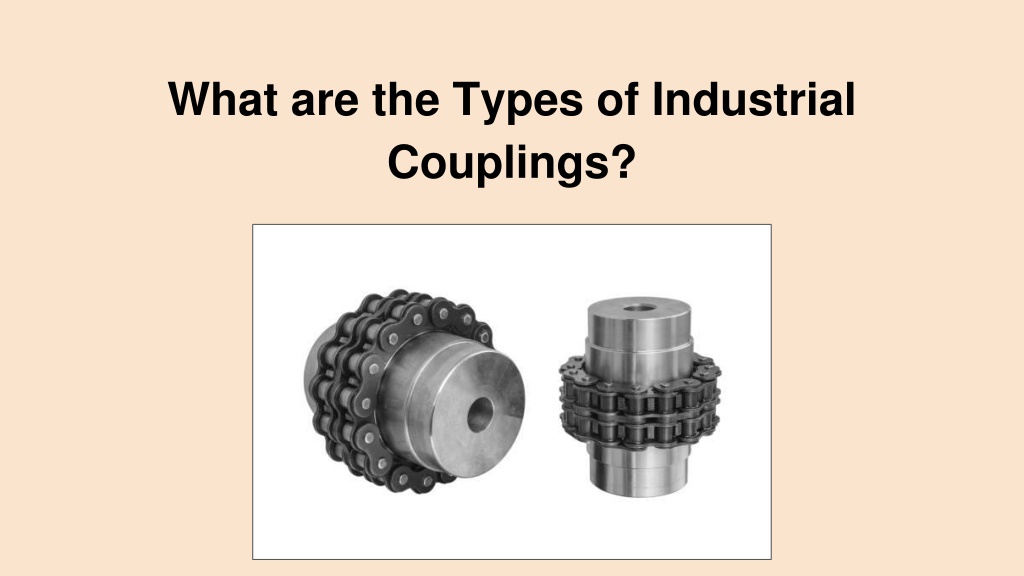

  1. What are the Types of Industrial Couplings?

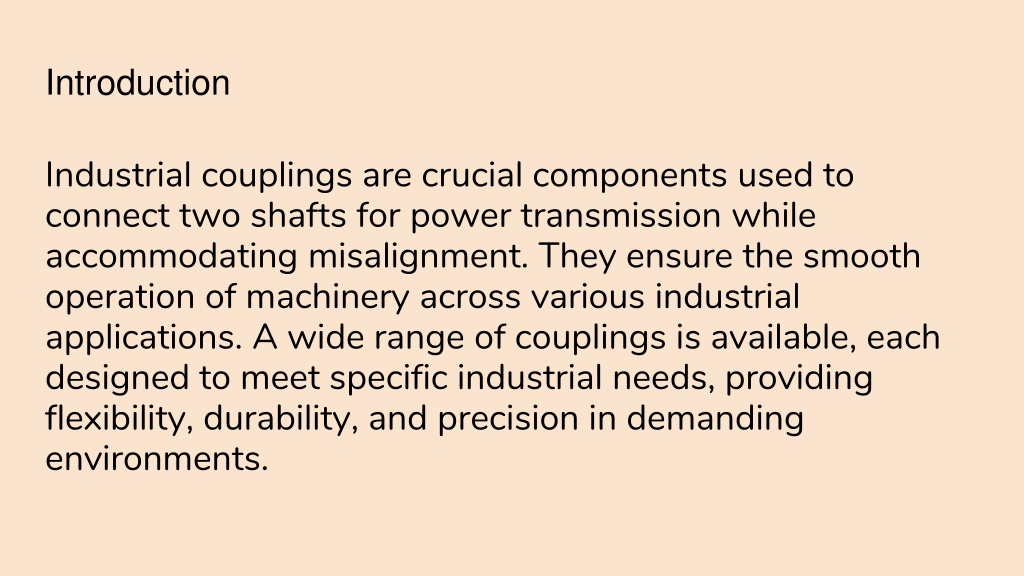

  2. Introduction Industrial couplings are crucial components used to connect two shafts for power transmission while accommodating misalignment. They ensure the smooth operation of machinery across various industrial applications. A wide range of couplings is available, each designed to meet specific industrial needs, providing flexibility, durability, and precision in demanding environments.

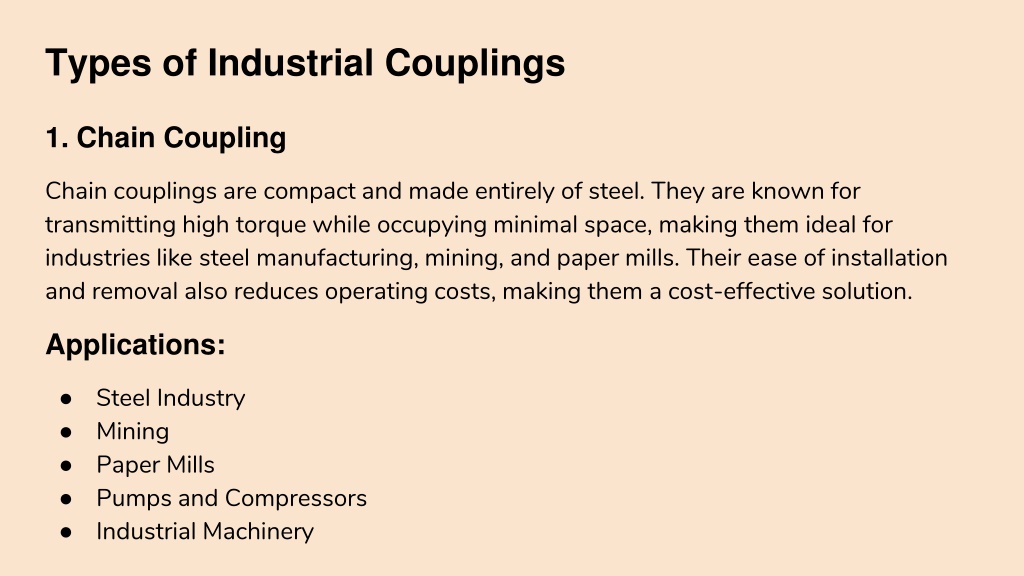

  3. Types of Industrial Couplings 1. Chain Coupling Chain couplings are compact and made entirely of steel. They are known for transmitting high torque while occupying minimal space, making them ideal for industries like steel manufacturing, mining, and paper mills. Their ease of installation and removal also reduces operating costs, making them a cost-effective solution. Applications: • Steel Industry • Mining • Paper Mills • Pumps and Compressors • Industrial Machinery

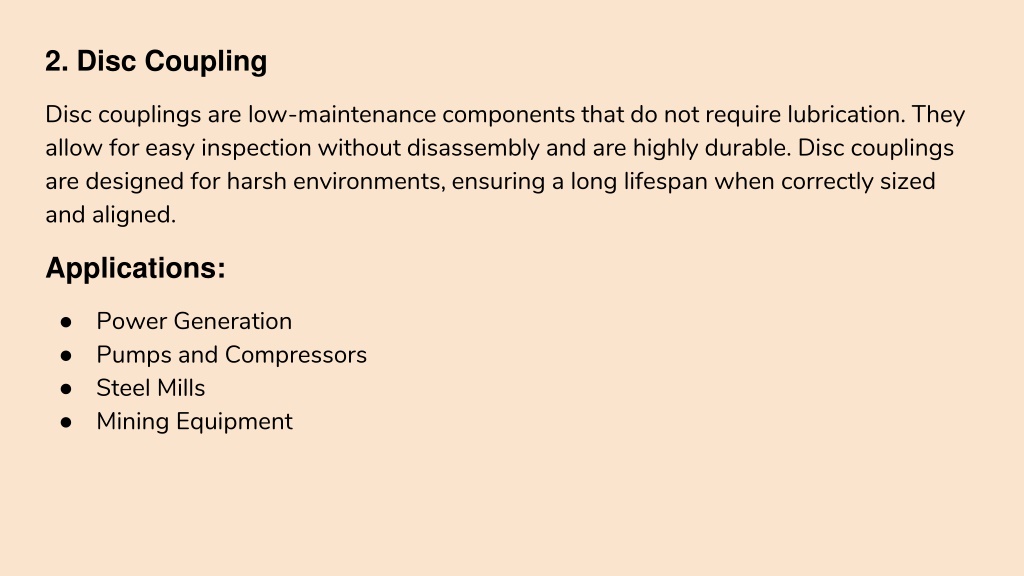

  4. 2. Disc Coupling Disc couplings are low-maintenance components that do not require lubrication. They allow for easy inspection without disassembly and are highly durable. Disc couplings are designed for harsh environments, ensuring a long lifespan when correctly sized and aligned. Applications: • Power Generation • Pumps and Compressors • Steel Mills • Mining Equipment

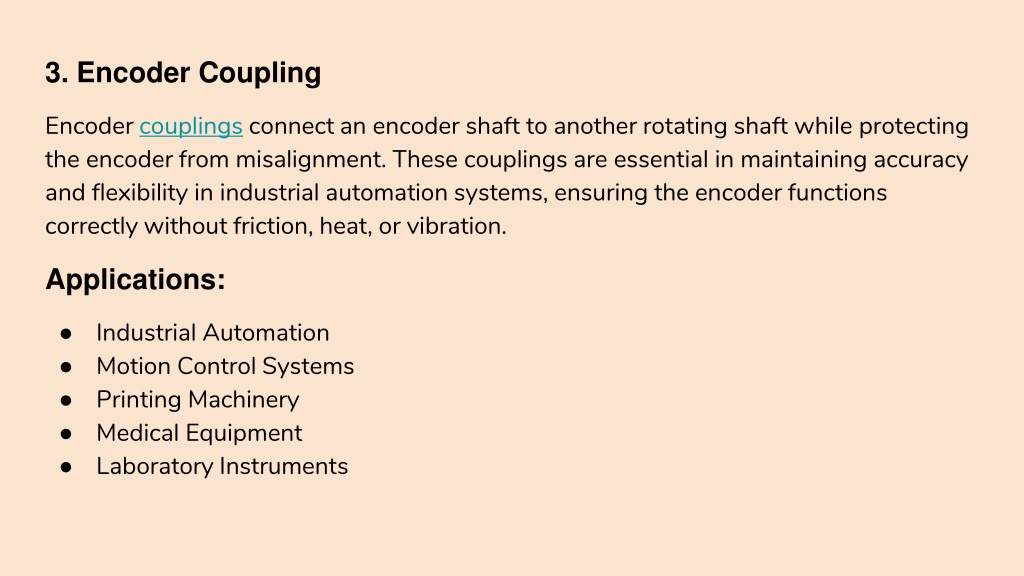

  5. 3. Encoder Coupling Encoder couplings connect an encoder shaft to another rotating shaft while protecting the encoder from misalignment. These couplings are essential in maintaining accuracy and flexibility in industrial automation systems, ensuring the encoder functions correctly without friction, heat, or vibration. Applications: • Industrial Automation • Motion Control Systems • Printing Machinery • Medical Equipment • Laboratory Instruments

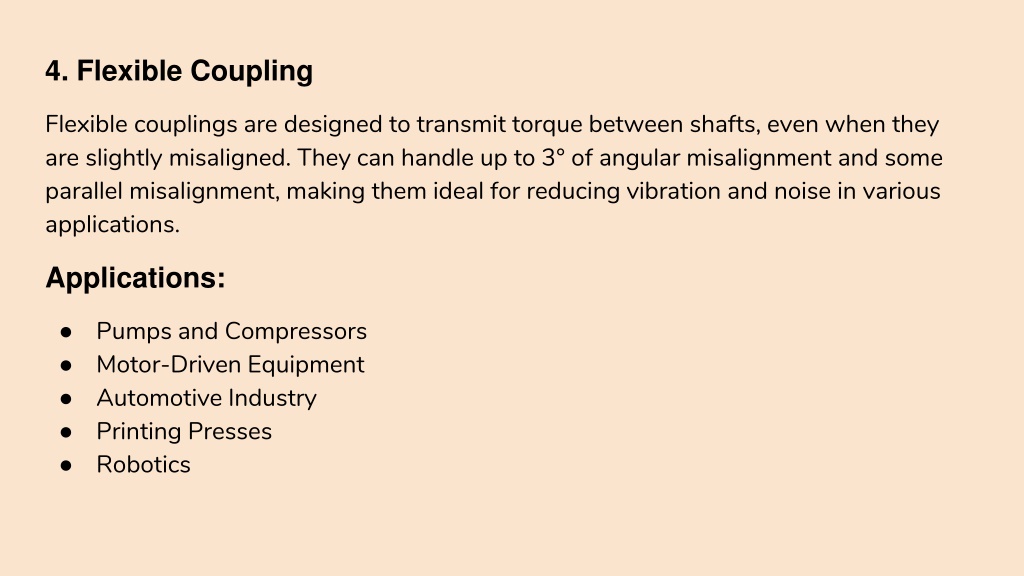

  6. 4. Flexible Coupling Flexible couplings are designed to transmit torque between shafts, even when they are slightly misaligned. They can handle up to 3° of angular misalignment and some parallel misalignment, making them ideal for reducing vibration and noise in various applications. Applications: • Pumps and Compressors • Motor-Driven Equipment • Automotive Industry • Printing Presses • Robotics

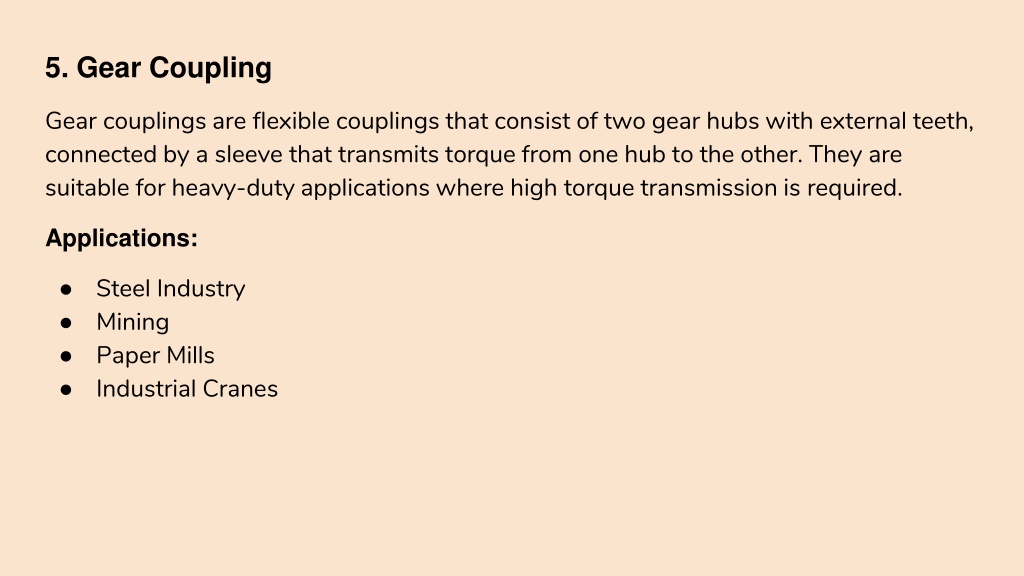

  7. 5. Gear Coupling Gear couplings are flexible couplings that consist of two gear hubs with external teeth, connected by a sleeve that transmits torque from one hub to the other. They are suitable for heavy-duty applications where high torque transmission is required. Applications: • Steel Industry • Mining • Paper Mills • Industrial Cranes

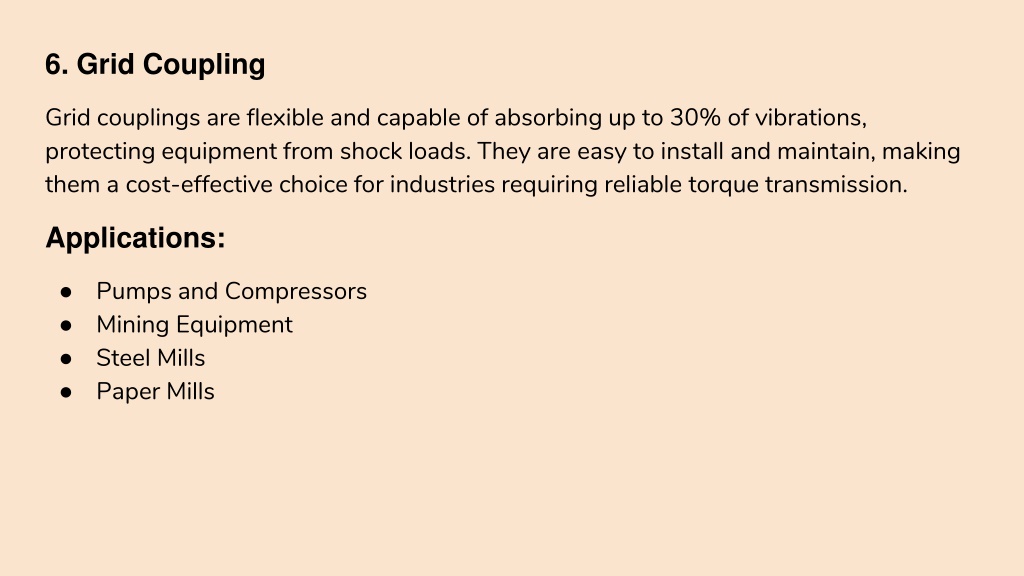

  8. 6. Grid Coupling Grid couplings are flexible and capable of absorbing up to 30% of vibrations, protecting equipment from shock loads. They are easy to install and maintain, making them a cost-effective choice for industries requiring reliable torque transmission. Applications: • Pumps and Compressors • Mining Equipment • Steel Mills • Paper Mills

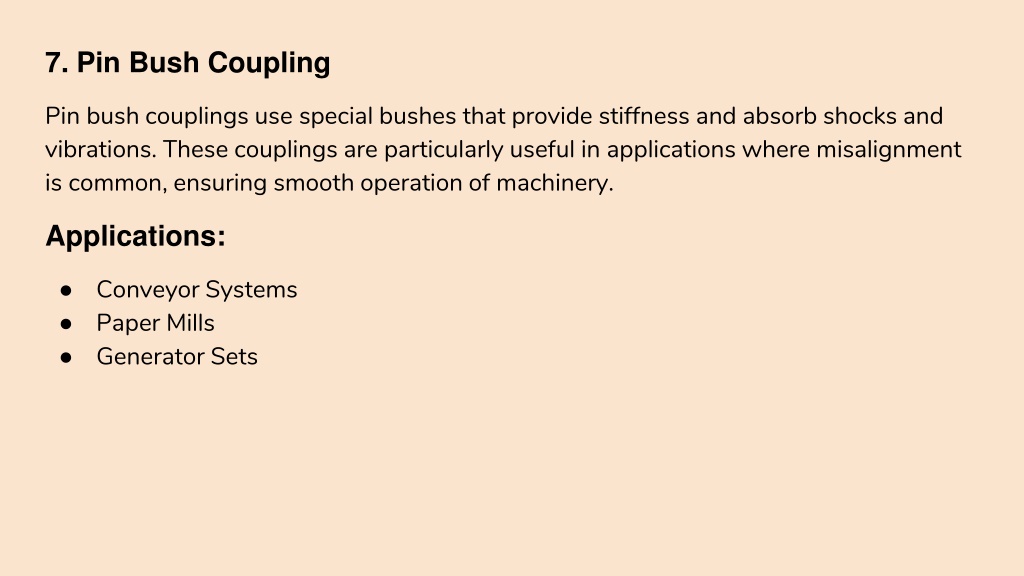

  9. 7. Pin Bush Coupling Pin bush couplings use special bushes that provide stiffness and absorb shocks and vibrations. These couplings are particularly useful in applications where misalignment is common, ensuring smooth operation of machinery. Applications: • Conveyor Systems • Paper Mills • Generator Sets

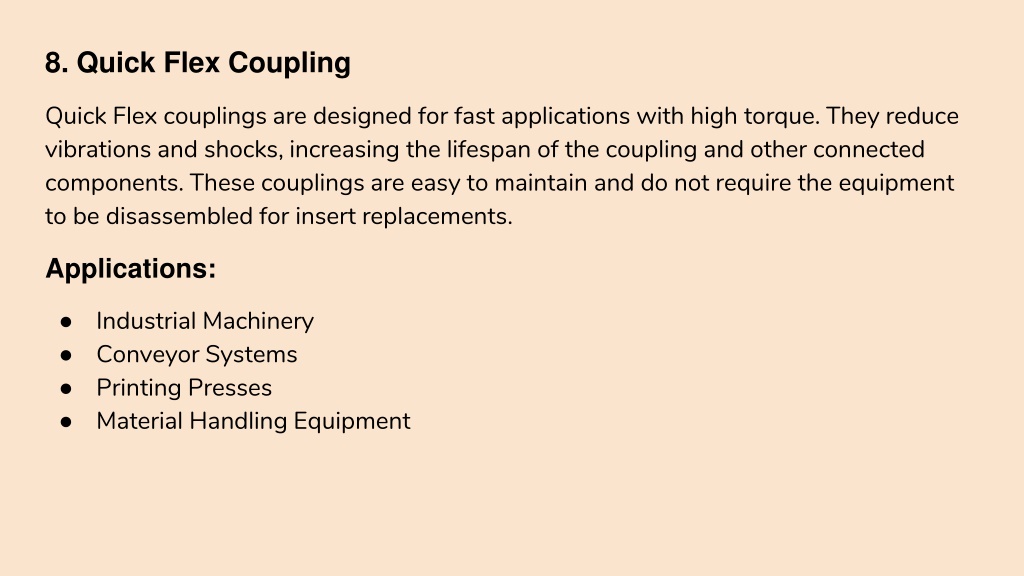

  10. 8. Quick Flex Coupling Quick Flex couplings are designed for fast applications with high torque. They reduce vibrations and shocks, increasing the lifespan of the coupling and other connected components. These couplings are easy to maintain and do not require the equipment to be disassembled for insert replacements. Applications: • Industrial Machinery • Conveyor Systems • Printing Presses • Material Handling Equipment

  11. 9. Tyre Coupling Tyre couplings are flexible and can handle angular, parallel, and axial misalignments. They are made of a rubber element that provides excellent shock absorption and vibration damping, ensuring smooth power transmission. Applications: • Industrial Fans • Conveyor Systems • Power Projects • Petrochemical Plants

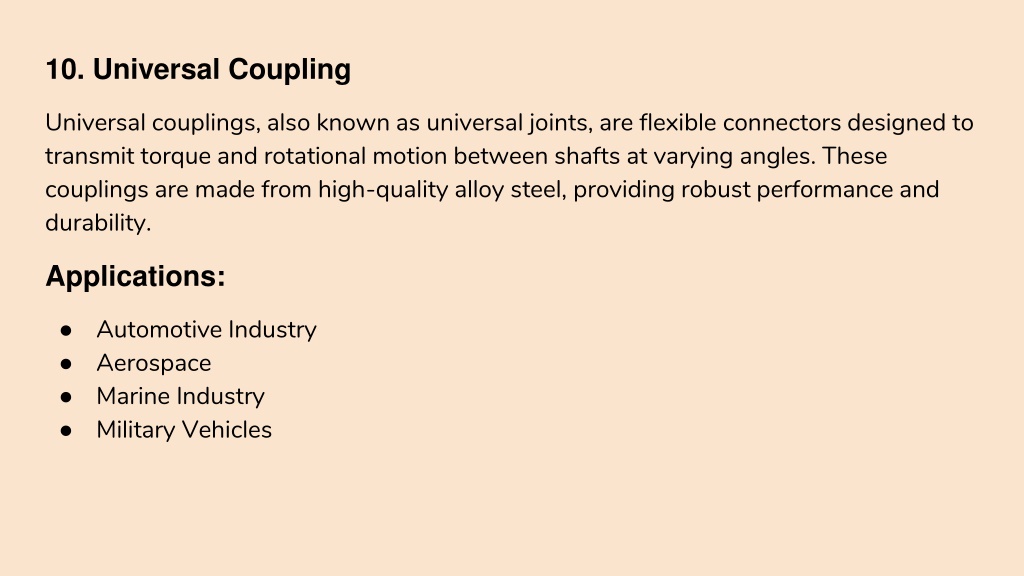

  12. 10. Universal Coupling Universal couplings, also known as universal joints, are flexible connectors designed to transmit torque and rotational motion between shafts at varying angles. These couplings are made from high-quality alloy steel, providing robust performance and durability. Applications: • Automotive Industry • Aerospace • Marine Industry • Military Vehicles

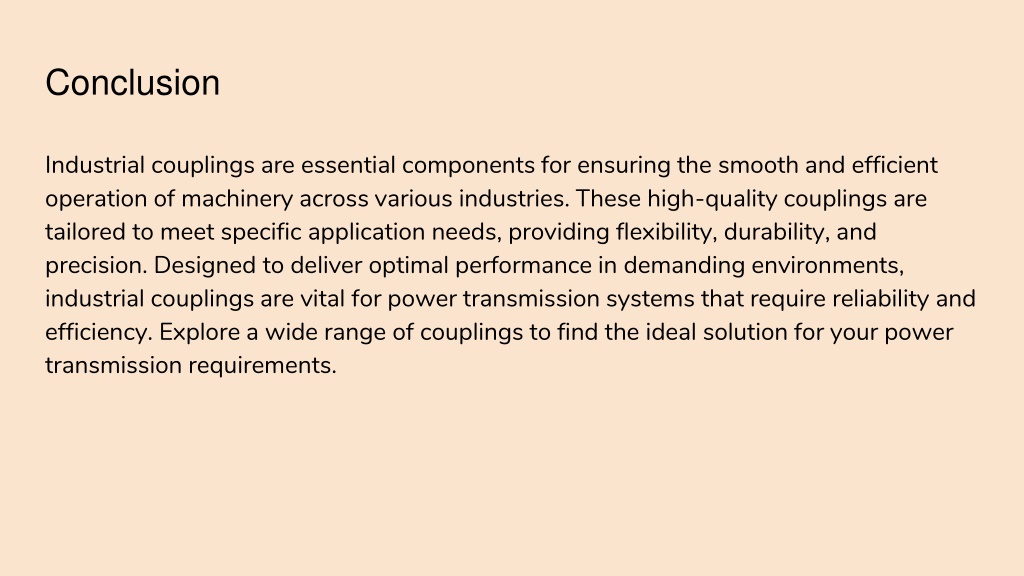

  13. Conclusion Industrial couplings are essential components for ensuring the smooth and efficient operation of machinery across various industries. These high-quality couplings are tailored to meet specific application needs, providing flexibility, durability, and precision. Designed to deliver optimal performance in demanding environments, industrial couplings are vital for power transmission systems that require reliability and efficiency. Explore a wide range of couplings to find the ideal solution for your power transmission requirements.
