5 Common Specifications Of Rectangular Copper Wire

Prior to purchasing rectangular copper wires, buyers need to check the product specifications carefully. Here are some key wire specifications to consider.<br>

Vidya2
Download Presentation

5 Common Specifications Of Rectangular Copper Wire

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. 5 Common Specifications Of Rectangular Copper Wire Vidya Wires Pvt Ltd Best Copper Wire Manufacturer in India

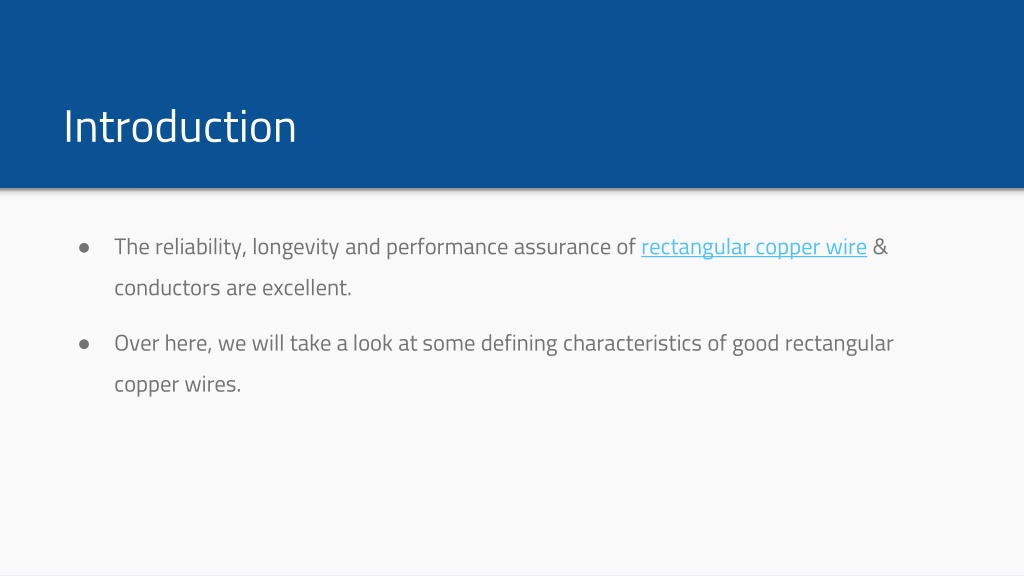

  2. Introduction • The reliability, longevity and performance assurance of rectangular copper wire & conductors are excellent. • Over here, we will take a look at some defining characteristics of good rectangular copper wires.

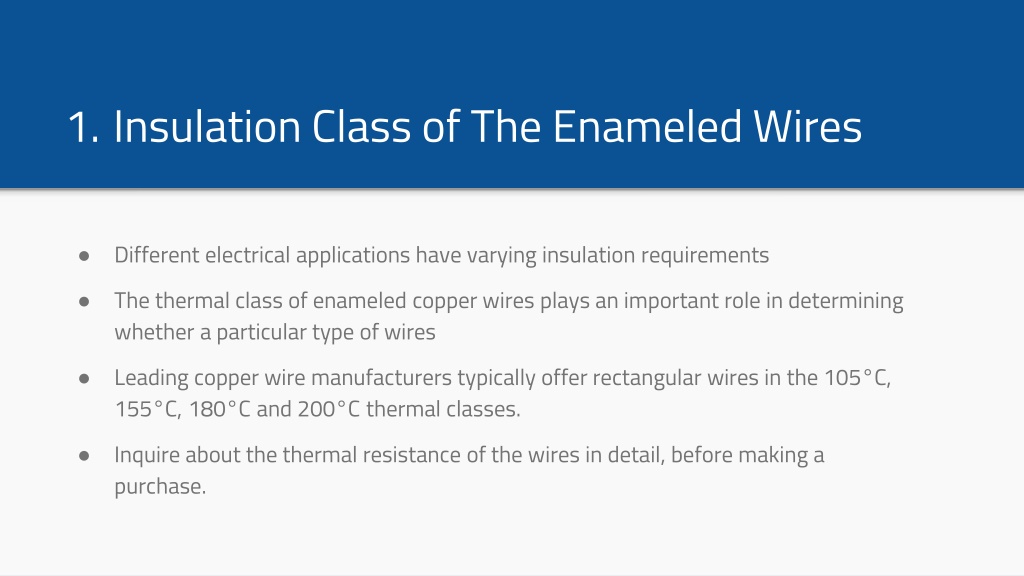

  3. Insulation Class of The Enameled Wires • Different electrical applications have varying insulation requirements • The thermal class of enameled copper wires plays an important role in determining whether a particular type of wires • Leading copper wire manufacturers typically offer rectangular wires in the 105°C, 155°C, 180°C and 200°C thermal classes. • Inquire about the thermal resistance of the wires in detail, before making a purchase.

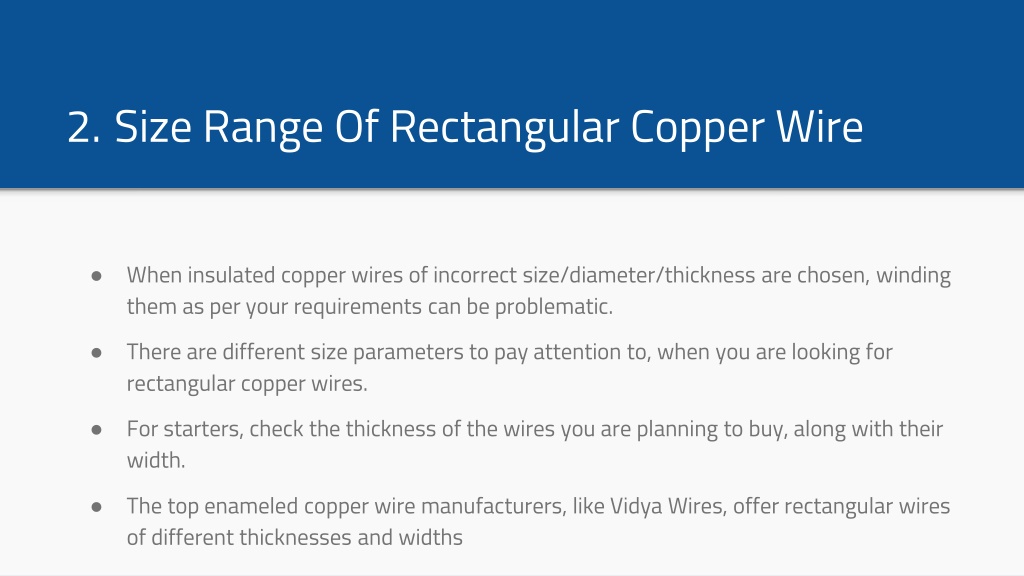

  4. Size Range Of Rectangular Copper Wire • When insulated copper wires of incorrect size/diameter/thickness are chosen, winding them as per your requirements can be problematic. • There are different size parameters to pay attention to, when you are looking for rectangular copper wires. • For starters, check the thickness of the wires you are planning to buy, along with their width. • The top enameled copper wire manufacturers, like Vidya Wires, offer rectangular wires of different thicknesses and widths

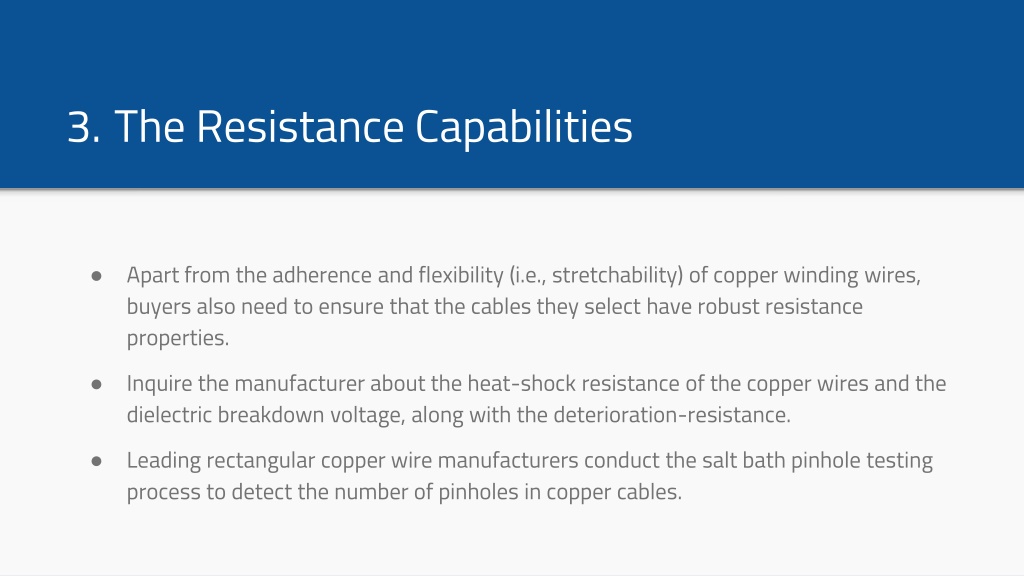

  5. The Resistance Capabilities • Apart from the adherence and flexibility (i.e., stretchability) of copper winding wires, buyers also need to ensure that the cables they select have robust resistance properties. • Inquire the manufacturer about the heat-shock resistance of the copper wires and the dielectric breakdown voltage, along with the deterioration-resistance. • Leading rectangular copper wire manufacturers conduct the salt bath pinhole testing process to detect the number of pinholes in copper cables.

  6. Mechanical Strength & Durability • Good-quality rectangular copper cables are typically annealed and electrolytically refined (to remove existing impurities from the metal). • Easy solderability, superior adhesion strength, and bondable coating also feature among the key specifications of the best winding wires. • Buyers also have to consider the grade of the enamel covering in the copper wires they select (fine or medium).

  7. Surface Coating, Hardness & Quality Of Manufacturing • The smoothness of the surface coating of enameled wires is an important indicator of their quality. • Selection of quality-assured rectangular copper wire, conductors and strips is key for optimising the performance of electrical motors and extending their service life. • Buyers need to carefully check the specifications of the enameled wires & cables they are planning to purchase • Make a shortlist of the top enameled copper wire suppliers, check their portfolio, inquire about product quality thoroughly, and then make an informed choice.

  8. Vidya Wires offer with best enameled copper wire that adhere to the latest quality parameters - and are ideal for delivering customised solutions.

  9. Thanks! Contact us: VIDYA WIRES PVT LTD. 8/1-2 GIDC MAIN ROAD ,Vithal Udyognagar,Vallabh Vidyanagar -388121,Dist.Anand –Gujarat,INDIA Email: inquiry@vidyawire.com
