Dew Point Transmitter

An industrial dew point meter is a measurement tool used to determine the dew point temperature of compressed air or gas. The dew point temperature is simply the temperature at which the water vapor present in the compressed air or gas undergoes condensation. Excess moisture in compressed air or gas chambers can cause a lot of complications in various pneumatic equipment. Dew point measurement instruments play a major role in keeping moisture-sensitive equipment safe.<br><br>From pharmaceutical to petrochemical processes, dry air streams are vital in several industrial applications.

Vasthi2
Download Presentation

Dew Point Transmitter

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

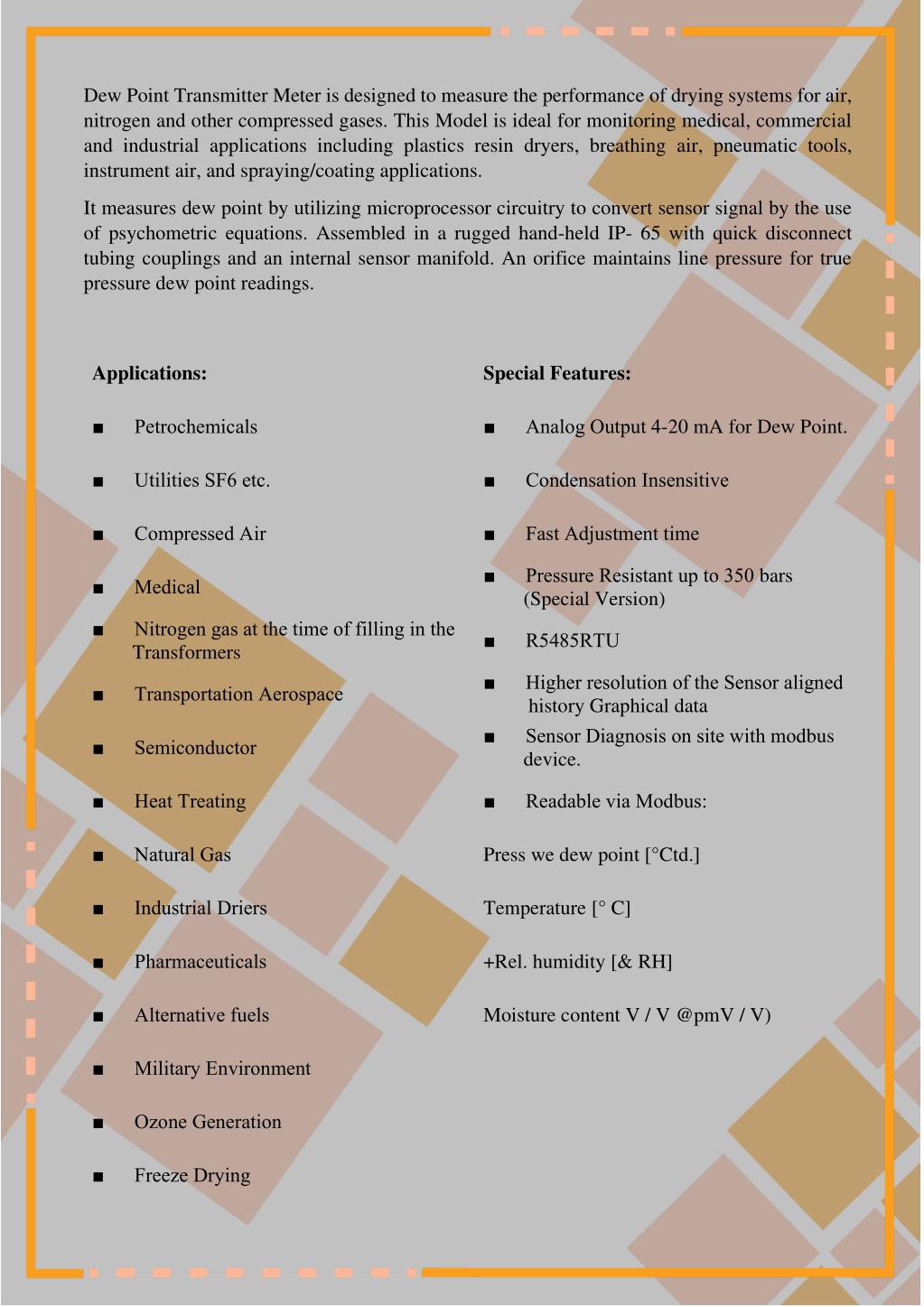

  1. Dew Point Transmitter Meter is designed to measure the performance of drying systems for air, nitrogen and other compressed gases. This Model is ideal for monitoring medical, commercial and industrial applications including plastics resin dryers, breathing air, pneumatic tools, instrument air, and spraying/coating applications. It measures dew point by utilizing microprocessor circuitry to convert sensor signal by the use of psychometric equations. Assembled in a rugged hand-held IP- 65 with quick disconnect tubing couplings and an internal sensor manifold. An orifice maintains line pressure for true pressure dew point readings. Applications: Special Features: ■ Petrochemicals ■ Analog Output 4-20 mA for Dew Point. ■ Utilities SF6 etc. ■ Condensation Insensitive ■ Compressed Air ■ Fast Adjustment time ■ Pressure Resistant up to 350 bars (Special Version) ■ Medical ■ Nitrogen gas at the time of filling in the Transformers ■ R5485RTU ■ Higher resolution of the Sensor aligned history Graphical data ■ Sensor Diagnosis on site with modbus device. ■ Transportation Aerospace ■ Semiconductor ■ Heat Treating ■ Readable via Modbus: ■ Natural Gas Press we dew point [°Ctd.] ■ Industrial Driers Temperature [° C] ■ Pharmaceuticals +Rel. humidity [& RH] ■ Alternative fuels Moisture content V / V @pmV / V) ■ Military Environment ■ Ozone Generation ■ Freeze Drying

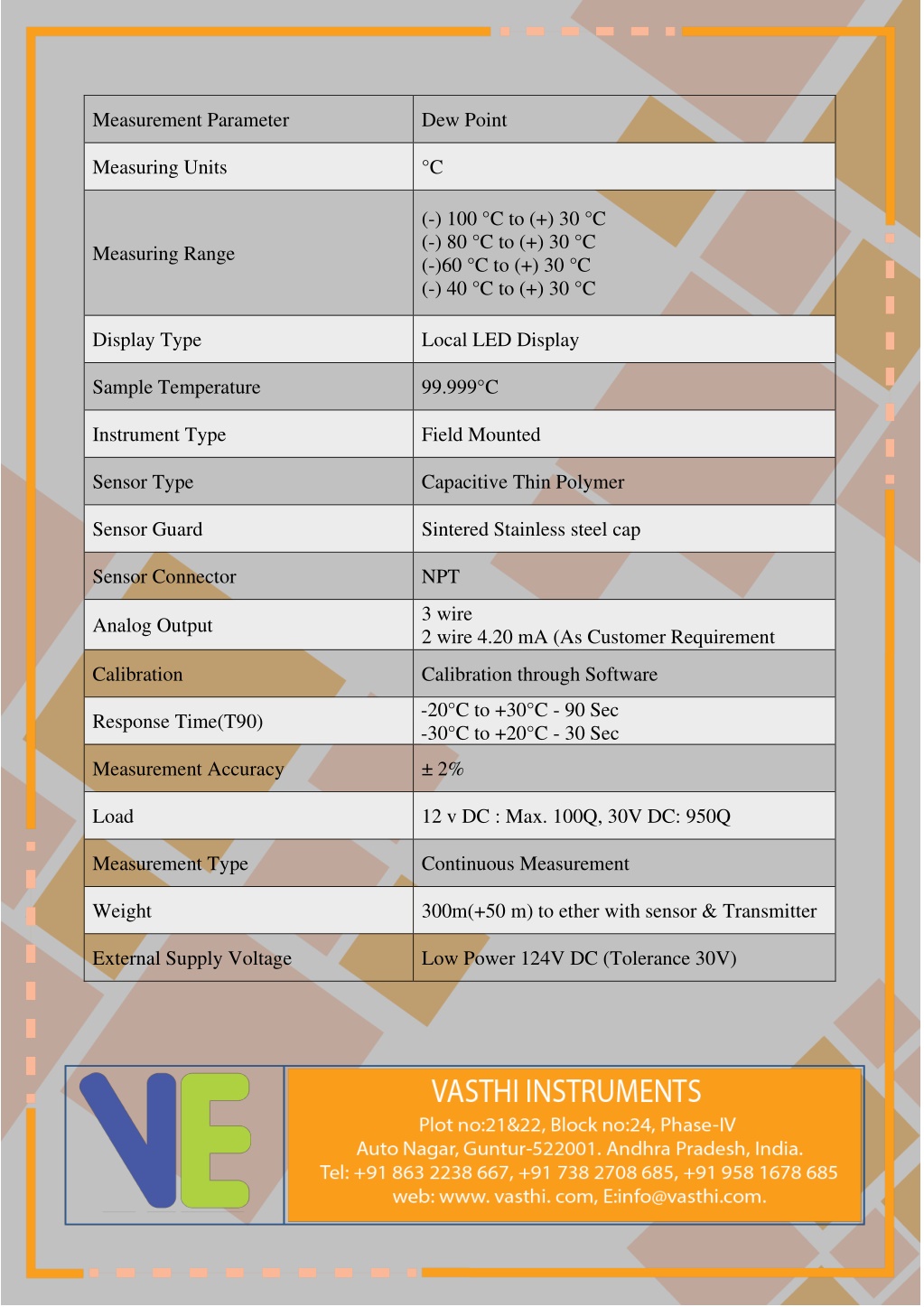

  2. Measurement Parameter Dew Point Measuring Units °C (-) 100 °C to (+) 30 °C (-) 80 °C to (+) 30 °C (-)60 °C to (+) 30 °C (-) 40 °C to (+) 30 °C Measuring Range Display Type Local LED Display Sample Temperature 99.999°C Instrument Type Field Mounted Sensor Type Capacitive Thin Polymer Sensor Guard Sintered Stainless steel cap Sensor Connector NPT 3 wire 2 wire 4.20 mA (As Customer Requirement Analog Output Calibration Calibration through Software -20°C to +30°C -30°C to +20°C - - 90 Sec 30 Sec Response Time(T90) Measurement Accuracy ± 2% Load 12 v DC : Max. 100Q, 30V DC: 950Q Measurement Type Continuous Measurement Weight 300m(+50 m) to ether with sensor & Transmitter External Supply Voltage Low Power 124V DC (Tolerance 30V)
