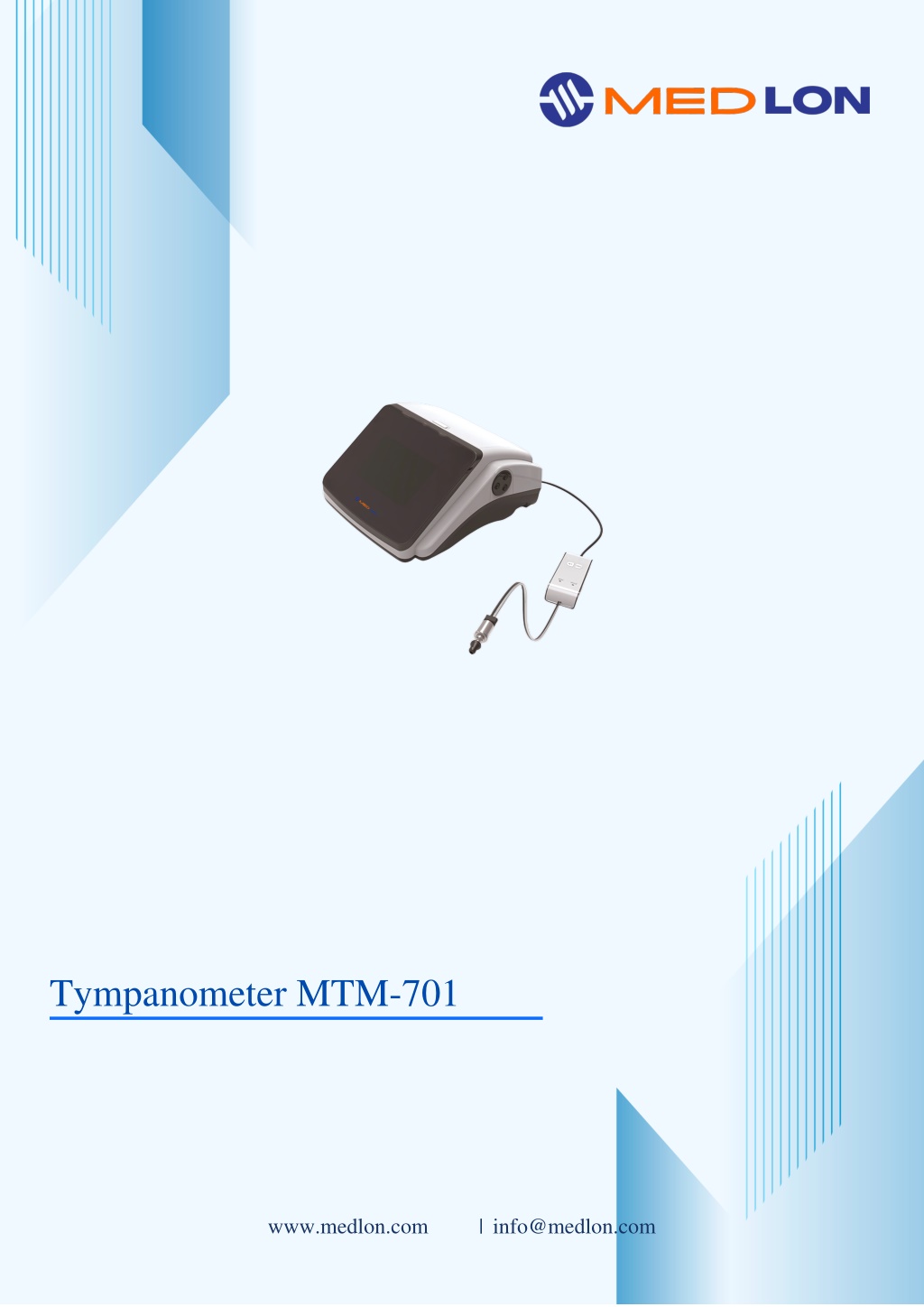

  1. Tympanometer MTM-701 www.medlon.com | info@medlon.com

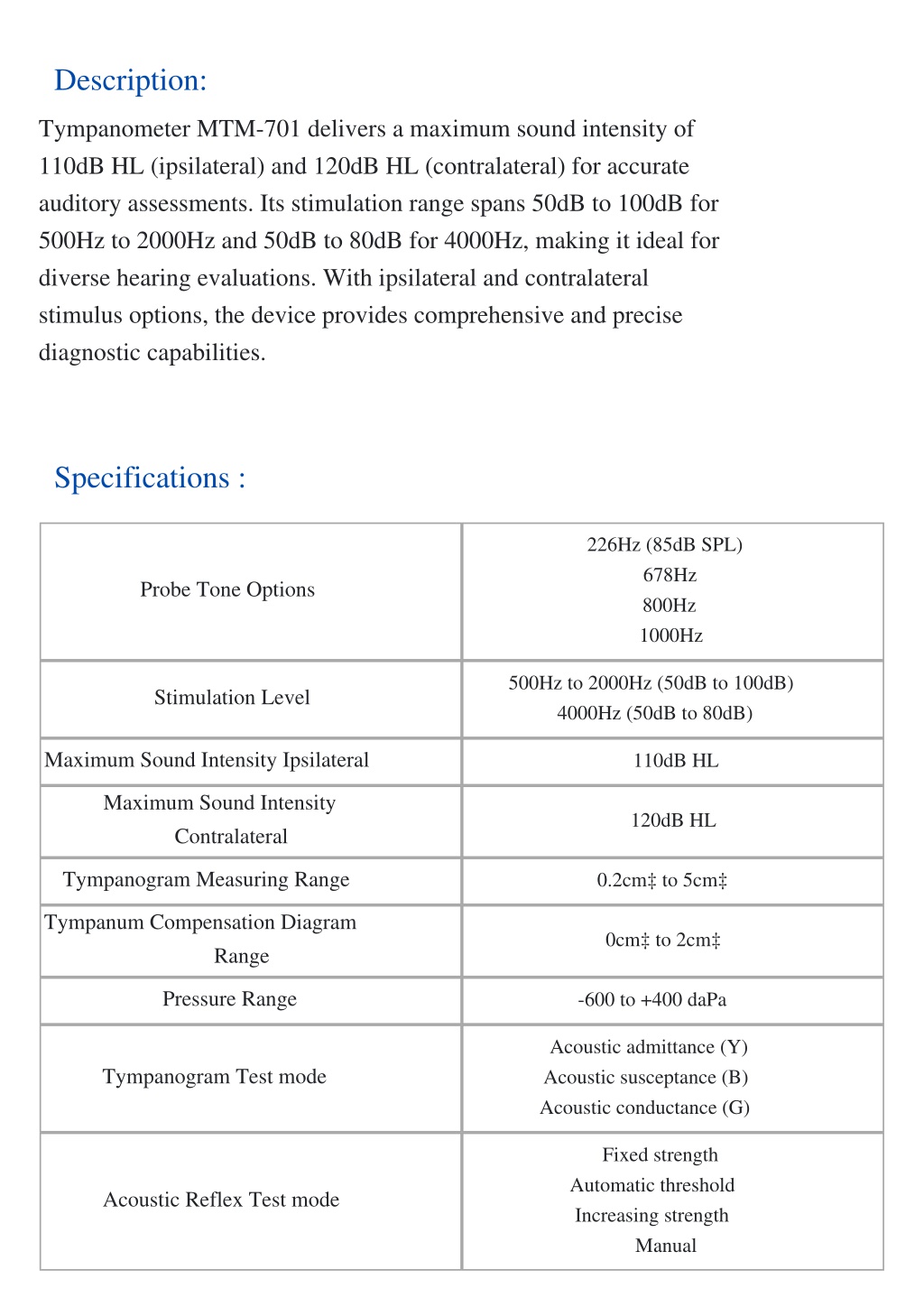

  2. Description: Tympanometer MTM-701 delivers a maximum sound intensity of 110dB HL (ipsilateral) and 120dB HL (contralateral) for accurate auditory assessments. Its stimulation range spans 50dB to 100dB for 500Hz to 2000Hz and 50dB to 80dB for 4000Hz, making it ideal for diverse hearing evaluations. With ipsilateral and contralateral stimulus options, the device provides comprehensive and precise diagnostic capabilities. Specifications : 226Hz (85dB SPL) 678Hz 800Hz 1000Hz Probe Tone Options 500Hz to 2000Hz (50dB to 100dB) 4000Hz (50dB to 80dB) Stimulation Level Maximum Sound Intensity Ipsilateral 110dB HL Maximum Sound Intensity Contralateral 120dB HL Tympanogram Measuring Range 0.2cm‡ to 5cm‡ Tympanum Compensation Diagram 0cm‡ to 2cm‡ Range Pressure Range -600 to +400 daPa Acoustic admittance (Y) Acoustic susceptance (B) Acoustic conductance (G) Tympanogram Test mode Fixed strength Automatic threshold Increasing strength Manual Acoustic Reflex Test mode

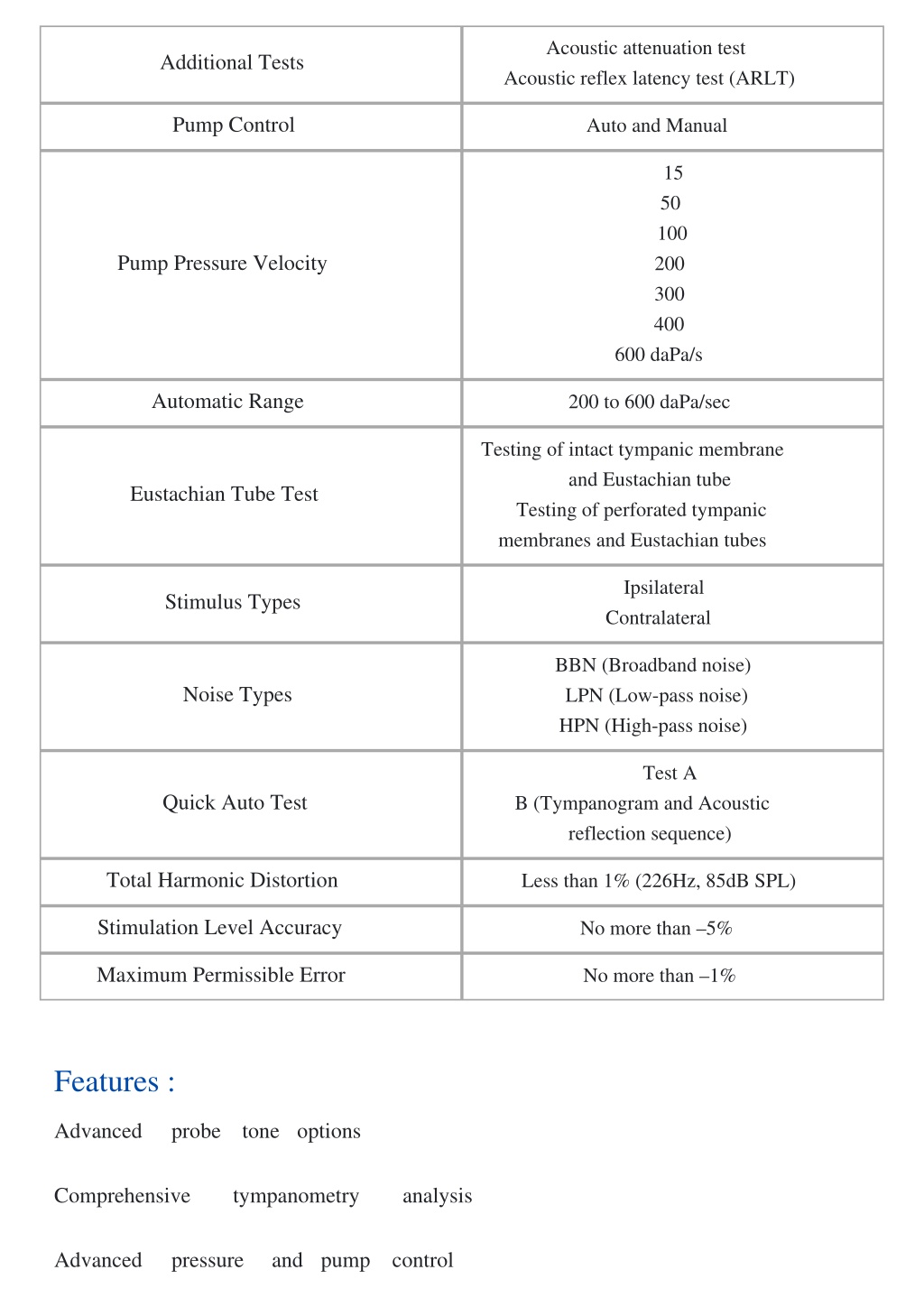

  3. Acoustic attenuation test Acoustic reflex latency test (ARLT) Additional Tests Pump Control Auto and Manual 15 50 100 200 300 400 Pump Pressure Velocity 600 daPa/s Automatic Range 200 to 600 daPa/sec Testing of intact tympanic membrane and Eustachian tube Testing of perforated tympanic membranes and Eustachian tubes Eustachian Tube Test Ipsilateral Contralateral Stimulus Types BBN (Broadband noise) LPN (Low-pass noise) HPN (High-pass noise) Noise Types Test A Quick Auto Test B (Tympanogram and Acoustic reflection sequence) Total Harmonic Distortion Less than 1% (226Hz, 85dB SPL) Stimulation Level Accuracy No more than –5% Maximum Permissible Error No more than –1% Features : Advanced probe tone options Comprehensive tympanometry analysis Advanced pressure and pump control

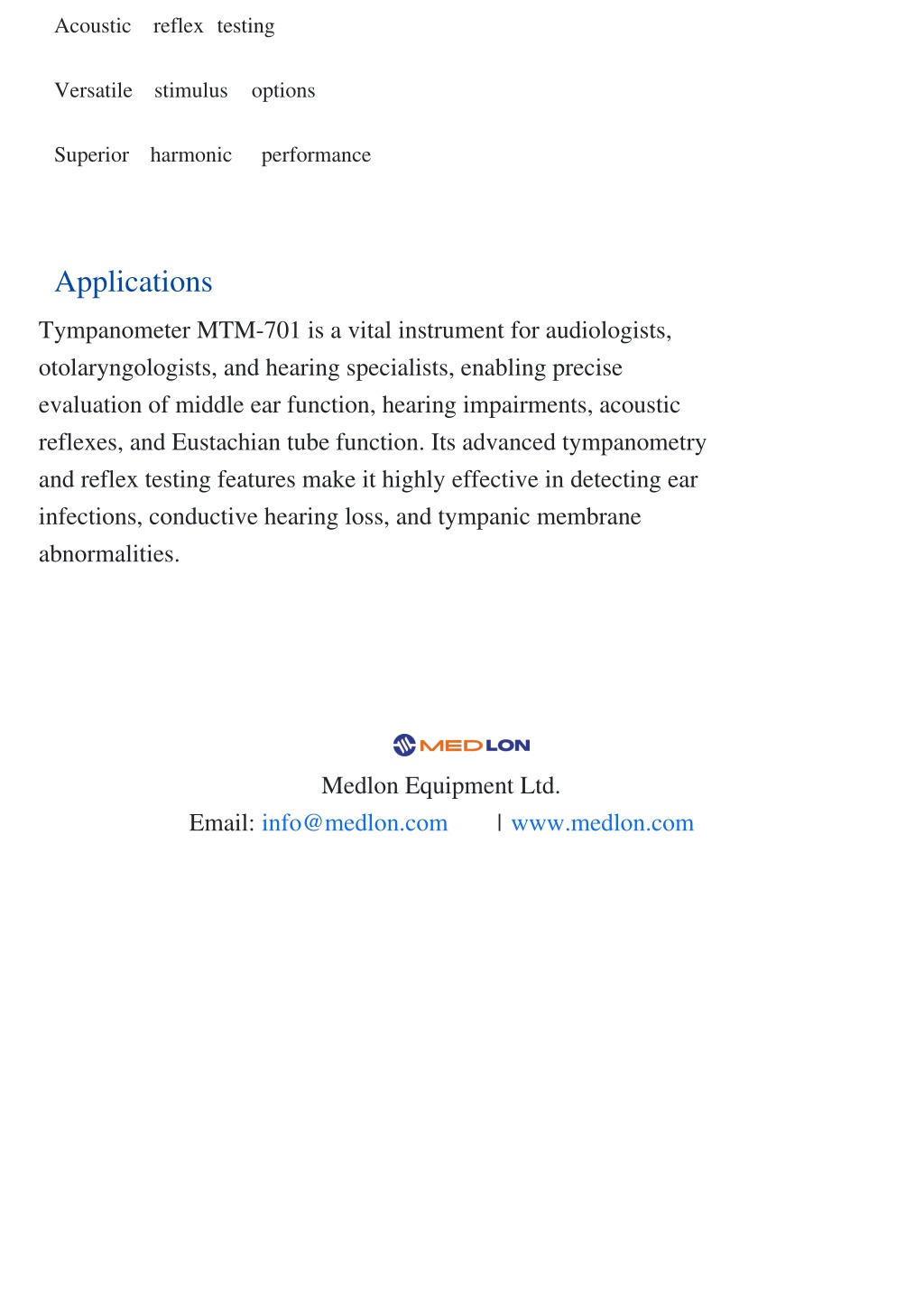

  4. Acoustic reflex testing Versatile stimulus options Superior harmonic performance Applications Tympanometer MTM-701 is a vital instrument for audiologists, otolaryngologists, and hearing specialists, enabling precise evaluation of middle ear function, hearing impairments, acoustic reflexes, and Eustachian tube function. Its advanced tympanometry and reflex testing features make it highly effective in detecting ear infections, conductive hearing loss, and tympanic membrane abnormalities. Medlon Equipment Ltd. info@medlon.com Email: | www.medlon.com
