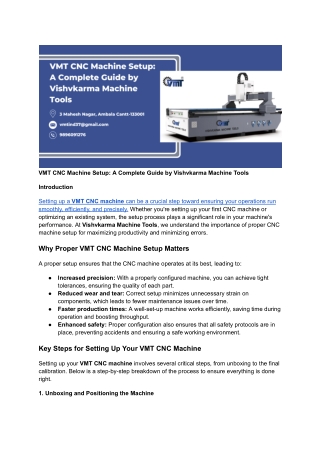

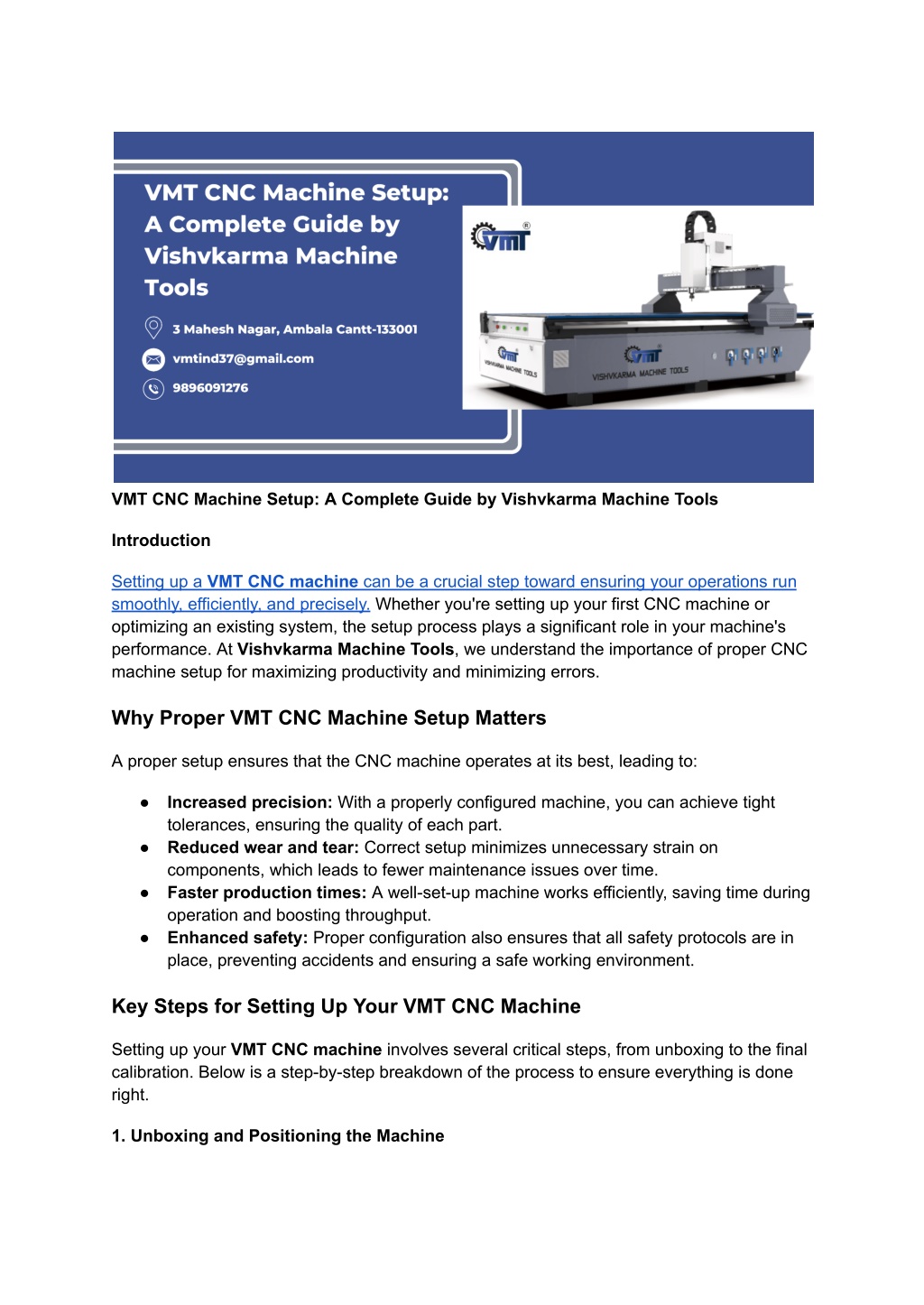

1. VMT CNC Machine Setup: A Complete Guide by Vishvkarma Machine Tools Introduction Setting up a VMT CNC machine can be a crucial step toward ensuring your operations run smoothly, efficiently, and precisely. Whether you're setting up your first CNC machine or optimizing an existing system, the setup process plays a significant role in your machine's performance. At Vishvkarma Machine Tools, we understand the importance of proper CNC machine setup for maximizing productivity and minimizing errors. Why Proper VMT CNC Machine Setup Matters A proper setup ensures that the CNC machine operates at its best, leading to: ● Increased precision: With a properly configured machine, you can achieve tight tolerances, ensuring the quality of each part. ● Reduced wear and tear: Correct setup minimizes unnecessary strain on components, which leads to fewer maintenance issues over time. ● Faster production times: A well-set-up machine works efficiently, saving time during operation and boosting throughput. ● Enhanced safety: Proper configuration also ensures that all safety protocols are in place, preventing accidents and ensuring a safe working environment. Key Steps for Setting Up Your VMT CNC Machine Setting up your VMT CNC machine involves several critical steps, from unboxing to the final calibration. Below is a step-by-step breakdown of the process to ensure everything is done right. 1. Unboxing and Positioning the Machine

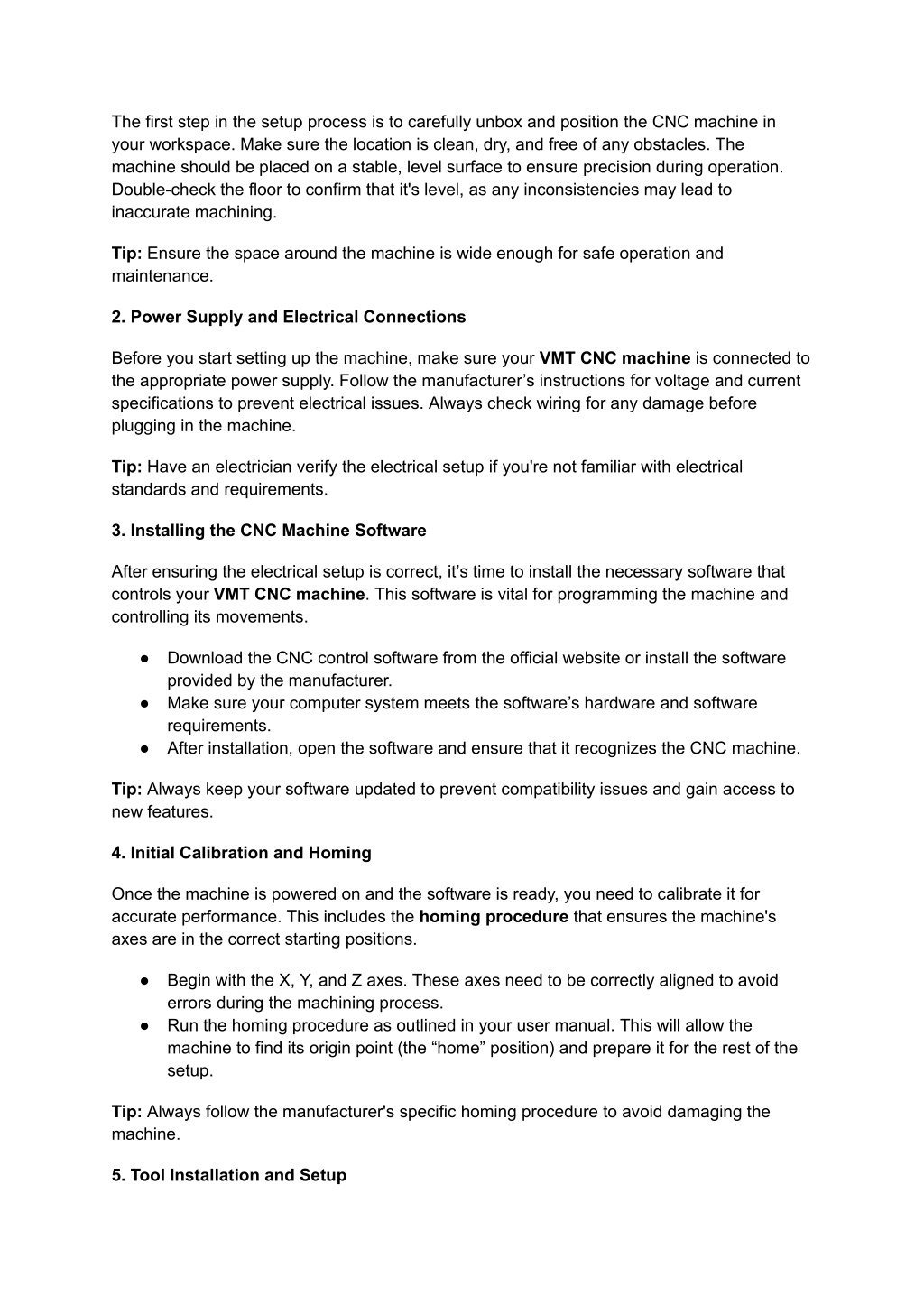

2. The first step in the setup process is to carefully unbox and position the CNC machine in your workspace. Make sure the location is clean, dry, and free of any obstacles. The machine should be placed on a stable, level surface to ensure precision during operation. Double-check the floor to confirm that it's level, as any inconsistencies may lead to inaccurate machining. Tip: Ensure the space around the machine is wide enough for safe operation and maintenance. 2. Power Supply and Electrical Connections Before you start setting up the machine, make sure your VMT CNC machine is connected to the appropriate power supply. Follow the manufacturer’s instructions for voltage and current specifications to prevent electrical issues. Always check wiring for any damage before plugging in the machine. Tip: Have an electrician verify the electrical setup if you're not familiar with electrical standards and requirements. 3. Installing the CNC Machine Software After ensuring the electrical setup is correct, it’s time to install the necessary software that controls your VMT CNC machine. This software is vital for programming the machine and controlling its movements. ● Download the CNC control software from the official website or install the software provided by the manufacturer. ● Make sure your computer system meets the software’s hardware and software requirements. ● After installation, open the software and ensure that it recognizes the CNC machine. Tip: Always keep your software updated to prevent compatibility issues and gain access to new features. 4. Initial Calibration and Homing Once the machine is powered on and the software is ready, you need to calibrate it for accurate performance. This includes the homing procedure that ensures the machine's axes are in the correct starting positions. ● Begin with the X, Y, and Z axes. These axes need to be correctly aligned to avoid errors during the machining process. ● Run the homing procedure as outlined in your user manual. This will allow the machine to find its origin point (the “home” position) and prepare it for the rest of the setup. Tip: Always follow the manufacturer's specific homing procedure to avoid damaging the machine. 5. Tool Installation and Setup

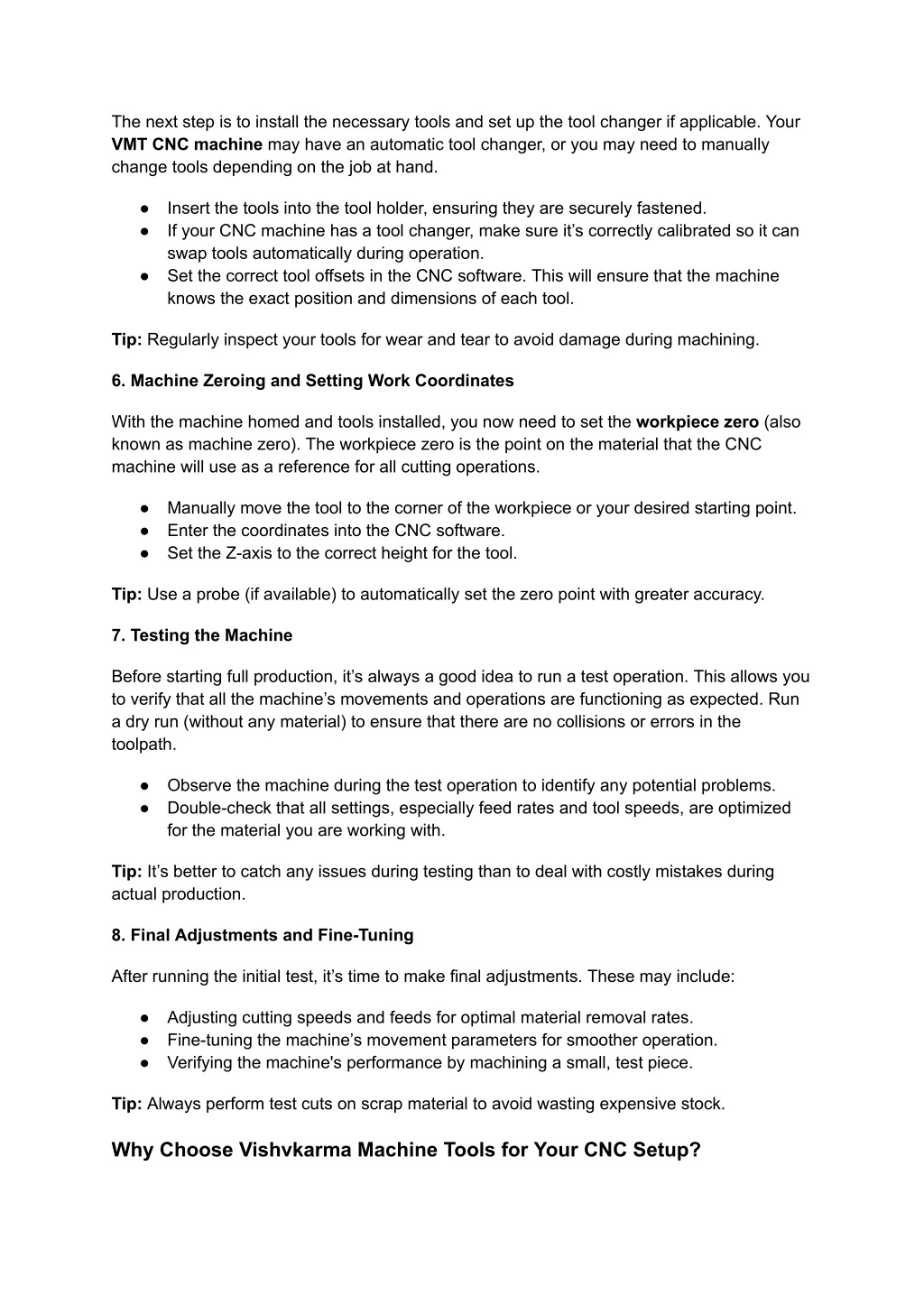

3. The next step is to install the necessary tools and set up the tool changer if applicable. Your VMT CNC machine may have an automatic tool changer, or you may need to manually change tools depending on the job at hand. ● Insert the tools into the tool holder, ensuring they are securely fastened. ● If your CNC machine has a tool changer, make sure it’s correctly calibrated so it can swap tools automatically during operation. ● Set the correct tool offsets in the CNC software. This will ensure that the machine knows the exact position and dimensions of each tool. Tip: Regularly inspect your tools for wear and tear to avoid damage during machining. 6. Machine Zeroing and Setting Work Coordinates With the machine homed and tools installed, you now need to set the workpiece zero (also known as machine zero). The workpiece zero is the point on the material that the CNC machine will use as a reference for all cutting operations. ● Manually move the tool to the corner of the workpiece or your desired starting point. ● Enter the coordinates into the CNC software. ● Set the Z-axis to the correct height for the tool. Tip: Use a probe (if available) to automatically set the zero point with greater accuracy. 7. Testing the Machine Before starting full production, it’s always a good idea to run a test operation. This allows you to verify that all the machine’s movements and operations are functioning as expected. Run a dry run (without any material) to ensure that there are no collisions or errors in the toolpath. ● Observe the machine during the test operation to identify any potential problems. ● Double-check that all settings, especially feed rates and tool speeds, are optimized for the material you are working with. Tip: It’s better to catch any issues during testing than to deal with costly mistakes during actual production. 8. Final Adjustments and Fine-Tuning After running the initial test, it’s time to make final adjustments. These may include: ● Adjusting cutting speeds and feeds for optimal material removal rates. ● Fine-tuning the machine’s movement parameters for smoother operation. ● Verifying the machine's performance by machining a small, test piece. Tip: Always perform test cuts on scrap material to avoid wasting expensive stock. Why Choose Vishvkarma Machine Tools for Your CNC Setup?

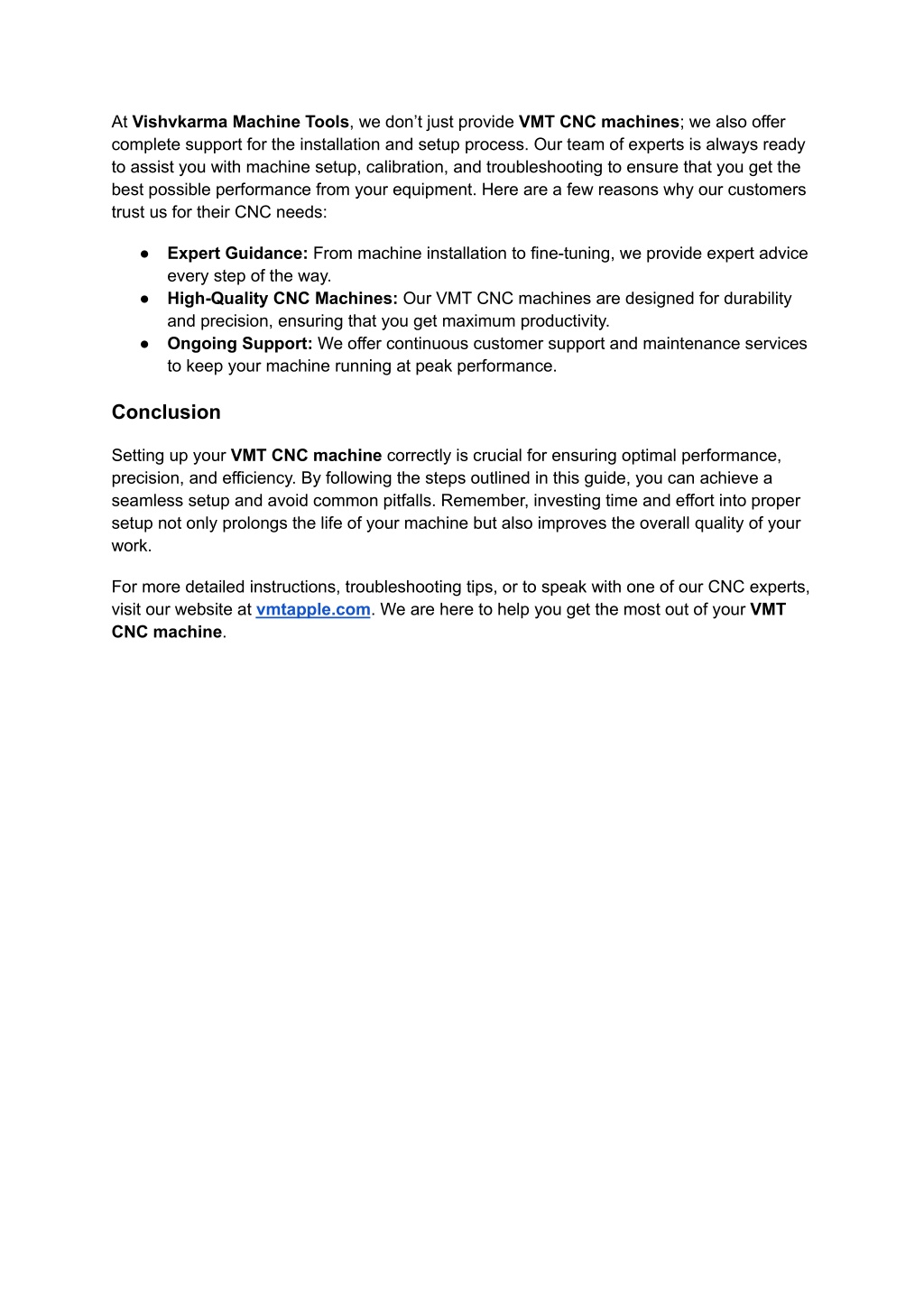

4. At Vishvkarma Machine Tools, we don’t just provide VMT CNC machines; we also offer complete support for the installation and setup process. Our team of experts is always ready to assist you with machine setup, calibration, and troubleshooting to ensure that you get the best possible performance from your equipment. Here are a few reasons why our customers trust us for their CNC needs: ● Expert Guidance: From machine installation to fine-tuning, we provide expert advice every step of the way. ● High-Quality CNC Machines: Our VMT CNC machines are designed for durability and precision, ensuring that you get maximum productivity. ● Ongoing Support: We offer continuous customer support and maintenance services to keep your machine running at peak performance. Conclusion Setting up your VMT CNC machine correctly is crucial for ensuring optimal performance, precision, and efficiency. By following the steps outlined in this guide, you can achieve a seamless setup and avoid common pitfalls. Remember, investing time and effort into proper setup not only prolongs the life of your machine but also improves the overall quality of your work. For more detailed instructions, troubleshooting tips, or to speak with one of our CNC experts, visit our website at vmtapple.com. We are here to help you get the most out of your VMT CNC machine.
