Vibrating cone mills VIBROTECHNIK

Vibrating cone mills are designed to crush and pulverize hard and brittle bulk materials of various strengths.<br><br>In the cone mill, pulverization occurs by means of abrasion u2013 simultaneous compressive and shear strain of material particles between the outer and inner shells.

VIBROTECHNIK
Download Presentation

Vibrating cone mills VIBROTECHNIK

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

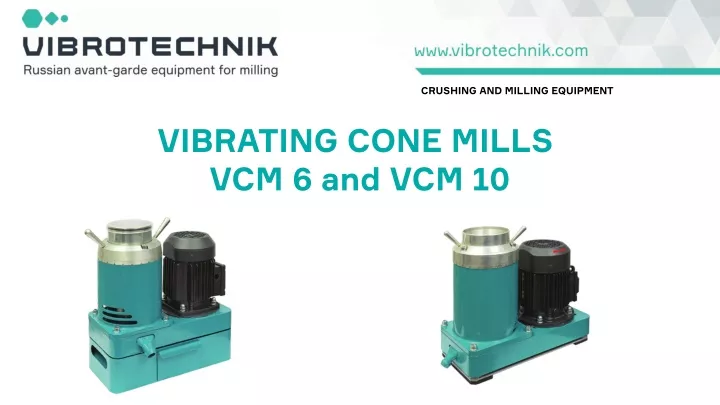

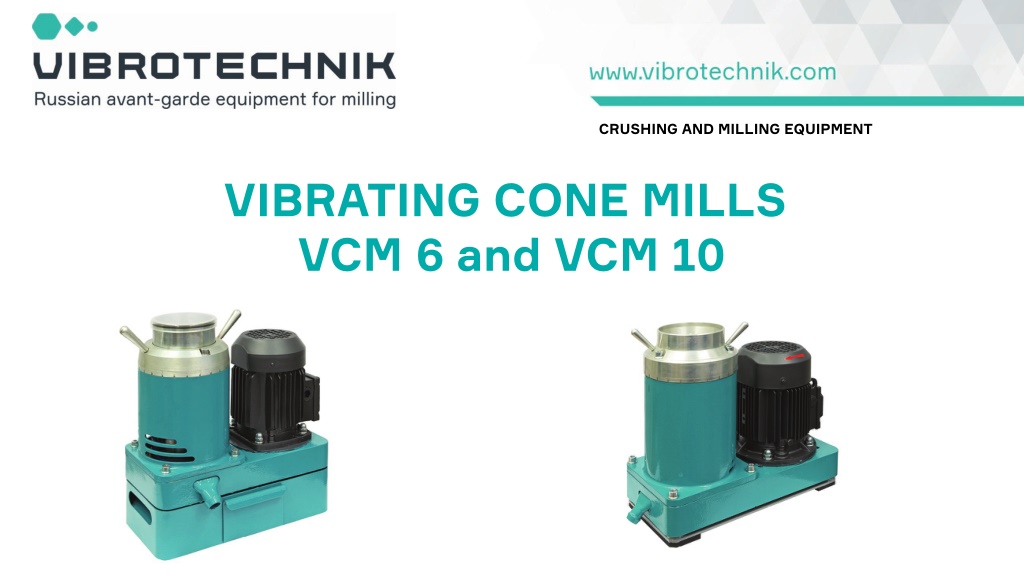

  1. CRUSHING AND MILLING EQUIPMENT VIBRATING CONE MILLS VCM 6 and VCM 10

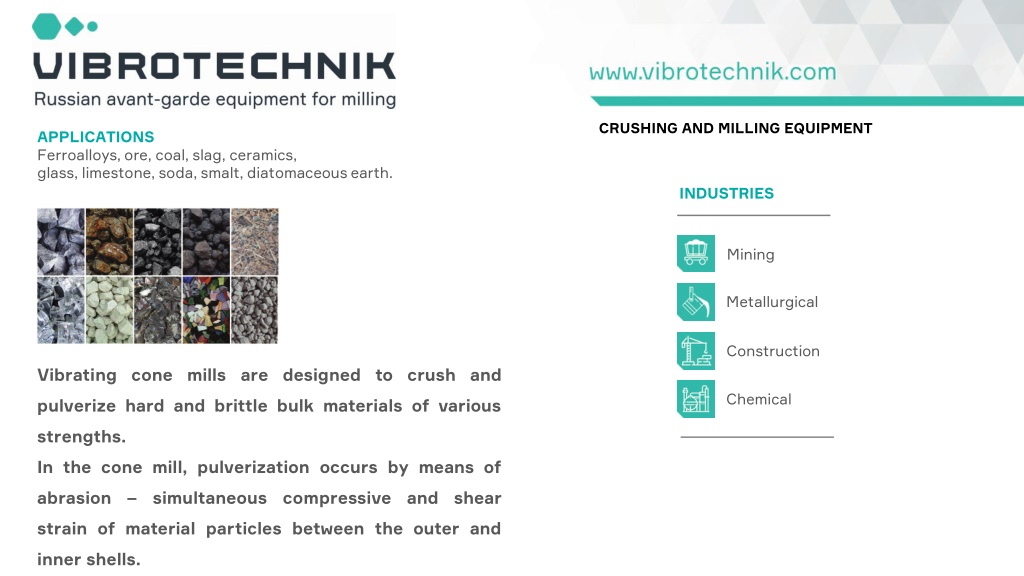

  2. CRUSHING AND MILLING EQUIPMENT APPLICATIONS Ferroalloys, ore, coal, slag, ceramics, glass, limestone, soda, smalt, diatomaceous earth. INDUSTRIES Mining Metallurgical Construction Vibrating cone mills are designed to crush and Chemical pulverize hard and brittle bulk materials of various strengths. In the cone mill, pulverization occurs by means of abrasion – simultaneous compressive and shear strain of material particles between the outer and inner shells.

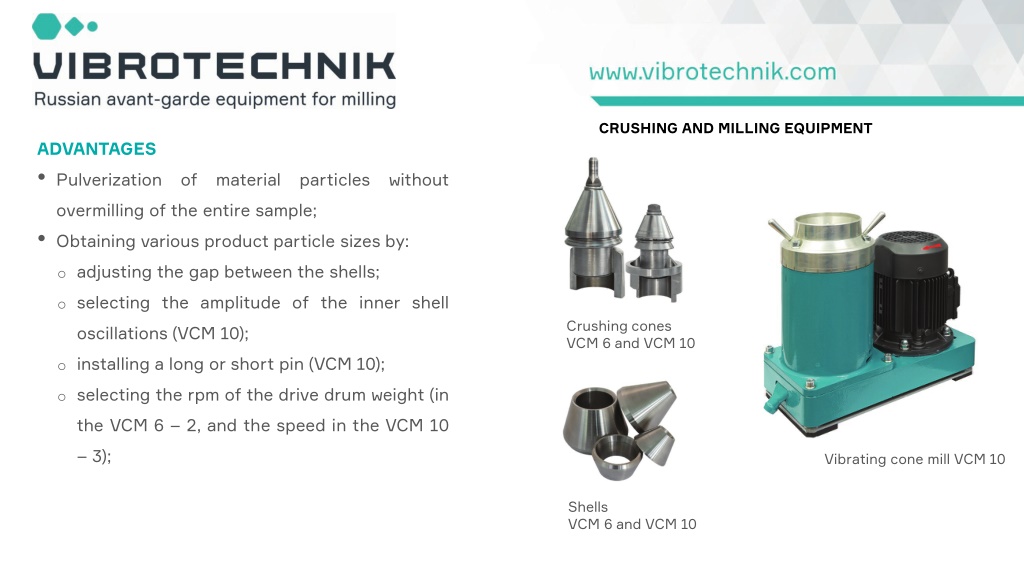

  3. CRUSHING AND MILLING EQUIPMENT ADVANTAGES • Pulverization of material particles without overmilling of the entire sample; • Obtaining various product particle sizes by: o adjusting the gap between the shells; o selecting the amplitude of the inner shell Crushing cones VCM 6 and VCM 10 oscillations (VCM 10); o installing a long or short pin (VCM 10); o selecting the rpm of the drive drum weight (in the VCM 6 – 2, and the speed in the VCM 10 – 3); Vibrating cone mill VCM 10 Shells VCM 6 and VCM 10

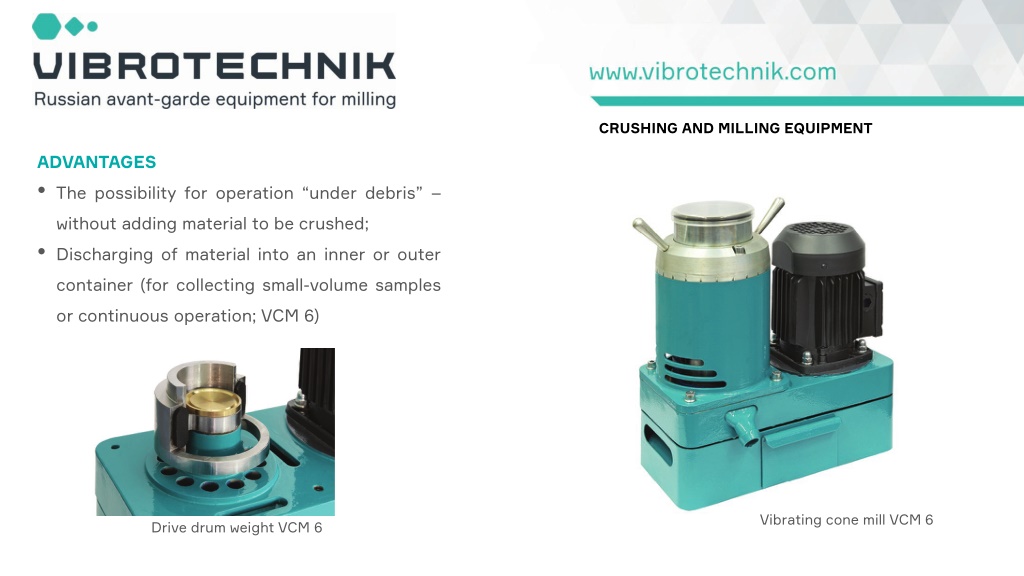

  4. CRUSHING AND MILLING EQUIPMENT ADVANTAGES • The possibility for operation “under debris” – without adding material to be crushed; • Discharging of material into an inner or outer container (for collecting small-volume samples or continuous operation; VCM 6) Vibrating cone mill VCM 6 Drive drum weight VCM 6

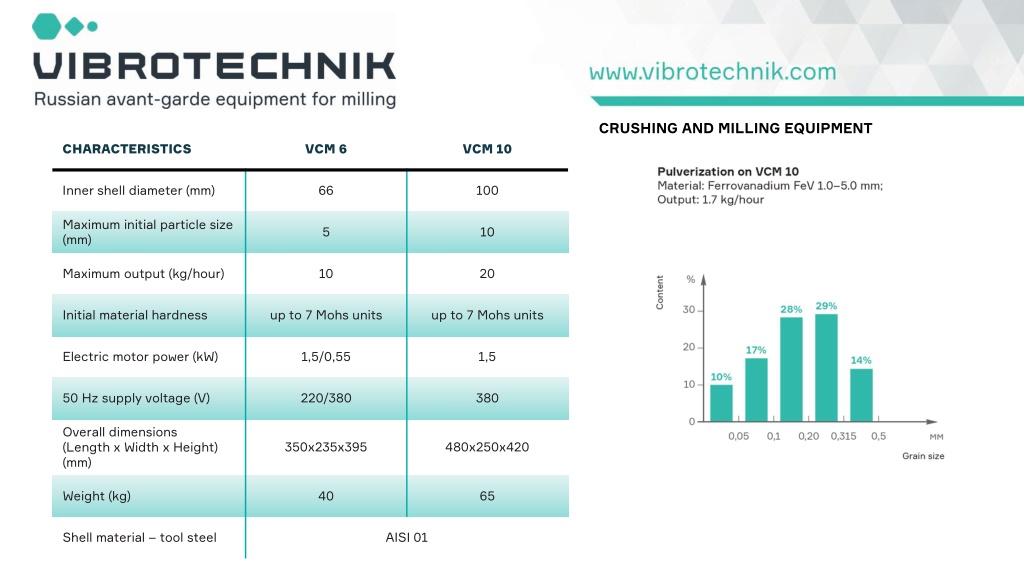

  5. CRUSHING AND MILLING EQUIPMENT CHARACTERISTICS VCM 6 VCM 10 Inner shell diameter (mm) 66 100 Maximum initial particle size (mm) 5 10 Maximum output (kg/hour) 10 20 Initial material hardness up to 7 Mohs units up to 7 Mohs units Electric motor power (kW) 1,5/0,55 1,5 50 Hz supply voltage (V) 220/380 380 Overall dimensions (Length х Width х Height) (mm) 350х235х395 480х250х420 Weight (kg) 40 65 Shell material – tool steel AISI 01

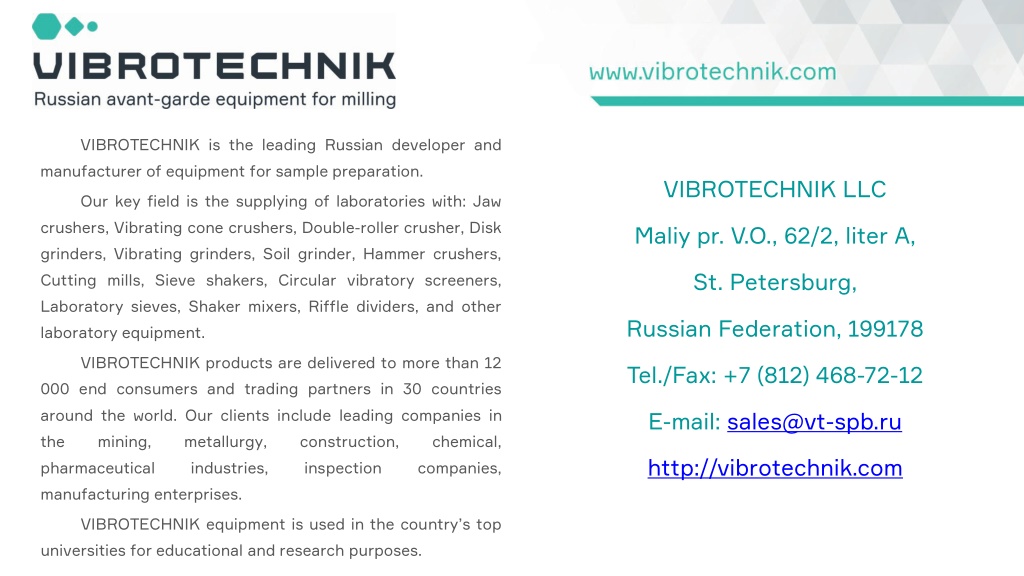

  6. VIBROTECHNIK is the leading Russian developer and manufacturer of equipment for sample preparation. VIBROTECHNIK LLC Our key field is the supplying of laboratories with: Jaw crushers, Vibrating cone crushers, Double-roller crusher, Disk grinders, Vibrating grinders, Soil grinder, Hammer crushers, Maliy pr. V.O., 62/2, liter A, St. Petersburg, Cutting mills, Sieve shakers, Circular vibratory screeners, Laboratory sieves, Shaker mixers, Riffle dividers, and other laboratory equipment. Russian Federation, 199178 VIBROTECHNIK products are delivered to more than 12 000 end consumers and trading partners in 30 countries Tel./Fax: +7 (812) 468-72-12 around the world. Our clients include leading companies in the mining, metallurgy, E-mail: sales@vt-spb.ru construction, chemical, http://vibrotechnik.com pharmaceutical manufacturing enterprises. industries, inspection companies, VIBROTECHNIK equipment is used in the country’s top universities for educational and research purposes.
