How Does The Laser Cutting Module Autofocus In Seconds?

The Snapmaker 10W High Power Laser Module has an autofocus feature that lets the laser cutting module focus in seconds. This feature eliminates manual material measuring, allowing for a more efficient and streamlined cutting process.<br>

Us19
Download Presentation

How Does The Laser Cutting Module Autofocus In Seconds?

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Snapmaker

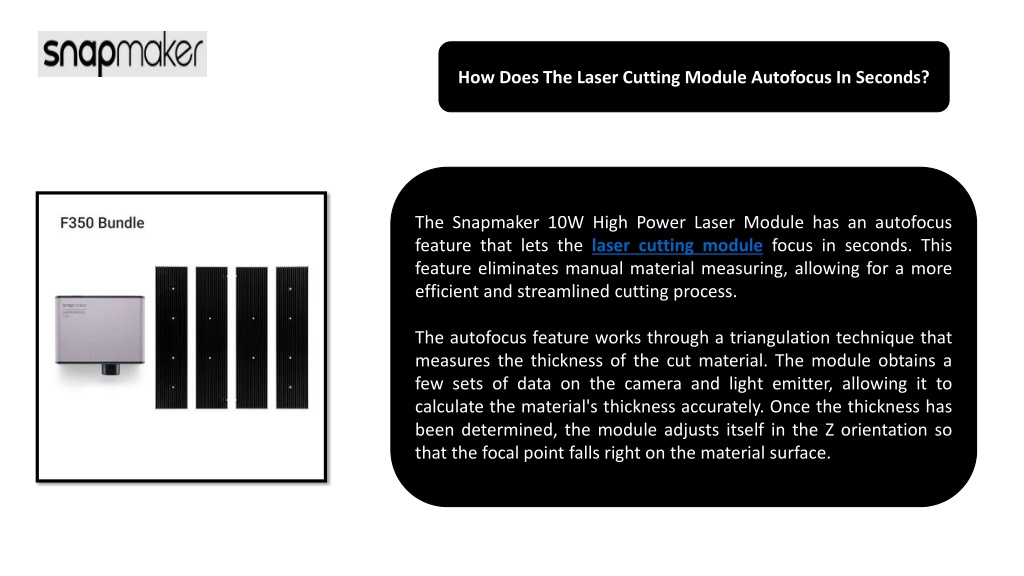

  2. How Does The Laser Cutting Module Autofocus In Seconds? The Snapmaker 10W High Power Laser Module has an autofocus feature that lets the laser cutting module focus in seconds. This feature eliminates manual material measuring, allowing for a more efficient and streamlined cutting process. The autofocus feature works through a triangulation technique that measures the thickness of the cut material. The module obtains a few sets of data on the camera and light emitter, allowing it to calculate the material's thickness accurately. Once the thickness has been determined, the module adjusts itself in the Z orientation so that the focal point falls right on the material surface.

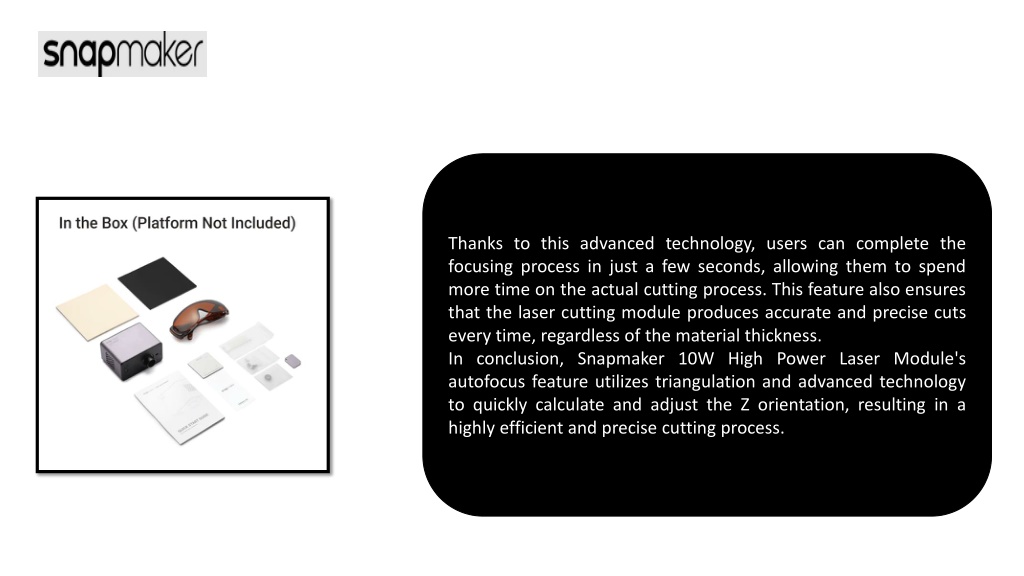

  3. Thanks to this advanced technology, users can complete the focusing process in just a few seconds, allowing them to spend more time on the actual cutting process. This feature also ensures that the laser cutting module produces accurate and precise cuts every time, regardless of the material thickness. In conclusion, Snapmaker 10W High Power Laser Module's autofocus feature utilizes triangulation and advanced technology to quickly calculate and adjust the Z orientation, resulting in a highly efficient and precise cutting process.

  4. Thank You! For More Email: info@snapmaker.com Phone: +86(0)755 26926117 Web: https://us.snapmaker.com
