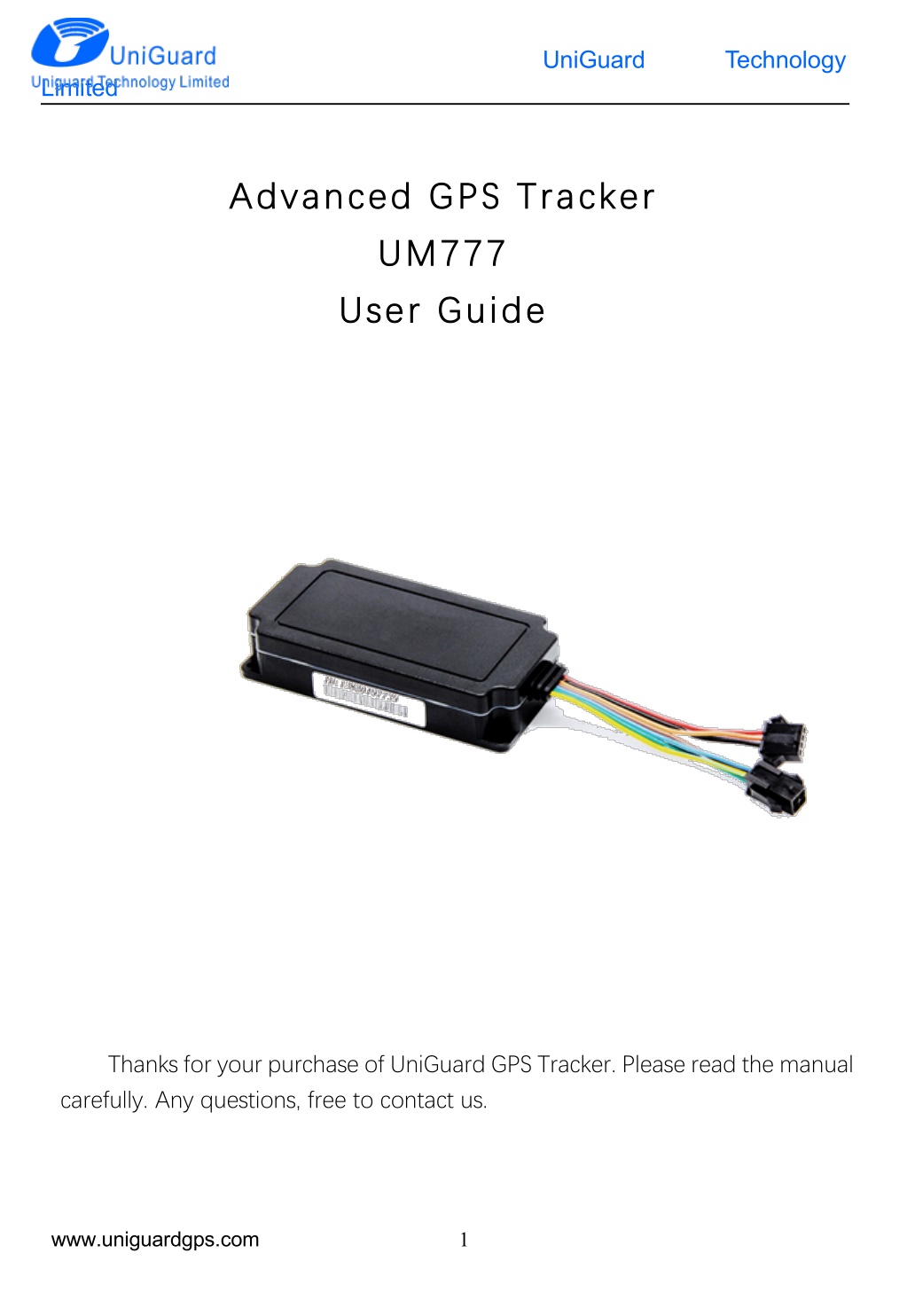

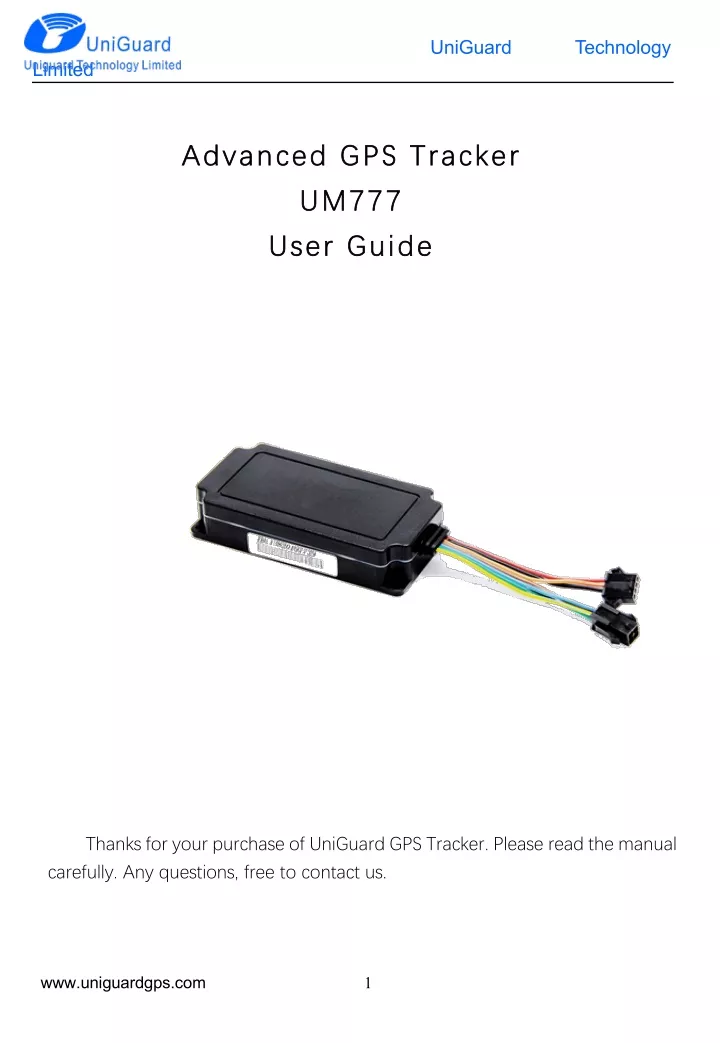

  1. UniGuard Technology Limited Advanced GPS Tracker Advanced GPS Tracker UM777 UM777 User Guide User Guide Thanks for your purchase of UniGuard GPS Tracker. Please read the manual carefully. Any questions, free to contact us. www.uniguardgps.com 1

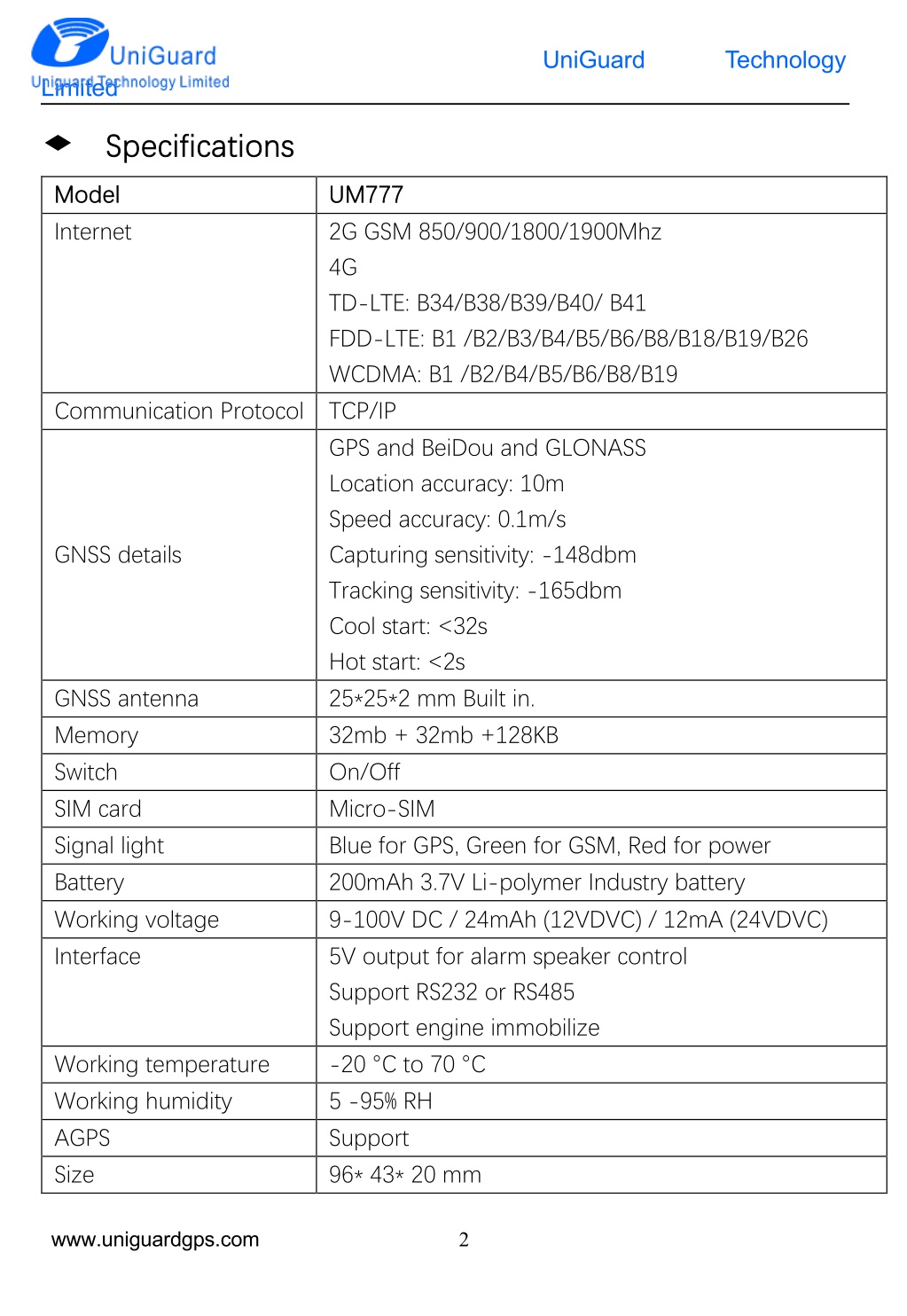

  2. UniGuard Technology Limited ◆Specifications Specifications Model Model Internet UM777 UM777 2G GSM 850/900/1800/1900Mhz 4G TD-LTE: B34/B38/B39/B40/ B41 FDD-LTE: B1 /B2/B3/B4/B5/B6/B8/B18/B19/B26 WCDMA: B1 /B2/B4/B5/B6/B8/B19 Communication ProtocolTCP/IP GNSS details GPS and BeiDou and GLONASS Location accuracy: 10m Speed accuracy: 0.1m/s Capturing sensitivity: -148dbm Tracking sensitivity: -165dbm Cool start: <32s Hot start: <2s 25*25*2 mm Built in. 32mb + 32mb +128KB On/Off Micro-SIM Blue for GPS, Green for GSM, Red for power 200mAh 3.7V Li-polymer Industry battery 9-100V DC / 24mAh (12VDVC) / 12mA (24VDVC) 5V output for alarm speaker control Support RS232 or RS485 Support engine immobilize -20 °C to 70 °C 5 -95% RH Support 96* 43* 20 mm GNSS antenna Memory Switch SIM card Signal light Battery Working voltage Interface Working temperature Working humidity AGPS Size www.uniguardgps.com 2

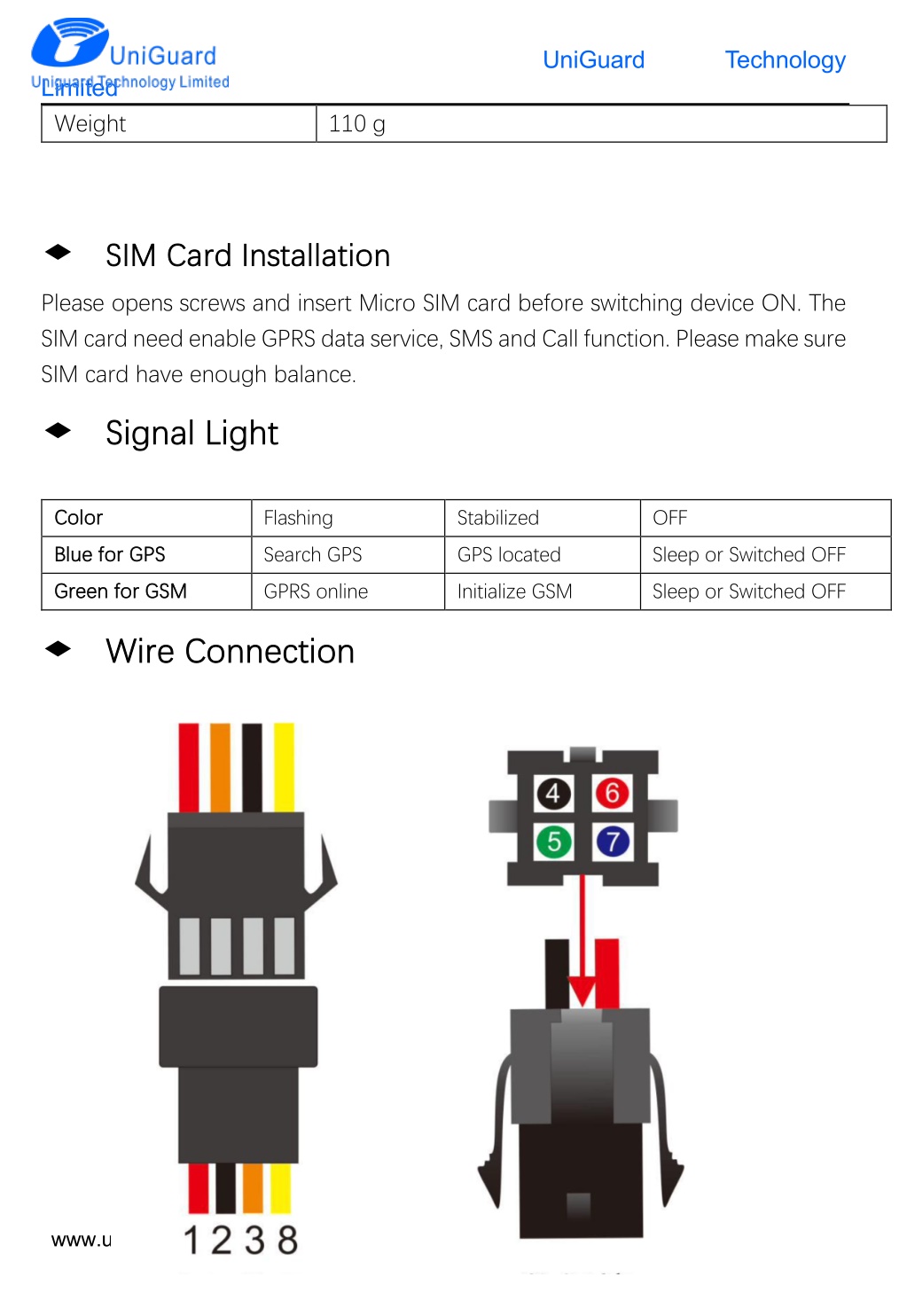

  3. UniGuard Technology Limited Weight 110 g ◆SIM Card Installation SIM Card Installation Please opens screws and insert Micro SIM card before switching device ON. The SIM card need enable GPRS data service, SMS and Call function. Please make sure SIM card have enough balance. ◆Signal Light Signal Light Color Color Flashing Stabilized OFF Blue for GPS Blue for GPS Search GPS GPS located Sleep or Switched OFF Green for GSM Green for GSM GPRS online Initialize GSM Sleep or Switched OFF ◆Wire Connection Wire Connection www.uniguardgps.com 3

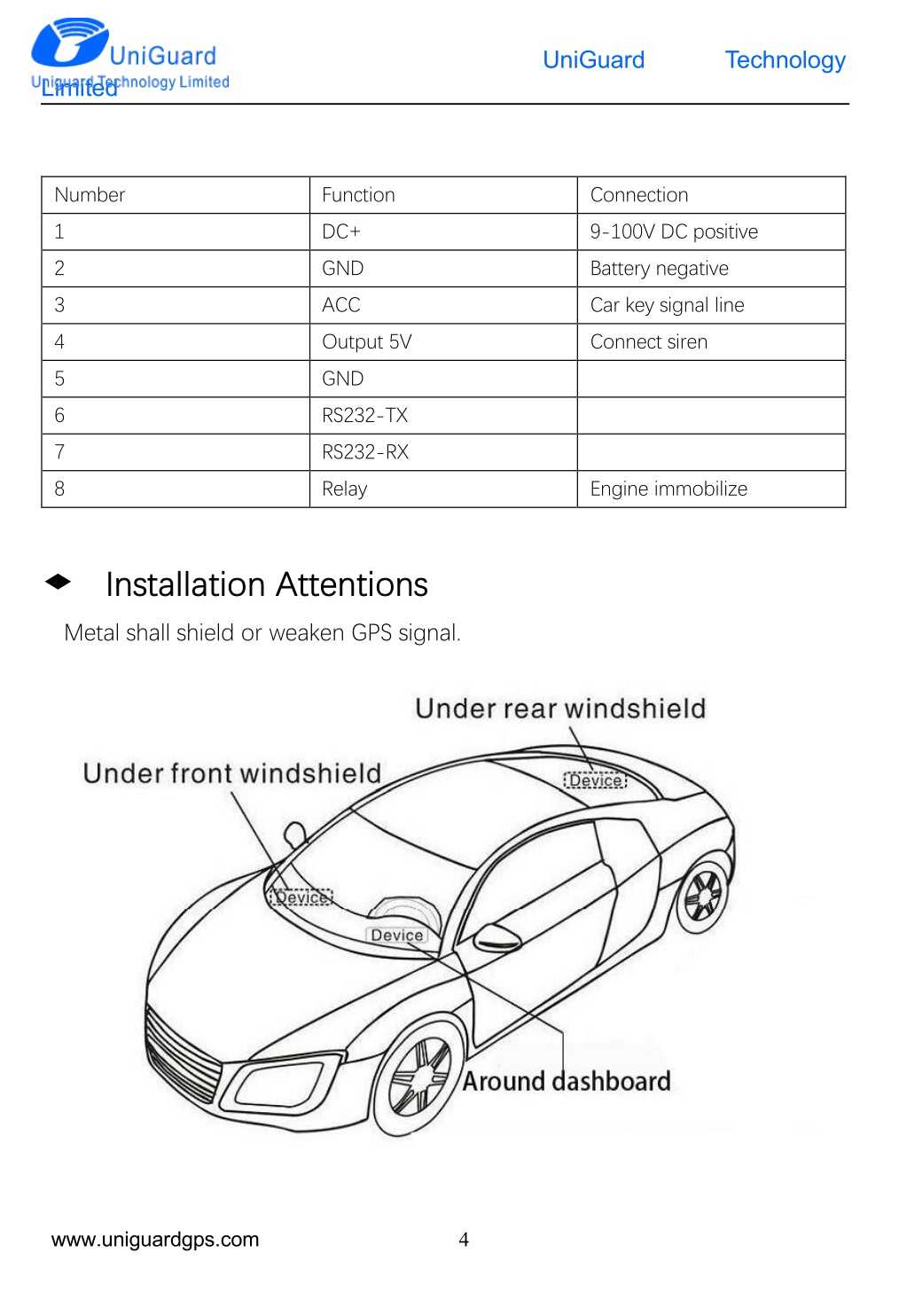

  4. UniGuard Technology Limited Number Function Connection 1 DC+ 9-100V DC positive 2 GND Battery negative 3 ACC Car key signal line 4 Output 5V Connect siren 5 GND 6 RS232-TX 7 RS232-RX 8 Relay Engine immobilize ◆Installation Attentions Installation Attentions Metal shall shield or weaken GPS signal. www.uniguardgps.com 4

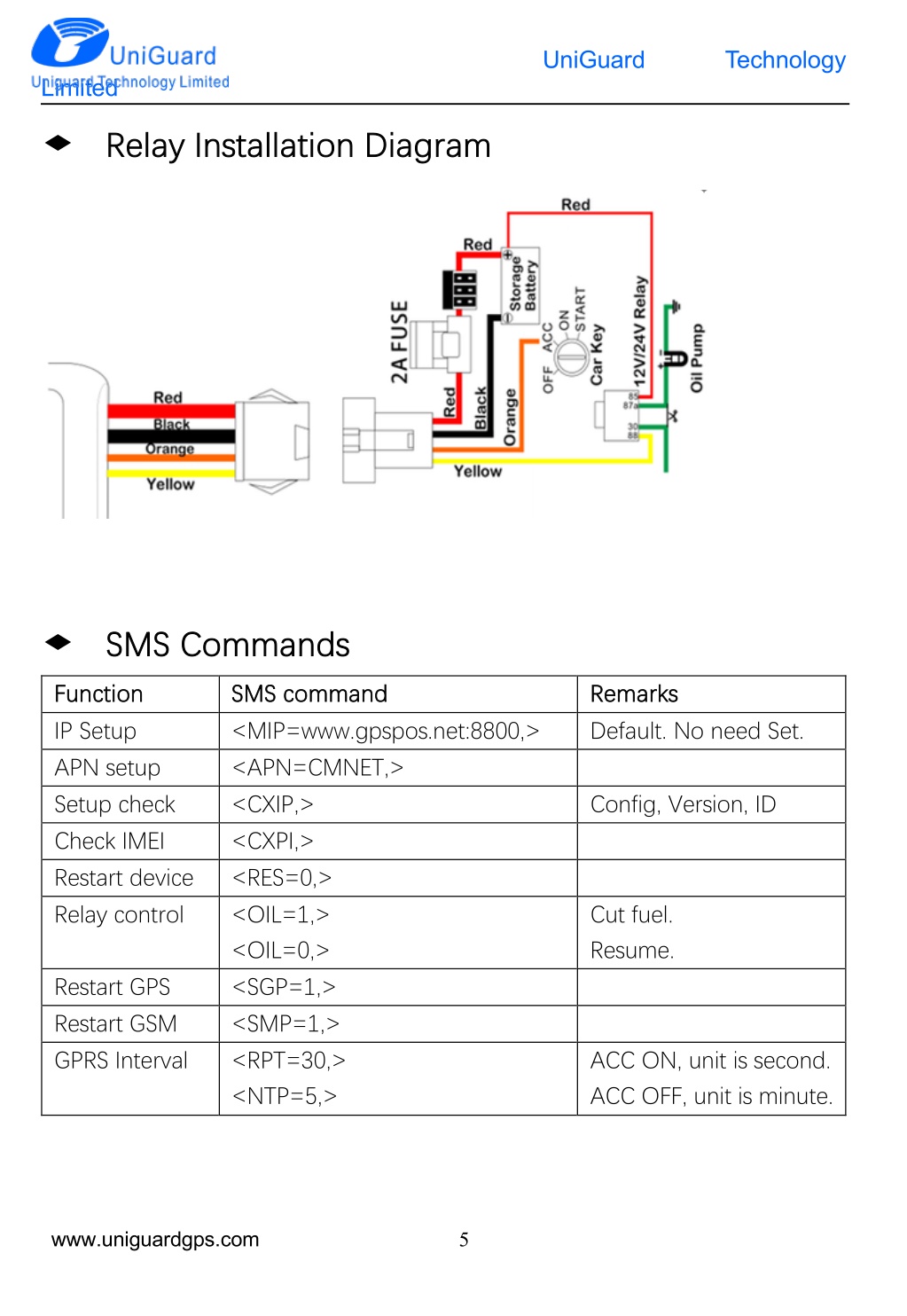

  5. UniGuard Technology Limited ◆Relay Installation Diagram Relay Installation Diagram ◆S SMS Commands MS Commands F Function unction S SMS command MS command Remarks Remarks IP Setup APN setup Setup check Check IMEI Restart device Relay control <MIP=www.gpspos.net:8800,> <APN=CMNET,> <CXIP,> <CXPI,> <RES=0,> <OIL=1,> <OIL=0,> <SGP=1,> <SMP=1,> <RPT=30,> <NTP=5,> Default. No need Set. Config, Version, ID Cut fuel. Resume. ACC ON, unit is second. ACC OFF, unit is minute. Restart GPS Restart GSM GPRS Interval www.uniguardgps.com 5

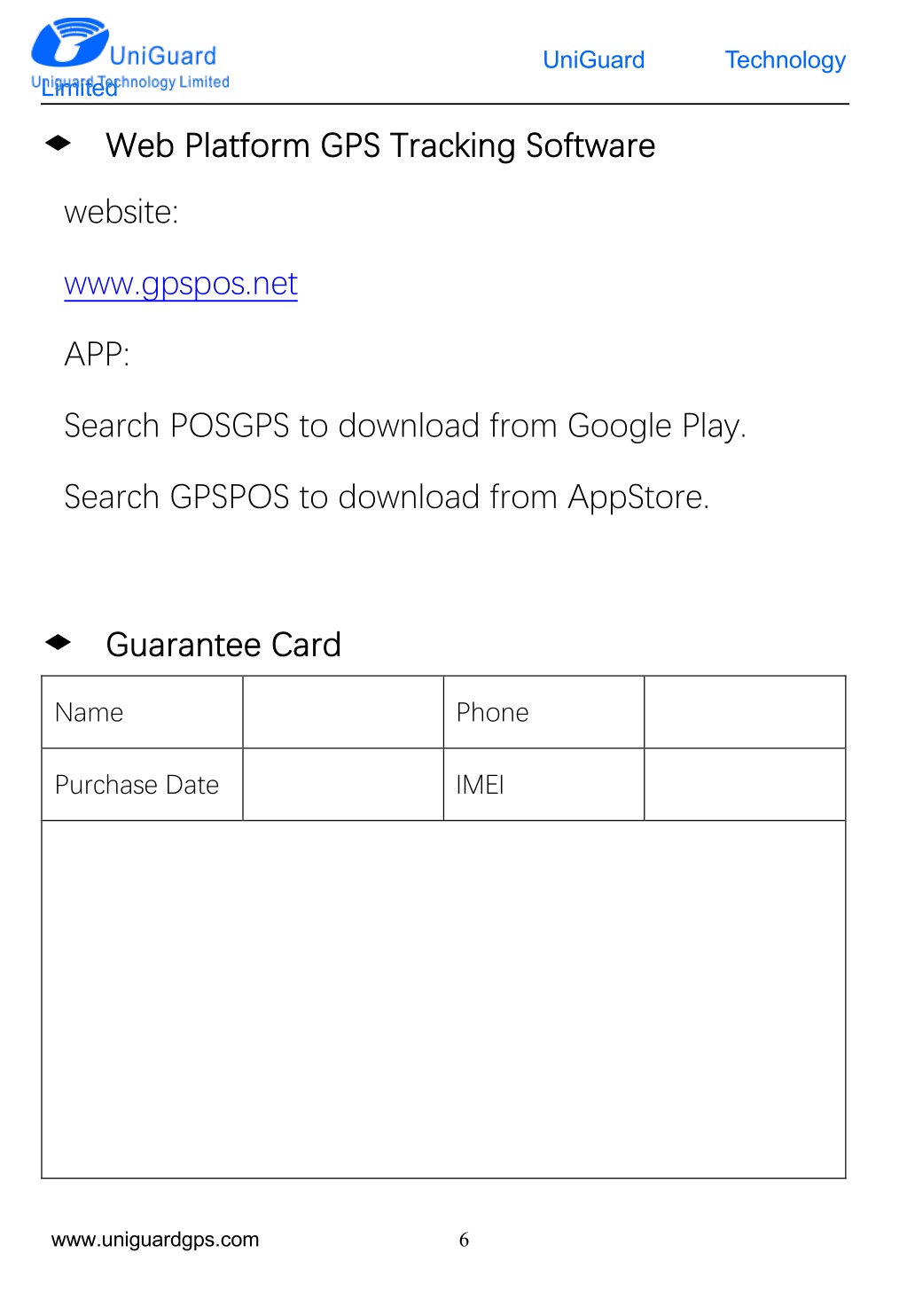

  6. UniGuard Technology Limited ◆Web Platform GPS Tracking Software Web Platform GPS Tracking Software website: www.gpspos.net APP: Search POSGPS to download from Google Play. Search GPSPOS to download from AppStore. ◆Guarantee Card Guarantee Card Name Phone Purchase Date IMEI www.uniguardgps.com 6
