uPVC Plumbing Systems - Trubore Pipes

Explore Truboreu2019s premium range of uPVC plumbing pipes and fittings, designed for long-lasting performance in residential and commercial applications. These corrosion-resistant, lead-free pipes ensure safe water flow with minimal maintenance.<br><br>Ideal for both hot and cold water distribution, Truboreu2019s uPVC plumbing systems are easy to install, lightweight, and engineered for leak-proof efficiency.

TruborePipes
Download Presentation

uPVC Plumbing Systems - Trubore Pipes

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

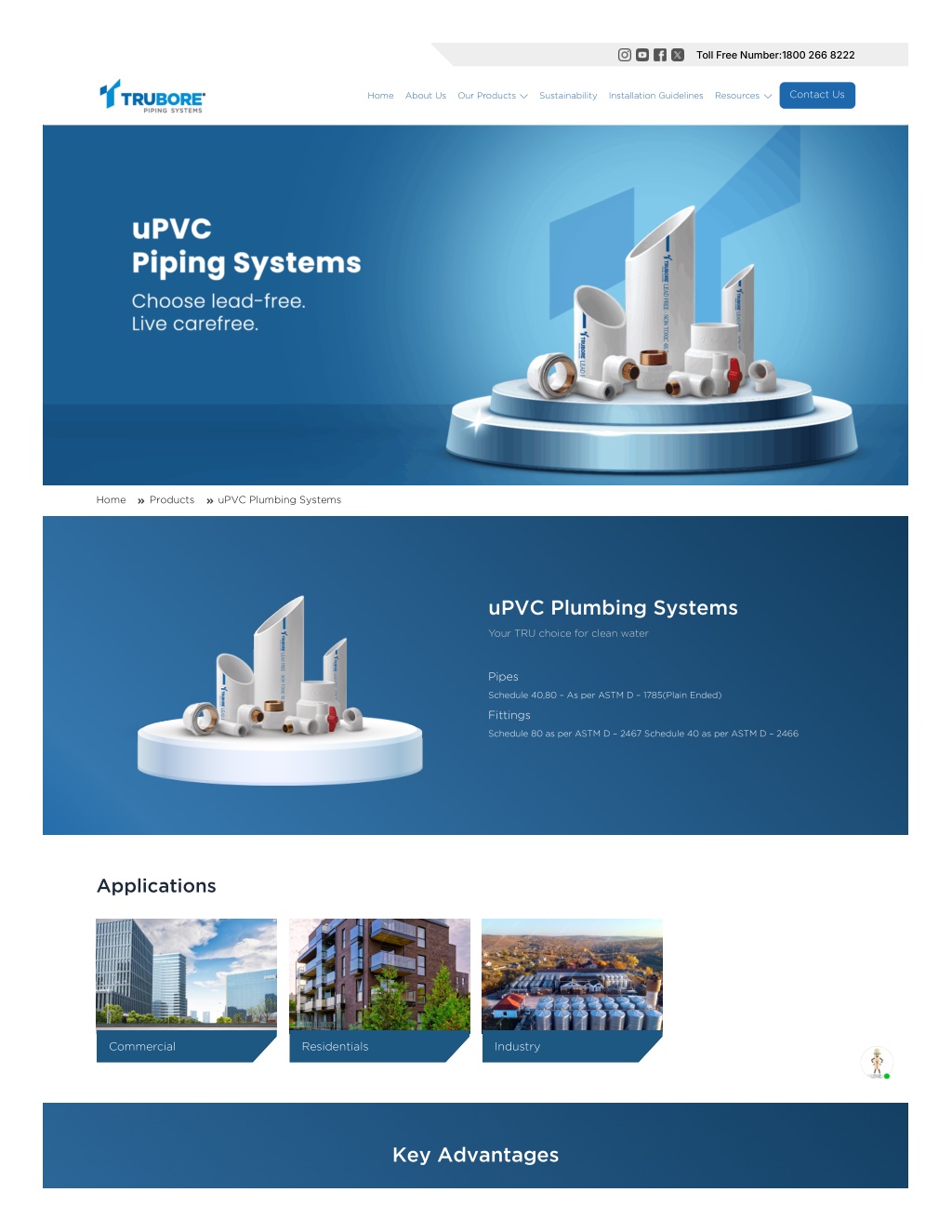

  1. TollFreeNumber:1800 266 8222 Contact Us Home About Us Our Products Sustainability Installation Guidelines Resources Home Products uPVC Plumbing Systems uPVC Plumbing Systems Your TRU choice for clean water Pipes Schedule 40,80 – As per ASTM D – 1785(Plain Ended) Fittings Schedule 80 as per ASTM D – 2467 Schedule 40 as per ASTM D – 2466 Applications Commercial Residentials Industry Key Advantages

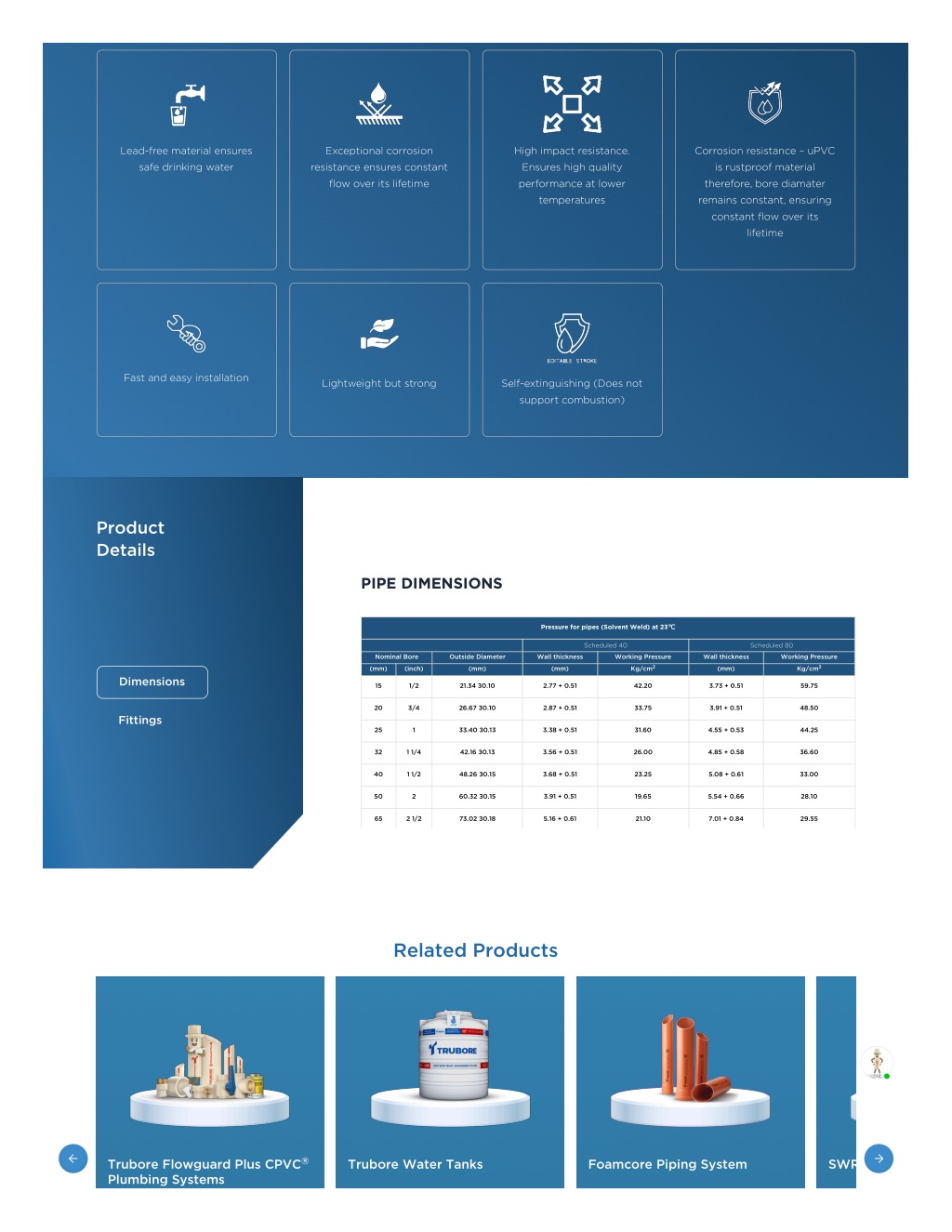

  2. Lead-free material ensures Exceptional corrosion High impact resistance. Corrosion resistance – uPVC safe drinking water resistance ensures constant Ensures high quality is rustproof material flow over its lifetime performance at lower therefore, bore diamater temperatures remains constant, ensuring constant flow over its lifetime Fast and easy installation Lightweight but strong Self-extinguishing (Does not support combustion) Product Details PIPE DIMENSIONS Pressure for pipes (Solvent Weld) at 23℃ Scheduled 40 Scheduled 80 Nominal Bore Outside Diameter Wall thickness Working Pressure Wall thickness Working Pressure 2 2 (mm) (inch) (mm) (mm) Kg/cm (mm) Kg/cm Dimensions 15 1/2 21.34 ±0.10 2.77 + 0.51 42.20 3.73 + 0.51 59.75 20 3/4 26.67 ±0.10 2.87 + 0.51 33.75 3.91 + 0.51 48.50 Fittings 25 1 33.40 ±0.13 3.38 + 0.51 31.60 4.55 + 0.53 44.25 32 1 1/4 42.16 ±0.13 3.56 + 0.51 26.00 4.85 + 0.58 36.60 40 1 1/2 48.26 ±0.15 3.68 + 0.51 23.25 5.08 + 0.61 33.00 50 2 60.32 ±0.15 3.91 + 0.51 19.65 5.54 + 0.66 28.10 65 2 1/2 73.02 ±0.18 5.16 + 0.61 21.10 7.01 + 0.84 29.55 Related Products ® Trubore Flowguard Plus CPVC Plumbing Systems Trubore Water Tanks Foamcore Piping System SWR

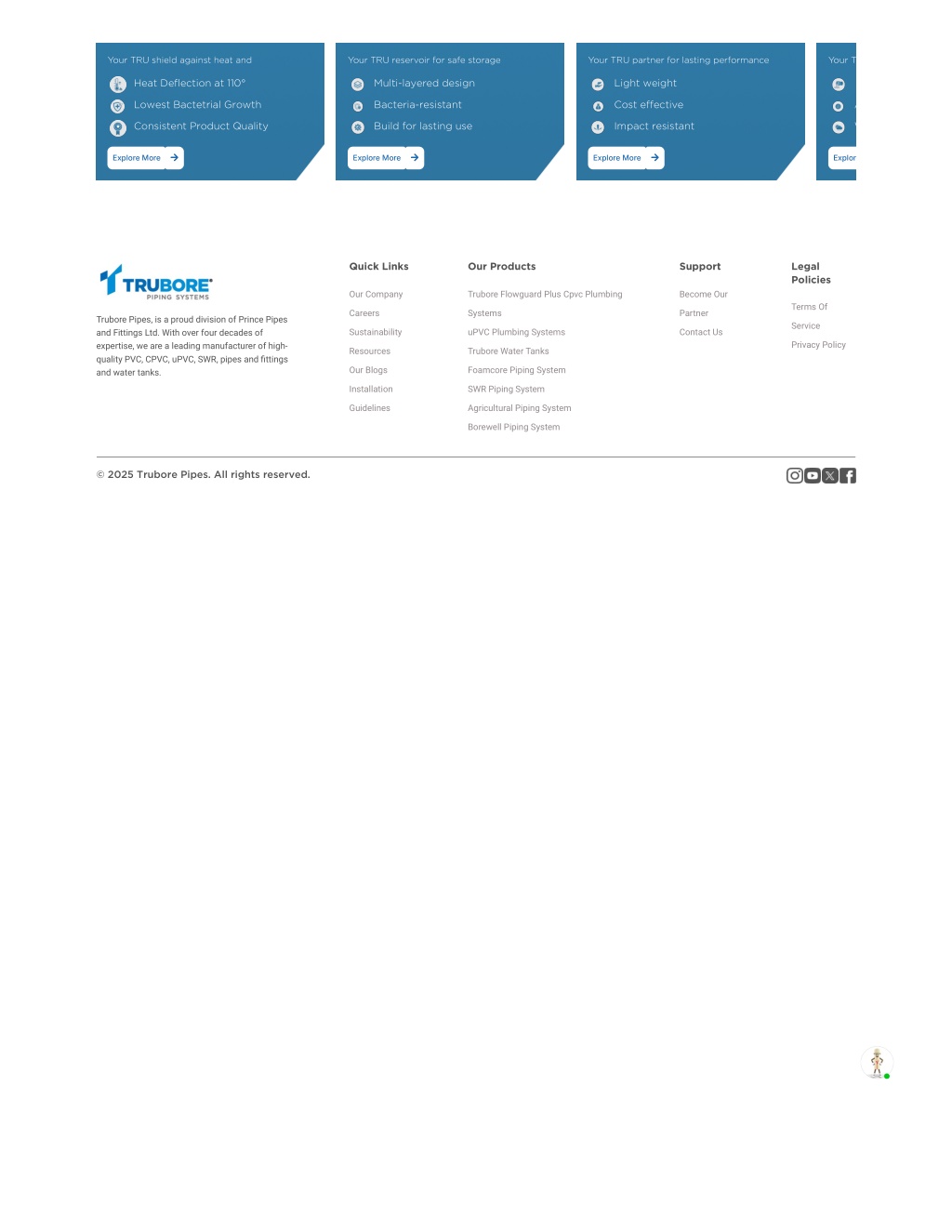

  3. Your TRU shield against heat and Your TRU reservoir for safe storage Your TRU partner for lasting performance Your T Heat Deflection at 110° Multi-layered design Light weight Lowest Bactetrial Growth Bacteria-resistant Cost effective A Consistent Product Quality Build for lasting use Impact resistant W ExploreMore ExploreMore ExploreMore Explor Quick Links Our Products Support Legal Policies Our Company Trubore Flowguard Plus Cpvc Plumbing Become Our Terms Of Careers Systems Partner Trubore Pipes, is a proud division of Prince Pipes and Fittings Ltd. With over four decades of expertise, we are a leading manufacturer of high- quality PVC, CPVC, uPVC, SWR, pipes and fittings and water tanks. Service Sustainability uPVC Plumbing Systems Contact Us Privacy Policy Resources Trubore Water Tanks Our Blogs Foamcore Piping System Installation SWR Piping System Guidelines Agricultural Piping System Borewell Piping System © 2025 Trubore Pipes. All rights reserved.
