Trubore Flowguard Plus CPVC® Plumbing Systems

Discover high-quality CPVC pipes and fittings designed for modern plumbing systems at Trubore. Engineered for strength and heat resistance, these pipes are ideal for both hot and cold water applications. Easy to install and corrosion-resistant, Trubore CPVC solutions ensure leak-proof performance and long-lasting durability for residential and commercial projects. Trusted by professionals nationwide.

TruborePipes
Download Presentation

Trubore Flowguard Plus CPVC® Plumbing Systems

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

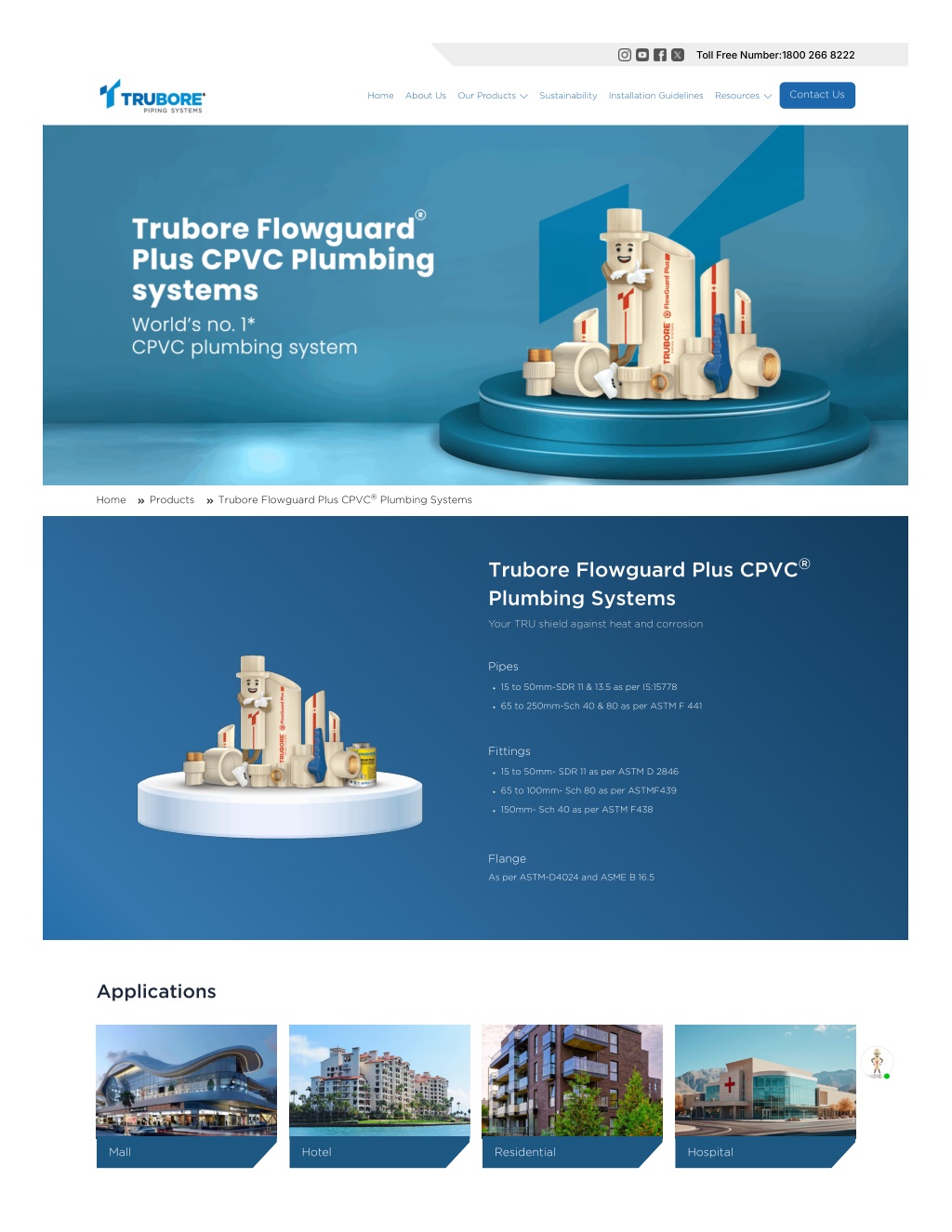

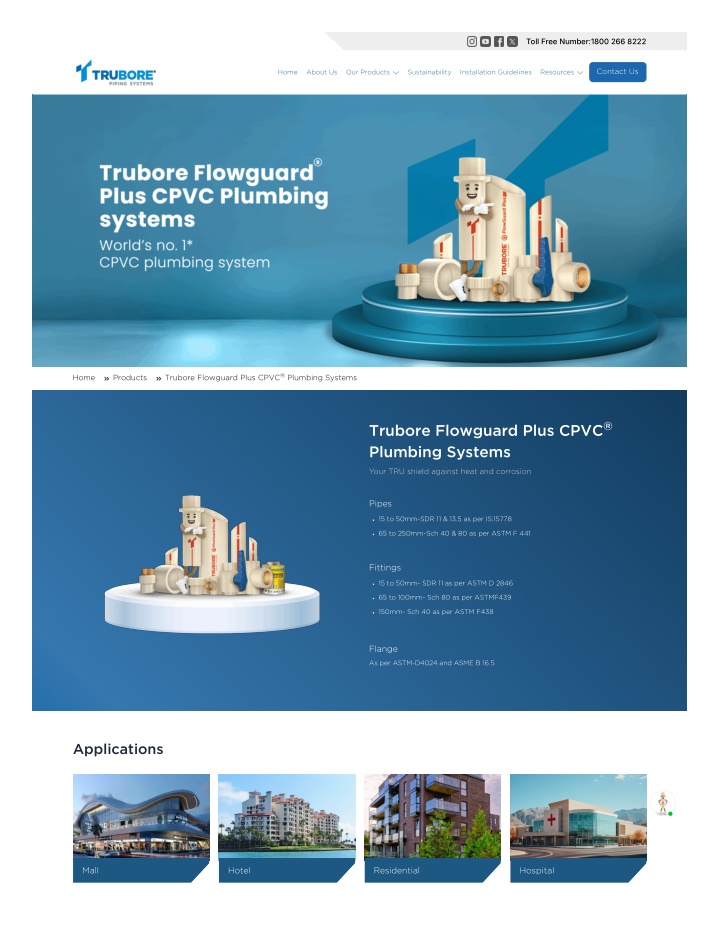

  1. TollFreeNumber:1800 266 8222 Contact Us Home About Us Our Products Sustainability Installation Guidelines Resources ® Home Products Trubore Flowguard Plus CPVC Plumbing Systems ® Trubore Flowguard Plus CPVC Plumbing Systems Your TRU shield against heat and corrosion Pipes 15 to 50mm-SDR 11 & 13.5 as per IS:15778 65 to 250mm-Sch 40 & 80 as per ASTM F 441 Fittings 15 to 50mm- SDR 11 as per ASTM D 2846 65 to 100mm- Sch 80 as per ASTMF439 150mm- Sch 40 as per ASTM F438 Flange As per ASTM-D4024 and ASME B 16.5 Applications Mall Hotel Residential Hospital

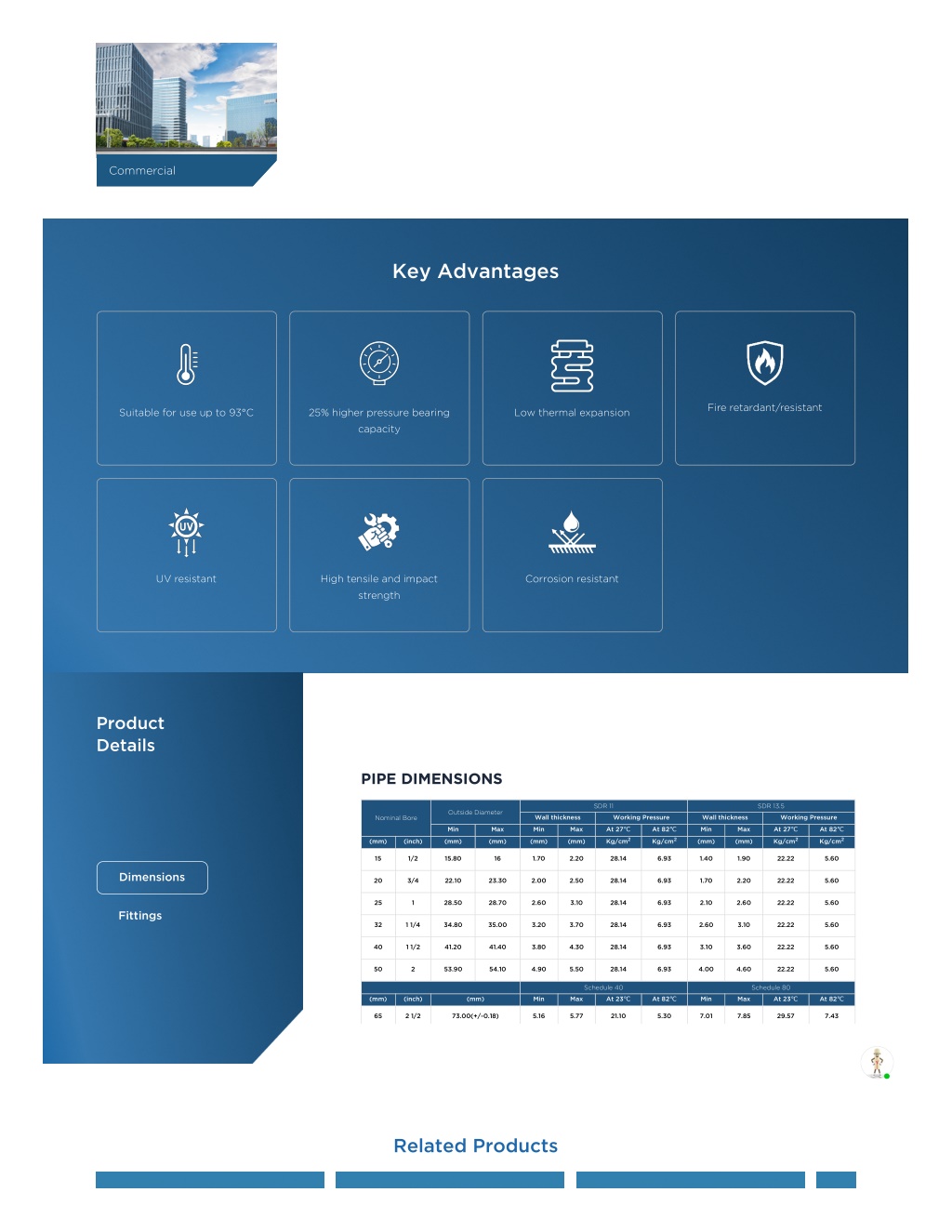

  2. Commercial Key Advantages Fire retardant/resistant Suitable for use up to 93°C 25% higher pressure bearing Low thermal expansion capacity UV resistant High tensile and impact Corrosion resistant strength Product Details PIPE DIMENSIONS SDR 11 SDR 13.5 Outside Diameter Wall thickness Working Pressure Wall thickness Working Pressure Nominal Bore At 27℃ At 82℃ At 27℃ At 82℃ Min Max Min Max Min Max 2 2 2 2 (mm) (inch) (mm) (mm) (mm) (mm) Kg/cm Kg/cm (mm) (mm) Kg/cm Kg/cm 15 1/2 15.80 16 1.70 2.20 28.14 6.93 1.40 1.90 22.22 5.60 Dimensions 20 3/4 22.10 23.30 2.00 2.50 28.14 6.93 1.70 2.20 22.22 5.60 25 1 28.50 28.70 2.60 3.10 28.14 6.93 2.10 2.60 22.22 5.60 Fittings 32 1 1/4 34.80 35.00 3.20 3.70 28.14 6.93 2.60 3.10 22.22 5.60 40 1 1/2 41.20 41.40 3.80 4.30 28.14 6.93 3.10 3.60 22.22 5.60 50 2 53.90 54.10 4.90 5.50 28.14 6.93 4.00 4.60 22.22 5.60 Schedule 40 Schedule 80 At 23℃ At 82℃ At 23℃ At 82℃ (mm) (inch) (mm) Min Max Min Max 65 2 1/2 73.00(+/-0.18) 5.16 5.77 21.10 5.30 7.01 7.85 29.57 7.43 Related Products

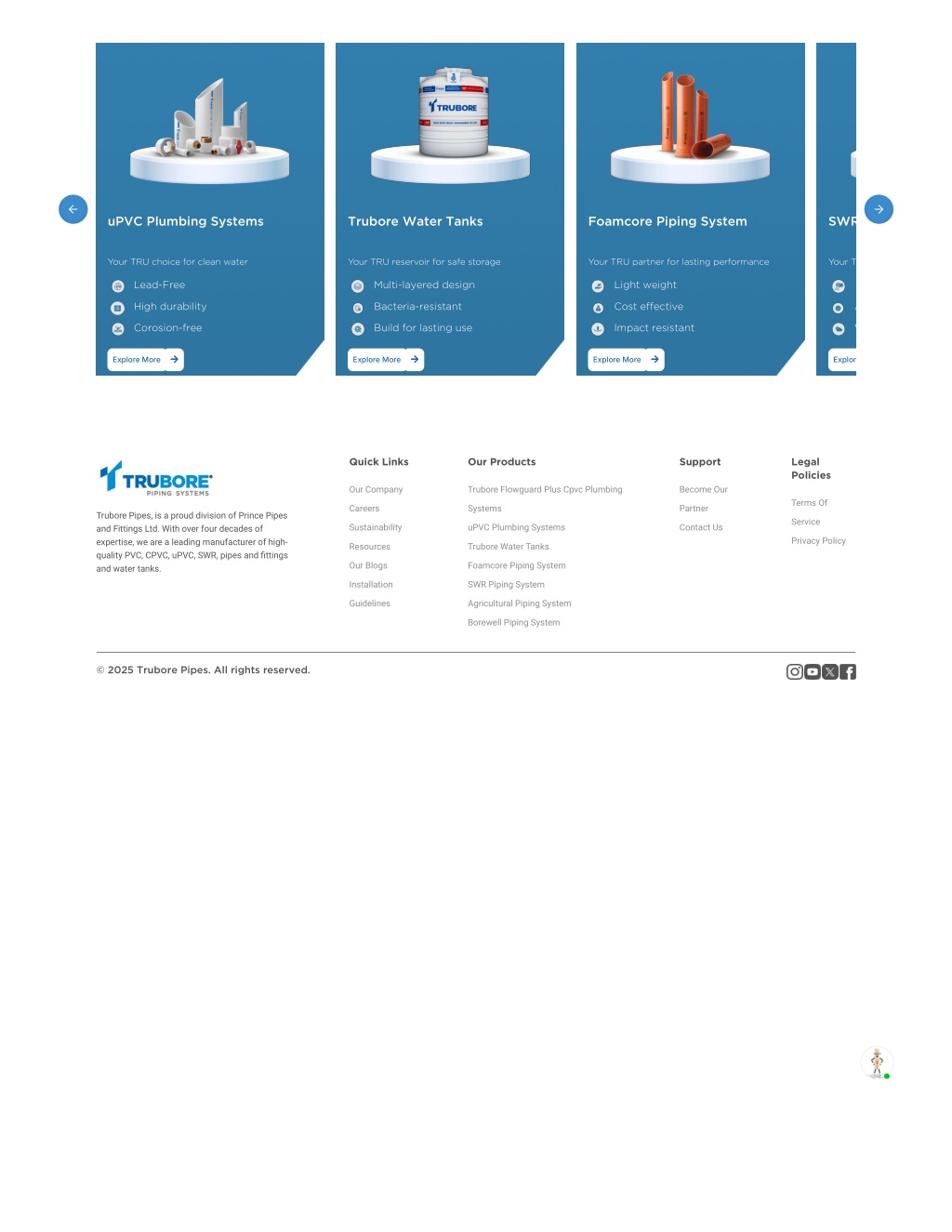

  3. uPVC Plumbing Systems Trubore Water Tanks Foamcore Piping System SWR Your TRU choice for clean water Your TRU reservoir for safe storage Your TRU partner for lasting performance Your T Lead-Free Multi-layered design Light weight High durability Bacteria-resistant Cost effective A Corosion-free Build for lasting use Impact resistant W ExploreMore ExploreMore ExploreMore Explor Quick Links Our Products Support Legal Policies Our Company Trubore Flowguard Plus Cpvc Plumbing Become Our Terms Of Careers Systems Partner Trubore Pipes, is a proud division of Prince Pipes and Fittings Ltd. With over four decades of expertise, we are a leading manufacturer of high- quality PVC, CPVC, uPVC, SWR, pipes and fittings and water tanks. Service Sustainability uPVC Plumbing Systems Contact Us Privacy Policy Resources Trubore Water Tanks Our Blogs Foamcore Piping System Installation SWR Piping System Guidelines Agricultural Piping System Borewell Piping System © 2025 Trubore Pipes. All rights reserved.
