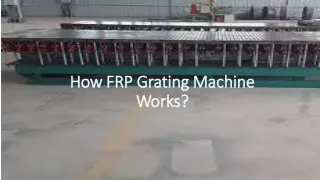

  1. How FRP Grating Machine Works?

  2. FRP products manufacturing machine is equipped with three critical components- grating mould, heating system, and accessory equipment. GFRP or FRP gratings making machines work in different manner. We will discuss these three essential parts of the machines and brief about their structure and function.

  3. Mould • Engineers intend the mould to fabricate GRP or FRP type gratings. As you see limitless designs of gratings at the stores, FRP grating manufacturers use different grating designs in which distinct size and shape of moulds are considered while production process. But, when it comes to structure, it is generally same. • Each grating mould has mold cavity, ejector pin de-molding system, base and heating system.

  4. Let’s Discuss Them In Brief • Mold cavity- It is the core part of the whole mould. Mold cavity is made of faceplate, side close and mould block. • Faceplate is the most critical part of the mould. The finish and flatness determine the grating quality. • Mould block is the small block that is constructed with steel and has chrome finish. • Side close- engineers use side close to change the grating size by simply moving the part.

  5. Ejector pin de-molding system consists ejector pin, support frame and ejector pin cover. • Ejector pin is constructed with premium quality alloy steel to provide good scurf resistance to the pin. • Ejector pin cover is used for guiding the pin, whereas support frame is the fixing system used for ejector pins. It possesses superb bearing capacity. • Heating system – it is another significant part of molding grating. Engineers are able to cure/ hard polyester resin after heating. The heating system is equipped with electric heating tube and connecting system.

  6. Base is a welded part and engineers use Channel steel and other profiles made of steel to weld it. • FRP mesh gratings are versatile, premium quality floor covering used by industries as flooring. These gratings don’t take time to get installed and once in place, you don’t need to invest our time in maintaining them. These reliable products are truly recommended by professionals due to their tough and robust built. • FRP grating manufacturers are supplying their comprehensive range of products globally. You can even book your order at some online websites and the products will get delivered at your place. This is easy- time saving way to bring most reliable and durable grating products at your place. Book your order online at the best price today.

  7. Tel:+91 97128 50506 +91 95866 50506 +91 97125 45777 http://www.tribenifiber.com/ EVERSHINE APPLIANCES PVT. LTD. Plot No. 41, Ichhapore GIDC, Opp. ONGC, Near GAIL, Sachin-Hazira Road, Bhatpore Village, Surat - 394 510 (Guj.) INDIA. CIN U27108GJ2004PTC044421
