Presentation Transcript

Sources of sand l.jpg

Sources of Sand

Sand, Gravel, Pebble, Cobble

Quartz

Volcanic

Carbonate


Nearshore features l.jpg
Nearshore Features

Depositional Coasts

  • Dunes

  • Beach Face

  • Berm

  • Beach sediment

    Erosional Coasts

  • Headlands

  • Sea Cliffs, Sea Stacks, Sea Arches and Sea Caves

  • Wave-Cut marine Terraces


Slide8 l.jpg

/Dune or Seawall

Foreshore

Intertidal

Area

Ridge &

Runnel

Beachface

Usually 2 sand bars innermost 30-50m from shoreline


Berms and dunes l.jpg
Berms and Dunes

  • Over time, sand builds up at the far reach of the waves forming a high called a Berm.

  • Storm surges wash over the berm and deposit sediment on the landward dipping surface.

  • They can also erode the berm.

  • Wind commonly reworks this sand to form coastal dunes.

  • These dunes are similar to those in arid environments, but due to the proximity of the ocean, they are commonly more moist, and vegetation is common.

  • The vegetation stabilizes the dunes reducing their migration as well as disrupts stratification in them.


Slide10 l.jpg

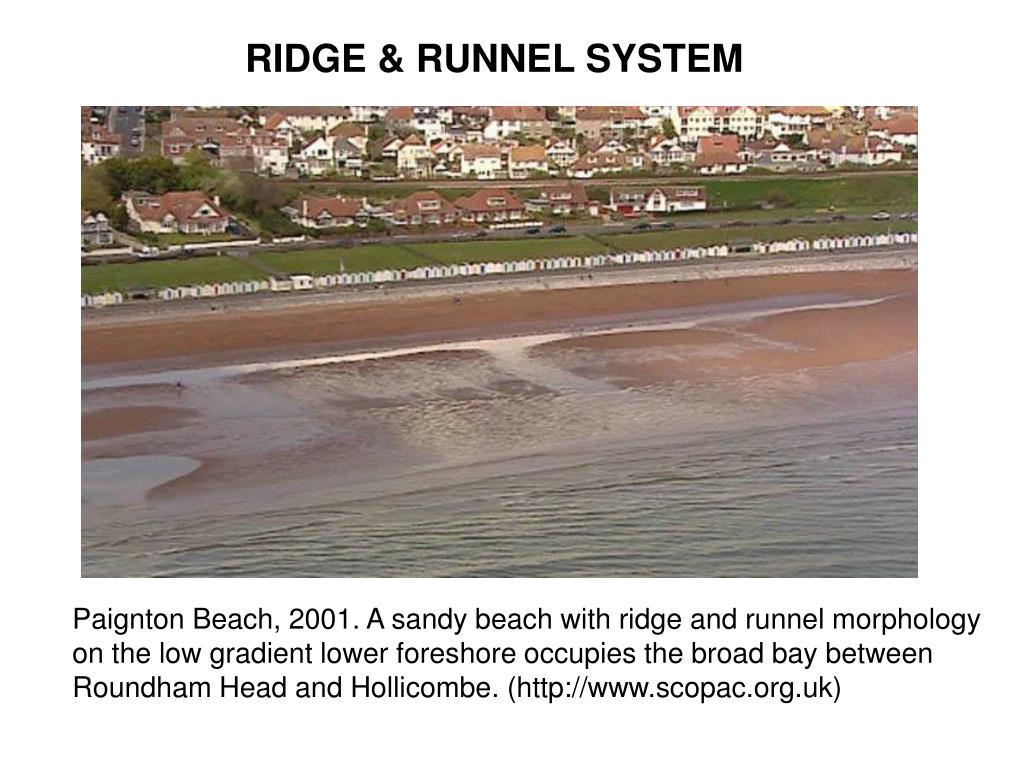

RIDGE & RUNNEL SYSTEM

Paignton Beach, 2001. A sandy beach with ridge and runnel morphology on the low gradient lower foreshore occupies the broad bay between Roundham Head and Hollicombe. (http://www.scopac.org.uk)


Slide11 l.jpg

The tidal range on this beach is about 10 m, and it has very small waves because it is protected on one side by a spit and the other by a grove of mangroves that extends into the water. A view of the shore-ward end of the spit also shows the slope of the beach face where waves break at high tide. (Dawn Sumner-sumner@geology.ucdavis.edu)



Slide13 l.jpg

Two sets of ripples cross to form an interference pattern. Ripple sets represent swash and backwash of waves on the beach front.


Beach profile l.jpg
Beach Profile Ripple sets represent swash and backwash of waves on the beach front.

  • The profile of many beaches vary seasonally as a result of wave processes and sediment transport

  • Summer beaches exhibit gently sloping profiles with offshore sand bars

  • During winter larger more powerful waves redistribute offshore sand and erose the beach producing a steeper profile


Slide18 l.jpg

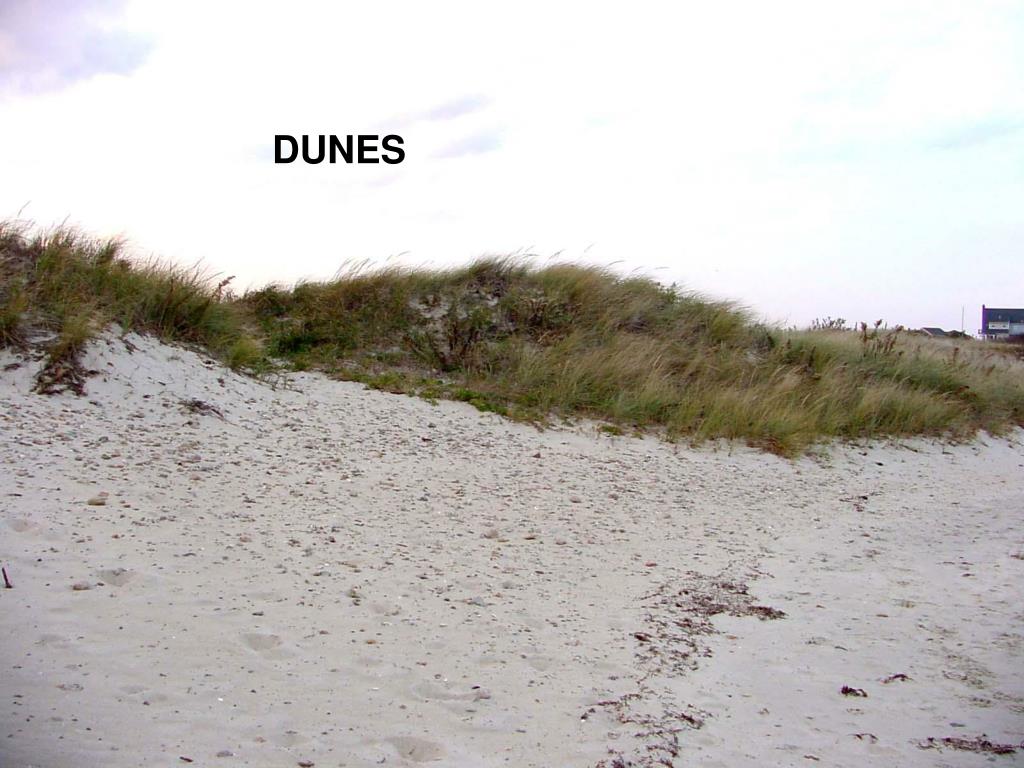

DUNES Ripple sets represent swash and backwash of waves on the beach front.


Slide19 l.jpg

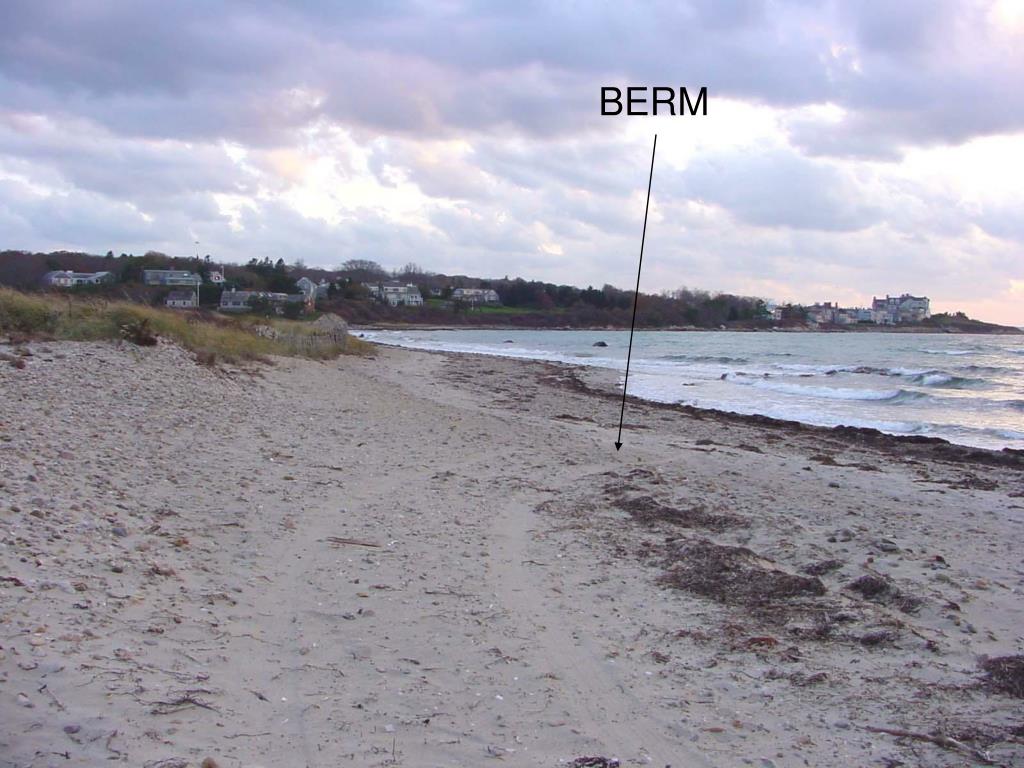

BERM Ripple sets represent swash and backwash of waves on the beach front.


Slide20 l.jpg

STORM BERMS Ripple sets represent swash and backwash of waves on the beach front.

Each storm berm has a steeper lower slope and flatter upper slope. There are at least five storm deposits preserved here. (http://www.maine.gov/doc/nrimc/mgs/explore/marine/facts/sep00-5.htm)


Slide21 l.jpg

(Barcelona Field Studies Centre) Ripple sets represent swash and backwash of waves on the beach front.


Longshore drift of sediment l.jpg

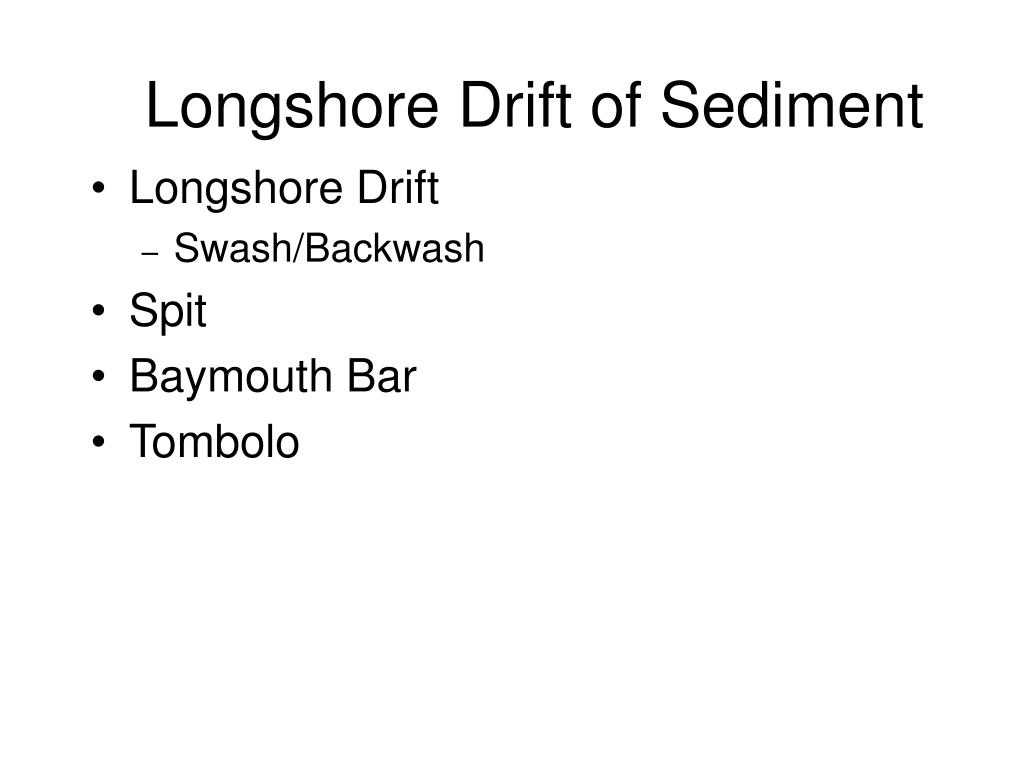

Longshore Drift of Sediment Ripple sets represent swash and backwash of waves on the beach front.

  • Longshore Drift

    • Swash/Backwash

  • Spit

  • Baymouth Bar

  • Tombolo


Barrier spits l.jpg
Barrier Spits Ripple sets represent swash and backwash of waves on the beach front.

  • Beaches that are attached at one end to their source of sediment are called Simple spits if they consist of a narrow finger of sand with a single dune ridge that elongates in the downdrift direction.

  • Double spits can form if drift transports sand in two directions across and inlet, or if a baymouth barrier is cut by a tidal channel.

  • Wave refraction at the end of a spit will transport sand to form a recurvedspit.

  • Complex spits form when a plentiful supply of sediment is transported by both ocean and bay currents. Multiple lines of dunes can be formed by wind transport of sand across the spit.


Slide26 l.jpg

Complex Spit Ripple sets represent swash and backwash of waves on the beach front.

Simple Spit

Double Spit


Bay barriers l.jpg
Bay Barriers Ripple sets represent swash and backwash of waves on the beach front.

  • Continuous barrier beaches that close off the entrance to a bay.

  • In the upper reaches of a bay the bayheadbarrier protects lagoon or marshland.

  • Barriers that connect headlands together along the outer reaches of an embayment are called baymouth barriers.
