slide1

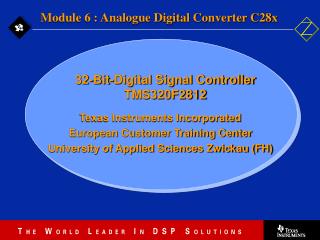

Module 6 : Analogue Digital Converter C28x

32-Bit-Digital Signal Controller

TMS320F2812

Texas Instruments Incorporated

European Customer Training Center

University of Applied Sciences Zwickau (FH)

adc module
ADC Module
  • 12-bit resolution ADC core
  • Sixteen analog inputs (range of 0 to 3V)
  • Two analog input multiplexers
    • Up to 8 analog input channels each
  • Two sample/hold units (for each input mux)
  • Sequential and simultaneous sampling modes
  • Auto sequencing capability - up to 16 auto conversions
    • Two independent 8-state sequencers
      • “Dual-sequencer mode”
      • “Cascaded mode”
  • Sixteen individually addressable result registers
  • Multiple trigger sources for start-of-conversion
    • External trigger, S/W, and Event Manager events
adc module block diagram cascaded mode
ADC Module Block Diagram (Cascaded Mode)

Analog MUX

ADCINA0

Result MUX

ADCINA1

MUX

A

S/H

A

...

RESULT0

RESULT1

ADCINA7

12-bit A/D

Converter

S/H

MUX

RESULT2

ADCINB0

. . .

Result

Select

ADCINB1

MUX

B

S/H

B

EOC

SOC

...

RESULT15

Auto sequencer

ADCINB7

MAX_CONV1

CHSEL00 (state 0)

CHSEL01 (state 1)

CHSEL02 (state 2)

CHSEL03 (state 3)

CHSEL15 (state 15)

Software

EVA

EVB

Ext Pin (ADCSOC)

...

Start Sequence

Trigger

adc module block diagram dual sequencer mode
ADC Module Block Diagram (Dual-Sequencer mode)

Analog MUX

Result MUX

ADCINA0

RESULT0

ADCINA1

MUX

A

S/H

A

...

RESULT1

12-bit A/D

Converter

. . .

ADCINA7

Result

Select

S/H

MUX

RESULT7

ADCINB0

Sequencer

Arbiter

ADCINB1

MUX

B

S/H

B

...

RESULT8

SOC1/

EOC1

SOC2/

EOC2

RESULT9

ADCINB7

. . .

SEQ1

SEQ2

Result

Select

Auto sequencer

Auto sequencer

RESULT15

MAX_CONV1

MAX_CONV2

CHSEL00 (state 0)

CHSEL01 (state 1)

CHSEL02 (state 2)

CHSEL07 (state 7)

CHSEL08 (state 8)

CHSEL09 (state 9)

CHSEL10 (state 10)

CHSEL15 (state 15)

Software

EVA

Ext Pin

(ADCSOC)

...

...

Software

EVB

Start Sequence

Trigger

Start Sequence

Trigger

f2812 adc clocking example
F2812 ADC Clocking Example

ADCCLKPS

bits

ADCTRL3

To CPU

1010b

000b

CPS bit

ADCTRL1

PLLCR

DIV

bits

HISPCP

0011b

0b

HSPCLK

bits

ADCTRL1

ACQ_PS

bits

0111b

CLKIN

(30 MHz)

SYSCLKOUT

(150 MHz)

HSPCLK

(150 MHz)

PCLKCR.ADCENCLK = 1

ADCCLK

(25 MHz)

FCLK

(25 MHz)

To ADC pipeline

sampling window

FCLK = HSPCLK/(2*ADCCLKPS)

ADCCLK =

FCLK/(CPS+1)

sampling window = (ACQ_PS + 1)*(1/ADCCLK)

Important: ADCCLK can be a maximum of 25 MHz!

analog to digital converter registers
Analog-to-Digital Converter Registers

Register Address Description

ADCTRL1 0x007100 ADC Control Register 1

ADCTRL2 0x007101 ADC Control Register 2

ADCMAXCONV 0x007102 ADC Maximum Conversion Channels Register

ADCCHSELSEQ1 0x007103 ADC Channel Select Sequencing Control Register 1

ADCCHSELSEQ2 0x007104 ADC Channel Select Sequencing Control Register 2

ADCCHSELSEQ3 0x007105 ADC Channel Select Sequencing Control Register 3

ADCCHSELSEQ4 0x007106 ADC Channel Select Sequencing Control Register 4

ADCASEQSR 0x007107 ADC Auto sequence Status Register

ADCRESULT0 0x007108 ADC Conversion Result Buffer Register 0

ADCRESULT1 0x007109 ADC Conversion Result Buffer Register 1

ADCRESULT2 0x00710A ADC Conversion Result Buffer Register 2

:::::::::

ADCRESULT14 0x007116 ADC Conversion Result Buffer Register 14

ADCRESULT15 0x007117 ADC Conversion Result Buffer Register 15

ADCTRL3 0x007118 ADC Control Register 3

ADCST 0x007119 ADC Status and Flag Register

adc control register 1 upper byte adctrl1 @ 0x007100
ADC Control Register 1 - Upper ByteADCTRL1 @ 0x007100

ADC Module Reset

0 = no effect

1 = reset (set back to 0

by ADC logic)

Acquisition Time Prescale (S/H)

Value = (binary+1)

* Time dependent on the “Conversion

Clock Prescale” bit (Bit 7 “CPS”)

15

14

13

12

11

10

9

8

reserved

RESET

ACQ_PS3

SUSMOD1

SUSMOD0

ACQ_PS2

ACQ_PS1

ACQ_PS0

Emulation Suspend Mode

00 = [Mode 0] free run (do not stop)

01 = [Mode 1] stop after current sequence

10 = [Mode 2] stop after current conversion

11 = [Mode 3] stop immediately

adc control register 1 lower byte adctrl1 @ 0x007100
ADC Control Register 1 - Lower ByteADCTRL1 @ 0x007100

Continuous Run

0 = stops after reaching

end of sequence

1 = continuous (starts all over

again from “initial state”)

Sequencer Mode

0 = dual mode

1 = cascaded mode

7

6

5

4

3

2

1

0

reserved

reserved

CPS

reserved

reserved

SEQ1_OVRD

SEQ_CASC

CONT_RUN

Sequencer Override

(continuous run mode)

0 = sequencer pointer resets to “initial state”

at end of MAX_CONVn

1 = sequencer pointer resets to “initial state”

after “end state”

Conversion Prescale

0 = CLK / 1

1 = CLK / 2

adc control register 2 upper byte adctrl2 @ 0x007101
ADC Control Register 2 - Upper ByteADCTRL2 @ 0x007101

EVB SOC

(cascaded mode only)

0 = no action

1 = start by EVB

signal

EVA SOC

SEQ1 Mask Bit

0 = cannot be started

by EVA trigger

1 = can be started

by EVA trigger

Start Conversion (SEQ1)

0 = clear pending SOC trigger

1 = software trigger-start SEQ1

15

14

13

12

11

10

9

8

EVA_SOC_

SEQ1

INT_ENA_

SEQ1

EVB_SOC

_SEQ

INT_MOD

_SEQ1

SOC_SEQ1

reserved

RST_SEQ1

reserved

Interrupt Enable (SEQ1)

0 = interrupt disable

1 = interrupt enable

Reset SEQ1

0 = no action

1 = immediate reset

SEQ1 to “initial state”

Interrupt Mode (SEQ1)

0 = interrupt every EOS

1 = interrupt every other EOS

adc control register 2 lower byte adctrl2 @ 0x007101
ADC Control Register 2 - Lower ByteADCTRL2 @ 0x007101

External SOC (SEQ1)

0 = no action

1 = start by signal

from ADCSOC pin

EVB SOC

SEQ2 Mask bit

0 = cannot be started

by EVB trigger

1 = can be started

by EVB trigger

Start Conversion (SEQ2)

(dual-sequencer mode only)

0 = clear pending SOC trigger

1 = software trigger-start SEQ2

7

6

5

4

3

2

1

0

EVB_SOC_

SEQ2

INT_ENA_

SEQ2

INT_MOD

_SEQ2

EXT_SOC

_SEQ1

reserved

RST_SEQ2

reserved

SOC_SEQ2

Interrupt Enable (SEQ2)

0 = interrupt disable

1 = interrupt enable

Reset SEQ2

0 = no action

1 = immediate reset

SEQ2 to “initial state”

Interrupt Mode (SEQ2)

0 = interrupt every EOS

1 = interrupt every other EOS

adc control register 3 adctrl3 @ 0x007118
ADC Control Register 3ADCTRL3 @ 0x007118

ADC Reference

Power Down

0 = powered down

1 = powered up

ADC Bandgap

Power Down

0 = powered down

1 = powered up

ADC Power Down

(except Bandgap & Ref.)

0 = powered down

1 = powered up

15 - 8

7

6

5

reserved

ADCPWDN

ADCBGND

ADCRFDN

4

3

2

1

0

SMODE_SEL

ADCCLKPS0

ADCCLKPS1

ADCCLKPS2

ADCCLKPS3

ADC Clock Prescale

Sampling Mode Select

0 = sequential sampling mode

1 = simultaneous sampling mode

maximum conversion channels register adcmaxconv @ 0x007102
Maximum Conversion Channels RegisterADCMAXCONV @ 0x007102

MAX_

CONV 2_2

MAX_

CONV 2_1

MAX_

CONV 2_0

MAX_

CONV 1_3

MAX_

CONV 1_2

MAX_

CONV 1_1

MAX_

CONV 1_0

reserved

  • Bit fields define the maximum number of auto conversions (binary+1)

Cascaded Mode

SEQ2

SEQ1

Dual Mode

  • Auto conversion session always starts with the “initial state”

and continues sequentially until the “end state”, if allowed

SEQ1 SEQ2 Cascaded

Initial state CONV00 CONV08 CONV00

End state CONV07 CONV15 CONV15

adc input channel select sequencing control register
ADC Input Channel Select Sequencing Control Register

Bits 15-12 Bits 11-8 Bits 7-4 Bits 3-0

0x007103CONV03 CONV02 CONV01 CONV00ADCCHSELSEQ1

0x007104CONV07 CONV06 CONV05 CONV04ADCCHSELSEQ2

0x007105CONV11 CONV10 CONV09 CONV08ADCCHSELSEQ3

0x007106CONV15 CONV14 CONV13 CONV12ADCCHSELSEQ4

example sequencer start stop operation
Example - Sequencer “Start/Stop” Operation

EVA

Timer 1

EVA

PWM

I1, I2, I3

V1, V2, V3

I1, I2, I3

V1, V2, V3

  • System Requirements:
  • Three auto conversions (I1, I2, I3) off trigger 1 (Timer underflow)
  • Three auto conversions (V1, V2, V3) off trigger 2 (Timer period)
  • Event Manager A (EVA) and SEQ1 are used for this example
  • with sequential sampling mode
example sequencer start stop operation continued

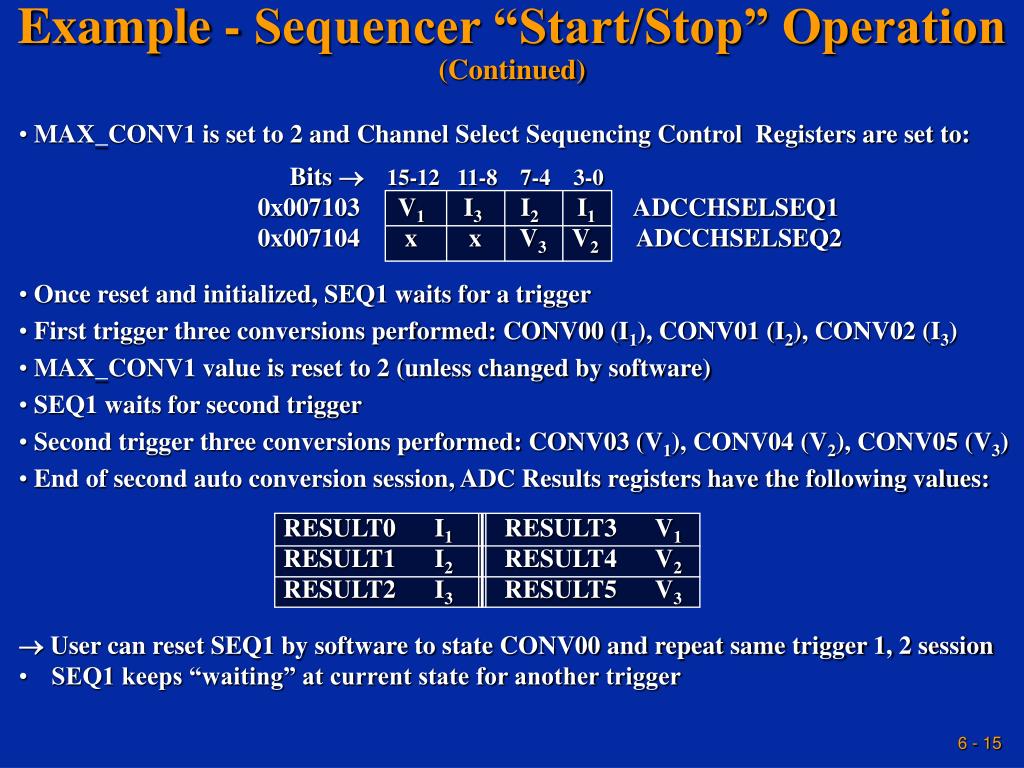

Example - Sequencer “Start/Stop” Operation (Continued)

RESULT0 I1 RESULT3 V1

RESULT1 I2 RESULT4 V2

RESULT2 I3 RESULT5 V3

  • MAX_CONV1 is set to 2 and Channel Select Sequencing Control Registers are set to:

Bits  15-12 11-8 7-4 3-0

0x007103 V1 I3 I2 I1 ADCCHSELSEQ1

0x007104 x x V3 V2 ADCCHSELSEQ2

  • Once reset and initialized, SEQ1 waits for a trigger
  • First trigger three conversions performed: CONV00 (I1), CONV01 (I2), CONV02 (I3)
  • MAX_CONV1 value is reset to 2 (unless changed by software)
  • SEQ1 waits for second trigger
  • Second trigger three conversions performed: CONV03 (V1), CONV04 (V2), CONV05 (V3)
  • End of second auto conversion session, ADC Results registers have the following values:
  •  User can reset SEQ1 by software to state CONV00 and repeat same trigger 1, 2 session
  • SEQ1 keeps “waiting” at current state for another trigger
slide16
ADC Conversion Result Buffer RegisterADCRESULT0 @ 0x007108 through ADCRESULT15 @ 0x007117(Total of 16 Registers)

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

0

MSB

LSB

With analog input 0V to 3V, we have:

analog volts converted value RESULTx

3.0 FFFh 1111|1111|1111|0000

1.5 7FFh 0111|1111|1111|0000

0.00073 1h 0000|0000|0001|0000

0 0h 0000|0000|0000|0000

how do we read the result integer format
How do we Read the Result?Integer format

x

x

x

x

x

x

x

x

x

x

0

0

0

0

x

x

x

x

x

x

x

x

x

x

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

x

x

x

x

x

x

x

x

x

x

0

0

0

0

x

x

RESULTx

bit shift right

15

0

x

x

ACC

x

x

Data Mem

Example: read RESULT0 register

#include "DSP281x_Device.h"

void main(void)

{

Uint16 value; // unsigned

value = AdcRegs.ADCRESULT0 >> 4;

}

lab 6 two channel analogue conversion initiated by gp timer 1
Lab 6: Two Channel Analogue Conversion initiated by GP Timer 1

AIM :

  • AD-Conversion of ADCIN_A0 and ADCIN_B0 initiated by GPT1-period of 0.1 sec.
  • ADCIN_A0 and ADCIN_B0 are connected to two potentiometers to control analogue input voltages between 0 and 3,0V.
  • no GPT1-interrupt-service  Auto-start of ADC with T1TOADC-bit !!
  • Use ADC-Interrupt Service Routine to read out the ADC results
  • Use main loop to show alternately the two results as light-beam on LED’s (GPIO port B7..B0)
additional registers to initialize lab 6
Additional Registers to initialize Lab 6:
  • General Purpose Timer Control : : GPTCONA
  • Timer 1 Control : T1CON
  • Timer 1 Period : T1PR
  • Timer 1 Compare : T1CMPR
  • Timer 1 Counter : T1CNT
  • Interrupt Flag : IFR
  • Interrupt Enable ask : IER
  • ADC – Control 3 : ADCTRL3
  • ADC – Control 2 : ADCTRL2
  • ADC – Control 1 : ADCTRL1
  • Channel Select Sequencer 1 : CHSELSEQ1
  • Max. number of conversions : MAXCONV
  • ADC - Result 0 : ADCRESULT0
  • ADC - Result 1 : ADCRESULT1
optional lab6a
Optional Lab6A
  • Modify Lab-Exercise 4 ( ‘Knight-Rider’) :
    • use the Analogue Input ADCIN0 to change
    • the frequency for the LED’s
    • to add the ADC-setup use Lab6 as a start
    • use a LED-frequency range between 50Hz and 1 Hz
    • use (1) a linear or (2) a logarithm scale
    • between Fmin and Fmax.
