Key Components of Effective SUDS Drainage Design

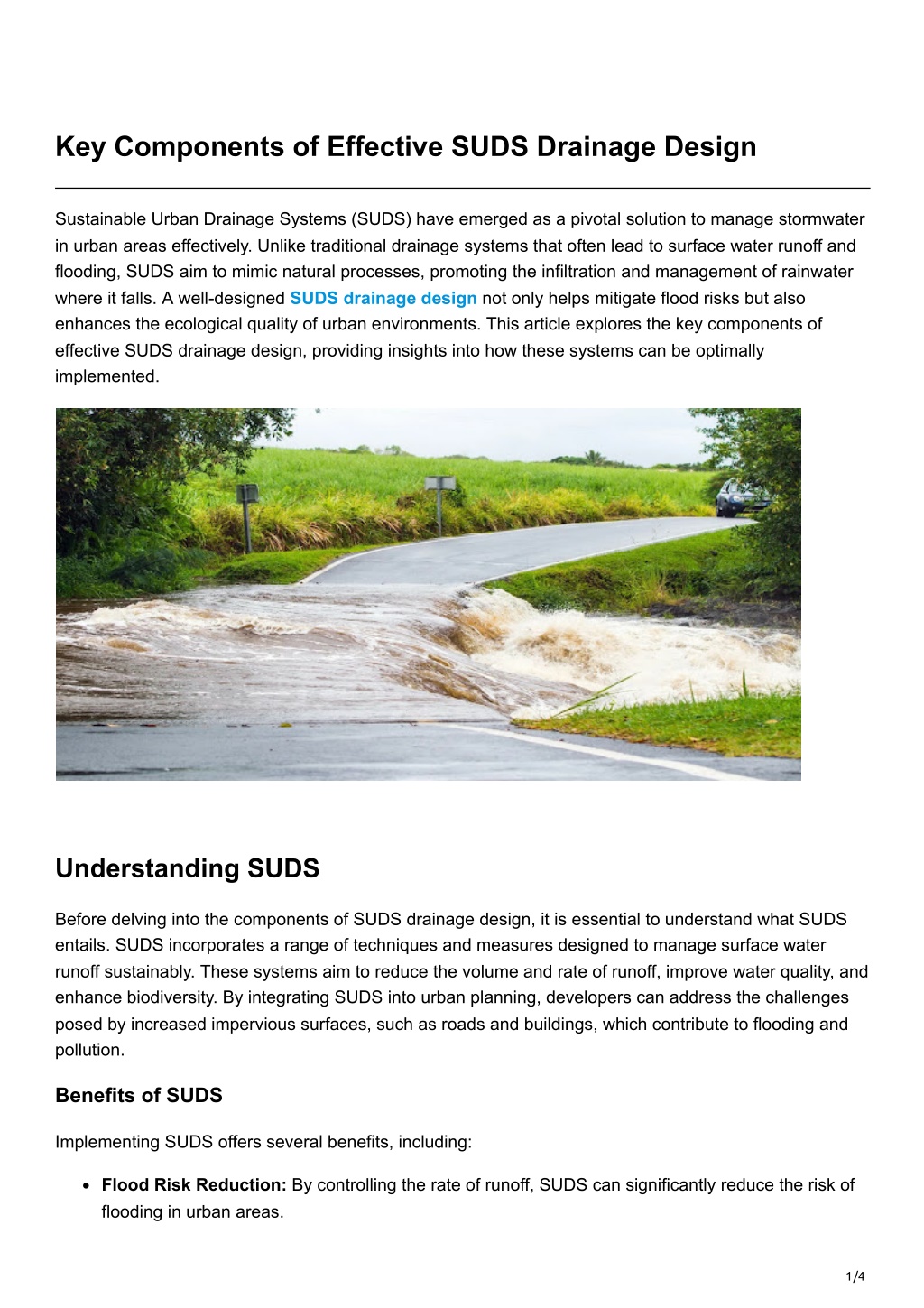

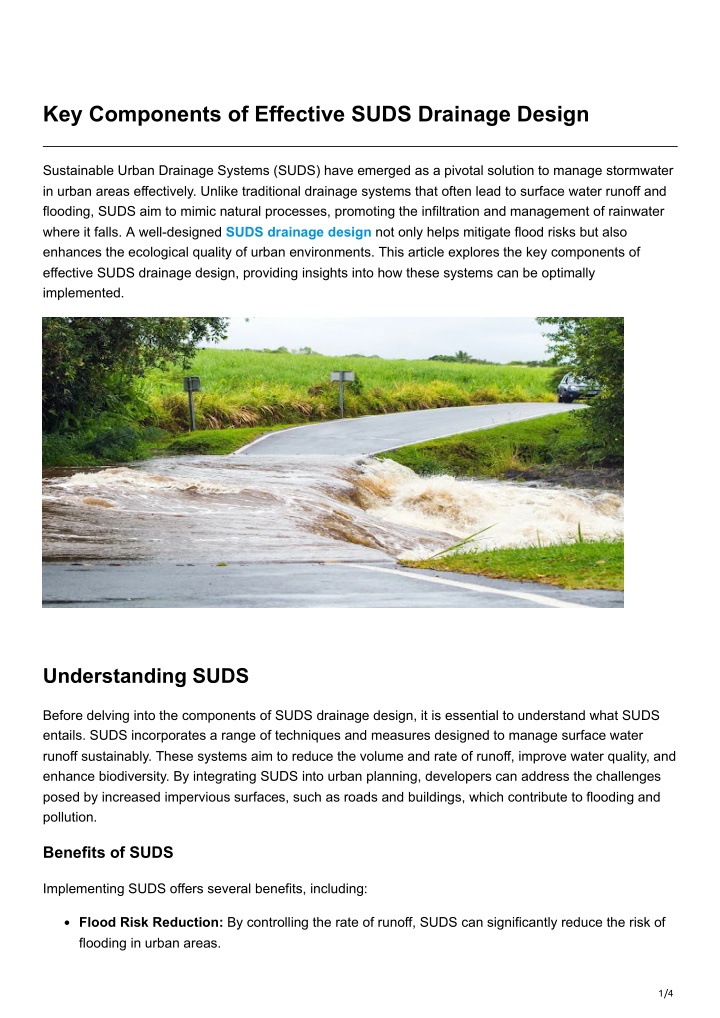

1. Key Components of Effective SUDS Drainage Design Sustainable Urban Drainage Systems (SUDS) have emerged as a pivotal solution to manage stormwater in urban areas effectively. Unlike traditional drainage systems that often lead to surface water runoff and flooding, SUDS aim to mimic natural processes, promoting the infiltration and management of rainwater where it falls. A well-designed SUDS drainage design not only helps mitigate flood risks but also enhances the ecological quality of urban environments. This article explores the key components of effective SUDS drainage design, providing insights into how these systems can be optimally implemented. Understanding SUDS Before delving into the components of SUDS drainage design, it is essential to understand what SUDS entails. SUDS incorporates a range of techniques and measures designed to manage surface water runoff sustainably. These systems aim to reduce the volume and rate of runoff, improve water quality, and enhance biodiversity. By integrating SUDS into urban planning, developers can address the challenges posed by increased impervious surfaces, such as roads and buildings, which contribute to flooding and pollution. Benefits of SUDS Implementing SUDS offers several benefits, including: Flood Risk Reduction: By controlling the rate of runoff, SUDS can significantly reduce the risk of flooding in urban areas. 1/4

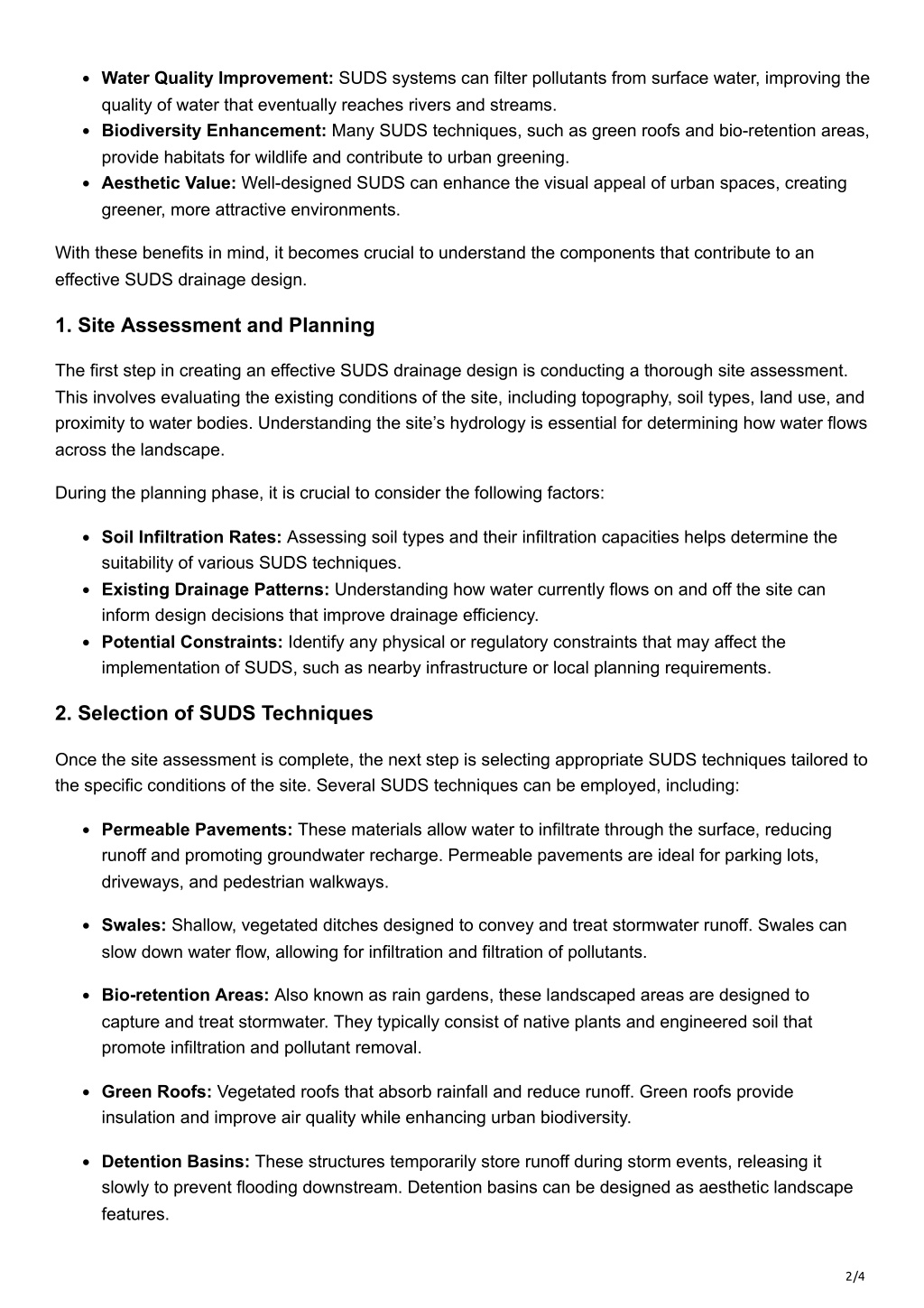

2. Water Quality Improvement: SUDS systems can filter pollutants from surface water, improving the quality of water that eventually reaches rivers and streams. Biodiversity Enhancement: Many SUDS techniques, such as green roofs and bio-retention areas, provide habitats for wildlife and contribute to urban greening. Aesthetic Value: Well-designed SUDS can enhance the visual appeal of urban spaces, creating greener, more attractive environments. With these benefits in mind, it becomes crucial to understand the components that contribute to an effective SUDS drainage design. 1. Site Assessment and Planning The first step in creating an effective SUDS drainage design is conducting a thorough site assessment. This involves evaluating the existing conditions of the site, including topography, soil types, land use, and proximity to water bodies. Understanding the site’s hydrology is essential for determining how water flows across the landscape. During the planning phase, it is crucial to consider the following factors: Soil Infiltration Rates: Assessing soil types and their infiltration capacities helps determine the suitability of various SUDS techniques. Existing Drainage Patterns: Understanding how water currently flows on and off the site can inform design decisions that improve drainage efficiency. Potential Constraints: Identify any physical or regulatory constraints that may affect the implementation of SUDS, such as nearby infrastructure or local planning requirements. 2. Selection of SUDS Techniques Once the site assessment is complete, the next step is selecting appropriate SUDS techniques tailored to the specific conditions of the site. Several SUDS techniques can be employed, including: Permeable Pavements: These materials allow water to infiltrate through the surface, reducing runoff and promoting groundwater recharge. Permeable pavements are ideal for parking lots, driveways, and pedestrian walkways. Swales: Shallow, vegetated ditches designed to convey and treat stormwater runoff. Swales can slow down water flow, allowing for infiltration and filtration of pollutants. Bio-retention Areas: Also known as rain gardens, these landscaped areas are designed to capture and treat stormwater. They typically consist of native plants and engineered soil that promote infiltration and pollutant removal. Green Roofs: Vegetated roofs that absorb rainfall and reduce runoff. Green roofs provide insulation and improve air quality while enhancing urban biodiversity. Detention Basins: These structures temporarily store runoff during storm events, releasing it slowly to prevent flooding downstream. Detention basins can be designed as aesthetic landscape features. 2/4

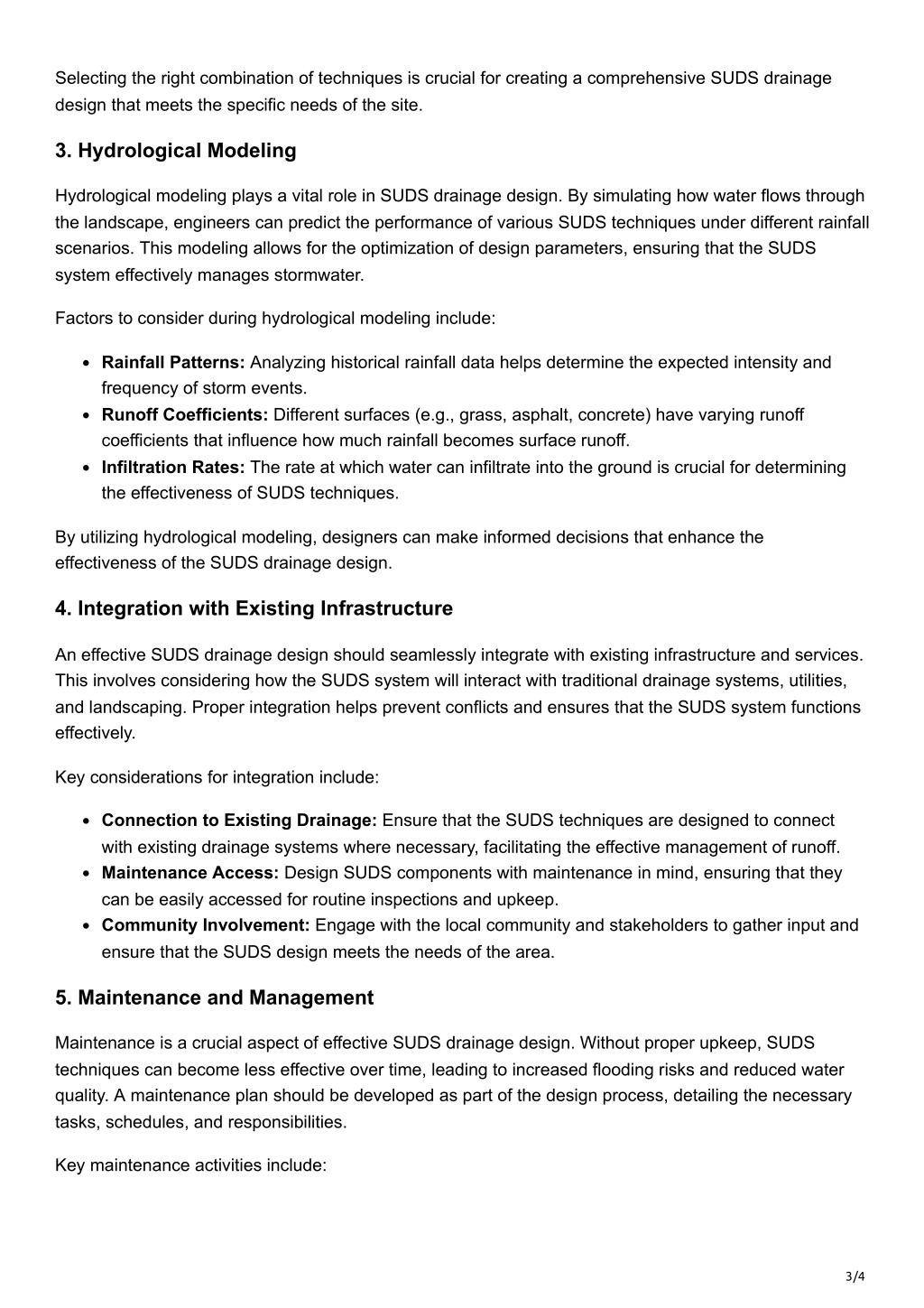

3. Selecting the right combination of techniques is crucial for creating a comprehensive SUDS drainage design that meets the specific needs of the site. 3. Hydrological Modeling Hydrological modeling plays a vital role in SUDS drainage design. By simulating how water flows through the landscape, engineers can predict the performance of various SUDS techniques under different rainfall scenarios. This modeling allows for the optimization of design parameters, ensuring that the SUDS system effectively manages stormwater. Factors to consider during hydrological modeling include: Rainfall Patterns: Analyzing historical rainfall data helps determine the expected intensity and frequency of storm events. Runoff Coefficients: Different surfaces (e.g., grass, asphalt, concrete) have varying runoff coefficients that influence how much rainfall becomes surface runoff. Infiltration Rates: The rate at which water can infiltrate into the ground is crucial for determining the effectiveness of SUDS techniques. By utilizing hydrological modeling, designers can make informed decisions that enhance the effectiveness of the SUDS drainage design. 4. Integration with Existing Infrastructure An effective SUDS drainage design should seamlessly integrate with existing infrastructure and services. This involves considering how the SUDS system will interact with traditional drainage systems, utilities, and landscaping. Proper integration helps prevent conflicts and ensures that the SUDS system functions effectively. Key considerations for integration include: Connection to Existing Drainage: Ensure that the SUDS techniques are designed to connect with existing drainage systems where necessary, facilitating the effective management of runoff. Maintenance Access: Design SUDS components with maintenance in mind, ensuring that they can be easily accessed for routine inspections and upkeep. Community Involvement: Engage with the local community and stakeholders to gather input and ensure that the SUDS design meets the needs of the area. 5. Maintenance and Management Maintenance is a crucial aspect of effective SUDS drainage design. Without proper upkeep, SUDS techniques can become less effective over time, leading to increased flooding risks and reduced water quality. A maintenance plan should be developed as part of the design process, detailing the necessary tasks, schedules, and responsibilities. Key maintenance activities include: 3/4

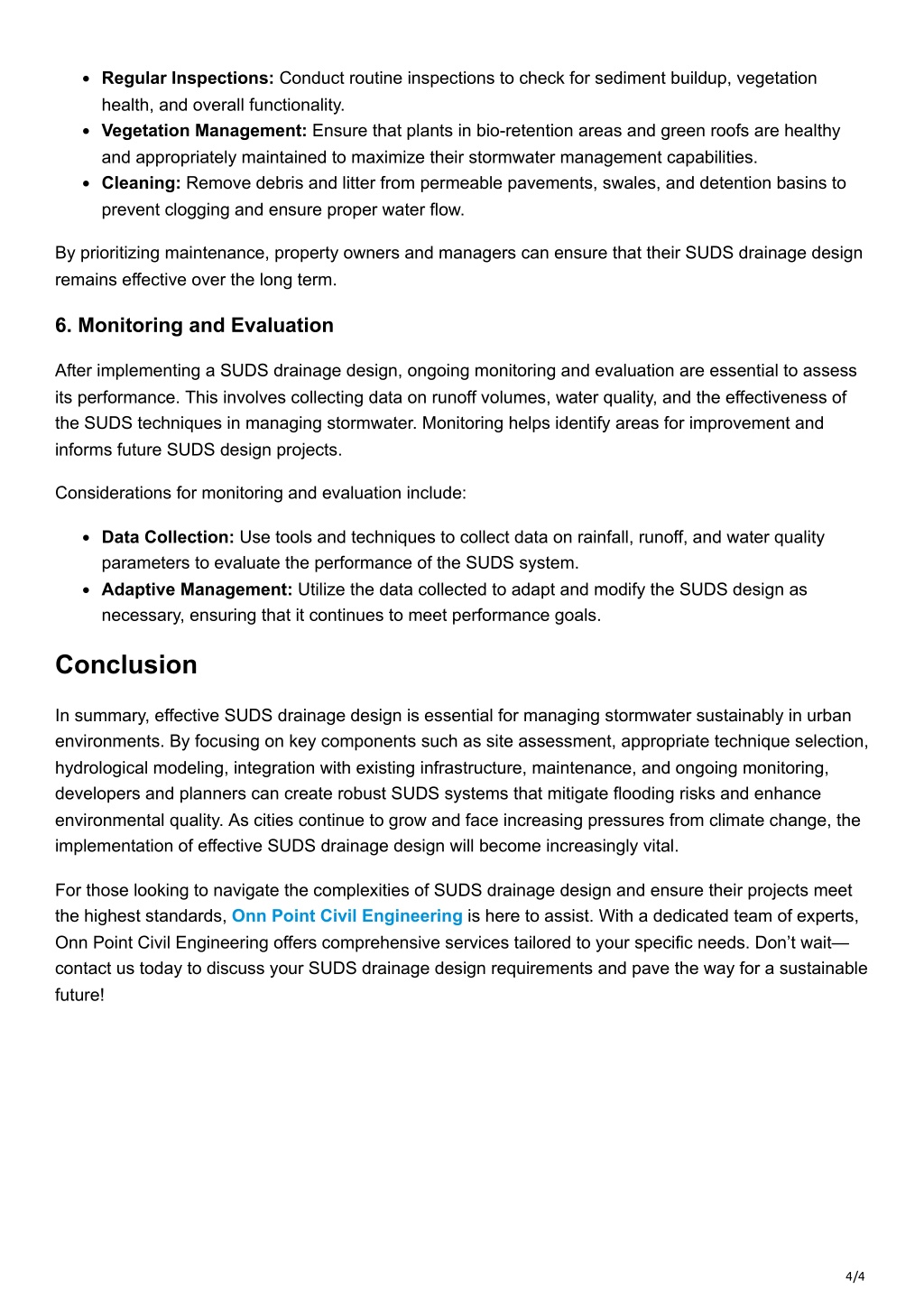

4. Regular Inspections: Conduct routine inspections to check for sediment buildup, vegetation health, and overall functionality. Vegetation Management: Ensure that plants in bio-retention areas and green roofs are healthy and appropriately maintained to maximize their stormwater management capabilities. Cleaning: Remove debris and litter from permeable pavements, swales, and detention basins to prevent clogging and ensure proper water flow. By prioritizing maintenance, property owners and managers can ensure that their SUDS drainage design remains effective over the long term. 6. Monitoring and Evaluation After implementing a SUDS drainage design, ongoing monitoring and evaluation are essential to assess its performance. This involves collecting data on runoff volumes, water quality, and the effectiveness of the SUDS techniques in managing stormwater. Monitoring helps identify areas for improvement and informs future SUDS design projects. Considerations for monitoring and evaluation include: Data Collection: Use tools and techniques to collect data on rainfall, runoff, and water quality parameters to evaluate the performance of the SUDS system. Adaptive Management: Utilize the data collected to adapt and modify the SUDS design as necessary, ensuring that it continues to meet performance goals. Conclusion In summary, effective SUDS drainage design is essential for managing stormwater sustainably in urban environments. By focusing on key components such as site assessment, appropriate technique selection, hydrological modeling, integration with existing infrastructure, maintenance, and ongoing monitoring, developers and planners can create robust SUDS systems that mitigate flooding risks and enhance environmental quality. As cities continue to grow and face increasing pressures from climate change, the implementation of effective SUDS drainage design will become increasingly vital. For those looking to navigate the complexities of SUDS drainage design and ensure their projects meet the highest standards, Onn Point Civil Engineering is here to assist. With a dedicated team of experts, Onn Point Civil Engineering offers comprehensive services tailored to your specific needs. Don’t wait— contact us today to discuss your SUDS drainage design requirements and pave the way for a sustainable future! 4/4
