How to Prevent Swivel Caster Locking and Improve Performance

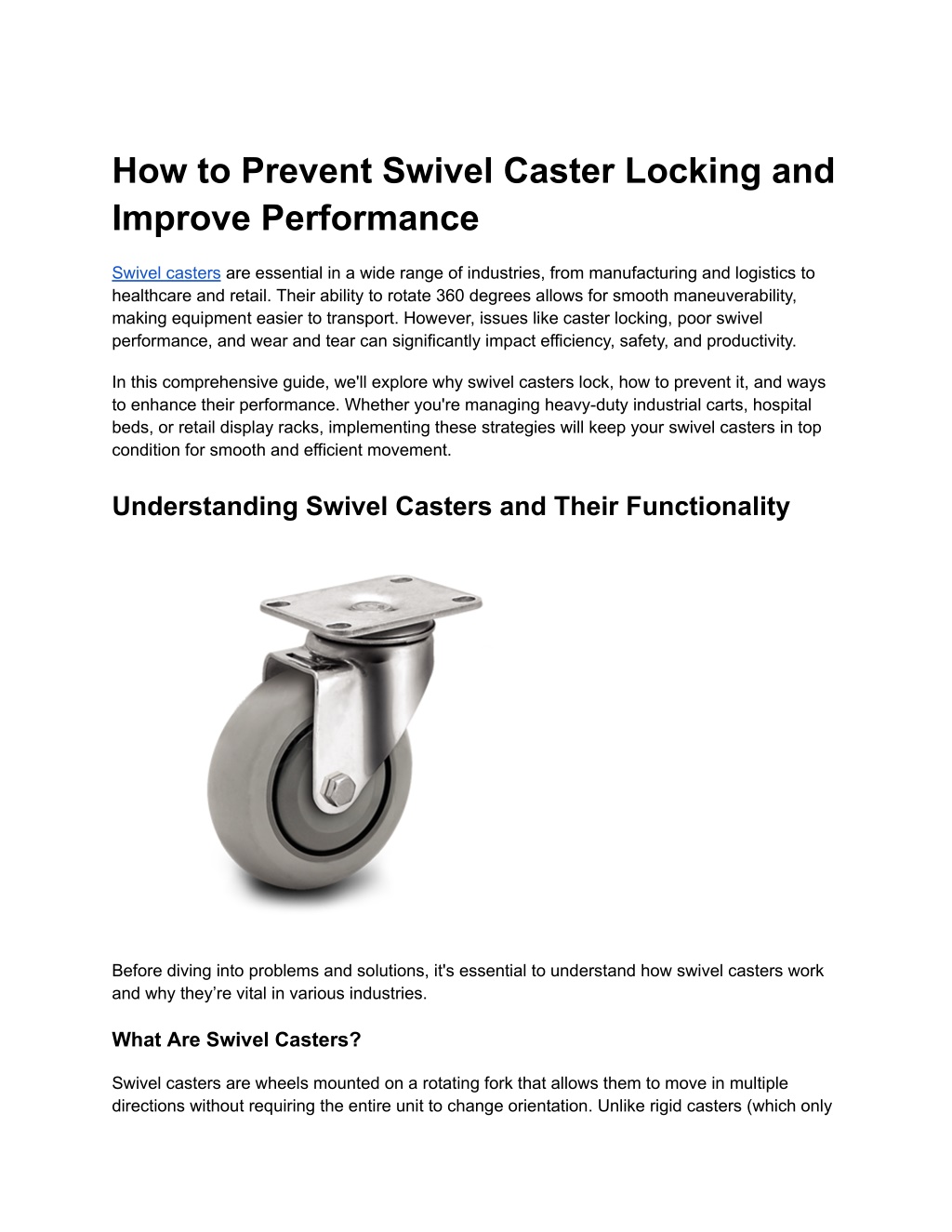

1. How to Prevent Swivel Caster Locking and Improve Performance Swivel casters are essential in a wide range of industries, from manufacturing and logistics to healthcare and retail. Their ability to rotate 360 degrees allows for smooth maneuverability, making equipment easier to transport. However, issues like caster locking, poor swivel performance, and wear and tear can significantly impact efficiency, safety, and productivity. In this comprehensive guide, we'll explore why swivel casters lock, how to prevent it, and ways to enhance their performance. Whether you're managing heavy-duty industrial carts, hospital beds, or retail display racks, implementing these strategies will keep your swivel casters in top condition for smooth and efficient movement. Understanding Swivel Casters and Their Functionality Before diving into problems and solutions, it's essential to understand how swivel casters work and why they’re vital in various industries. What Are Swivel Casters? Swivel casters are wheels mounted on a rotating fork that allows them to move in multiple directions without requiring the entire unit to change orientation. Unlike rigid casters (which only

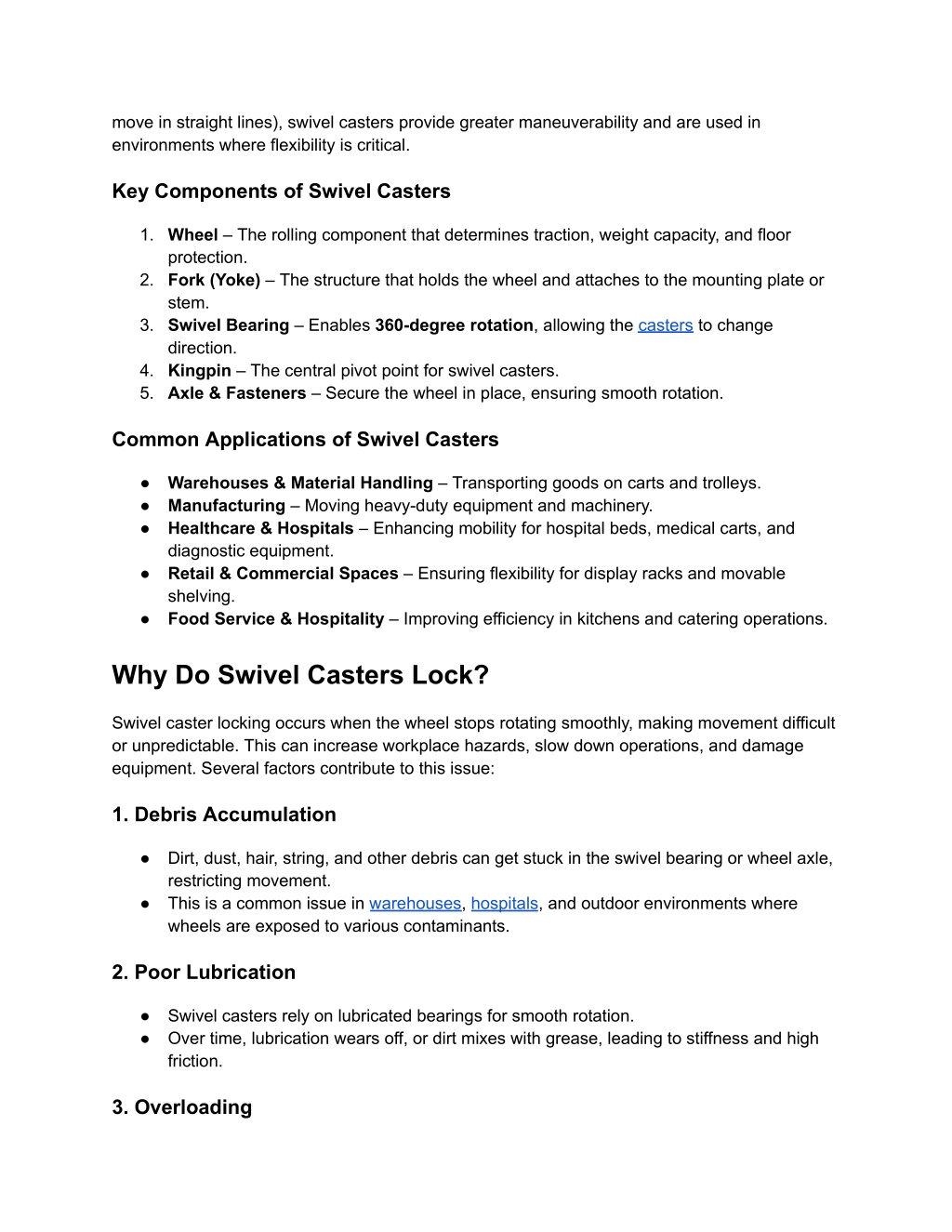

2. move in straight lines), swivel casters provide greater maneuverability and are used in environments where flexibility is critical. Key Components of Swivel Casters 1. Wheel – The rolling component that determines traction, weight capacity, and floor protection. 2. Fork (Yoke) – The structure that holds the wheel and attaches to the mounting plate or stem. 3. Swivel Bearing – Enables 360-degree rotation, allowing the casters to change direction. 4. Kingpin – The central pivot point for swivel casters. 5. Axle & Fasteners – Secure the wheel in place, ensuring smooth rotation. Common Applications of Swivel Casters ● Warehouses & Material Handling – Transporting goods on carts and trolleys. ● Manufacturing – Moving heavy-duty equipment and machinery. ● Healthcare & Hospitals – Enhancing mobility for hospital beds, medical carts, and diagnostic equipment. ● Retail & Commercial Spaces – Ensuring flexibility for display racks and movable shelving. ● Food Service & Hospitality – Improving efficiency in kitchens and catering operations. Why Do Swivel Casters Lock? Swivel caster locking occurs when the wheel stops rotating smoothly, making movement difficult or unpredictable. This can increase workplace hazards, slow down operations, and damage equipment. Several factors contribute to this issue: 1. Debris Accumulation ● Dirt, dust, hair, string, and other debris can get stuck in the swivel bearing or wheel axle, restricting movement. ● This is a common issue in warehouses, hospitals, and outdoor environments where wheels are exposed to various contaminants. 2. Poor Lubrication ● Swivel casters rely on lubricated bearings for smooth rotation. ● Over time, lubrication wears off, or dirt mixes with grease, leading to stiffness and high friction. 3. Overloading

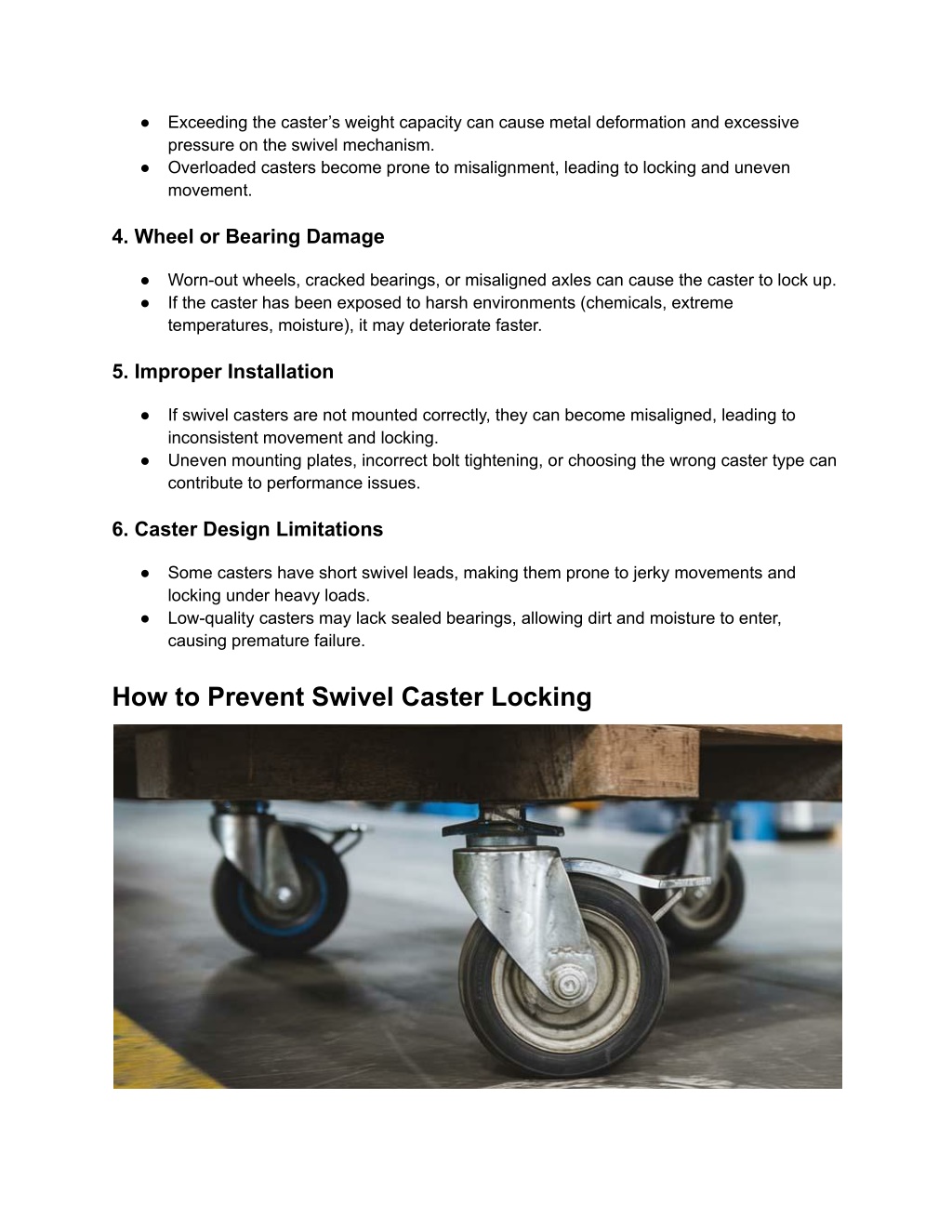

3. ● Exceeding the caster’s weight capacity can cause metal deformation and excessive pressure on the swivel mechanism. ● Overloaded casters become prone to misalignment, leading to locking and uneven movement. 4. Wheel or Bearing Damage ● Worn-out wheels, cracked bearings, or misaligned axles can cause the caster to lock up. ● If the caster has been exposed to harsh environments (chemicals, extreme temperatures, moisture), it may deteriorate faster. 5. Improper Installation ● If swivel casters are not mounted correctly, they can become misaligned, leading to inconsistent movement and locking. ● Uneven mounting plates, incorrect bolt tightening, or choosing the wrong caster type can contribute to performance issues. 6. Caster Design Limitations ● Some casters have short swivel leads, making them prone to jerky movements and locking under heavy loads. ● Low-quality casters may lack sealed bearings, allowing dirt and moisture to enter, causing premature failure. How to Prevent Swivel Caster Locking

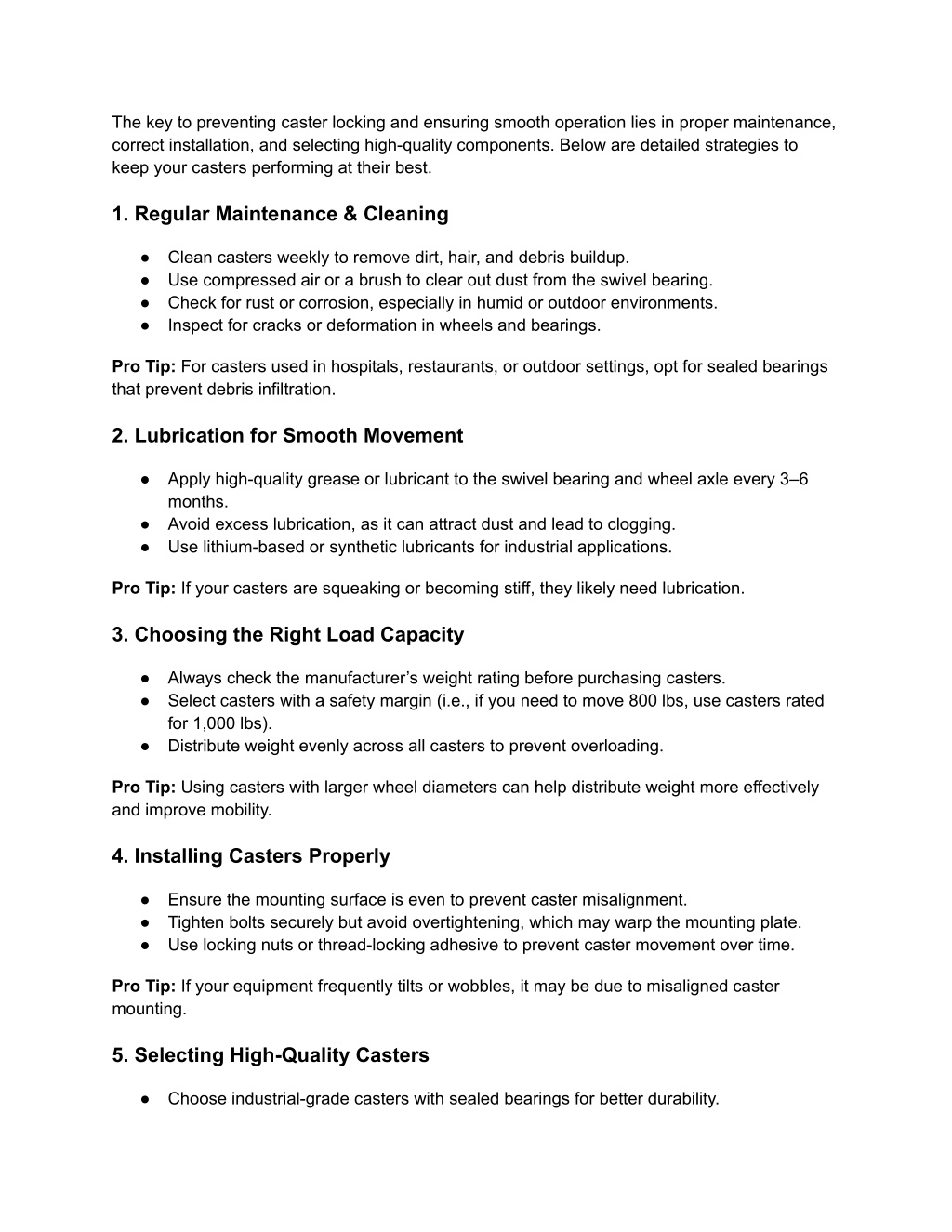

4. The key to preventing caster locking and ensuring smooth operation lies in proper maintenance, correct installation, and selecting high-quality components. Below are detailed strategies to keep your casters performing at their best. 1. Regular Maintenance & Cleaning ● Clean casters weekly to remove dirt, hair, and debris buildup. ● Use compressed air or a brush to clear out dust from the swivel bearing. ● Check for rust or corrosion, especially in humid or outdoor environments. ● Inspect for cracks or deformation in wheels and bearings. Pro Tip: For casters used in hospitals, restaurants, or outdoor settings, opt for sealed bearings that prevent debris infiltration. 2. Lubrication for Smooth Movement ● Apply high-quality grease or lubricant to the swivel bearing and wheel axle every 3–6 months. ● Avoid excess lubrication, as it can attract dust and lead to clogging. ● Use lithium-based or synthetic lubricants for industrial applications. Pro Tip: If your casters are squeaking or becoming stiff, they likely need lubrication. 3. Choosing the Right Load Capacity ● Always check the manufacturer’s weight rating before purchasing casters. ● Select casters with a safety margin (i.e., if you need to move 800 lbs, use casters rated for 1,000 lbs). ● Distribute weight evenly across all casters to prevent overloading. Pro Tip: Using casters with larger wheel diameters can help distribute weight more effectively and improve mobility. 4. Installing Casters Properly ● Ensure the mounting surface is even to prevent caster misalignment. ● Tighten bolts securely but avoid overtightening, which may warp the mounting plate. ● Use locking nuts or thread-locking adhesive to prevent caster movement over time. Pro Tip: If your equipment frequently tilts or wobbles, it may be due to misaligned caster mounting. 5. Selecting High-Quality Casters ● Choose industrial-grade casters with sealed bearings for better durability.

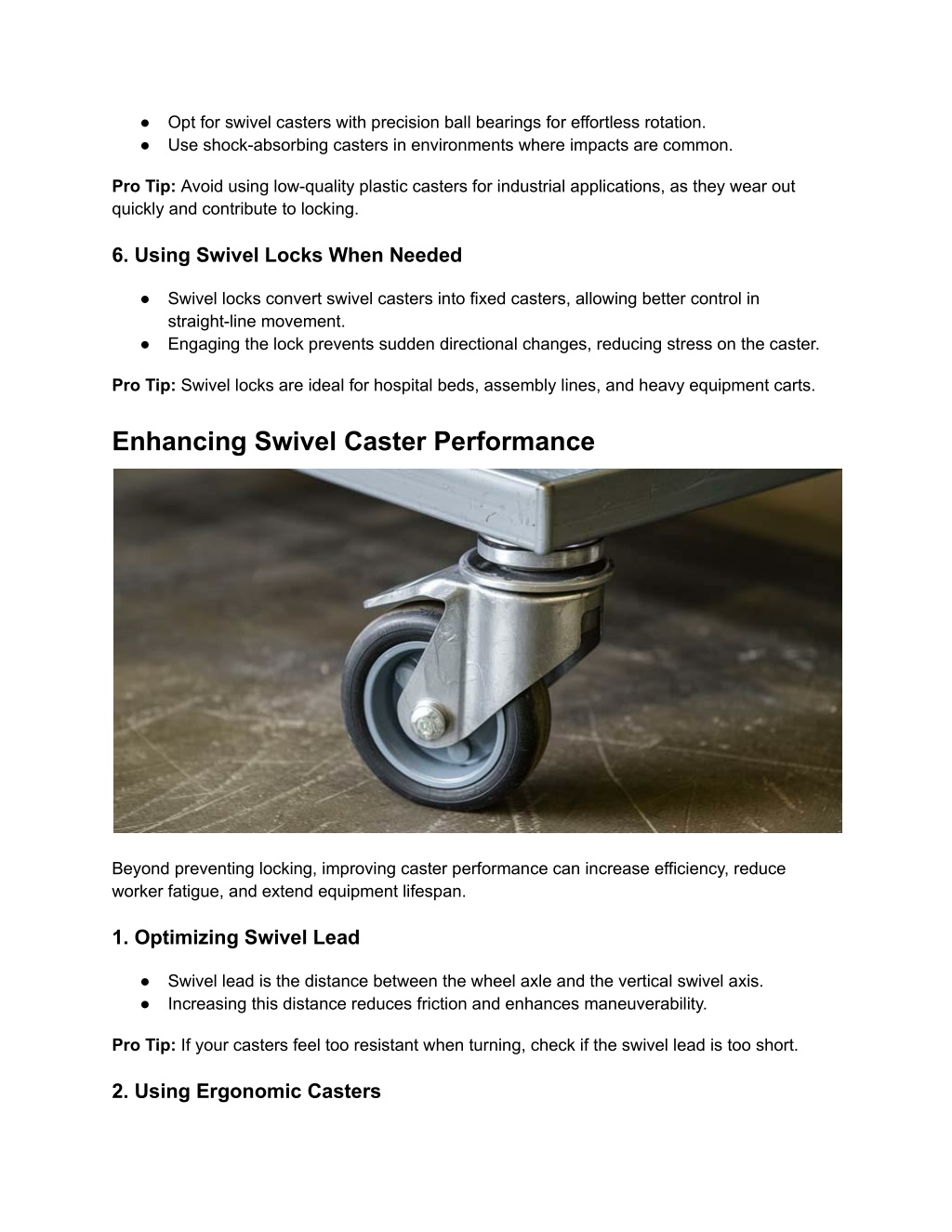

5. ● Opt for swivel casters with precision ball bearings for effortless rotation. ● Use shock-absorbing casters in environments where impacts are common. Pro Tip: Avoid using low-quality plastic casters for industrial applications, as they wear out quickly and contribute to locking. 6. Using Swivel Locks When Needed ● Swivel locks convert swivel casters into fixed casters, allowing better control in straight-line movement. ● Engaging the lock prevents sudden directional changes, reducing stress on the caster. Pro Tip: Swivel locks are ideal for hospital beds, assembly lines, and heavy equipment carts. Enhancing Swivel Caster Performance Beyond preventing locking, improving caster performance can increase efficiency, reduce worker fatigue, and extend equipment lifespan. 1. Optimizing Swivel Lead ● Swivel lead is the distance between the wheel axle and the vertical swivel axis. ● Increasing this distance reduces friction and enhances maneuverability. Pro Tip: If your casters feel too resistant when turning, check if the swivel lead is too short. 2. Using Ergonomic Casters

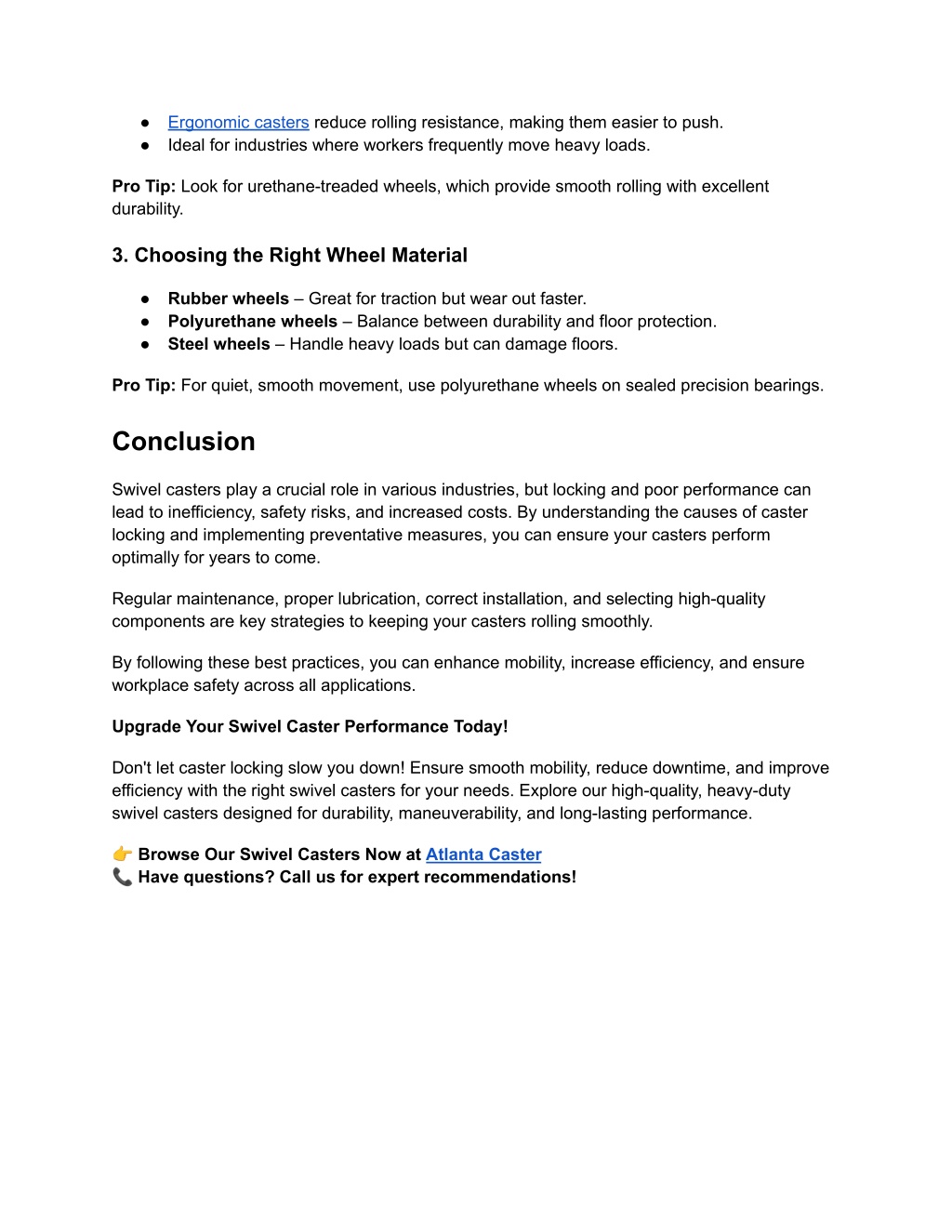

6. ● Ergonomic casters reduce rolling resistance, making them easier to push. ● Ideal for industries where workers frequently move heavy loads. Pro Tip: Look for urethane-treaded wheels, which provide smooth rolling with excellent durability. 3. Choosing the Right Wheel Material ● Rubber wheels – Great for traction but wear out faster. ● Polyurethane wheels – Balance between durability and floor protection. ● Steel wheels – Handle heavy loads but can damage floors. Pro Tip: For quiet, smooth movement, use polyurethane wheels on sealed precision bearings. Conclusion Swivel casters play a crucial role in various industries, but locking and poor performance can lead to inefficiency, safety risks, and increased costs. By understanding the causes of caster locking and implementing preventative measures, you can ensure your casters perform optimally for years to come. Regular maintenance, proper lubrication, correct installation, and selecting high-quality components are key strategies to keeping your casters rolling smoothly. By following these best practices, you can enhance mobility, increase efficiency, and ensure workplace safety across all applications. Upgrade Your Swivel Caster Performance Today! Don't let caster locking slow you down! Ensure smooth mobility, reduce downtime, and improve efficiency with the right swivel casters for your needs. Explore our high-quality, heavy-duty swivel casters designed for durability, maneuverability, and long-lasting performance. ?Browse Our Swivel Casters Now at Atlanta Caster ?Have questions? Call us for expert recommendations!
