How to install Anti-termite Reticulation System?

This presentation of installation offers a structured description of anti-termite reticulation system. TermiPore products are made specially for anti-termite reticulation system. for more details on this contact us at: 91 6359292525.

Termipore
Download Presentation

How to install Anti-termite Reticulation System?

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

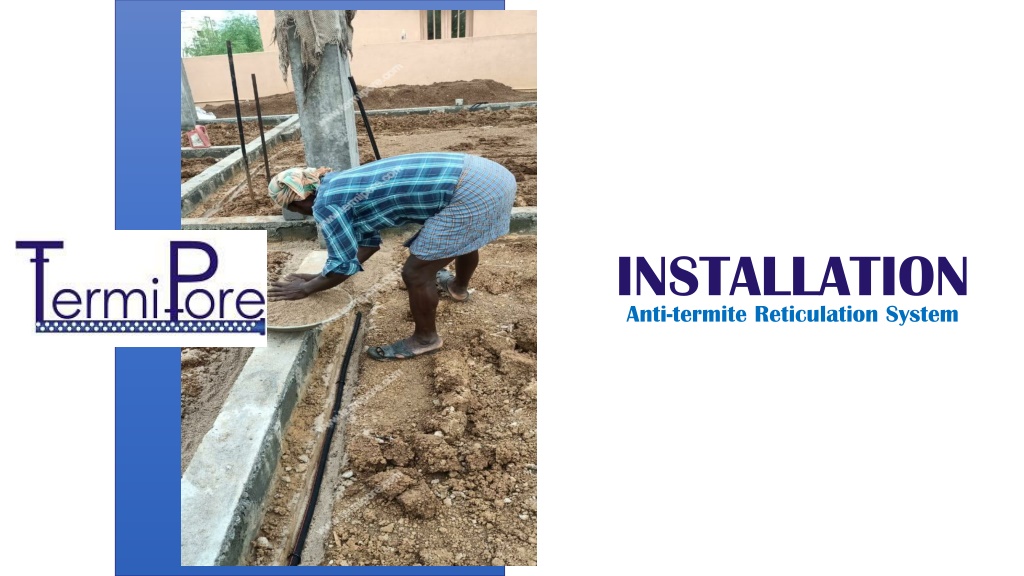

  1. INSTALLATION Anti-termite Reticulation System

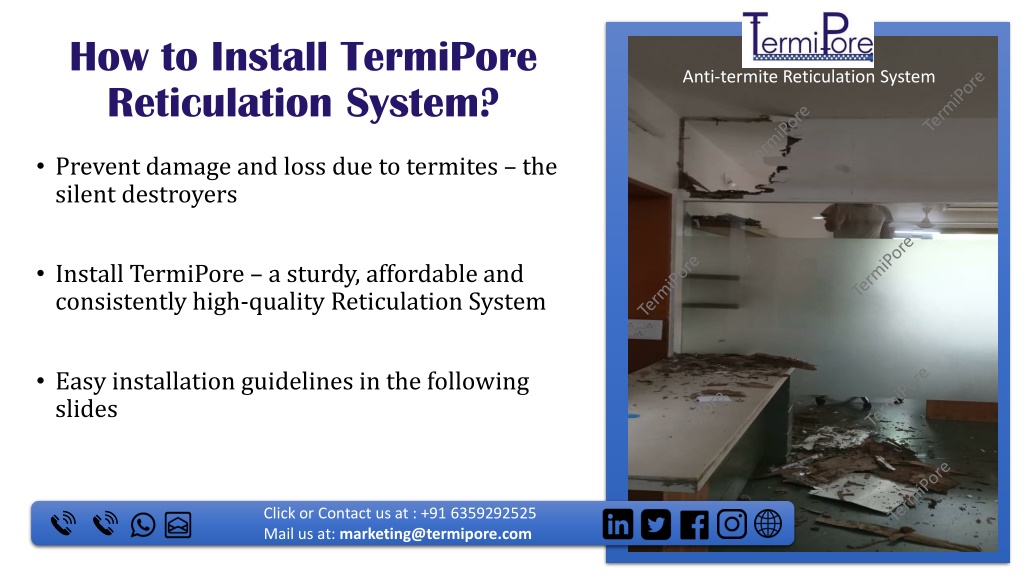

  2. TermiPore TermiPore How to Install TermiPore Reticulation System? Anti-termite Reticulation System TermiPore TermiPore • Prevent damage and loss due to termites – the silent destroyers • Install TermiPore – a sturdy, affordable and consistently high-quality Reticulation System • Easy installation guidelines in the following slides TermiPore TermiPore TermiPore Click or Contact us at : +91 6359292525 Mail us at: marketing@termipore.com

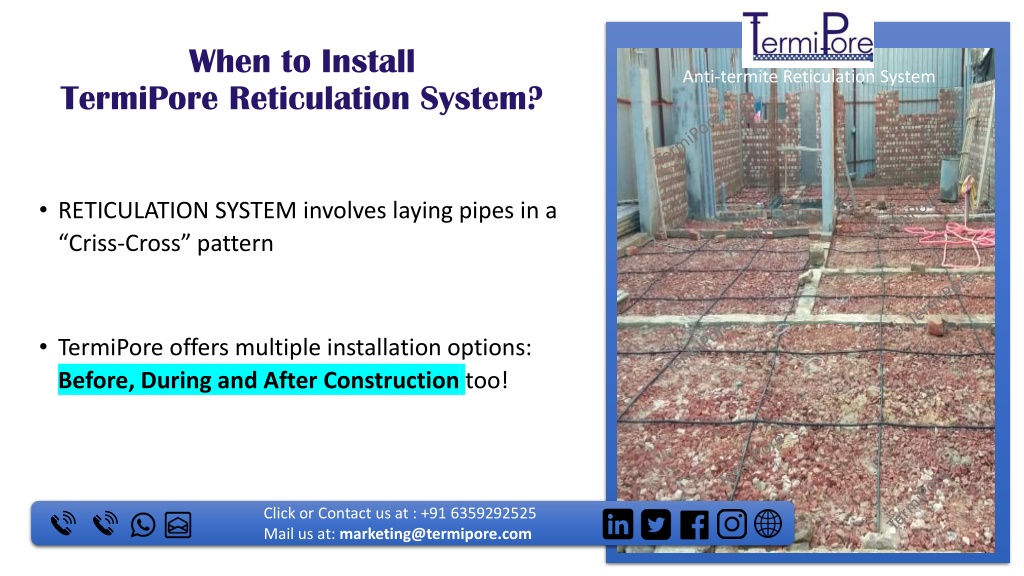

  3. TermiPore When to Install TermiPore Reticulation System? Anti-termite Reticulation System TermiPore TermiPore • RETICULATION SYSTEM involves laying pipes in a “Criss-Cross” pattern • TermiPore offers multiple installation options: Before, During and After Constructiontoo! TermiPore TermiPore TermiPore TermiPore Click or Contact us at : +91 6359292525 Mail us at: marketing@termipore.com

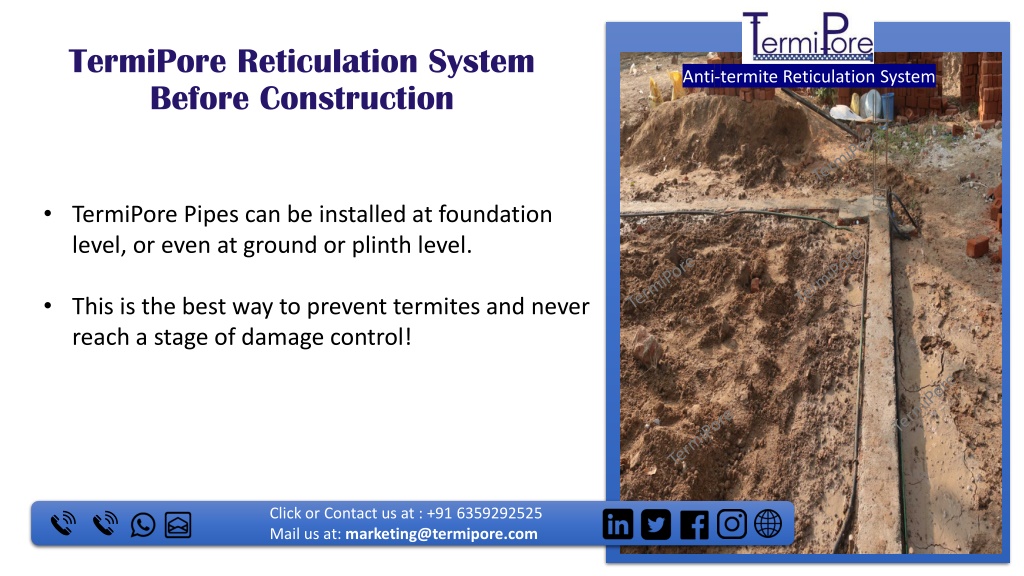

  4. TermiPore TermiPore Reticulation System Before Construction Anti-termite Reticulation System TermiPore TermiPore • TermiPore Pipes can be installed at foundation level, or even at ground or plinth level. • This is the best way to prevent termites and never reach a stage of damage control! TermiPore TermiPore Click or Contact us at : +91 6359292525 Mail us at: marketing@termipore.com

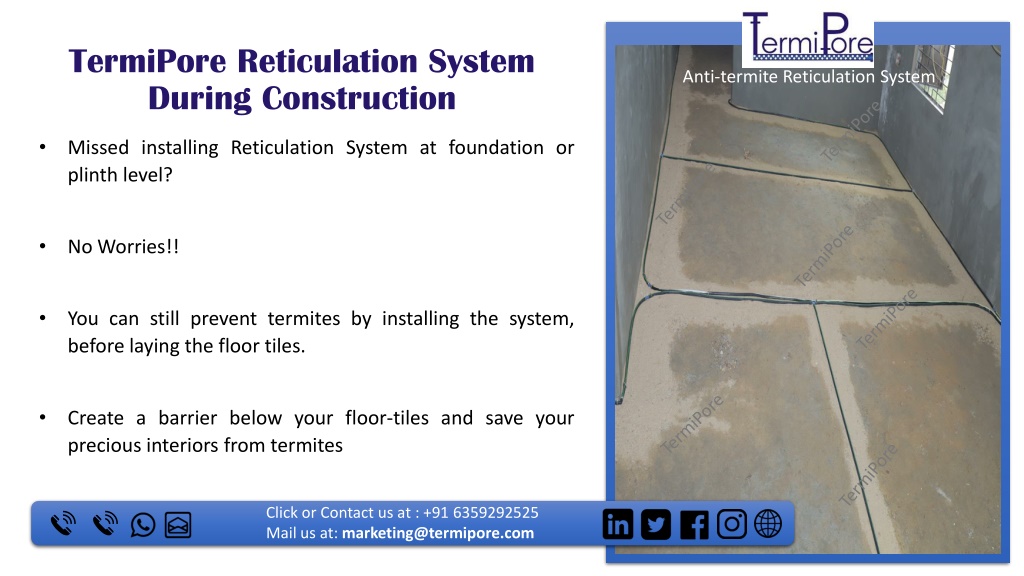

  5. TermiPore TermiPore TermiPore Reticulation System During Construction Anti-termite Reticulation System TermiPore • Missed installing Reticulation System at foundation or plinth level? • No Worries!! • You can still prevent termites by installing the system, before laying the floor tiles. • Create a barrier below your floor-tiles and save your precious interiors from termites TermiPore TermiPore TermiPore Click or Contact us at : +91 6359292525 Mail us at: marketing@termipore.com

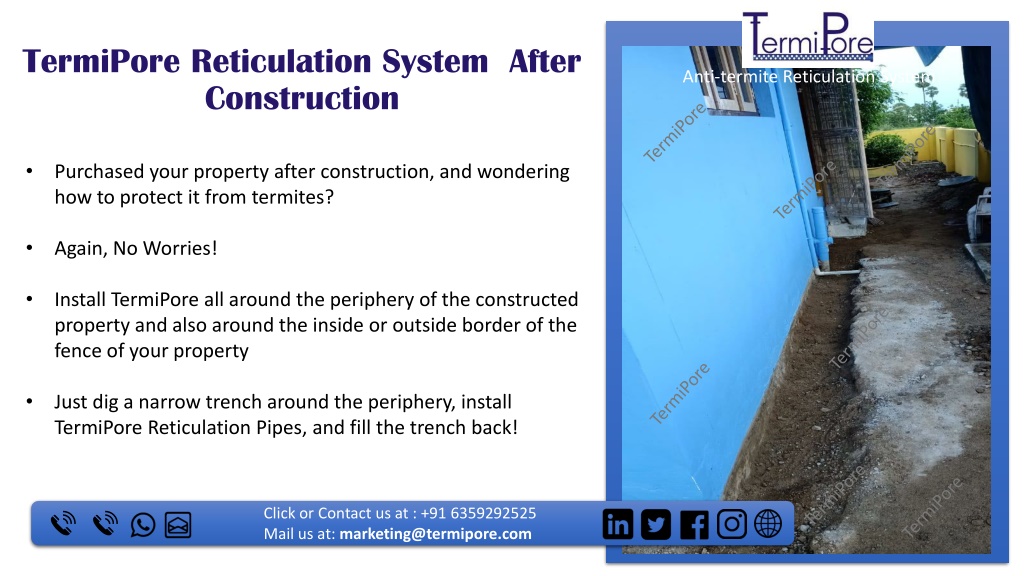

  6. TermiPore TermiPore TermiPore TermiPore Reticulation System After Construction Anti-termite Reticulation System • Purchased your property after construction, and wondering how to protect it from termites? • Again, No Worries! • Install TermiPore all around the periphery of the constructed property and also around the inside or outside border of the fence of your property • Just dig a narrow trench around the periphery, install TermiPore Reticulation Pipes, and fill the trench back! TermiPore TermiPore TermiPore TermiPore Click or Contact us at : +91 6359292525 Mail us at: marketing@termipore.com

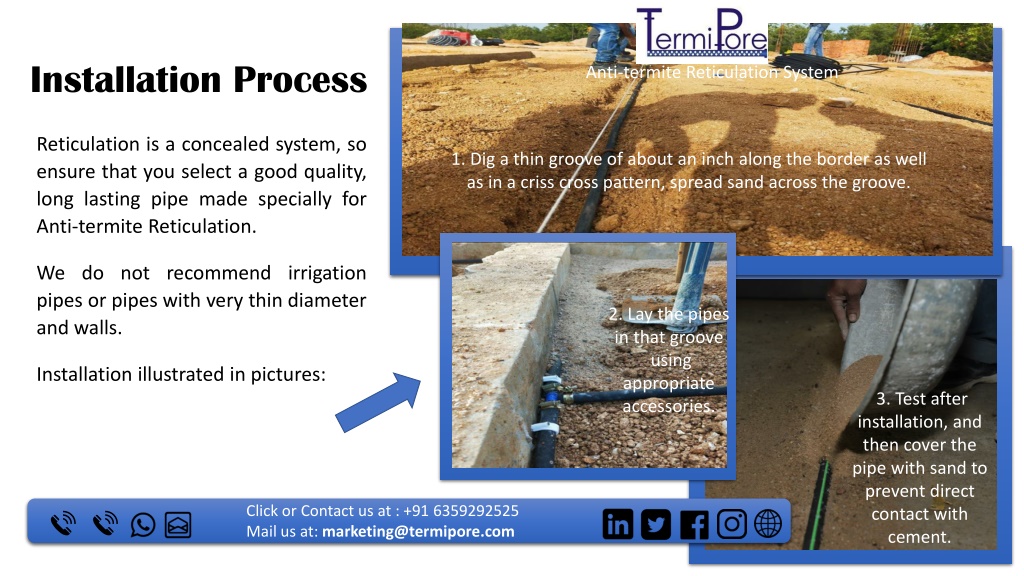

  7. Installation Process Anti-termite Reticulation System 1. Dig a thin groove of about an inch along the border as well as in a criss cross pattern, spread sand across the groove. Reticulation is a concealed system, so ensure that you select a good quality, long lasting pipe made specially for Anti-termite Reticulation. We do not recommend irrigation pipes or pipes with very thin diameter and walls. Installation illustrated in pictures: 2. Lay the pipes in that groove using appropriate accessories. 3. Test after installation,andthen cover the pipewith sand to prevent direct contact with cement. Click or Contact us at : +91 6359292525 Mail us at: marketing@termipore.com

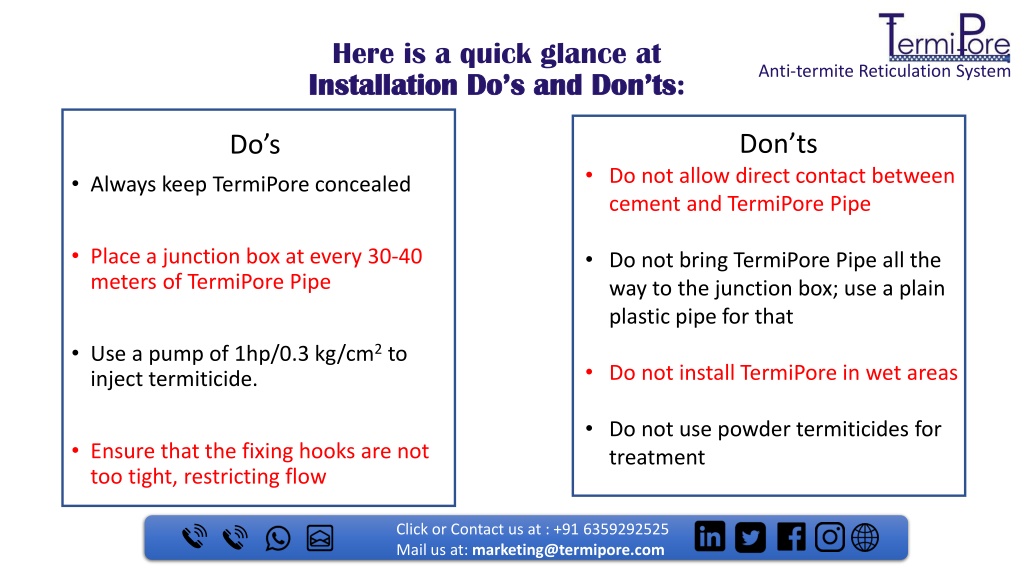

  8. Here is a quick glance at Installation Do’s and Don’ts: Anti-termite Reticulation System Don’ts • Do not allow direct contact between cement and TermiPore Pipe • Do not bring TermiPore Pipe all the way to the junction box; use a plain plastic pipe for that • Do not install TermiPore in wet areas • Do not use powder termiticides for treatment Do’s • Always keep TermiPore concealed • Place a junction box at every 30-40 meters of TermiPore Pipe • Use a pump of 1hp/0.3 kg/cm2 to inject termiticide. • Ensure that the fixing hooks are not too tight, restricting flow Click or Contact us at : +91 6359292525 Mail us at: marketing@termipore.com

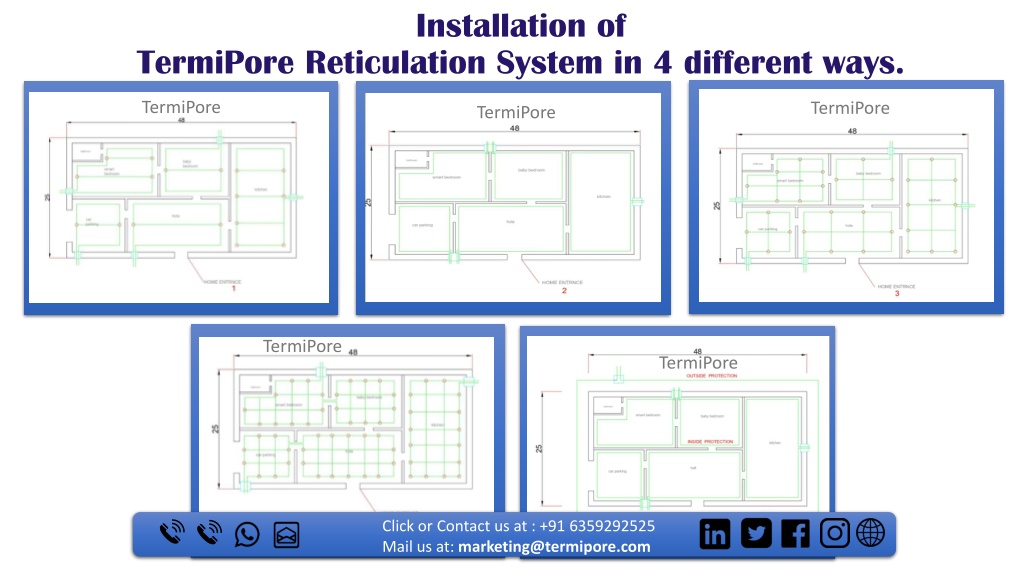

  9. Installation of TermiPore Reticulation System in 4 different ways. TermiPore TermiPore TermiPore TermiPore TermiPore Click or Contact us at : +91 6359292525 Mail us at: marketing@termipore.com

  10. Thank you Anti-termite Reticulation System TermiPore provides as technical training for installation to service providers. To Grow Your Business, Follow & Contact Us At: Click or Contact us at : +91 6359292525 Mail us at: marketing@termipore.com
