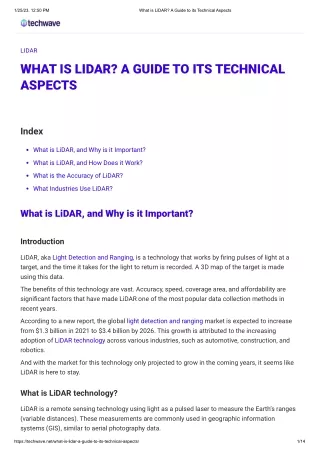

1. 1/25/23, 12:50 PM What is LiDAR? A Guide to its Technical Aspects LIDAR WHAT IS LIDAR? A GUIDE TO ITS TECHNICAL ASPECTS Index What is LiDAR, and Why is it Important? What is LiDAR, and How Does it Work? What is the Accuracy of LiDAR? What Industries Use LiDAR? What is LiDAR, and Why is it Important? Introduction LiDAR, aka Light Detection and Ranging, is a technology that works by ?ring pulses of light at a target, and the time it takes for the light to return is recorded. A 3D map of the target is made using this data. The bene?ts of this technology are vast. Accuracy, speed, coverage area, and affordability are signi?cant factors that have made LiDAR one of the most popular data collection methods in recent years. According to a new report, the global light detection and ranging market is expected to increase from $1.3 billion in 2021 to $3.4 billion by 2026. This growth is attributed to the increasing adoption of LiDAR technology across various industries, such as automotive, construction, and robotics. And with the market for this technology only projected to grow in the coming years, it seems like LiDAR is here to stay. What is LiDAR technology? LiDAR is a remote sensing technology using light as a pulsed laser to measure the Earth’s ranges (variable distances). These measurements are commonly used in geographic information systems (GIS), similar to aerial photography data. https://techwave.net/what-is-lidar-a-guide-to-its-technical-aspects/ 1/14

2. 1/25/23, 12:50 PM What is LiDAR? A Guide to its Technical Aspects For Example, light detection and ranging can be used to create high-resolution maps, which are frequently more accurate than traditional methods like GPS surveys or ground-based total station measurements. Why is LiDAR important? Regarding surveying and mapping, there is no shortage of technology options. GPS, total stations, drones, and photogrammetry all have their place in the toolbox. However, surveyors often turn to light detection and ranging as their go-to solution. Why? Let’s take a look at some of its key bene?ts: There are two main types of big data analytics: ● Increased accuracy – LiDAR uses data that is much more accurate than data collected with other methods like GPS or photogrammetry. For Example, LiDAR is best for small-scale surveys, while photogrammetry is for large-scale surveys. As we all know, any device operating on a small scale is much more accurate than one operating on a large scale. This increased accuracy is also because LiDAR can collect millions of points per second while GPS only manages a few thousand points per second. This means you can use LIDAR systems data for volume calculations or creating 3D models. ● Greater coverage area – This technology can cover a much larger area in less time than other methods like total stations or drones. This makes it ideal for projects where time is tight, but accuracy is still essential, such as construction site monitoring or post-disaster assessment. With traditional methods, you would need to set up a grid of points and then move from point to point collecting data. With light detection and ranging, you can ?y a drone over the area and collect data for the entire site in one go. ● Improved safety – LiDAR systems also have enormous safety bene?ts for those carrying out surveys and the general public. You can conduct surveys in hazardous environments without putting anyone at risk. When you’re using light detection and ranging, there’s no need to enter dangerous or di?cult-to-reach areas as you can collect the data remotely. This reduces the risk of injury or accidents. ● Increased e?ciency – LiDAR’s increased accuracy and coverage area imply that surveys can happen much more quickly and e?ciently than other methods. This is particularly bene?cial on large projects where time is tight, but accurate data is essential. It also means that surveyors can cover more ground in less time, which increases productivity overall. For Example, LiDAR can be used to build a 3D elevation map of a speci?c piece of land in the agricultural industry. This can be leveraged to construct a map of the slope area exposed to sunlight. Using this information, farmers can reduce their labor, time, and ?nancial costs by identifying the regions that need more fertilizer or water. https://techwave.net/what-is-lidar-a-guide-to-its-technical-aspects/ 2/14

3. 1/25/23, 12:50 PM What is LiDAR? A Guide to its Technical Aspects ● Full Waveform vs. Discrete LiDAR –There are two types of light detection and ranging data – full waveform and discrete. What’s the difference? ● Full waveform LiDAR systems collect information about the entire laser pulse as it re?ects off objects in the environment. This includes information about the pulse’s intensity and phase, which can be used to obtain very accurate distance measurements (to within a few millimeters). Additionally, you can use full waveform data to generate 3D images with extremely high levels of detail. In other words, LiDAR Full-waveform (FW) systems capture the entire wave as the energy pulse interacts with the target. Since they can record continuous data from the top of the canopy to the bottom, forests are a particularly pertinent example of this. LiDAR FW is primarily utilized for forest applications, where novel techniques for managing forest ecology, characterizing forest structure, mapping fuel factors, and measuring understory vegetation using LiDAR are being developed. LiDAR FW is primarily utilized for forest applications, where novel techniques for managing forest ecology, characterizing forest structure, mapping fuel factors, and measuring understory vegetation using LiDAR are being developed. ● Discrete LiDAR is typically used for large-scale mapping projects where highly detailed data (such as forest inventories) isn’t necessary. Discrete LiDAR only collects information about the intensity of laser pulses – not their phase. Distance measurements are less accurate (typically within a few centimeters), but data collection is faster since it does not require much processing power. For Example, Conventional discrete airborne LiDAR devices are employed in commercial applications to produce high-quality spatial data quickly. They are also used for 3D mapping applications, especially for vegetation mapping. Airborne LiDAR systems are connected to an airplane or drone to collect data. Conclusion As you can see, this technology has a lot of potential applications and is already making waves in various industries. We’re excited to see what the future holds for light detection and ranging and how it will continue to change the world as we know it. What is LiDAR, and How Does it Work? Introduction Have you ever been in the hill’s lap, examining nature and its beauty in awe? We all have at some point in our lives. When we look around, we see greens and an in?nite number of trees scattered over the area. https://techwave.net/what-is-lidar-a-guide-to-its-technical-aspects/ 3/14

4. 1/25/23, 12:50 PM What is LiDAR? A Guide to its Technical Aspects  Can you imagine counting them manually? The obvious answer is no! Ever wondered who keeps their count and how?  There is something known as LiDAR technology that can accomplish this seemingly di?cult task. LiDAR, referred to as Light Detection and Ranging, is a technology that has surfaced since the 1960s. What is Light Detection and Ranging? LiDAR technology uses remote sensing to generate 3D views of the Earth’s surface. This technology uses a laser, a scanner, and GPS functionality, and platforms such as helipads and airplanes are most used to acquire data about both natural and man-made environments. Types of LiDAR Systems 1.Airborne LiDARThis LiDAR system is connected to an airplane or drone to collect data. Laser is emitted to the ground, which helps measure the distance and time the light travels, based on which 3D visualizations are generated. It’s further categorized into: ● Topographic LiDAR : Uses infrared waves to generate 3D visuals after mapping the land. It measures land elevations. ● Bathymetric LiDAR : uses the Greenlight that can penetrate through water. This LiDAR technology seeps through water to reach ocean beds and can measure sea?oor elevations. 2.Terrestrial LiDARUnlike Airborne LiDAR, which is installed in the air, Terrestrial LiDAR systems are installed in moving vehicles on the earth’s surface. This type of LiDAR system generates 3D visuals of highways and helps study infrastructure in general. How does LiDAR work? LiDAR uses light/ laser technology to measure several buildings, trees, and other objects and their heights on the ground. LiDAR system, as already mentioned, operates through airplanes, drones, or helipads. What happens is that pulses of light emit and hit objects on the ground. The light re?ects the LiDAR sensor (the origin) from the object it touches. The system records the time light took to reach the ground and back up, which further helps measure the distance the light has traveled. GPS or navigation system is also used within LiDAR technology which determines the object’s location on the ground. And Inertial Measurement Unit (IMU) is used in LiDAR technology to account for the pulse angle changes that occur due to turbulence. IMUs monitor an aircraft’s tilt as it ?ies. LiDAR devices use tilt to precisely estimate the pulse’s incident angle. https://techwave.net/what-is-lidar-a-guide-to-its-technical-aspects/ 4/14

5. 1/25/23, 12:50 PM What is LiDAR? A Guide to its Technical Aspects As the laser scanner emits the pulses, the GPS and IMU devices pinpoint their exact location and altitude, and an accurate coordinate is calculated for each point. Role of Light Detection and Ranging sensors in the Working of LiDAR Technology LiDAR sensors, in general, can send hundreds of pulses every second. Based on the type of sensor being used, they can also generate a thousand pulses per second.  The time taken by these pulses or light waves to return to the sensor is recorded, and accordingly, distance from the ground and ground elevation are measured. This bouncing back of the light or returns can be processed into 3D visuals, also known as a point cloud. Applications of LiDAR 1. LiDAR systems study natural hazards like tsunamis and ?ood risks, the possible eruption of lavas, and coastal erosion. It can also help environmental scientists track how much deforestation is happening. 2. LiDAR technology helps in the 3D mapping of the Earth’s surface. 3. LiDAR scanners are installed to survey buildings, roads, highways, and ?yovers. 4. LiDAR technology is used to study Oceanography. 5. Interior designers use LiDAR scanners to know about the area of a particular space, which further helps them curate precise ?oor plans. 6. LiDAR systems are also used in designing self-driving autonomous vehicles. 7. LiDAR scanners are installed on either the bumper or the car’s roof, enabling these vehicles to navigate without a driver. Calculating the distance from other vehicles on the road and identifying obstructions help avoid accidents, revolutionizing the automotive industry. 8. LiDAR technology helps archaeologists in studying historical sites. Conclusion: Light Detection and Ranging was and has continued to be an asset for every sector. There is no doubt that the future of LiDAR technology will be bright. After all, it has made jobs easier & productive and clearly is cost and time-saving. It allows professionals and scientists to focus on other core aspects of their job and let the LiDAR technology focus on the more complex ones. What is the Accuracy of LiDAR? Introduction https://techwave.net/what-is-lidar-a-guide-to-its-technical-aspects/ 5/14

6. 1/25/23, 12:50 PM What is LiDAR? A Guide to its Technical Aspects A terrain model is required for the following: design and construction, seismic risks surveillance, storm modeling, and vegetation management.  Your terrain model must be precise no matter how you want to use it.  The sole distinction is that while some use cases require a model that merely records ground elements like buildings and ?ora, others need a model that also records the actual terrain’s elevation – (a Digital Terrain Model, or DTM) and (a Digital Surface Model, DSM).  The elevation data source signi?cantly in?uences the reliability of the derived height information from satellite images. Digital elevation data sources include, for instance, data from Light Detection and Ranging (LiDAR) sensors.  Learn about the LiDAR accuracy data in this piece and the variables that in?uence it. What is LiDAR? A pulsed laser is used in the Earth observation technique known as “light detection and ranging” (LiDAR) to estimate distances (variable distances). To learn more about the Earth’s structure and the properties of its face, researchers employ point clouds, which are collections of three- dimensional points created by these light pulses. A laser ranging and scanning unit, an inertial navigation system, and a global navigation satellite system (GNSS) receiver make up a LiDAR system. Localization and alignment are accomplished via the INS and GNSS. The most often employed platforms for collecting LiDAR data for landscape modeling are aircraft, helicopters, and drones. LiDAR: Why Is It Signi?cant? LiDAR sensors gather elevation points more quickly and with greater detail than conventional surveying methods. In addition to being quick and precise, LiDAR is signi?cant for the following reasons: Since it is an active sensor, information may be gathered during the day and at night. Unlike image acquisition, LiDAR pulses may travel to the base through tiny openings in dense vegetation. This is crucial for mapping forest ?oors. In contrast to conventional surveying, LiDAR sensors continually detect surface points, producing a more consistent height model. LiDAR-derived digital terrain models have several uses in hydrology, coastal engineering, building deformation monitoring, and canopy modeling. https://techwave.net/what-is-lidar-a-guide-to-its-technical-aspects/ 6/14

7. 1/25/23, 12:50 PM What is LiDAR? A Guide to its Technical Aspects What is the accuracy of LiDAR? “Accuracy” describes how closely a measured or calculated value relates to a given quantity’s accepted (actual) value. Common estimation methods include determining the Root Mean Square Error (RMSE).  Absolute and relative accuracy parameters are the two categories of accuracy requirements for LiDAR. Let’s examine them. ● Absolute LiDAR accuracy : Both the horizontal and vertical LiDAR accuracy data are considered absolute. Absolute accuracy is determined by contrasting the LiDAR data with markers surveyed on the ground. Horizontal checkpoints are clearly marked features or points that can be seen on the ground. They are precisely surveyed to determine their horizontal position in relation to a reference geodetic datum (a global datum reference or reference frame for speci?cally representing the position of locations on Earth or other planetary bodies through geodetic coordinates). Contrarily, vertical checkpoints do not have to be conspicuous or well-marked. They are locations that have been measured in ?at and open ground. This reduces interpolation errors if checkpoint elevations are compared to altitudes extrapolated from the dataset. The vertical accuracy attained on the open ground level is referred to as the “basic” vertical LiDAR accuracy dataset. While there is no right way to choose the right checkpoint distribution, it often relies on geography and land cover. The New American Society for Photogrammetry and Remote Sensing (ASPRS) 2014 Standard offers detailed advice on checkpoint distribution and density. ● Relative LiDAR accuracy : Without measured ground control points, relative LiDAR accuracy refers to the internal quality of LiDAR elevation data. Relative accuracy is a metric for the small variations in the point cloud. The calibration of the LiDAR system has an impact on it. There are two approaches to evaluating relative accuracy: ● Within-swath accuracy assessment : Evaluation of information gathered along the same ?ight line or swath. It reveals the LiDAR system’s level of stability. ●Evaluation of data acquired between swaths/adjacent ?ight lines (swath-to-swath accuracy evaluation): It entails contrasting parts that overlap in neighboring swathes. For deeper insights, you can check the ASPRS Guidelines for Geometric Inter-Swath Accuracy and Quality of LiDAR Data. If your point cloud has “good” relative accuracy, each point is located where it should be in proportion to the entire point cloud. For applications like slopes and aspects that depend on the elevation of nearby sites, relative precision is extremely crucial. https://techwave.net/what-is-lidar-a-guide-to-its-technical-aspects/ 7/14

8. 1/25/23, 12:50 PM What is LiDAR? A Guide to its Technical Aspects What is “good” accuracy? However, the allowable ranges for absolute and relative precision differ depending on the application. For Example, compared to LiDAR data for agriculture, the precision required for LiDAR data may be higher for the comprehensive infrastructure design, such as a dam. ● Adopted Ground Filtering Method : In a LiDAR point cloud, there are 1.Points on the unadorned ground. 2.Non-ground points include man-made structures like bridges and natural features like tree canopies and rock outcrops. Unwanted measurements, such as those from cars, planes, birds, etc., are noise. The ?rst stage in creating a digital terrain model from LiDAR data is eliminating noise. Then, ground points and non-ground points are divided. Finally, ground point interpolation is used to create a DTM. We refer to this as ground ?ltration. Ground ?ltering might be di?cult in places with great elevation variation. For instance, it could be simpler to distinguish between ground and non-ground points in level settings. It is more challenging to do so in locations with diverse characteristics, such as bridges, varying building sizes, sharply angled hillside edges, and short walls. GAs a result, the ?nal DTM contains mistakes if the ground ?ltering algorithm identi?es non- ground locations as ground points. Conclusion Elevation models are an integral component of many applications. Therefore, the underlying elevation data sources must ful?ll some minimal accuracy requirements. And LiDAR is the technology to accomplish such accuracy levels. What Industries Use LiDAR? Introduction lidar stands for light detection and ranging it is a method of remote sensing that uses laserto measure the ground,forest, buildings elevations ultraviolet,visible,or near-infraredsources detect objects.  Pulses of light produced by the LiDAR system are called pulses, while the return of light is referred to as light re?ected off surfaces or objects. The LiDAR system pulses an object and waits for the pulse to return. The time it takes for a pulse to return to the sensor is then measured.  In the end, it detects a variable distance of the object. Like radar uses radio waves to map things, LiDAR uses light sent out from a laser.   https://techwave.net/what-is-lidar-a-guide-to-its-technical-aspects/ 8/14

9. 1/25/23, 12:50 PM What is LiDAR? A Guide to its Technical Aspects For Example, a LiDAR unit scans the object from side to side, while some pulses will be directly at NADIR (the direction pointing directly below a particular location) or a straight line. Most vibrations travel at an angle known as Off-NADIR. This provides a larger coverage area. Airplanes, crewless aerial vehicles, and helicopters are the most commonly used platforms for acquiring LiDAR data over broad areas. What is LiDAR Mapping technology? The easiest way to de?ne LiDAR technology is that it is a remote sensing technology. It has three main components – three independently operating technology: Scanner Laser GPS receiver Light detection and ranging is a laser-ranging device that sends out millions of pulses. Nowadays, it is possible to send over 4000,000 pulses in a second. When returned, these pulses can give the target’s distance or range. Other components that help this technology work better are optics and photodetector. The GPS or the Global Positioning System, or the global navigation system, indicates the location of the instrument holding the LiDAR sensor. The third technology that helps LiDAR is the initial measurement unit or IMU system, which measures the pitch roll, and heading of the vehicle or platform carrying the LiDAR device. What industries use LiDAR? LIDAR is widely used across industries, as discussed below: ● Automotive Industry : The use of industrial LiDAR for autonomous vehicles is catching up. LiDAR car technology offers self-driving cars a 360-degree view of their surroundings to ensure safe driving. The LiDAR for cars works as the eye of the vehicle. LiDAR enables the driverless car to view its surroundings accurately. The continuously rotating LiDAR system at the top of the car sends thousands of pulses each second. The signals are re?ected when these pulses hit the various objects around the vehicle. Light re?ections are used to create 3-D point clouds, and the internal computer converts these rapidly updating point clouds into animated 3-D representations. ● Agriculture Industry : The light detector and ranging sensor is used to create 3-D elevation maps of a particular land, which can be converted to slope and sunlight exposure maps. These can then be used to identify the areas which may require more water and fertilizers and, thus, help farmers save the cost of labor, time, and money. https://techwave.net/what-is-lidar-a-guide-to-its-technical-aspects/ 9/14

10. 1/25/23, 12:50 PM What is LiDAR? A Guide to its Technical Aspects ● Oceanography : The water penetration green light of the LiDAR is used to measure underwater terrain and help create a 3-D model of the region. Similarly, LiDAR ?nds a wide range of uses in Oceanography. For Example, underwater information about the river helps understand the water’s depth, width, and ?ow. In addition, it helps in monitoring the ?ood plains. ● Entertainment Industry : The capacity to digitally map out intricate sets or items has been a boon to the entertainment industry because it enables a more seamless interplay between reality as we know it and worlds created by the software. This allows human actors to capture ?uid 3D motion in movies or video games, allowing them to integrate a ?ctional world. ● Pollution Control : LiDAR can detect pollutants on objects like carbon dioxide, sulfur dioxide, and methane. This information helps researchers create an area pollutant density map for better city planning. ● Archeological Industry : Light detection and ranging detectors play an important role for archeologists in understanding the surface. For Example, LiDAR technology can detect micro typography hidden by vegetation. These typographies help archeologists understand the surface beneath the foliage. In addition, ground-based LiDAR technology can be used to capture the building’s structure. This digital information is used for developing 3-D mapping of the ground, further used for modeling the structure. Advantages and Disadvantages of LiDAR Technology Advantages Fast data collection High accuracy in data collection Higher sample density of surface data Unaffected by day and night Lacks geometry distortions Least human dependence Unaffected by extreme weather Can access inaccessible areas Disadvantages High operating cost https://techwave.net/what-is-lidar-a-guide-to-its-technical-aspects/ 10/14

11. 1/25/23, 12:50 PM What is LiDAR? A Guide to its Technical Aspects Absence of international protocol Laser beams can affect the human eyes Produces a large data set that is di?cult to interpret Conclusion LiDAR technology is advancing. However, not many people are aware of this paradigm-shifting technology. Hence, its bene?ts are being leveraged by a select few sectors. This will change as the following stats indicate a gradual but steady rise in awareness about LiDAR technology and its bene?ts. The estimated size of the worldwide LiDAR market was USD 1.8 billion in 2021, and it is anticipated to grow with a CAGR of 9.8% from 2022 to 2030. LiDAR-based digital terrain models improve spatial resolution. This enables higher LiDAR precision and accuracy in applications, including inland waterways, change detection on hillsides, and water runoff in agriculture and mining areas. PREVIOUS POST Lidar Technology: Unlocking Greater Accuracy and Precision in Utility Operations NEXT POST How Can Your Organization Bene?t From Application Modernization? Search here.. RECENT POSTS A Comprehensive Look into the World of Cloud Computing How Can Your Organization Bene?t From Application Modernization? What is LiDAR? A Guide to its Technical Aspects Lidar Technology: Unlocking Greater Accuracy and Precision in Utility Operations https://techwave.net/what-is-lidar-a-guide-to-its-technical-aspects/ 11/14
