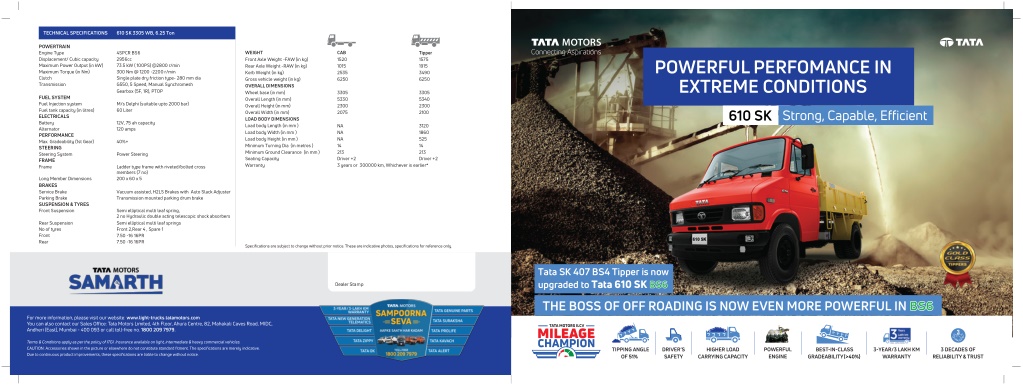

1. TECHNICAL SPECIFICATIONS 610 SK 3305 WB, 6.25 Ton POWERTRAIN Engine Type Displacement/ Cubic capacity Maximum Power Output (in kW) Maximum Torque (in Nm) Clutch Transmission WEIGHT Front Axle Weight -FAW (in kg) Rear Axle Weight -RAW (in kg) Kerb Weight (in kg) Gross vehicle weight (in kg) OVERALL DIMENSIONS Wheel base (in mm) Overall Length (in mm) Overall Height (in mm) Overall Width (in mm) LOAD BODY DIMENSIONS Load body Length (in mm ) Load body Width (in mm ) Load body Height (in mm ) Minimum Turning Dia (in metres ) Minimum Ground Clearance (in mm ) Seating Capacity Warranty CAB 1520 1015 2535 6250 Tipper 1575 1915 3490 6250 4SPCR BS6 2956cc 73.5 kW ( 100PS) @2800 r/min 300 Nm @ 1200 -2200 r/min Single plate dry friction type- 280 mm dia G550, 5 Speed, Manual Synchromesh Gearbox (5F, 1R), PTOP 3305 5330 2300 2075 3305 5340 2300 2100 FUEL SYSTEM Fuel Injection system Fuel tank capacity (in litres) ELECTRICALS Battery Alternator PERFORMANCE Max. Gradeability (1st Gear) STEERING Steering System FRAME Frame M/s Delphi (suitable upto 2000 bar) 60 Liter 610 SK 12V, 75 ah capacity NA NA NA 14 213 Driver +2 3 years or 300000 km, Whichever is earlier* 3120 1860 525 120 amps 40%+ 14 213 Driver +2 Power Steering Ladder type frame with riveted/bolted cross members (7 no) 200 x 60 x 5 Long Member Dimensions BRAKES Service Brake Parking Brake SUSPENSION & TYRES Front Suspension Vacuum assisted, H2LS Brakes with Auto Slack Adjuster Transmission mounted parking drum brake Semi elliptical multi leaf spring, 2 no Hydraulic double acting telescopic shock absorbers Semi elliptical multi leaf springs Front 2,Rear 4 , Spare 1 7.50 -16 16PR 7.50 -16 16PR Rear Suspension No of tyres Front Rear Tata SK 407 BS4 Tipper is now upgraded to Tata 610 SKBS6 THE BOSS OF OFF ROADING IS NOW EVEN MORE POWERFUL IN BS6 51% (>40%)

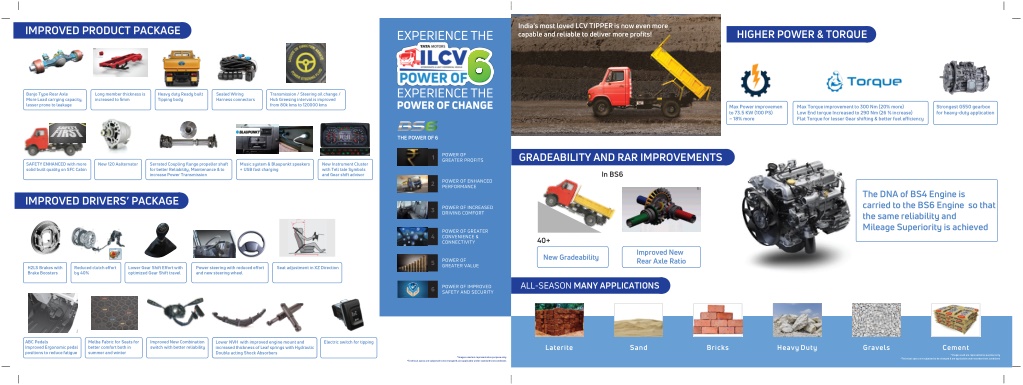

2. India's most loved LCV TIPPER is now even more capable and reliable to deliver more profits! IMPROVED PRODUCT PACKAGE HIGHER POWER & TORQUE Banjo Type Rear Axle More Load carrying capacity, lesser prone to leakage Long member thickness is increased to 5mm Heavy duty Ready built Tipping body Sealed Wiring Harness connectors Transmission / Steering oil change / Hub Greesing interval is improved from 80k kms to 120000 kms Max Power improvemen to 73.5 KW (100 PS) – 18% more Max Torque improvement to 300 Nm (20% more) Low End torque Increased to 290 Nm (26 % increase) Flat Torque for lesser Gear shifting & better fuel efficiency Strongest G550 gearbox for heavy-duty application GRADEABILITY AND RAR IMPROVEMENTS Serrated Coupling flange propeller shaft for better Reliability, Maintenance & to increase Power Transmission SAFETY ENHANCED with more solid built quality on SFC Cabin New 120 Aalternator New Instrument Cluster with Tell tale Symbols and Gear shift advisor Music system & Blaupunkt speakers + USB fast charging In BS6 The DNA of BS4 Engine is carried to the BS6 Engine so that the same reliability and Mileage Superiority is achieved IMPROVED DRIVERS’ PACKAGE 40+ Improved New Rear Axle Ratio New Gradeability H2LS Brakes with Brake Boosters Reduced clutch effort by 40% Lower Gear Shift Effort with optimized Gear Shift travel Power steering with reduced effort and new steering wheel Seat adjustment in XZ Direction ALL-SEASON MANY APPLICATIONS ABC Pedals Improved Ergonomic pedal positions to reduce fatigue Melba Fabric for Seats for better comfort both in summer and winter Improved New Combination switch with better reliability Lower NVH with improved engine mount and increased thickness of Leaf springs with Hydraulic Double acting Shock Absorbers Electric switch for tipping *Images used are representative purpose only *Images used are representative purpose only *Technical specs are subjected to be changed & are applicable under standard test conditions *Technical specs are subjected to be changed & are applicable under standard test conditions
