Tata Magic Express 10 Seater - On Road-Price, Features, Specifications, Gallery,

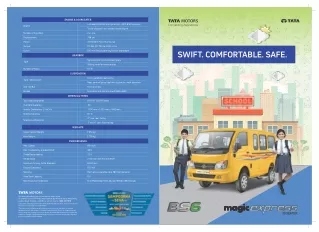

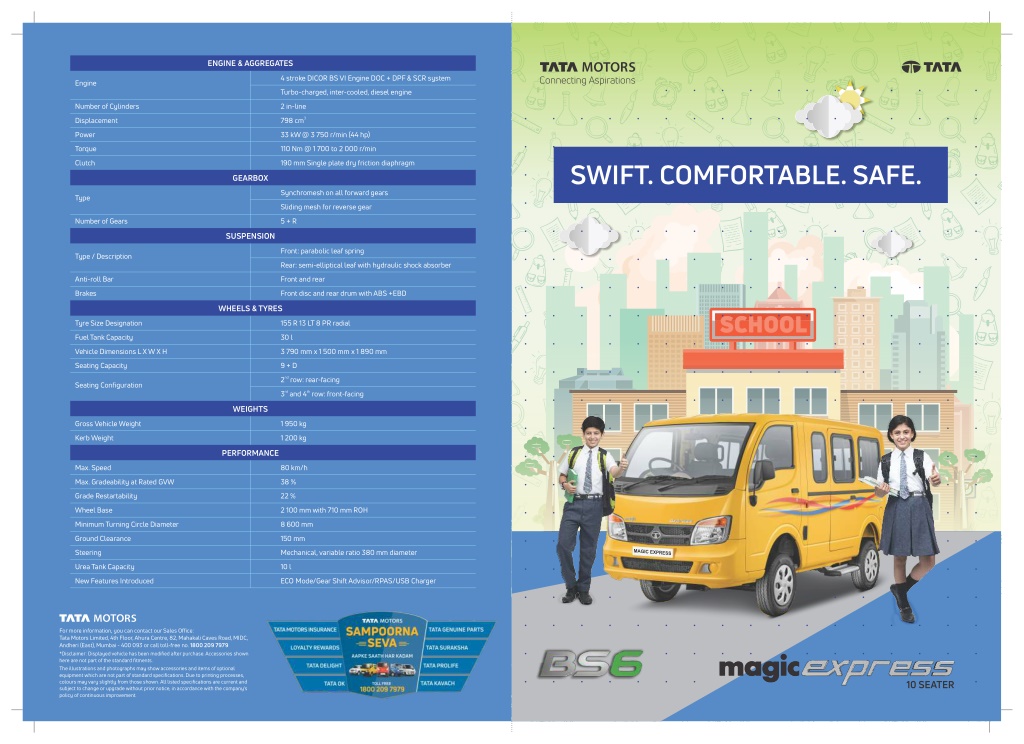

1. ENGINE & AGGREGATES 4 stroke DICOR BS VI Engine DOC + DPF & SCR system Engine Turbo-charged, inter-cooled, diesel engine Number of Cylinders 2 in-line 3 Displacement 798 cm Power 33 kW @ 3 750 r/min (44 hp) Torque 110 Nm @ 1 700 to 2 000 r/min SWIFT. COMFORTABLE. SAFE. Clutch 190 mm Single plate dry friction diaphragm GEARBOX Synchromesh on all forward gears Type Sliding mesh for reverse gear Number of Gears 5 + R SUSPENSION Front: parabolic leaf spring Type / Description Rear: semi-elliptical leaf with hydraulic shock absorber Anti-roll Bar Front and rear Brakes Front disc and rear drum with ABS +EBD WHEELS & TYRES Tyre Size Designation 155 R 13 LT 8 PR radial Fuel Tank Capacity 30 l Vehicle Dimensions L X W X H 3 790 mm x 1 500 mm x 1 890 mm Seating Capacity 9 + D nd 2 row: rear-facing Seating Configuration rd th 3 and 4 row: front-facing WEIGHTS Gross Vehicle Weight 1 950 kg Kerb Weight 1 200 kg PERFORMANCE Max. Speed 80 km/h Max. Gradeability at Rated GVW 38 % Grade Restartability 22 % Wheel Base 2 100 mm with 710 mm ROH Minimum Turning Circle Diameter 8 600 mm Ground Clearance 150 mm Steering Mechanical, variable ratio 380 mm diameter Urea Tank Capacity 10 l New Features Introduced ECO Mode/Gear Shift Advisor/RPAS/USB Charger For more information, you can contact our Sales Office: Tata Motors Limited, 4th Floor, Ahura Centre, 82, Mahakali Caves Road, MIDC, Andheri (East), Mumbai - 400 093 or call toll-free no. 1800 209 7979 *Disclaimer: Displayed vehicle has been modified after purchase. Accessories shown here are not part of the standard fitments. The illustrations and photographs may show accessories and items of optional equipment which are not part of standard specifications. Due to printing processes, colours may vary slightly from those shown. All listed specifications are current and subject to change or upgrade without prior notice, in accordance with the company's policy of continuous improvement. 10 SEATER

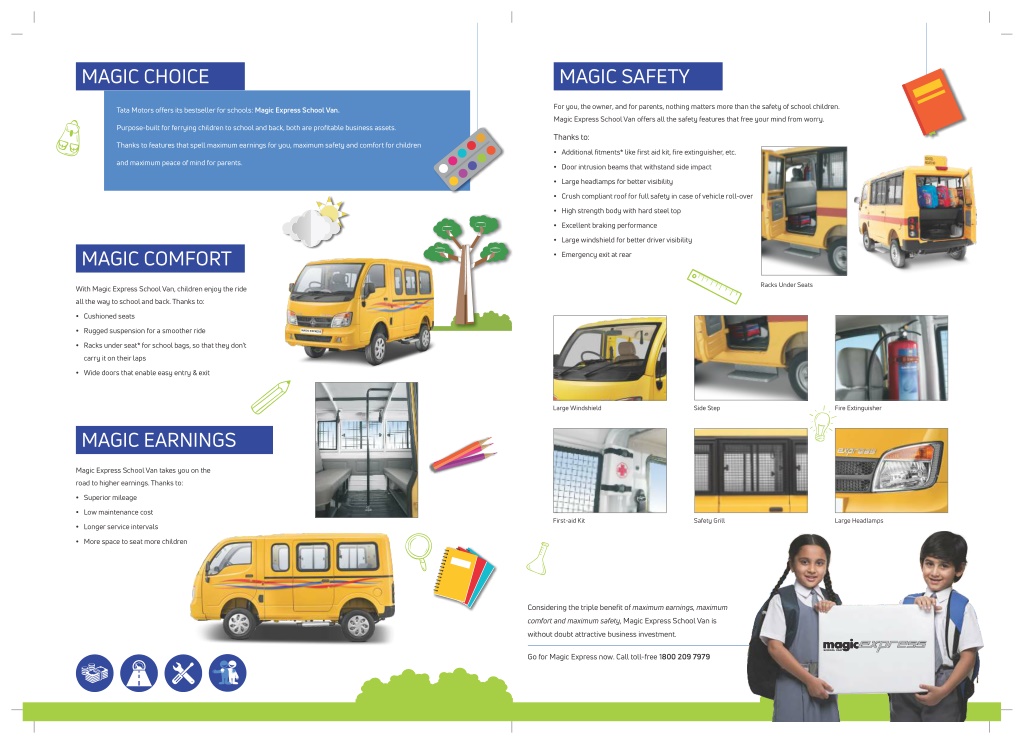

2. MAGIC CHOICE MAGIC SAFETY For you, the owner, and for parents, nothing matters more than the safety of school children. Tata Motors offers its bestseller for schools: Magic Express School Van. Magic Express School Van offers all the safety features that free your mind from worry. Purpose-built for ferrying children to school and back, both are profitable business assets. Thanks to: Thanks to features that spell maximum earnings for you, maximum safety and comfort for children • Additional fitments* like first aid kit, fire extinguisher, etc. and maximum peace of mind for parents. • Door intrusion beams that withstand side impact • Large headlamps for better visibility • Crush compliant roof for full safety in case of vehicle roll-over • High strength body with hard steel top • Excellent braking performance • Large windshield for better driver visibility MAGIC COMFORT • Emergency exit at rear Racks Under Seats With Magic Express School Van, children enjoy the ride all the way to school and back. Thanks to: • Cushioned seats • Rugged suspension for a smoother ride • Racks under seat* for school bags, so that they don't carry it on their laps • Wide doors that enable easy entry & exit Large Windshield Side Step Fire Extinguisher MAGIC EARNINGS Magic Express School Van takes you on the road to higher earnings. Thanks to: • Superior mileage • Low maintenance cost First-aid Kit Safety Grill Large Headlamps • Longer service intervals • More space to seat more children Considering the triple benefit of maximum earnings, maximum comfort and maximum safety, Magic Express School Van is without doubt attractive business investment. Go for Magic Express now. Call toll-free 1800 209 7979
