  1. API API-577 Exam Welding Inspection and Metallurgy Exam Exam Latest Version: 6.0 DEMO Version Full Version Features: • 90 Days Free Updates • 30 Days Money Back Guarantee • Instant Download Once Purchased • 24 Hours Live Chat Support Full version is available at link below with affordable price. https://boost2certify.com/api/api-577 https://boost2certify.com/api/api-577 Page 1 of 6

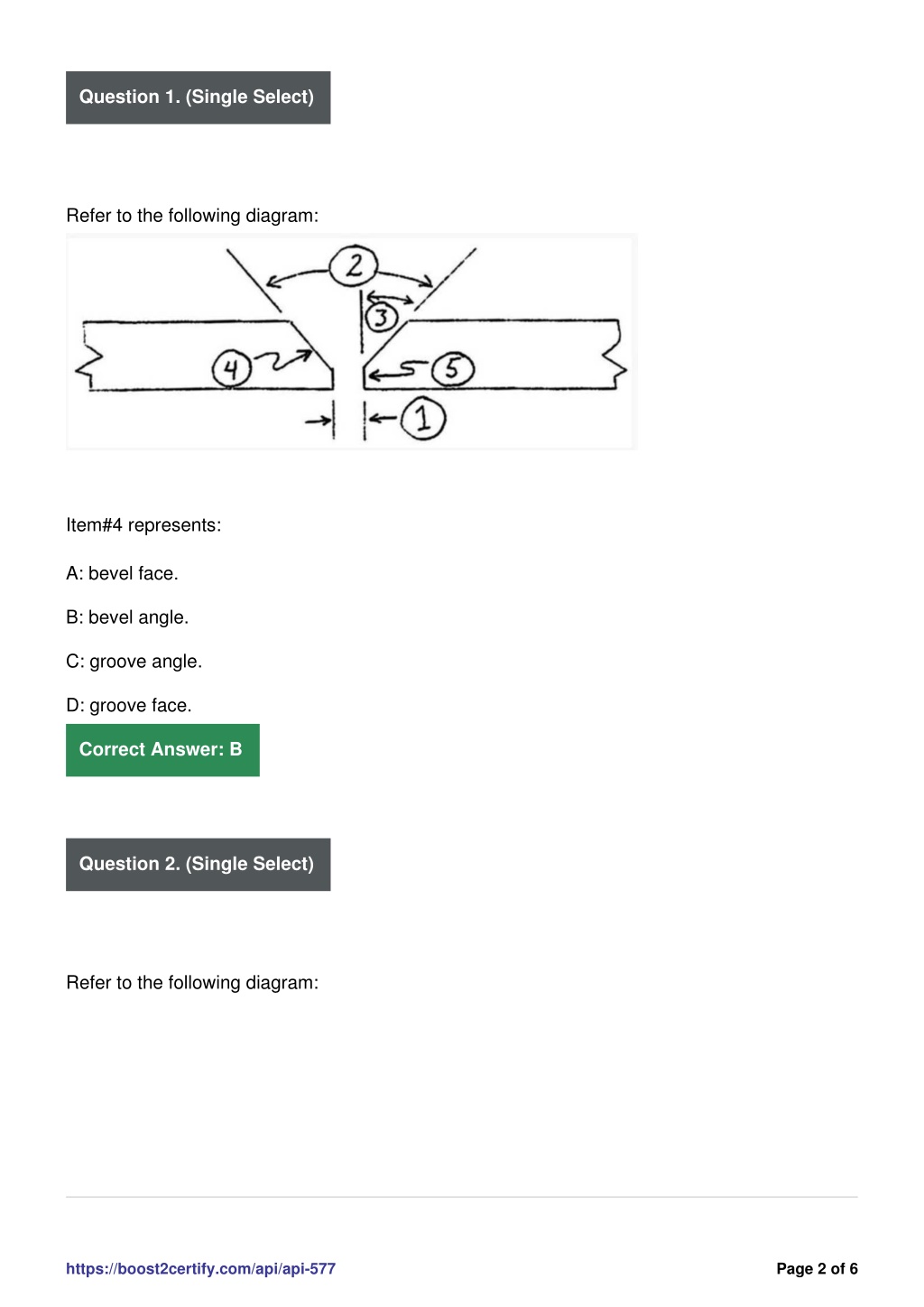

  2. Question 1. (Single Select) Refer to the following diagram: Item#4 represents: A: bevel face. B: bevel angle. C: groove angle. D: groove face. Correct Answer: B Question 2. (Single Select) Refer to the following diagram: https://boost2certify.com/api/api-577 Page 2 of 6

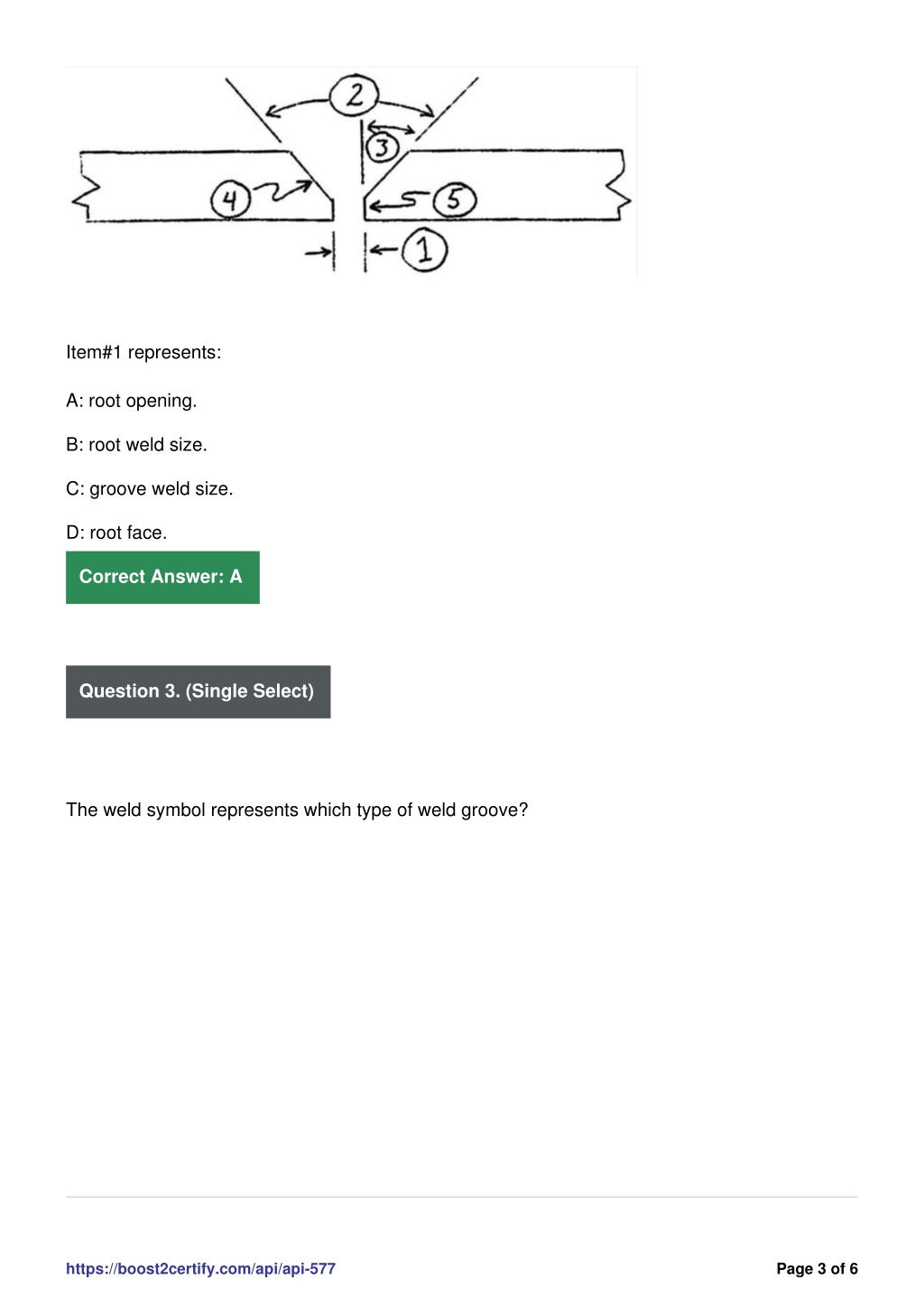

  3. Item#1 represents: A: root opening. B: root weld size. C: groove weld size. D: root face. Correct Answer: A Question 3. (Single Select) The weld symbol represents which type of weld groove? https://boost2certify.com/api/api-577 Page 3 of 6

  4. A: Parallel B: Scarf C: Flare D: Bevel Correct Answer: D Question 4. (Single Select) https://boost2certify.com/api/api-577 Page 4 of 6

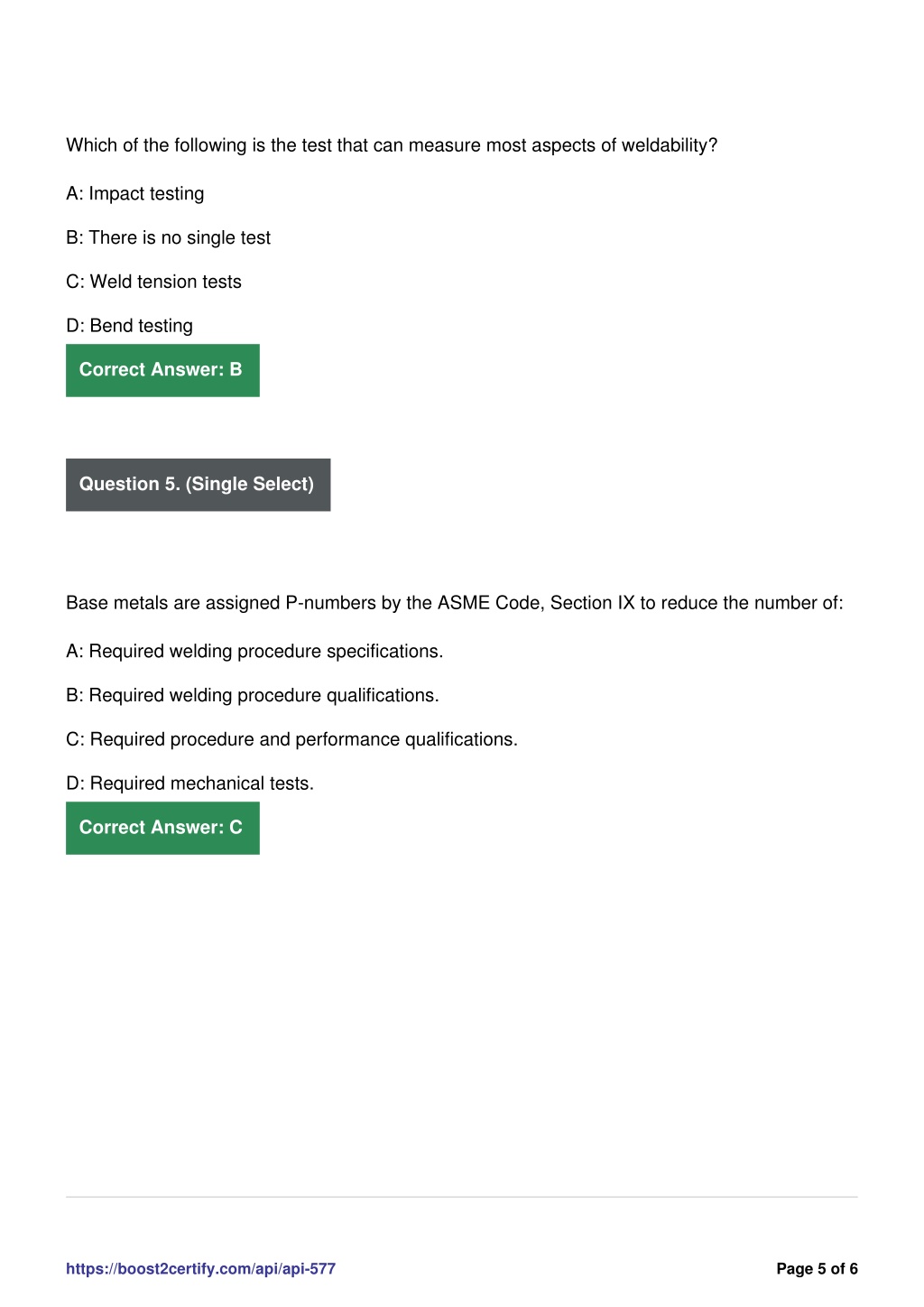

  5. Which of the following is the test that can measure most aspects of weldability? A: Impact testing B: There is no single test C: Weld tension tests D: Bend testing Correct Answer: B Question 5. (Single Select) Base metals are assigned P-numbers by the ASME Code, Section IX to reduce the number of: A: Required welding procedure specifications. B: Required welding procedure qualifications. C: Required procedure and performance qualifications. D: Required mechanical tests. Correct Answer: C https://boost2certify.com/api/api-577 Page 5 of 6

  6. Full version is available at link below with affordable price. https://boost2certify.com/api/api-577 50% Discount Coupon Code: CHRISTMAS2024 https://boost2certify.com/api/api-577 Page 6 of 6
