Understanding Pipe Schedule Chart: A Comprehensive Guide

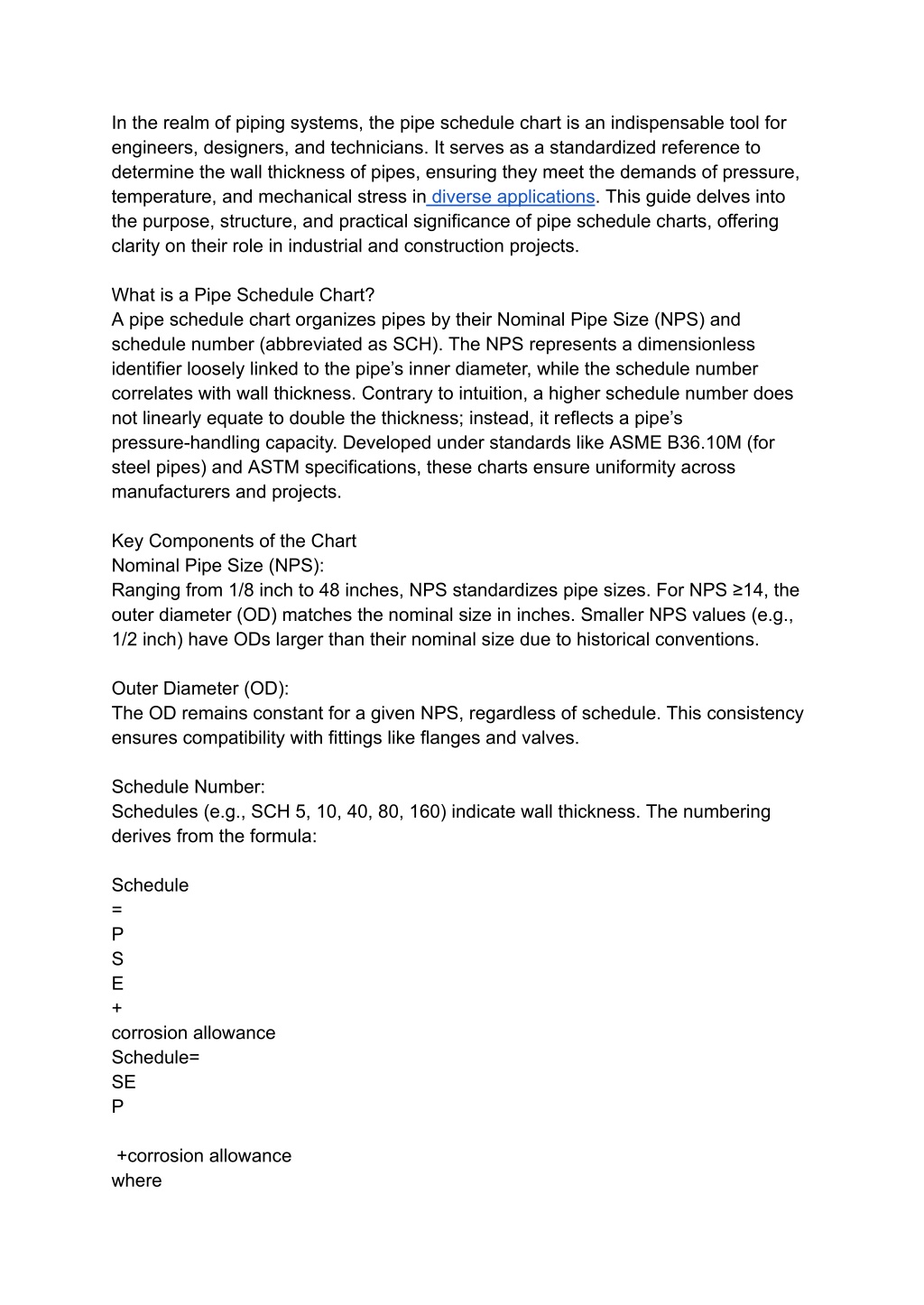

1. In the realm of piping systems, the pipe schedule chart is an indispensable tool for engineers, designers, and technicians. It serves as a standardized reference to determine the wall thickness of pipes, ensuring they meet the demands of pressure, temperature, and mechanical stress in diverse applications. This guide delves into the purpose, structure, and practical significance of pipe schedule charts, offering clarity on their role in industrial and construction projects. What is a Pipe Schedule Chart? A pipe schedule chart organizes pipes by their Nominal Pipe Size (NPS) and schedule number (abbreviated as SCH). The NPS represents a dimensionless identifier loosely linked to the pipe’s inner diameter, while the schedule number correlates with wall thickness. Contrary to intuition, a higher schedule number does not linearly equate to double the thickness; instead, it reflects a pipe’s pressure-handling capacity. Developed under standards like ASME B36.10M (for steel pipes) and ASTM specifications, these charts ensure uniformity across manufacturers and projects. Key Components of the Chart Nominal Pipe Size (NPS): Ranging from 1/8 inch to 48 inches, NPS standardizes pipe sizes. For NPS ≥14, the outer diameter (OD) matches the nominal size in inches. Smaller NPS values (e.g., 1/2 inch) have ODs larger than their nominal size due to historical conventions. Outer Diameter (OD): The OD remains constant for a given NPS, regardless of schedule. This consistency ensures compatibility with fittings like flanges and valves. Schedule Number: Schedules (e.g., SCH 5, 10, 40, 80, 160) indicate wall thickness. The numbering derives from the formula: Schedule = P S E + corrosion allowance Schedule= SE P +corrosion allowance where

2. P P = internal pressure, S S = allowable stress, and E E = joint efficiency. Higher schedules withstand greater pressures but add weight and cost. Wall Thickness: Directly tied to the schedule, thickness is measured in inches or millimeters. For example, a 2-inch NPS pipe has a wall thickness of 3.91 mm for SCH 40 and 5.54 mm for SCH 80. Applications Across Industries ● High-Pressure Systems: Oil and gas or chemical plants use SCH 80 or higher to endure extreme pressures. ● HVAC and Plumbing: SCH 5 or 10 may suffice for low-pressure water supply, prioritizing cost and weight savings. ● Corrosive Environments: Additional wall thickness (via higher schedules) accounts for material degradation over time. ● Hydraulic Calculations: Inner diameter (ID = OD - 2×thickness) influences flow rates and pressure drops, critical for system efficiency. Material-Specific Considerations While schedule numbers are standardized, actual thickness varies by material. For instance, PVC SCH 40 differs from steel SCH 40 in dimensions and pressure ratings. Engineers must consult material-specific charts to avoid errors. Stainless steel, carbon steel, and plastics each have unique charts aligning with their mechanical properties. Standardization and Global Relevance Uniform schedules enable global interoperability. A SCH 40 pipe from one manufacturer matches another’s, simplifying procurement and installation. This consistency is vital for multinational projects, ensuring compliance with codes like ASME B31.3 (process piping) or ISO standards. Challenges and Trade-offs Selecting the right schedule involves balancing cost, safety, and performance. Overly thick pipes incur unnecessary material expenses and weight, requiring robust support structures. Conversely, undersized walls risk leaks or ruptures. Engineers must also factor in future scalability and maintenance needs.
