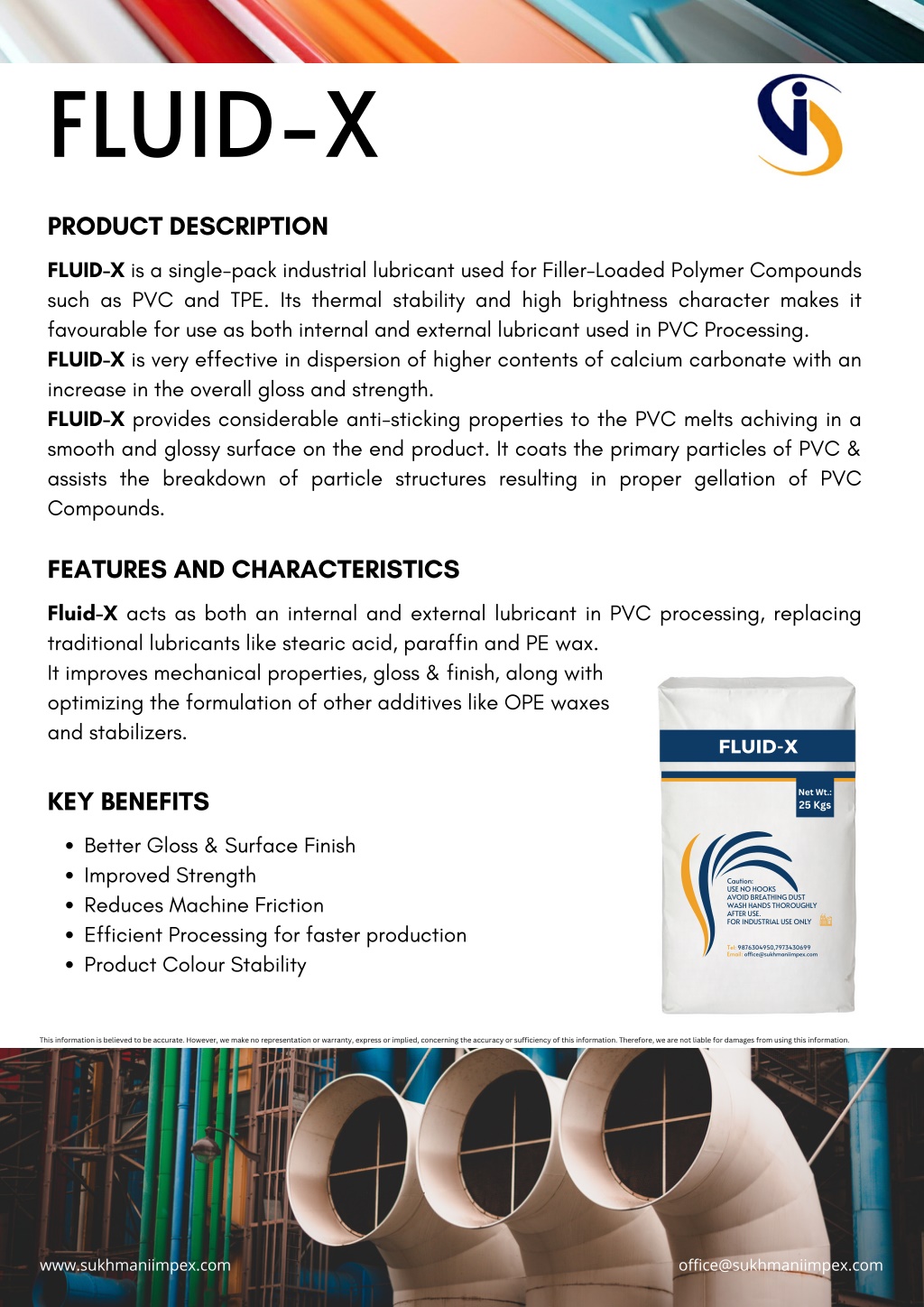

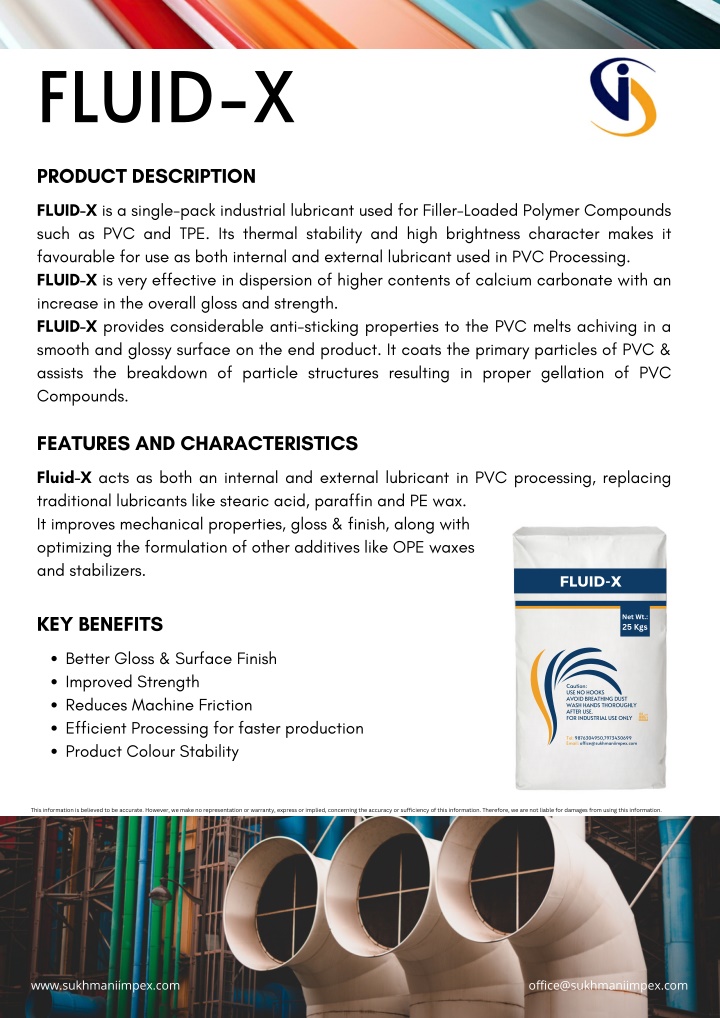

  1. FLUID-X PRODUCT DESCRIPTION FLUID-X is a single-pack industrial lubricant used for Filler-Loaded Polymer Compounds such as PVC and TPE. Its thermal stability and high brightness character makes it favourable for use as both internal and external lubricant used in PVC Processing. FLUID-X is very effective in dispersion of higher contents of calcium carbonate with an increase in the overall gloss and strength. FLUID-X provides considerable anti-sticking properties to the PVC melts achiving in a smooth and glossy surface on the end product. It coats the primary particles of PVC & assists the breakdown of particle structures resulting in proper gellation of PVC Compounds. FEATURES AND CHARACTERISTICS Fluid-X acts as both an internal and external lubricant in PVC processing, replacing traditional lubricants like stearic acid, paraffin and PE wax. It improves mechanical properties, gloss & finish, along with optimizing the formulation of other additives like OPE waxes and stabilizers. FLUID-X KEY BENEFITS Net Wt.: 25 Kgs Better Gloss & Surface Finish Improved Strength Reduces Machine Friction Efficient Processing for faster production Product Colour Stability Caution: USE NO HOOKS AVOID BREATHING DUST WASH HANDS THOROUGHLY AFTER USE. FOR INDUSTRIAL USE ONLY Tel: 9876304950,7973430699 Email: office@sukhmaniimpex.com This information is believed to be accurate. However, we make no representation or warranty, express or implied, concerning the accuracy or sufficiency of this information. Therefore, we are not liable for damages from using this information. www.sukhmaniimpex.com office@sukhmaniimpex.com

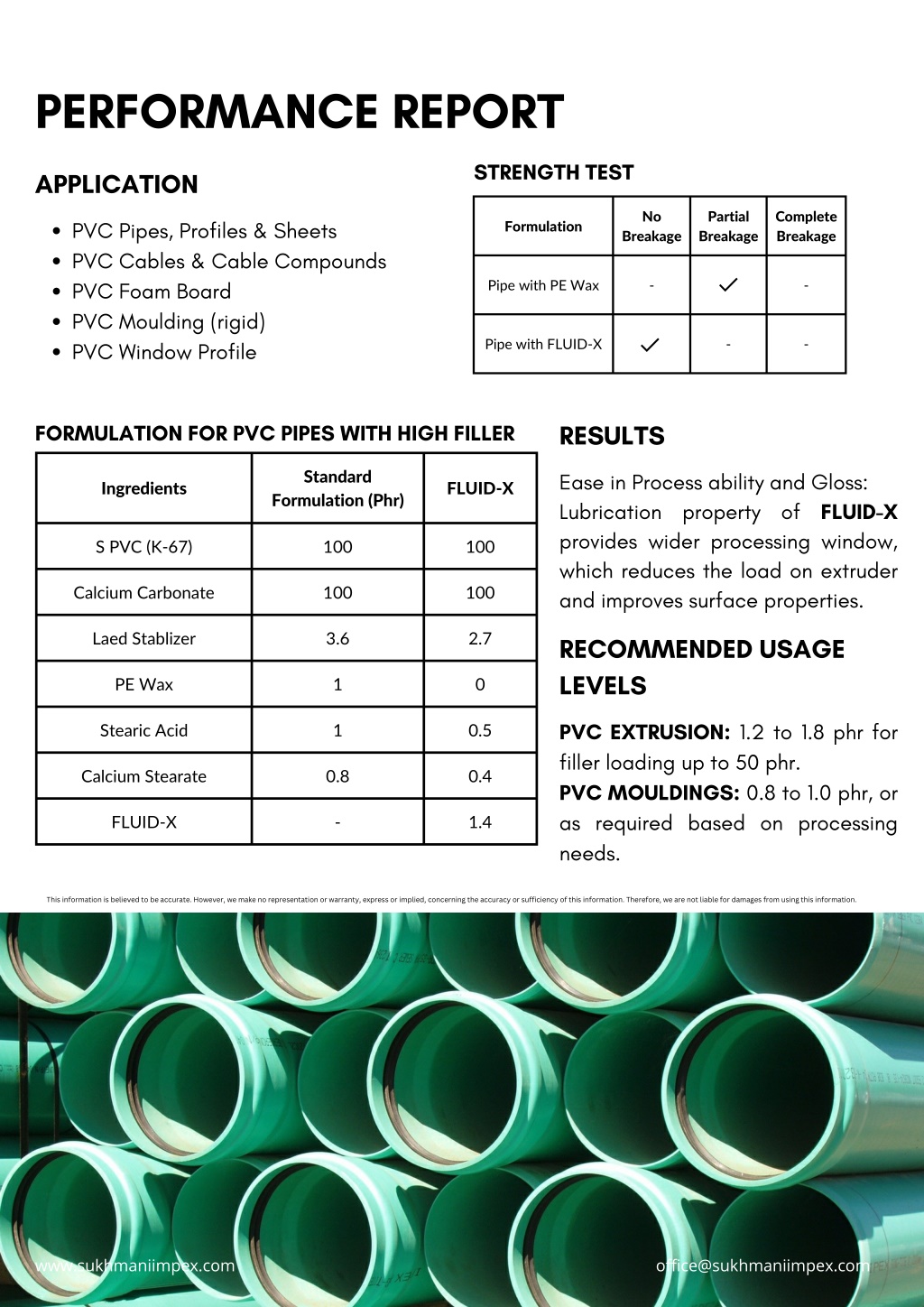

  2. PERFORMANCE REPORT STRENGTH TEST APPLICATION No Partial Breakage Complete Breakage PVC Pipes, Profiles & Sheets PVC Cables & Cable Compounds PVC Foam Board PVC Moulding (rigid) PVC Window Profile Formulation Breakage Pipe with PE Wax - - Pipe with FLUID-X - - RESULTS FORMULATION FOR PVC PIPES WITH HIGH FILLER Standard Formulation (Phr) Ease in Process ability and Gloss: Lubrication property of FLUID-X provides wider processing window, which reduces the load on extruder and improves surface properties. Ingredients FLUID-X S PVC (K-67) 100 100 Calcium Carbonate 100 100 Laed Stablizer 3.6 2.7 RECOMMENDED USAGE LEVELS PE Wax 1 0 PVC EXTRUSION: 1.2 to 1.8 phr for filler loading up to 50 phr. PVC MOULDINGS: 0.8 to 1.0 phr, or as required based on processing needs. Stearic Acid 1 0.5 Calcium Stearate 0.8 0.4 FLUID-X - 1.4 This information is believed to be accurate. However, we make no representation or warranty, express or implied, concerning the accuracy or sufficiency of this information. Therefore, we are not liable for damages from using this information. www.sukhmaniimpex.com office@sukhmaniimpex.com
