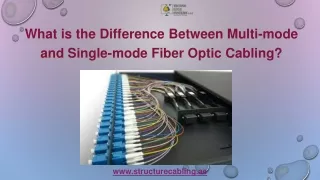

  1. What is the Difference Between Multi-mode and Single-mode Fiber Optic Cabling? www.structurecabling.ae

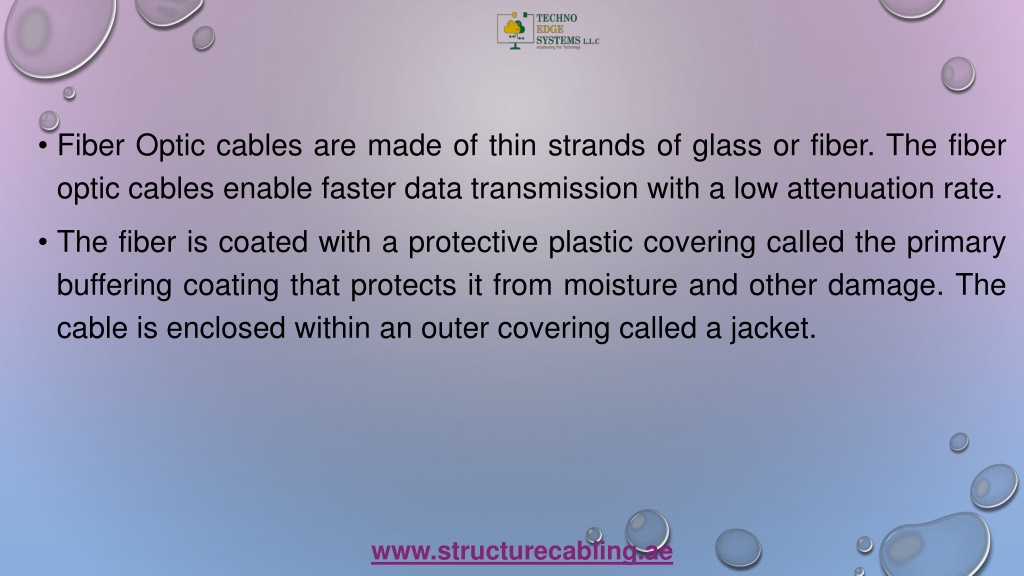

  2. Fiber Optic cables are made of thin strands of glass or fiber. The fiber optic cables enable faster data transmission with a low attenuation rate. • The fiber is coated with a protective plastic covering called the primary buffering coating that protects it from moisture and other damage. The cable is enclosed within an outer covering called a jacket. www.structurecabling.ae

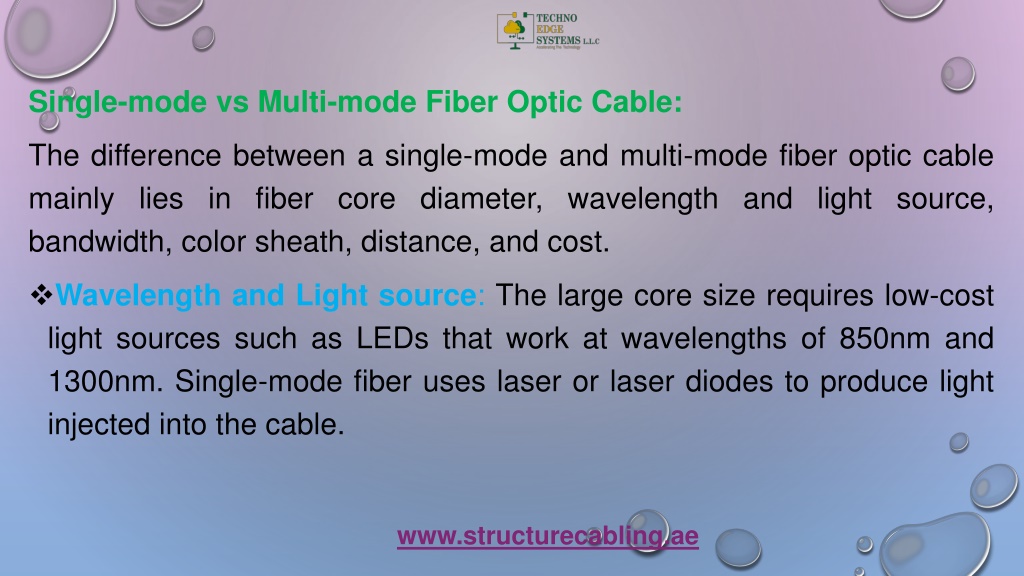

  3. Single-mode vs Multi-mode Fiber Optic Cable: The difference between a single-mode and multi-mode fiber optic cable mainly lies in fiber core diameter, wavelength and light source, bandwidth, color sheath, distance, and cost. • Wavelength and Light source: The large core size requires low-cost light sources such as LEDs that work at wavelengths of 850nm and 1300nm. Single-mode fiber uses laser or laser diodes to produce light injected into the cable. www.structurecabling.ae

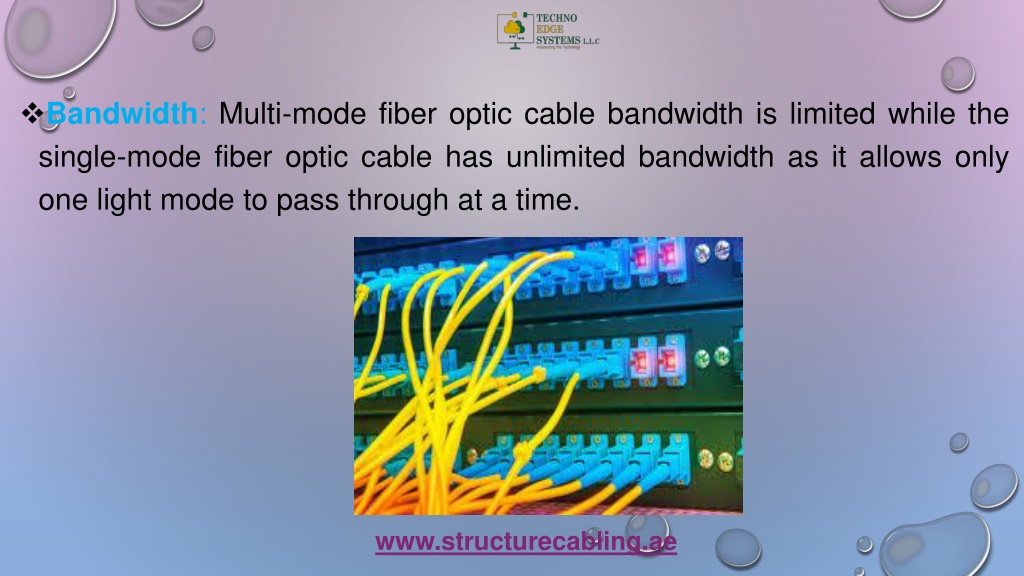

  4. Bandwidth: Multi-mode fiber optic cable bandwidth is limited while the single-mode fiber optic cable has unlimited bandwidth as it allows only one light mode to pass through at a time. www.structurecabling.ae

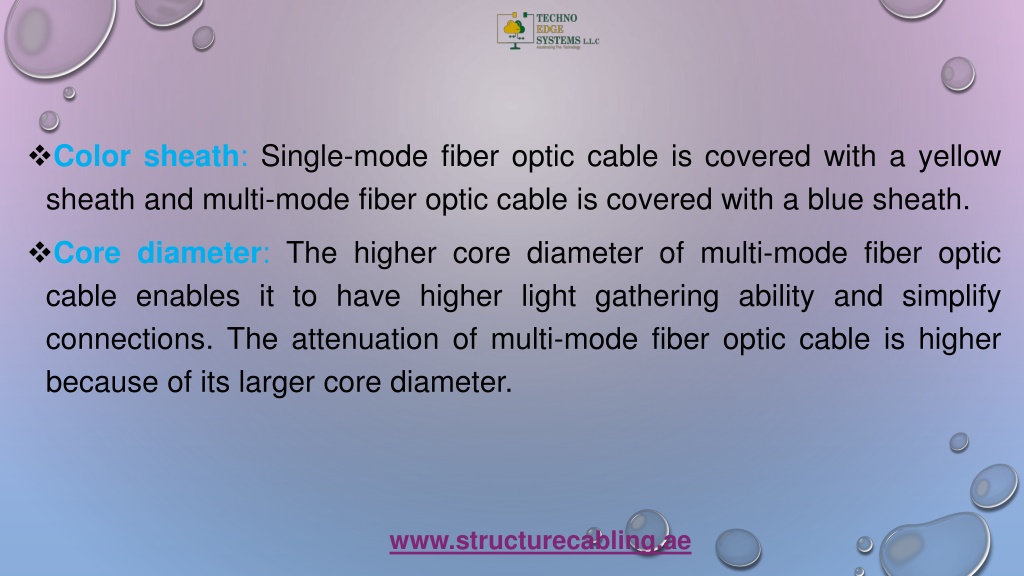

  5. Color sheath: Single-mode fiber optic cable is covered with a yellow sheath and multi-mode fiber optic cable is covered with a blue sheath. • Core diameter: The higher core diameter of multi-mode fiber optic cable enables it to have higher light gathering ability and simplify connections. The attenuation of multi-mode fiber optic cable is higher because of its larger core diameter. www.structurecabling.ae

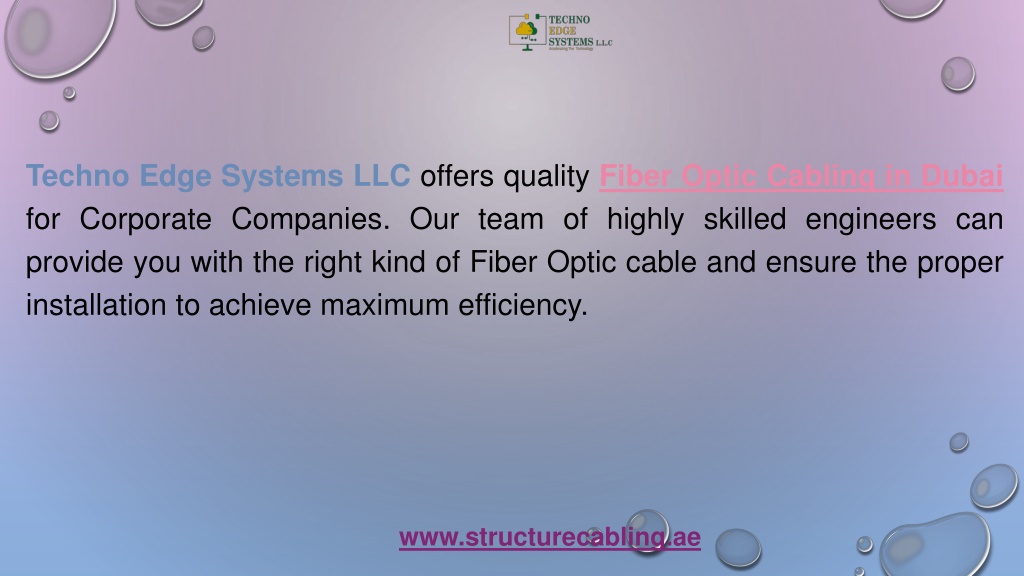

  6. Techno Edge Systems LLCoffers quality Fiber Optic Cabling in Dubai for Corporate Companies. Our team of highly skilled engineers can provide you with the right kind of Fiber Optic cable and ensure the proper installation to achieve maximum efficiency. www.structurecabling.ae

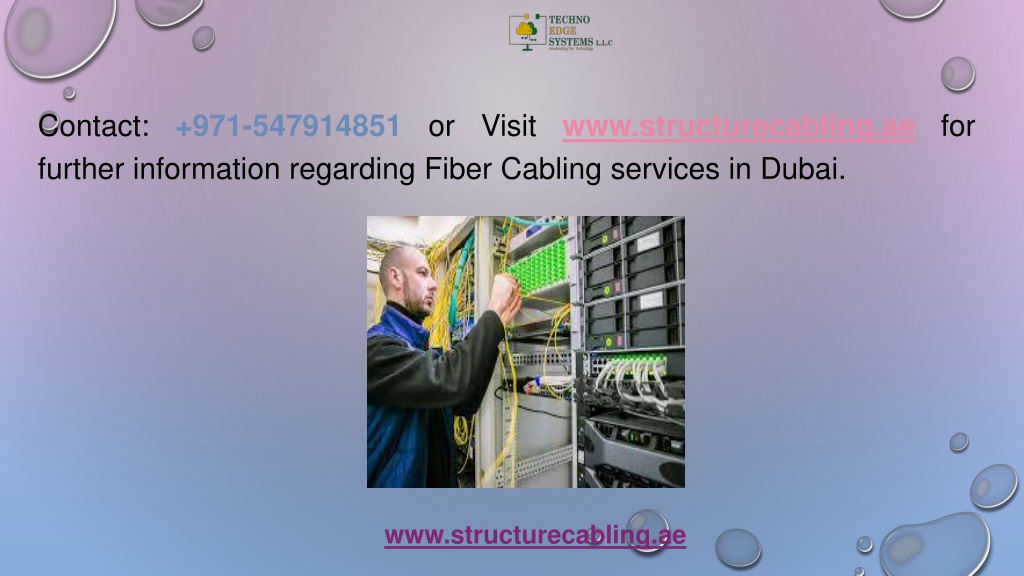

  7. Contact: +971-547914851 or Visit www.structurecabling.ae for further information regarding Fiber Cabling services in Dubai. www.structurecabling.ae
