Developing a Linear Programming Model A Comprehensive Homework Blueprint

1. Developing A Linear Programming Model: A Comprehensive Homework Blueprint

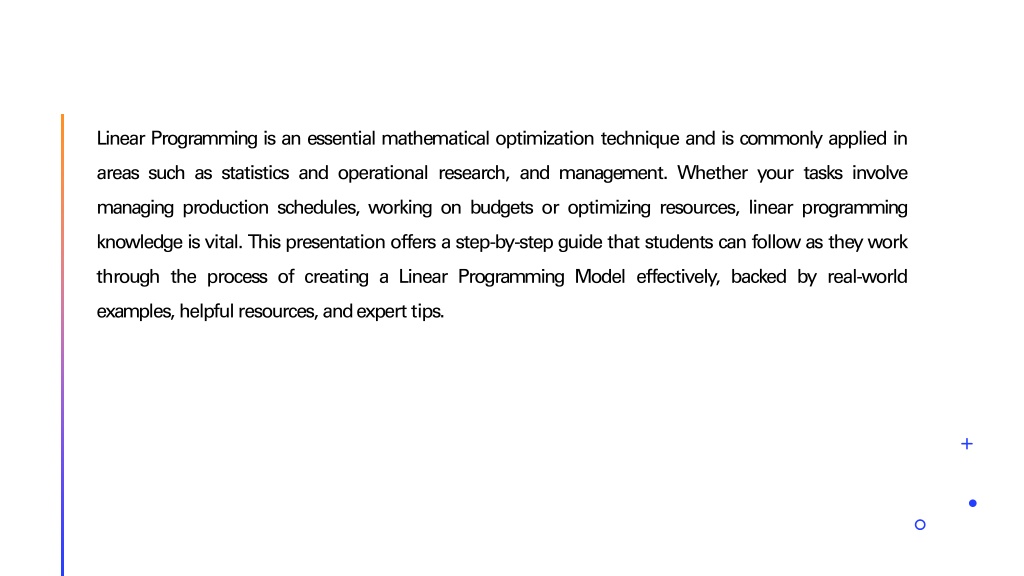

2. Linear Programming is an essential mathematical optimization technique and is commonly applied in areas such as statistics and operational research, and management. Whether your tasks involve managing production schedules, working on budgets or optimizing resources, linear programming knowledge isvital. Thispresentation offers astep-by-stepguide that students can followas theywork through the process of creating a Linear Programming Model effectively, backed by real-world examples,helpfulresources,andexpert tips.

3. Introduction to Linear Programming

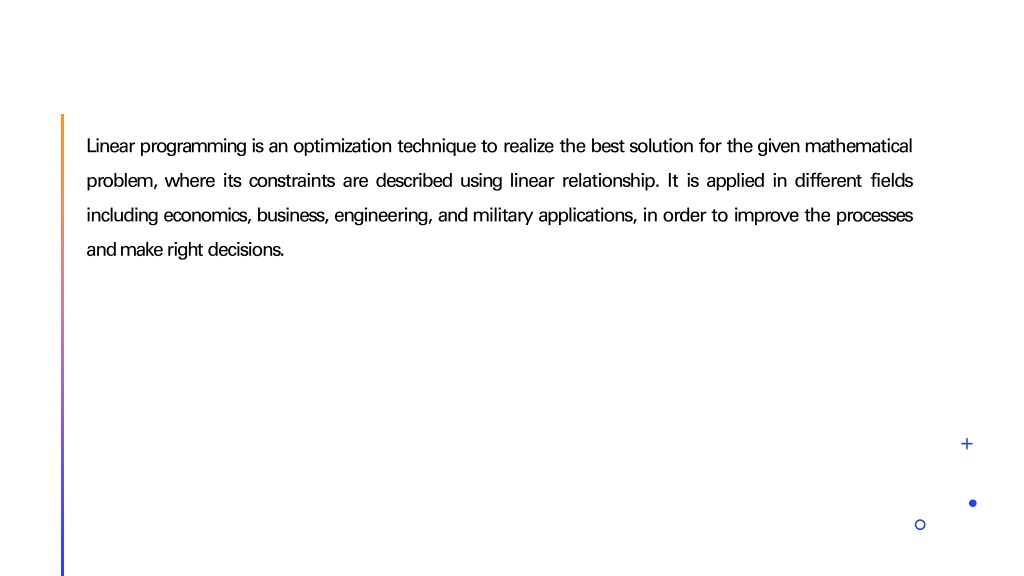

4. Linear programmingisan optimization technique to realize the best solution for thegivenmathematical problem, where its constraints are described using linear relationship. It is applied in different fields including economics, business, engineering, andmilitary applications, in order to improve the processes andmakeright decisions.

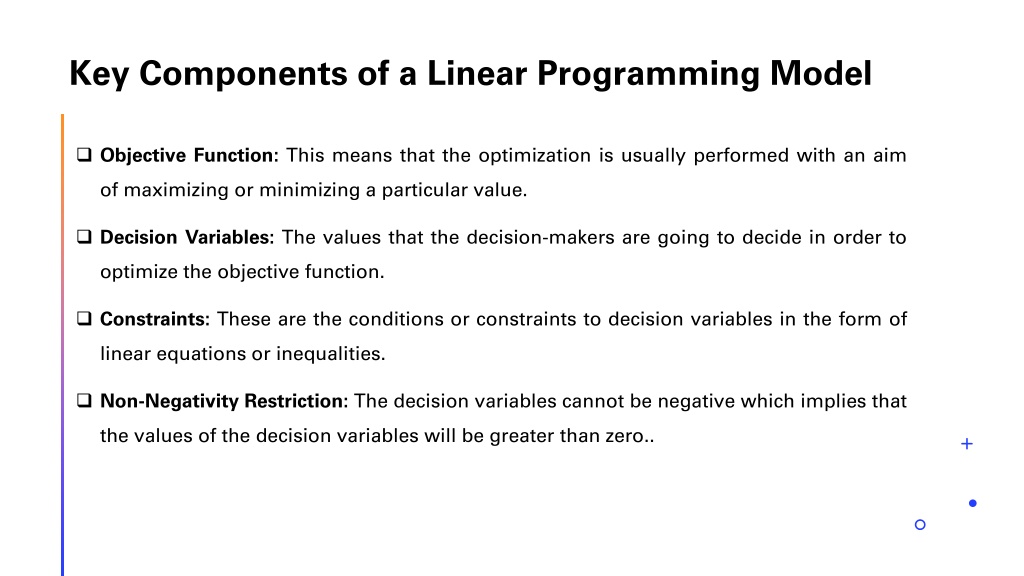

5. Key Components of a Linear Programming Model ❑ Objective Function: This means that the optimization is usually performed with an aim of maximizing or minimizing a particular value. ❑ Decision Variables: The values that the decision-makers are going to decide in order to optimize the objective function. ❑ Constraints: These are the conditions or constraints to decision variables in the form of linear equations or inequalities. ❑ Non-Negativity Restriction: The decision variables cannot be negative which implies that the values of the decision variables will be greater than zero..

6. Steps in Developing a Linear Programming Model

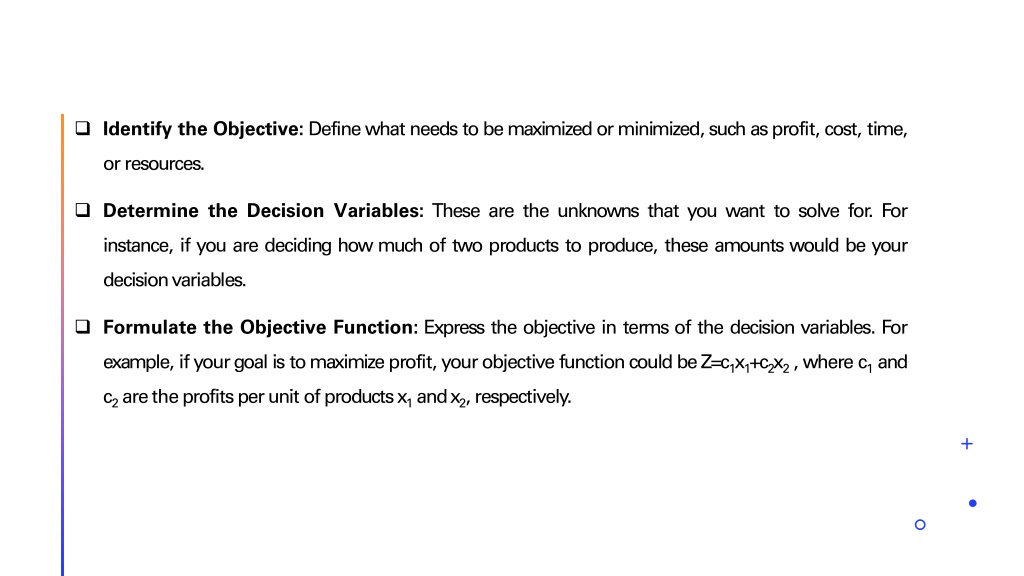

7. ❑ Identify the Objective: Definewhatneeds tobemaximizedorminimized,suchasprofit, cost, time, orresources. ❑ Determine the Decision Variables: These are the unknowns that you want to solve for. For instance, if you are deciding how much of two products to produce, these amounts would be your decisionvariables. ❑ Formulate the Objective Function: Express the objective in terms of the decision variables. For example, ifyourgoal is tomaximizeprofit, yourobjective functioncouldbeZ=c1x1+c2x2,wherec1and c2aretheprofitsperunit ofproductsx1andx2,respectively.

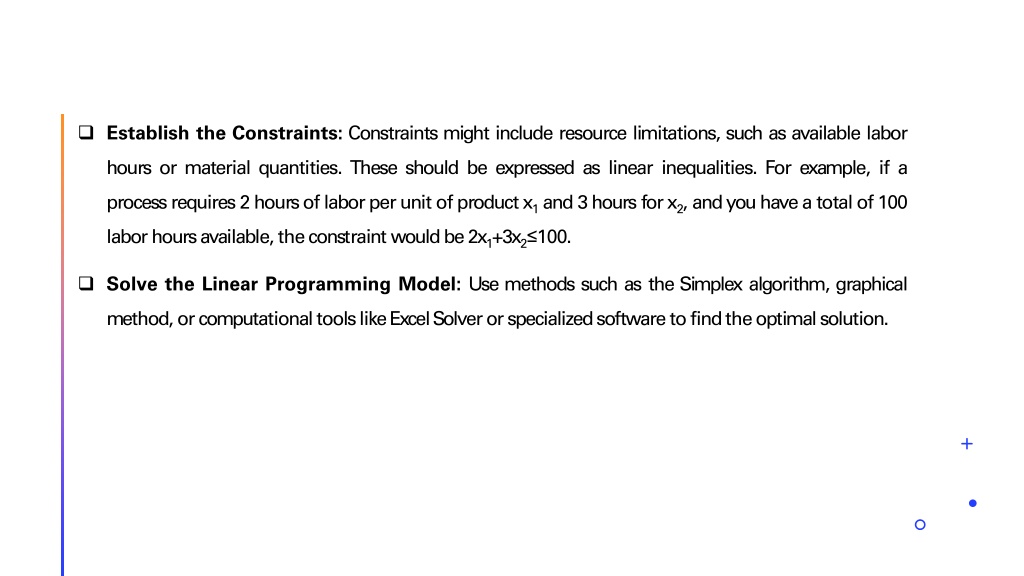

8. ❑ Establish the Constraints: Constraints might include resource limitations, such as available labor hours or material quantities. These should be expressed as linear inequalities. For example, if a processrequires2hoursof laborperunit ofproductx1and3hoursforx2, andyouhavea totalof 100 laborhoursavailable,theconstraint wouldbe2x1+3x2≤100. ❑ Solve the Linear Programming Model: Use methods such as the Simplex algorithm, graphical method,orcomputationaltoolslikeExcelSolverorspecializedsoftwaretofindtheoptimalsolution.

9. Example: A Simple Linear Programming Model

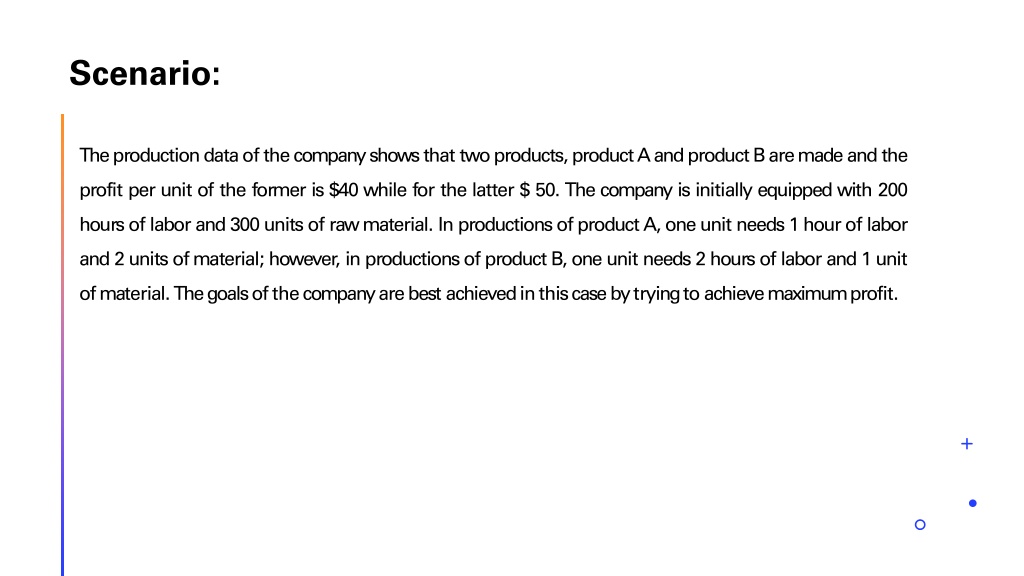

10. Scenario: Theproductiondataof thecompanyshowsthat twoproducts,productAandproductBaremadeandthe profit per unit of the former is $40 while for the latter $ 50. The company is initially equipped with 200 hoursof laborand300unitsof rawmaterial. In productionsofproductA,oneunit needs1hourof labor and 2unitsofmaterial; however, inproductionsof productB,oneunit needs2hoursof laborand 1unit ofmaterial.Thegoalsofthecompanyarebest achievedinthiscasebytryingtoachievemaximumprofit.

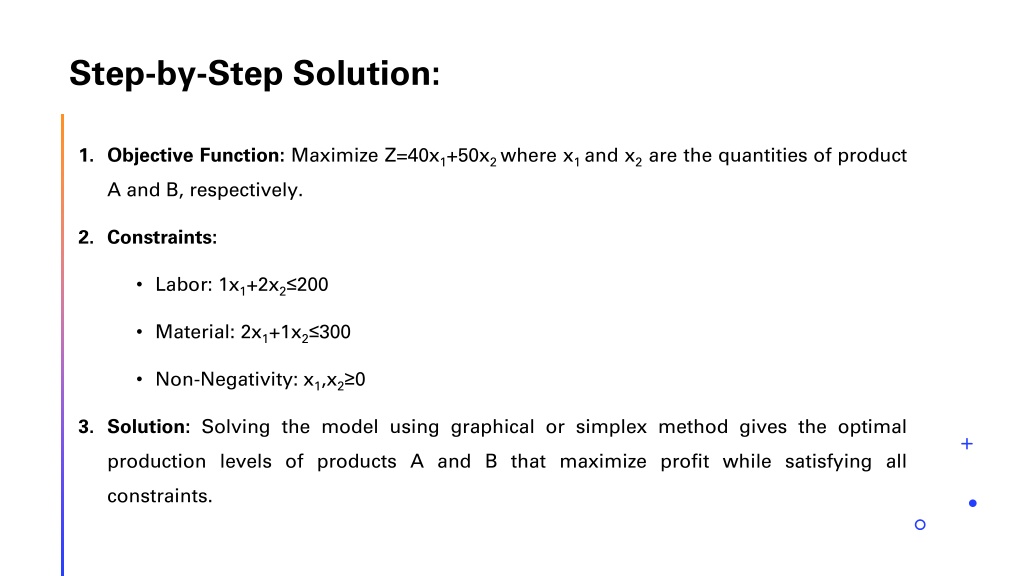

11. Step-by-Step Solution: 1. Objective Function: Maximize Z=40x1+50x2where x1and x2are the quantities of product A and B, respectively. 2. Constraints: • Labor: 1x1+2x2≤200 • Material: 2x1+1x2≤300 • Non-Negativity: x1,x2≥0 3. Solution: Solving the model using graphical or simplex method gives the optimal production levels of products A and B that maximize profit while satisfying all constraints.

12. Tools and Software for Linear Programming

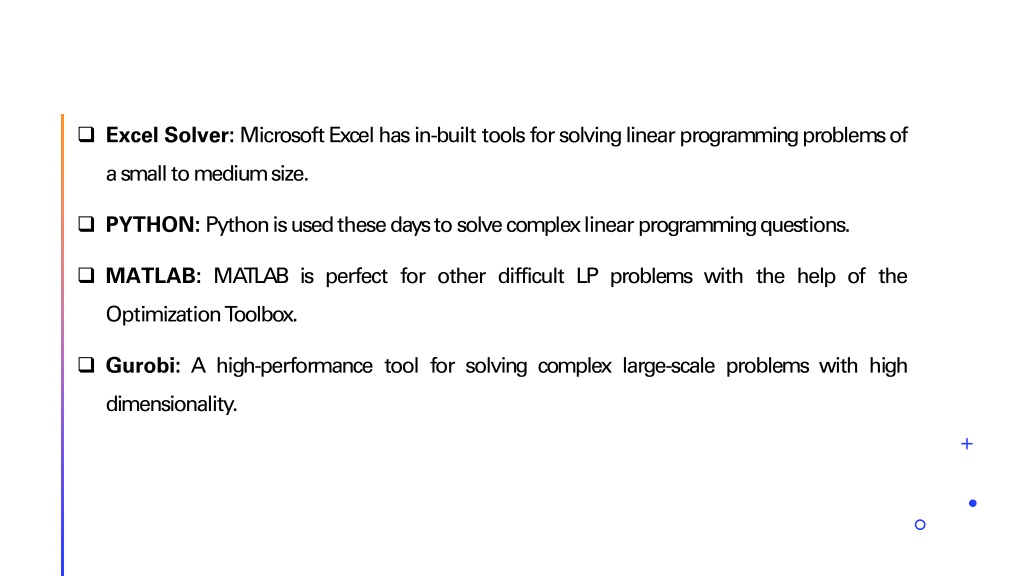

13. ❑ Excel Solver: MicrosoftExcelhasin-built toolsforsolvinglinearprogrammingproblemsof asmalltomediumsize. ❑ PYTHON: Pythonisusedthesedaystosolvecomplexlinearprogrammingquestions. ❑ MATLAB: MA TLAB is perfect for other difficult LP problems with the help of the OptimizationToolbox. ❑ Gurobi: A high-performance tool for solving complex large-scale problems with high dimensionality.

14. Helpful Resources & Textbooks

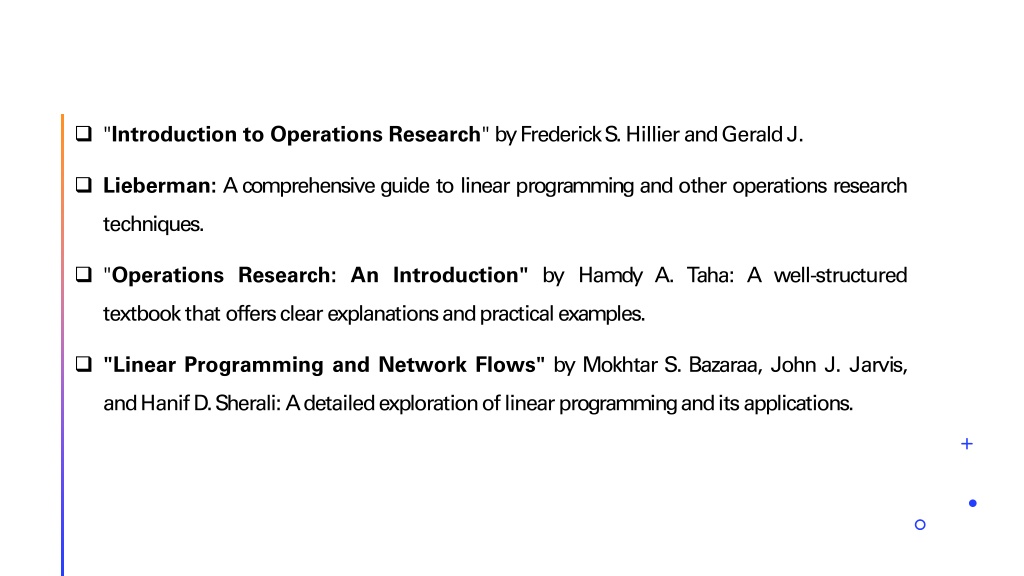

15. ❑ "Introduction to Operations Research" byFrederickS.HillierandGeraldJ. ❑ Lieberman: Acomprehensiveguide to linear programmingand other operations research techniques. ❑ "Operations Research: An Introduction" by Hamdy A. Taha: A well-structured textbookthat offersclearexplanationsandpracticalexamples. ❑ "Linear Programming and Network Flows" by Mokhtar S. Bazaraa, John J. Jarvis, andHanifD.Sherali:Adetailedexplorationoflinearprogramminganditsapplications.

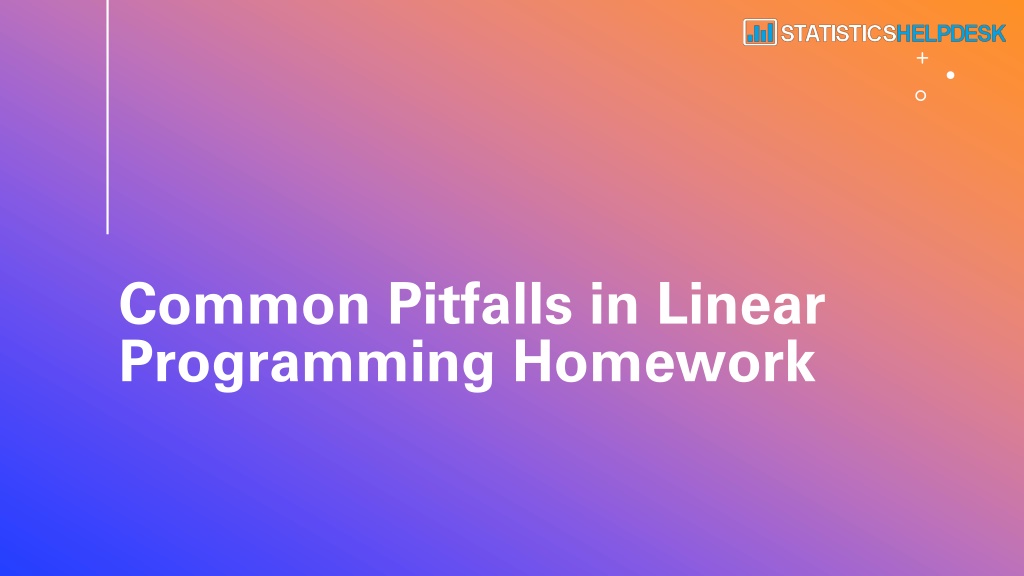

16. Common Pitfalls in Linear Programming Homework

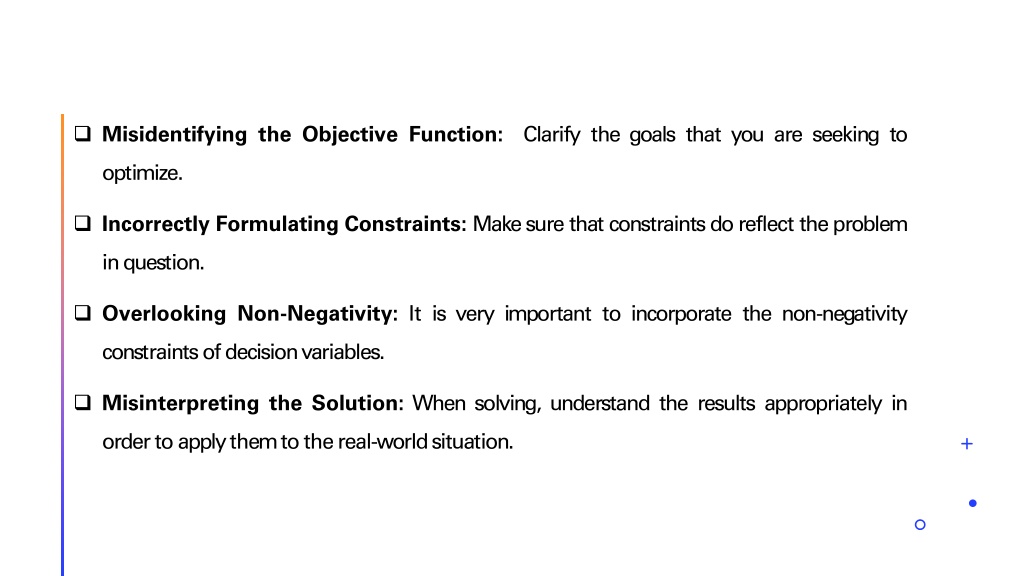

17. ❑ Misidentifying the Objective Function: Clarify the goals that you are seeking to optimize. ❑ Incorrectly Formulating Constraints: Makesure that constraintsdoreflect theproblem inquestion. ❑ Overlooking Non-Negativity: It is very important to incorporate the non-negativity constraintsofdecisionvariables. ❑ Misinterpreting the Solution: When solving, understand the results appropriately in ordertoapplythemtothereal-worldsituation.

18. Linear Programming Homework Help Service

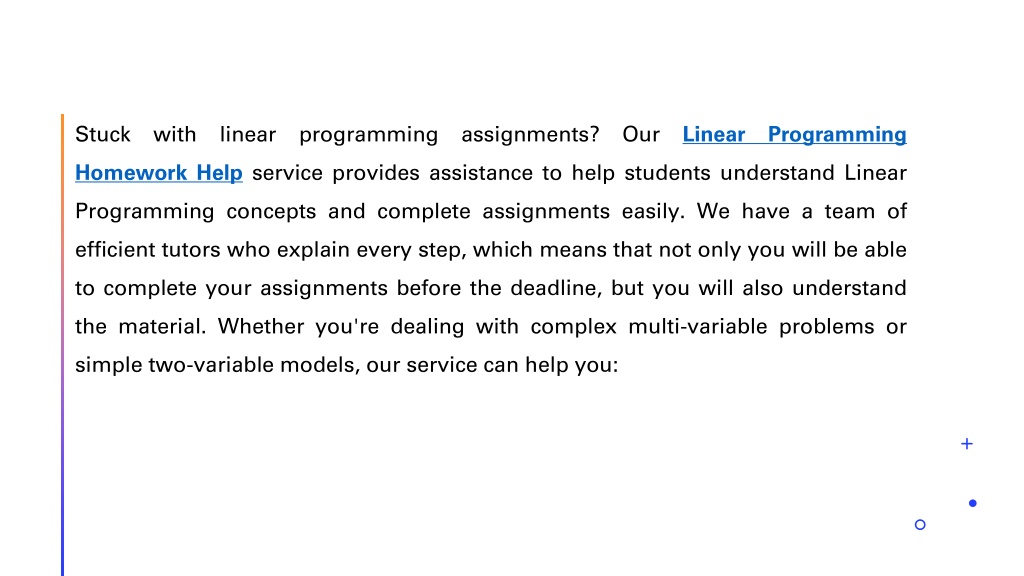

19. Stuck with linear programming assignments? Our Linear Programming Homework Help service provides assistance to help students understand Linear Programming concepts and complete assignments easily. We have a team of efficient tutors who explain every step, which means that not only you will be able to complete your assignments before the deadline, but you will also understand the material. Whether you're dealing with complex multi-variable problems or simple two-variable models, our service can help you:

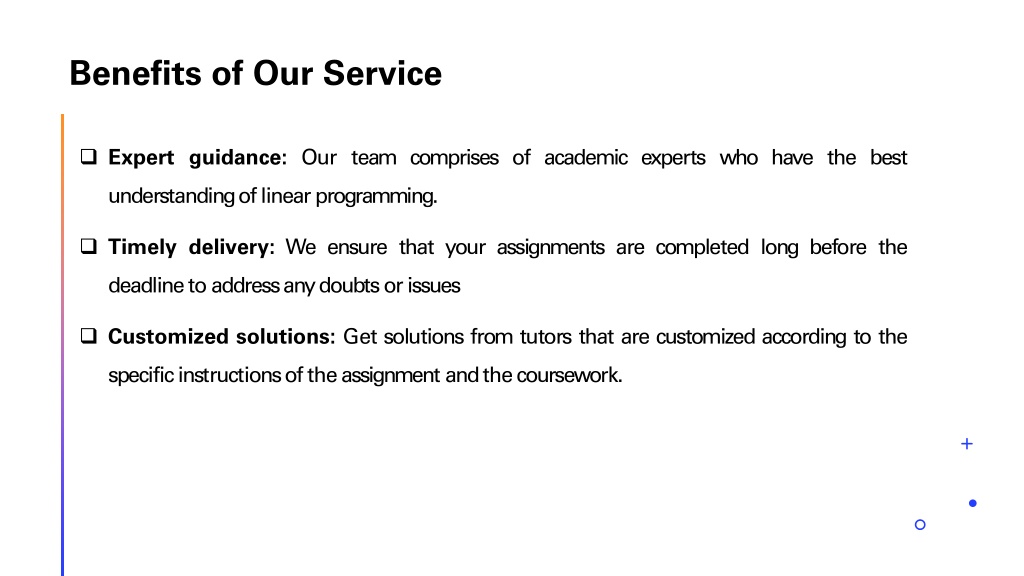

20. Benefits of Our Service ❑ Expert guidance: Our team comprises of academic experts who have the best understandingoflinearprogramming. ❑ Timely delivery: We ensure that your assignments are completed long before the deadlinetoaddressanydoubtsorissues ❑ Customized solutions: Get solutions from tutors that are customized according to the specificinstructionsoftheassignment andthecoursework.

21. Conclusion

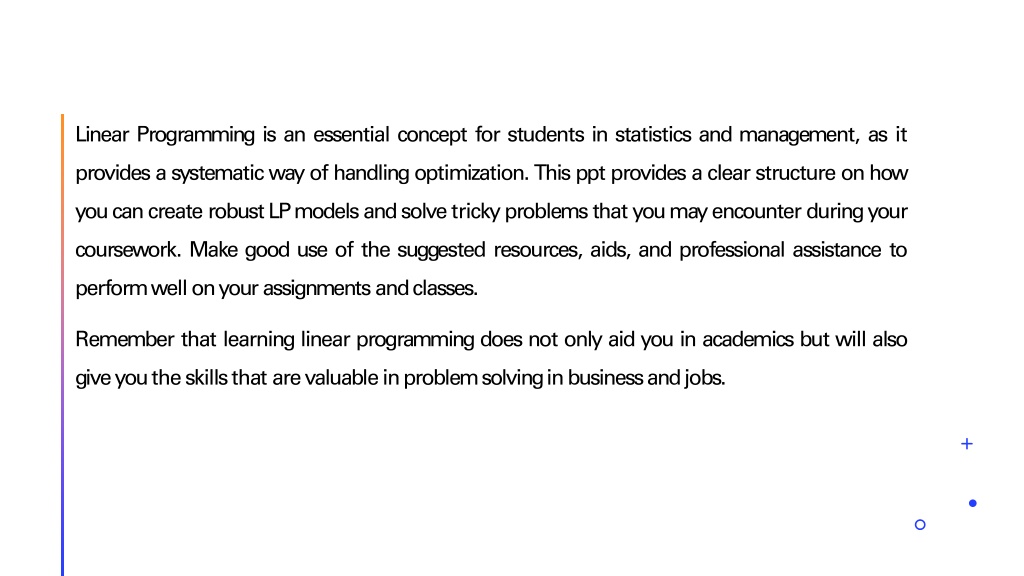

22. Linear Programming is an essential concept for students in statistics and management, as it providesasystematicwayof handlingoptimization.Thisppt providesaclearstructure onhow youcancreate robustLPmodelsandsolvetrickyproblemsthatyoumayencounterduringyour coursework. Make good use of the suggested resources, aids, and professional assistance to performwellonyourassignmentsandclasses. Remember that learning linear programmingdoes not only aid you in academics but will also giveyoutheskillsthat arevaluableinproblemsolvinginbusinessandjobs.

23. THANK YOU +44-166-626-0813 homework@statisticshelpdesk.com www.statisticshelpdesk.com
