Understanding Medium Voltage Switchgear

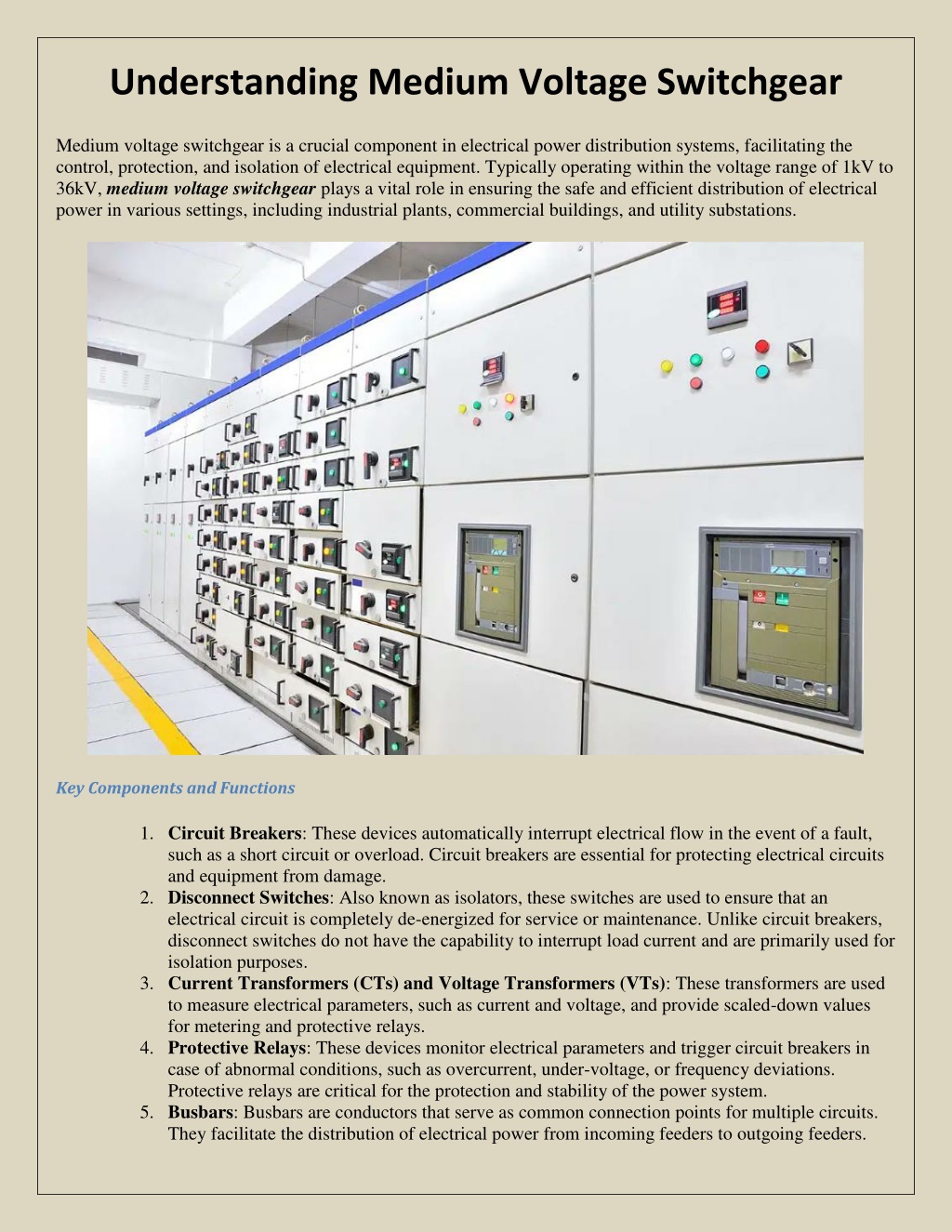

1. Understanding Medium Voltage Switchgear Medium voltage switchgear is a crucial component in electrical power distribution systems, facilitating the control, protection, and isolation of electrical equipment. Typically operating within the voltage range of 1kV to 36kV, medium voltage switchgear plays a vital role in ensuring the safe and efficient distribution of electrical power in various settings, including industrial plants, commercial buildings, and utility substations. Key Components and Functions 1.Circuit Breakers: These devices automatically interrupt electrical flow in the event of a fault, such as a short circuit or overload. Circuit breakers are essential for protecting electrical circuits and equipment from damage. 2.Disconnect Switches: Also known as isolators, these switches are used to ensure that an electrical circuit is completely de-energized for service or maintenance. Unlike circuit breakers, disconnect switches do not have the capability to interrupt load current and are primarily used for isolation purposes. 3.Current Transformers (CTs) and Voltage Transformers (VTs): These transformers are used to measure electrical parameters, such as current and voltage, and provide scaled-down values for metering and protective relays. 4.Protective Relays: These devices monitor electrical parameters and trigger circuit breakers in case of abnormal conditions, such as overcurrent, under-voltage, or frequency deviations. Protective relays are critical for the protection and stability of the power system. 5.Busbars: Busbars are conductors that serve as common connection points for multiple circuits. They facilitate the distribution of electrical power from incoming feeders to outgoing feeders.

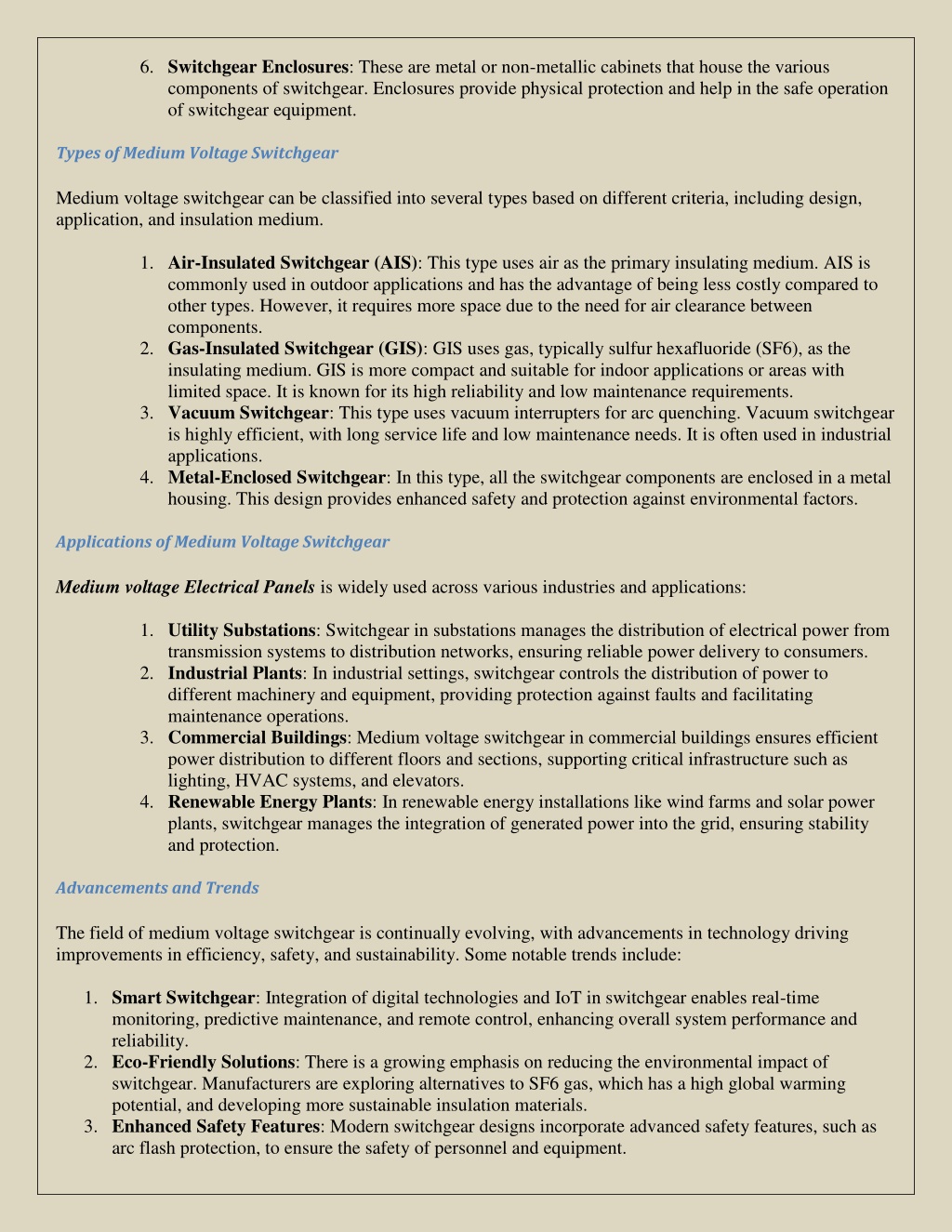

2. 6.Switchgear Enclosures: These are metal or non-metallic cabinets that house the various components of switchgear. Enclosures provide physical protection and help in the safe operation of switchgear equipment. Types of Medium Voltage Switchgear Medium voltage switchgear can be classified into several types based on different criteria, including design, application, and insulation medium. 1.Air-Insulated Switchgear (AIS): This type uses air as the primary insulating medium. AIS is commonly used in outdoor applications and has the advantage of being less costly compared to other types. However, it requires more space due to the need for air clearance between components. 2.Gas-Insulated Switchgear (GIS): GIS uses gas, typically sulfur hexafluoride (SF6), as the insulating medium. GIS is more compact and suitable for indoor applications or areas with limited space. It is known for its high reliability and low maintenance requirements. 3.Vacuum Switchgear: This type uses vacuum interrupters for arc quenching. Vacuum switchgear is highly efficient, with long service life and low maintenance needs. It is often used in industrial applications. 4.Metal-Enclosed Switchgear: In this type, all the switchgear components are enclosed in a metal housing. This design provides enhanced safety and protection against environmental factors. Applications of Medium Voltage Switchgear Medium voltage Electrical Panels is widely used across various industries and applications: 1.Utility Substations: Switchgear in substations manages the distribution of electrical power from transmission systems to distribution networks, ensuring reliable power delivery to consumers. 2.Industrial Plants: In industrial settings, switchgear controls the distribution of power to different machinery and equipment, providing protection against faults and facilitating maintenance operations. 3.Commercial Buildings: Medium voltage switchgear in commercial buildings ensures efficient power distribution to different floors and sections, supporting critical infrastructure such as lighting, HVAC systems, and elevators. 4.Renewable Energy Plants: In renewable energy installations like wind farms and solar power plants, switchgear manages the integration of generated power into the grid, ensuring stability and protection. Advancements and Trends The field of medium voltage switchgear is continually evolving, with advancements in technology driving improvements in efficiency, safety, and sustainability. Some notable trends include: 1.Smart Switchgear: Integration of digital technologies and IoT in switchgear enables real-time monitoring, predictive maintenance, and remote control, enhancing overall system performance and reliability. 2.Eco-Friendly Solutions: There is a growing emphasis on reducing the environmental impact of switchgear. Manufacturers are exploring alternatives to SF6 gas, which has a high global warming potential, and developing more sustainable insulation materials. 3.Enhanced Safety Features: Modern switchgear designs incorporate advanced safety features, such as arc flash protection, to ensure the safety of personnel and equipment.

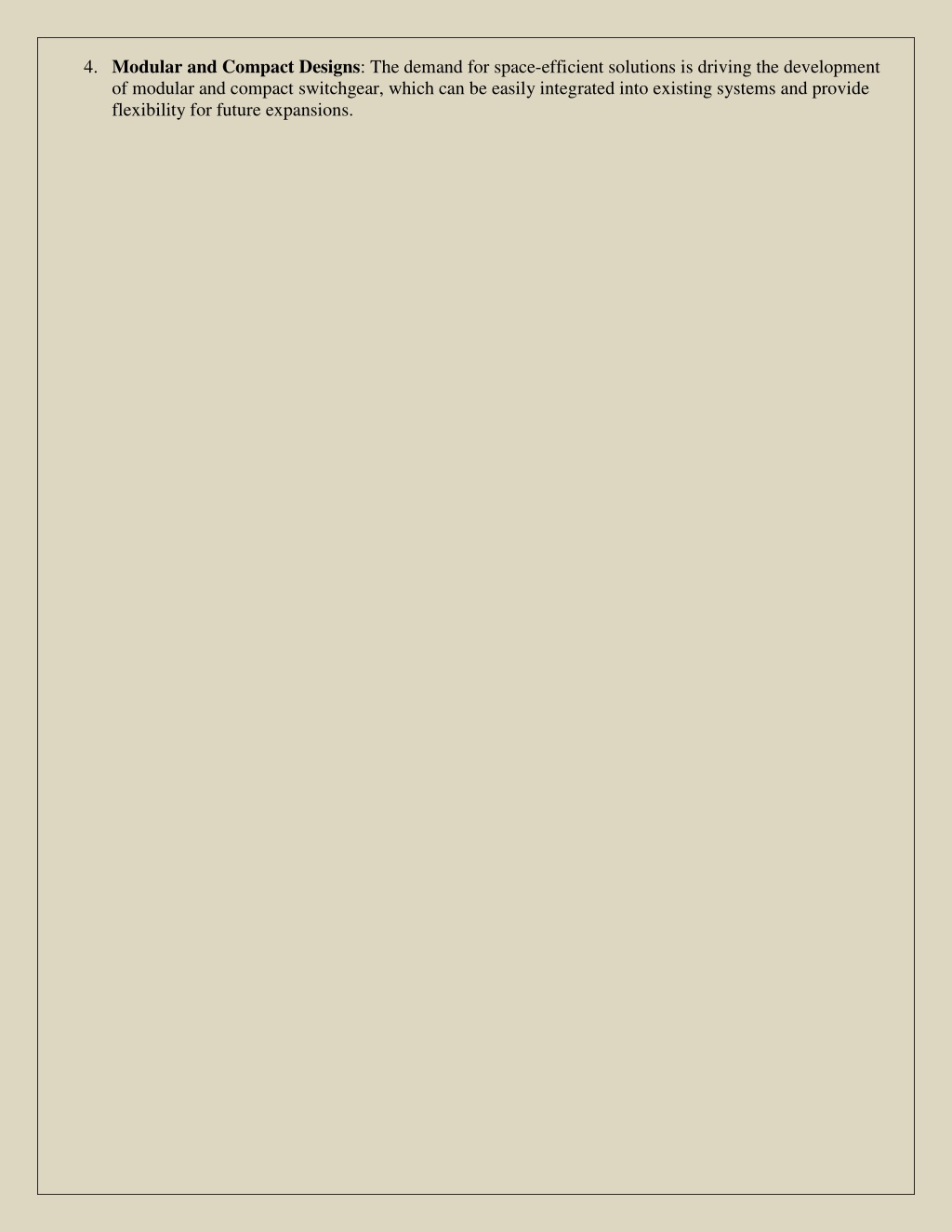

3. 4.Modular and Compact Designs: The demand for space-efficient solutions is driving the development of modular and compact switchgear, which can be easily integrated into existing systems and provide flexibility for future expansions.
