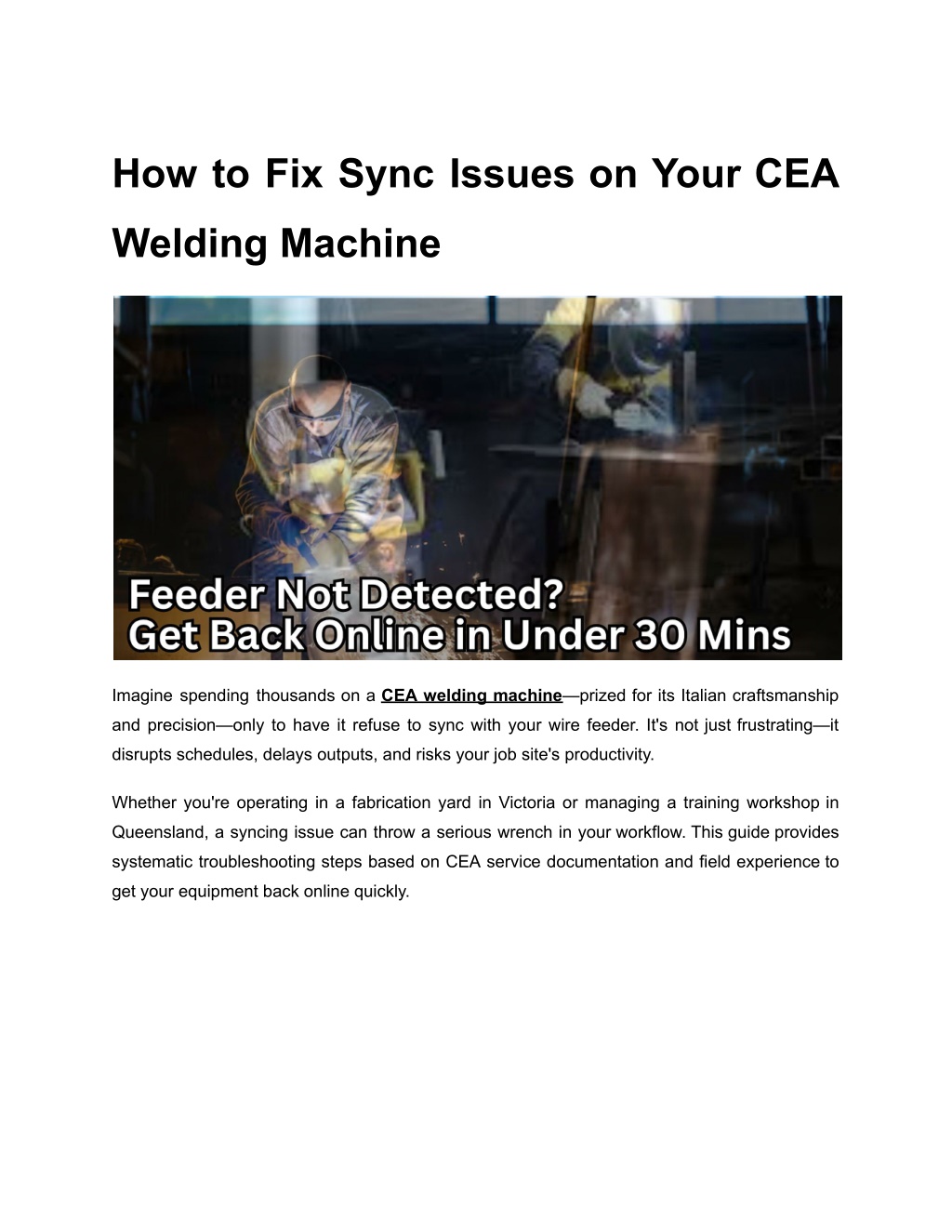

  1. How to Fix Sync Issues on Your CEA Welding Machine Imagine spending thousands on a CEA welding machine—prized for its Italian craftsmanship and precision—only to have it refuse to sync with your wire feeder. It's not just frustrating—it disrupts schedules, delays outputs, and risks your job site's productivity. Whether you're operating in a fabrication yard in Victoria or managing a training workshop in Queensland, a syncing issue can throw a serious wrench in your workflow. This guide provides systematic troubleshooting steps based on CEA service documentation and field experience to get your equipment back online quickly.

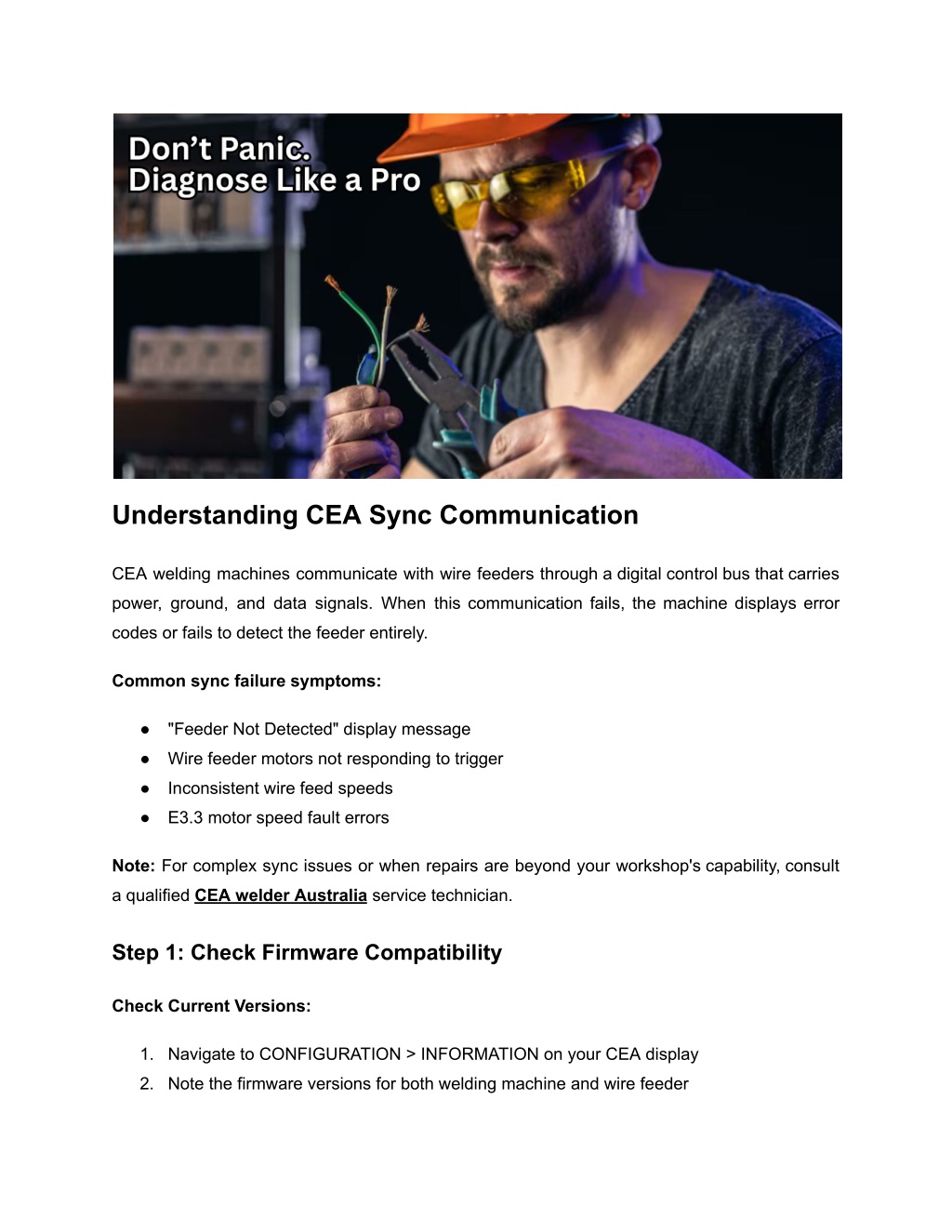

  2. Understanding CEA Sync Communication CEA welding machines communicate with wire feeders through a digital control bus that carries power, ground, and data signals. When this communication fails, the machine displays error codes or fails to detect the feeder entirely. Common sync failure symptoms: ● "Feeder Not Detected" display message ● Wire feeder motors not responding to trigger ● Inconsistent wire feed speeds ● E3.3 motor speed fault errors Note: For complex sync issues or when repairs are beyond your workshop's capability, consult a qualified CEA welder Australia service technician. Step 1: Check Firmware Compatibility Check Current Versions: 1. Navigate to CONFIGURATION > INFORMATION on your CEA display 2. Note the firmware versions for both welding machine and wire feeder

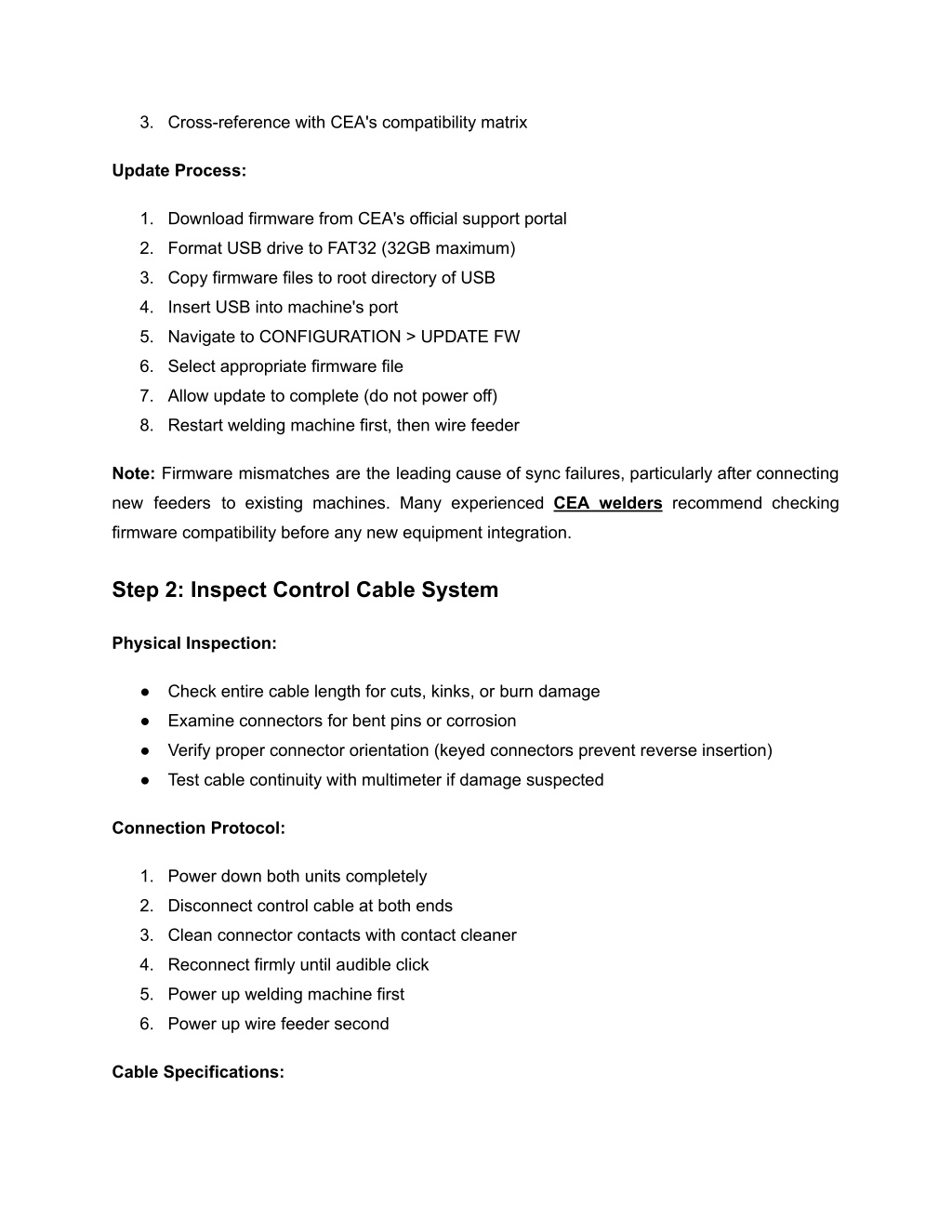

  3. 3. Cross-reference with CEA's compatibility matrix Update Process: 1. Download firmware from CEA's official support portal 2. Format USB drive to FAT32 (32GB maximum) 3. Copy firmware files to root directory of USB 4. Insert USB into machine's port 5. Navigate to CONFIGURATION > UPDATE FW 6. Select appropriate firmware file 7. Allow update to complete (do not power off) 8. Restart welding machine first, then wire feeder Note: Firmware mismatches are the leading cause of sync failures, particularly after connecting new feeders to existing machines. Many experienced CEA welders recommend checking firmware compatibility before any new equipment integration. Step 2: Inspect Control Cable System Physical Inspection: ● Check entire cable length for cuts, kinks, or burn damage ● Examine connectors for bent pins or corrosion ● Verify proper connector orientation (keyed connectors prevent reverse insertion) ● Test cable continuity with multimeter if damage suspected Connection Protocol: 1. Power down both units completely 2. Disconnect control cable at both ends 3. Clean connector contacts with contact cleaner 4. Reconnect firmly until audible click 5. Power up welding machine first 6. Power up wire feeder second Cable Specifications:

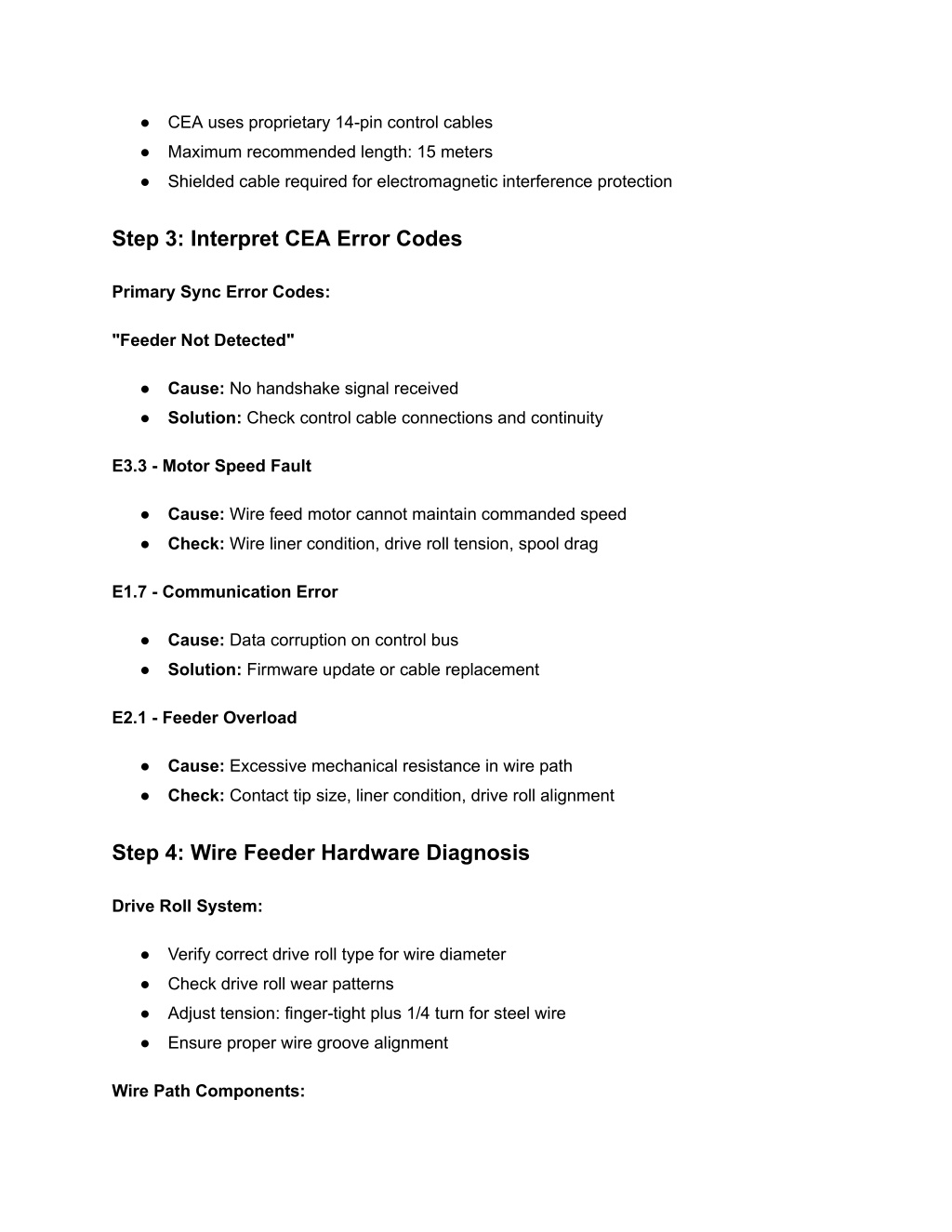

  4. ● CEA uses proprietary 14-pin control cables ● Maximum recommended length: 15 meters ● Shielded cable required for electromagnetic interference protection Step 3: Interpret CEA Error Codes Primary Sync Error Codes: "Feeder Not Detected" ● Cause: No handshake signal received ● Solution: Check control cable connections and continuity E3.3 - Motor Speed Fault ● Cause: Wire feed motor cannot maintain commanded speed ● Check: Wire liner condition, drive roll tension, spool drag E1.7 - Communication Error ● Cause: Data corruption on control bus ● Solution: Firmware update or cable replacement E2.1 - Feeder Overload ● Cause: Excessive mechanical resistance in wire path ● Check: Contact tip size, liner condition, drive roll alignment Step 4: Wire Feeder Hardware Diagnosis Drive Roll System: ● Verify correct drive roll type for wire diameter ● Check drive roll wear patterns ● Adjust tension: finger-tight plus 1/4 turn for steel wire ● Ensure proper wire groove alignment Wire Path Components:

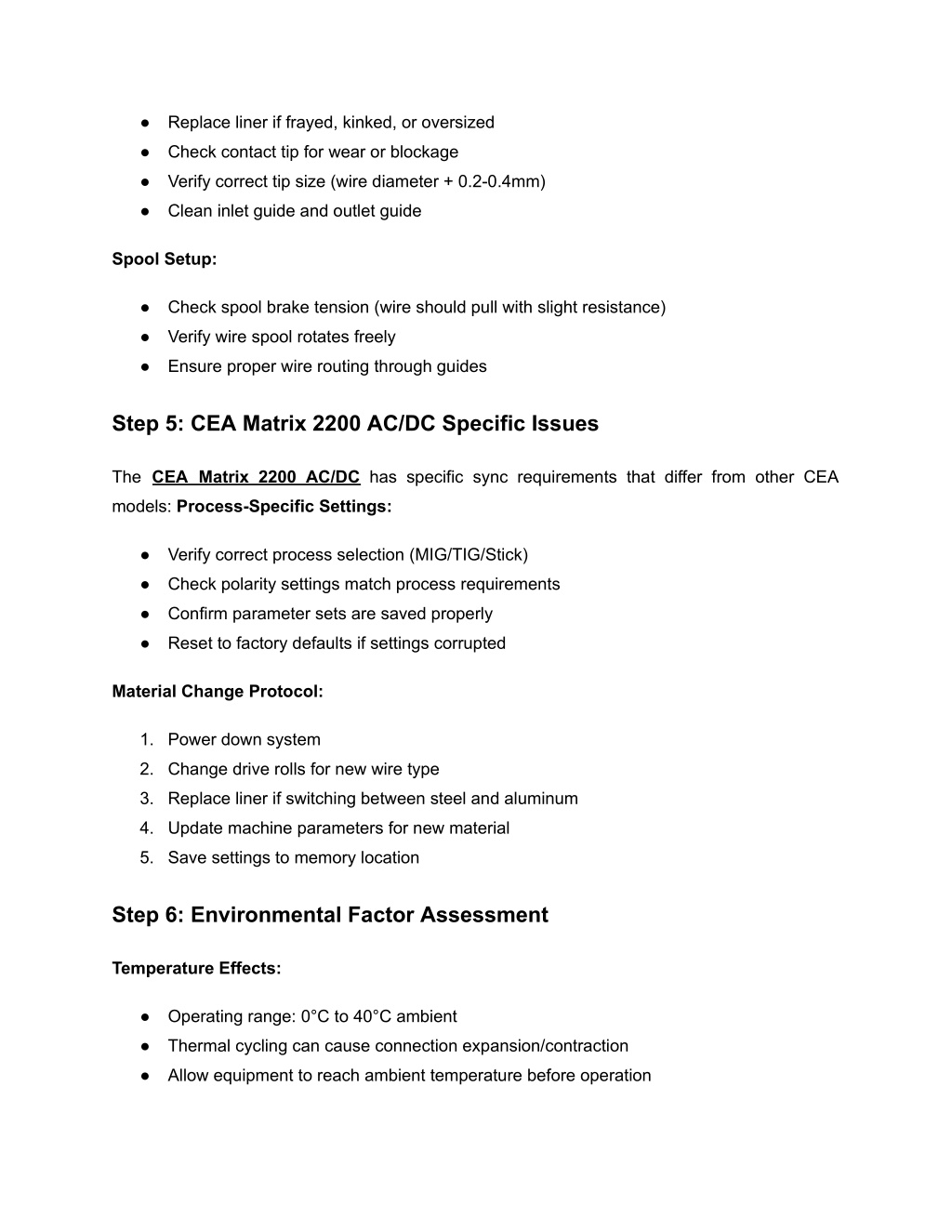

  5. ● Replace liner if frayed, kinked, or oversized ● Check contact tip for wear or blockage ● Verify correct tip size (wire diameter + 0.2-0.4mm) ● Clean inlet guide and outlet guide Spool Setup: ● Check spool brake tension (wire should pull with slight resistance) ● Verify wire spool rotates freely ● Ensure proper wire routing through guides Step 5: CEA Matrix 2200 AC/DC Specific Issues The CEA Matrix 2200 AC/DC has specific sync requirements that differ from other CEA models: Process-Specific Settings: ● Verify correct process selection (MIG/TIG/Stick) ● Check polarity settings match process requirements ● Confirm parameter sets are saved properly ● Reset to factory defaults if settings corrupted Material Change Protocol: 1. Power down system 2. Change drive rolls for new wire type 3. Replace liner if switching between steel and aluminum 4. Update machine parameters for new material 5. Save settings to memory location Step 6: Environmental Factor Assessment Temperature Effects: ● Operating range: 0°C to 40°C ambient ● Thermal cycling can cause connection expansion/contraction ● Allow equipment to reach ambient temperature before operation

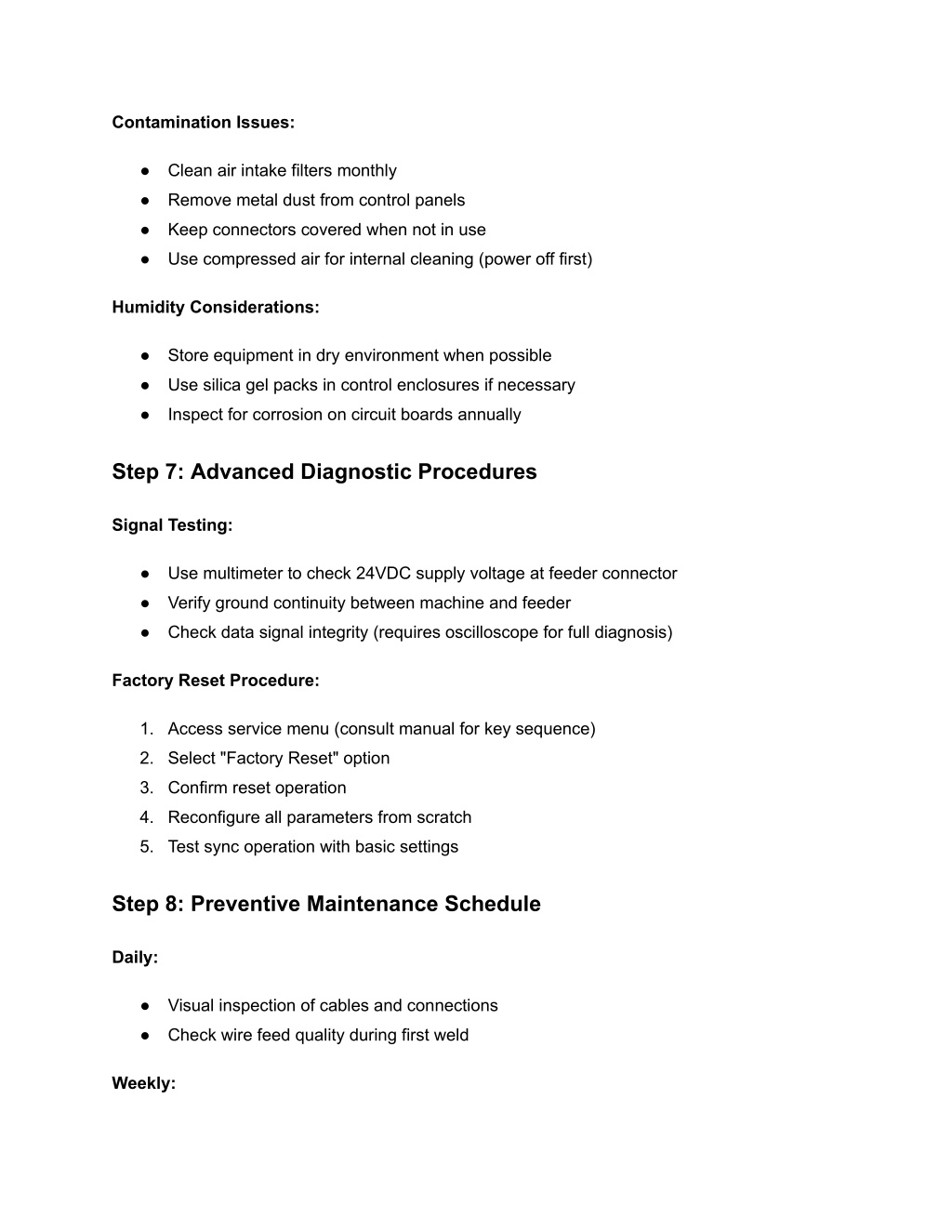

  6. Contamination Issues: ● Clean air intake filters monthly ● Remove metal dust from control panels ● Keep connectors covered when not in use ● Use compressed air for internal cleaning (power off first) Humidity Considerations: ● Store equipment in dry environment when possible ● Use silica gel packs in control enclosures if necessary ● Inspect for corrosion on circuit boards annually Step 7: Advanced Diagnostic Procedures Signal Testing: ● Use multimeter to check 24VDC supply voltage at feeder connector ● Verify ground continuity between machine and feeder ● Check data signal integrity (requires oscilloscope for full diagnosis) Factory Reset Procedure: 1. Access service menu (consult manual for key sequence) 2. Select "Factory Reset" option 3. Confirm reset operation 4. Reconfigure all parameters from scratch 5. Test sync operation with basic settings Step 8: Preventive Maintenance Schedule Daily: ● Visual inspection of cables and connections ● Check wire feed quality during first weld Weekly:

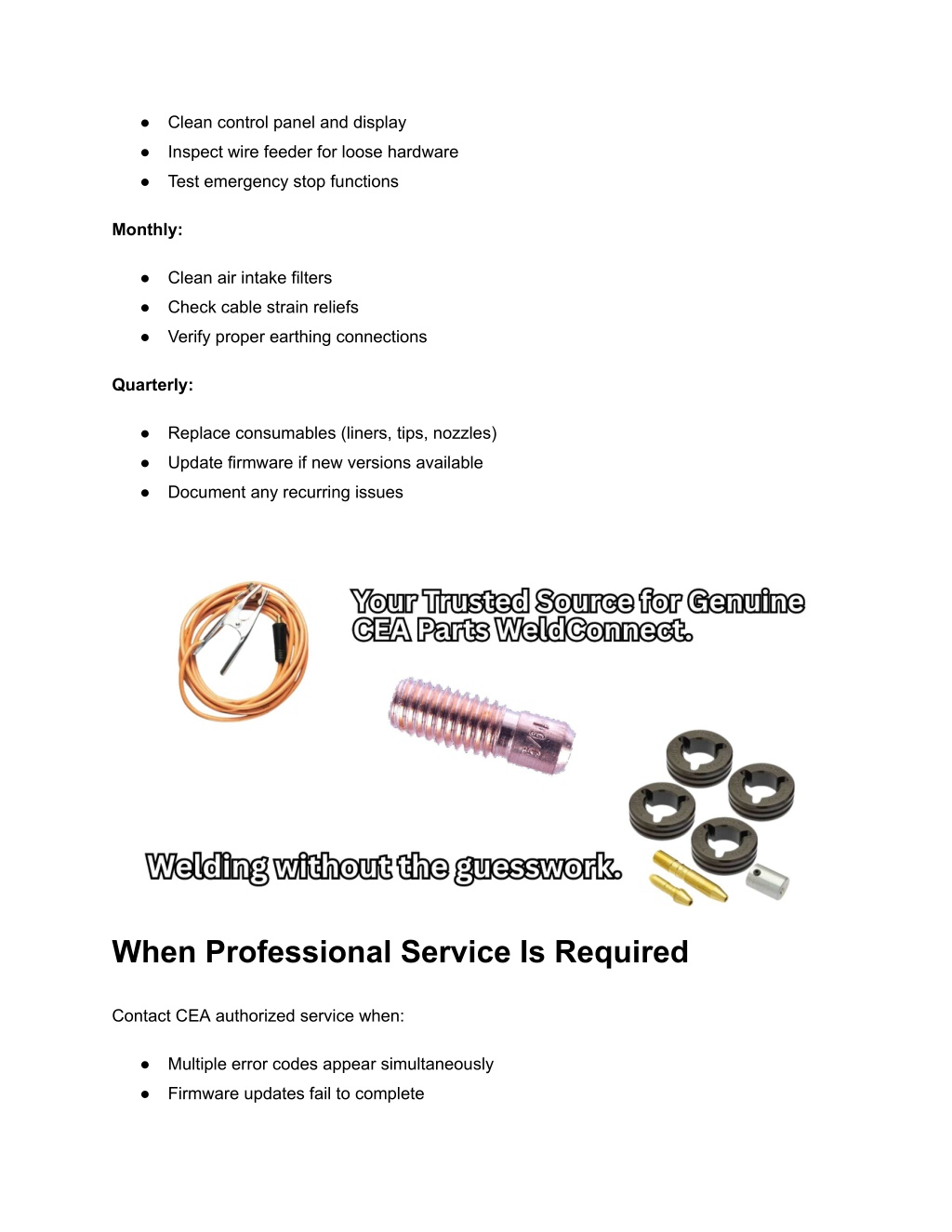

  7. ● Clean control panel and display ● Inspect wire feeder for loose hardware ● Test emergency stop functions Monthly: ● Clean air intake filters ● Check cable strain reliefs ● Verify proper earthing connections Quarterly: ● Replace consumables (liners, tips, nozzles) ● Update firmware if new versions available ● Document any recurring issues When Professional Service Is Required Contact CEA authorized service when: ● Multiple error codes appear simultaneously ● Firmware updates fail to complete

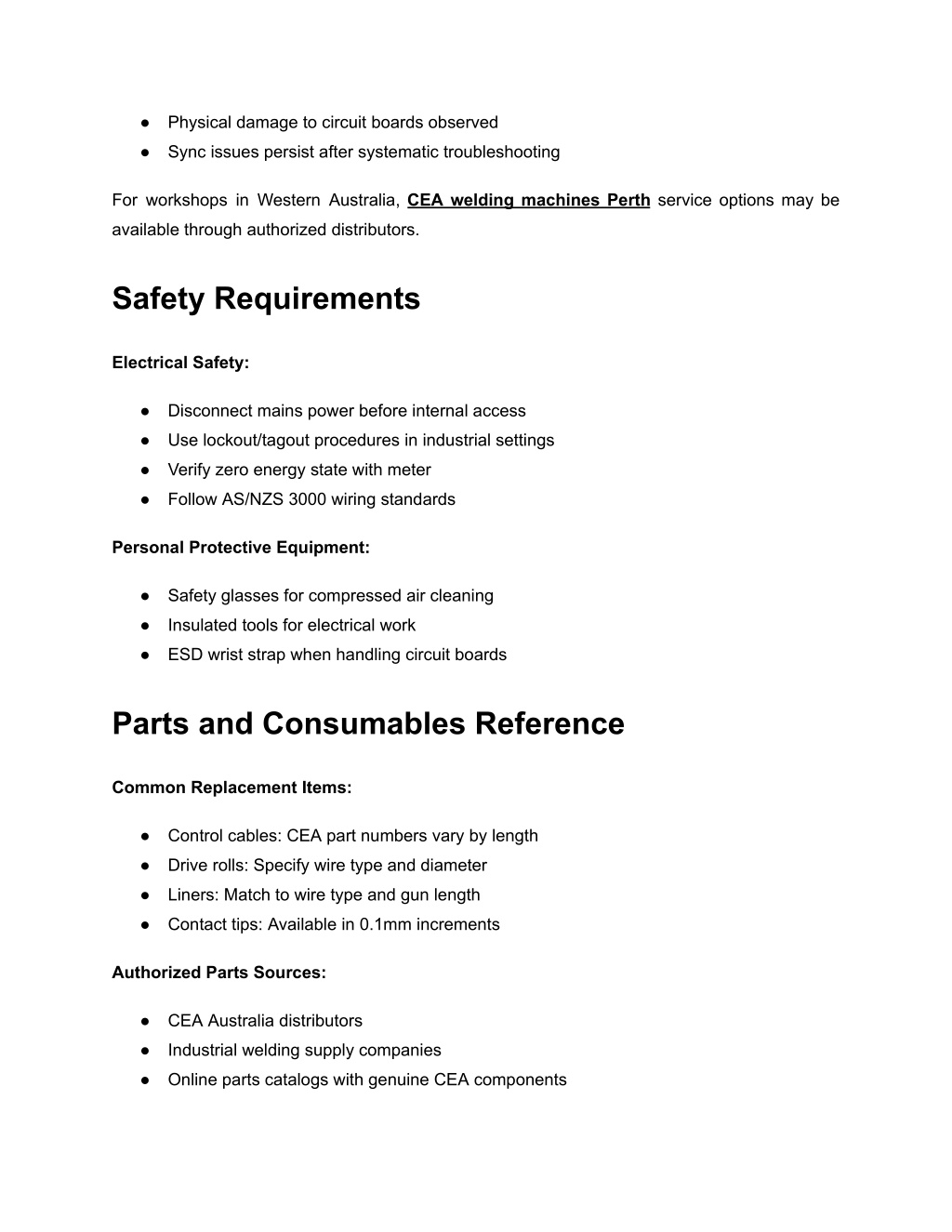

  8. ● Physical damage to circuit boards observed ● Sync issues persist after systematic troubleshooting For workshops in Western Australia, CEA welding machines Perth service options may be available through authorized distributors. Safety Requirements Electrical Safety: ● Disconnect mains power before internal access ● Use lockout/tagout procedures in industrial settings ● Verify zero energy state with meter ● Follow AS/NZS 3000 wiring standards Personal Protective Equipment: ● Safety glasses for compressed air cleaning ● Insulated tools for electrical work ● ESD wrist strap when handling circuit boards Parts and Consumables Reference Common Replacement Items: ● Control cables: CEA part numbers vary by length ● Drive rolls: Specify wire type and diameter ● Liners: Match to wire type and gun length ● Contact tips: Available in 0.1mm increments Authorized Parts Sources: ● CEA Australia distributors ● Industrial welding supply companies ● Online parts catalogs with genuine CEA components

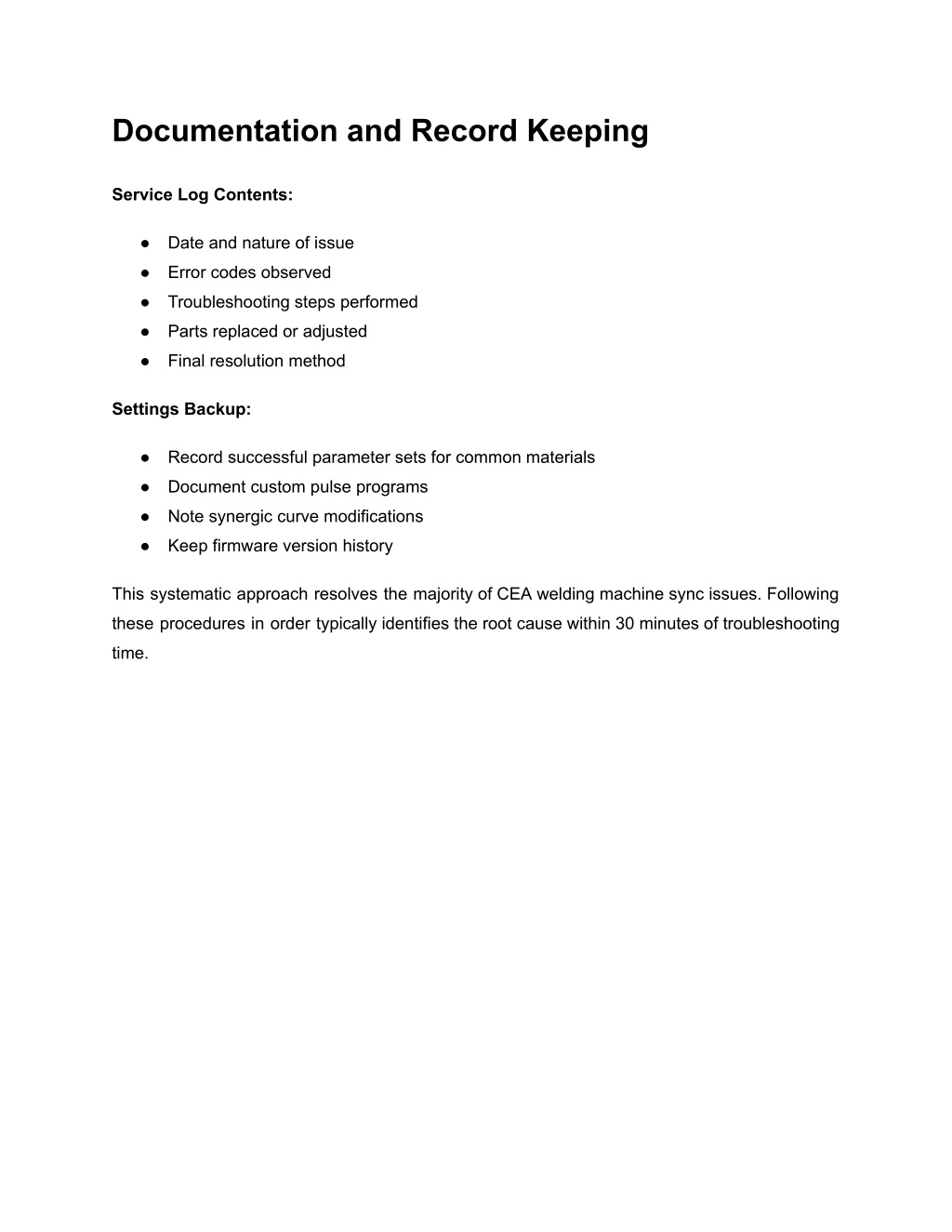

  9. Documentation and Record Keeping Service Log Contents: ● Date and nature of issue ● Error codes observed ● Troubleshooting steps performed ● Parts replaced or adjusted ● Final resolution method Settings Backup: ● Record successful parameter sets for common materials ● Document custom pulse programs ● Note synergic curve modifications ● Keep firmware version history This systematic approach resolves the majority of CEA welding machine sync issues. Following these procedures in order typically identifies the root cause within 30 minutes of troubleshooting time.

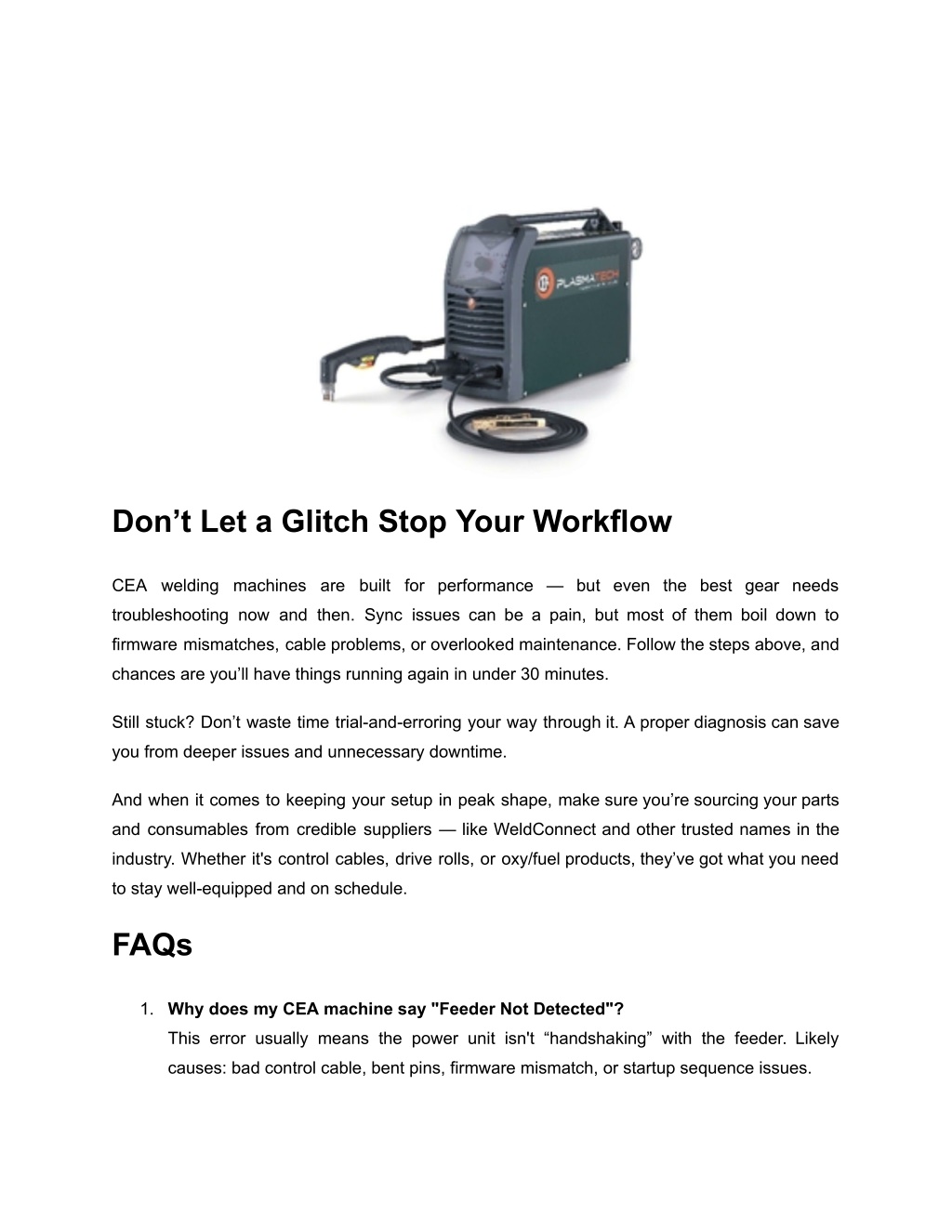

  10. Don’t Let a Glitch Stop Your Workflow CEA welding machines are built for performance — but even the best gear needs troubleshooting now and then. Sync issues can be a pain, but most of them boil down to firmware mismatches, cable problems, or overlooked maintenance. Follow the steps above, and chances are you’ll have things running again in under 30 minutes. Still stuck? Don’t waste time trial-and-erroring your way through it. A proper diagnosis can save you from deeper issues and unnecessary downtime. And when it comes to keeping your setup in peak shape, make sure you’re sourcing your parts and consumables from credible suppliers — like WeldConnect and other trusted names in the industry. Whether it's control cables, drive rolls, or oxy/fuel products, they’ve got what you need to stay well-equipped and on schedule. FAQs 1. Why does my CEA machine say "Feeder Not Detected"? This error usually means the power unit isn't “handshaking” with the feeder. Likely causes: bad control cable, bent pins, firmware mismatch, or startup sequence issues.

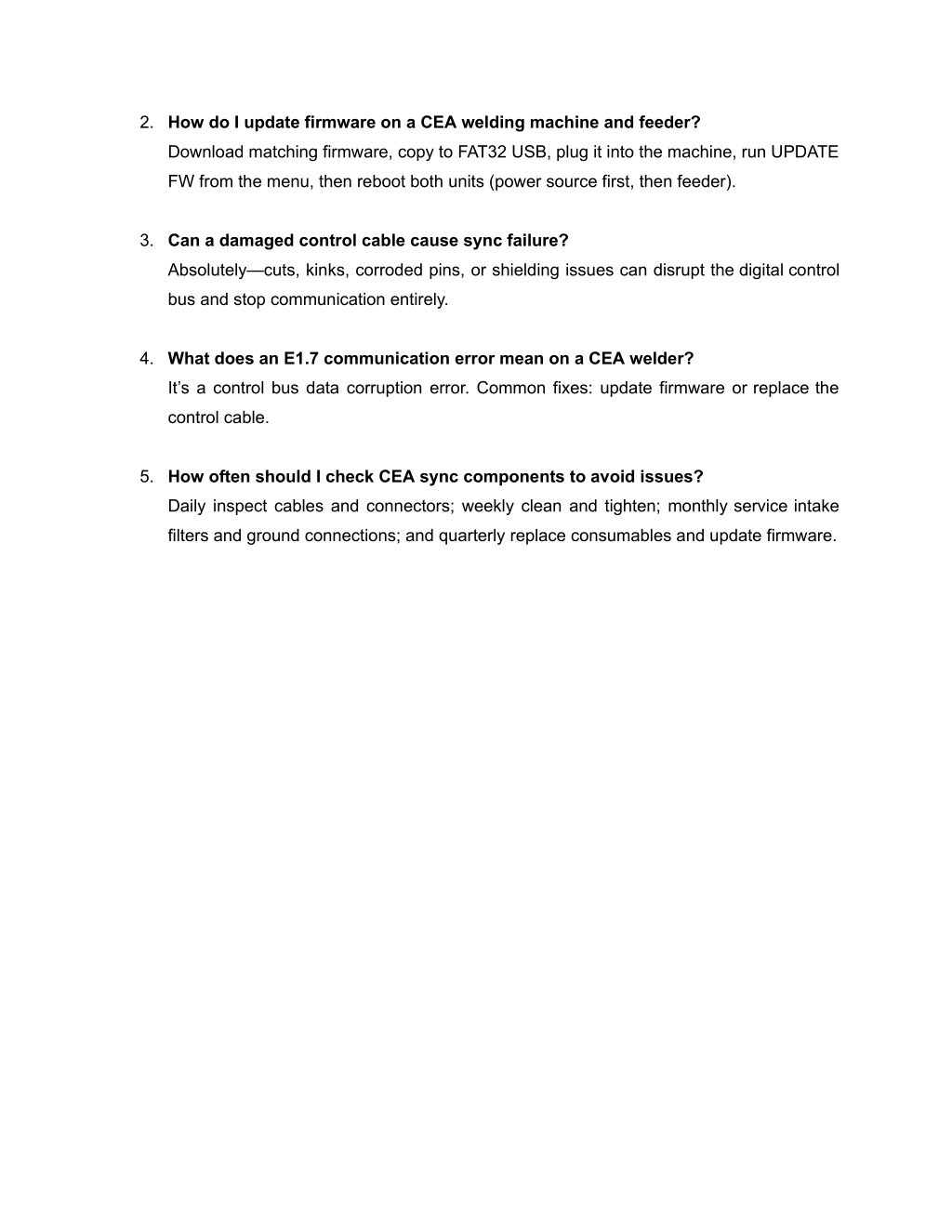

  11. 2. How do I update firmware on a CEA welding machine and feeder? Download matching firmware, copy to FAT32 USB, plug it into the machine, run UPDATE FW from the menu, then reboot both units (power source first, then feeder). 3. Can a damaged control cable cause sync failure? Absolutely—cuts, kinks, corroded pins, or shielding issues can disrupt the digital control bus and stop communication entirely. 4. What does an E1.7 communication error mean on a CEA welder? It’s a control bus data corruption error. Common fixes: update firmware or replace the control cable. 5. How often should I check CEA sync components to avoid issues? Daily inspect cables and connectors; weekly clean and tighten; monthly service intake filters and ground connections; and quarterly replace consumables and update firmware.
