Flashback Arrestor Testing in Australia_ The Safety Gaps No One Talks About

1. Flashback Arrestor Testing in Australia: The Safety Gaps No One Talks About In workshops across Australia, from Sydney's industrial parks to remote mining operations in the Northern Territory, a critical safety component sits quietly between regulators and torches—often installed, occasionally inspected, but rarely understood in depth. Flashback arrestor testing represents one of the most misunderstood aspects of oxy-fuel safety, with potentially life-threatening consequences when knowledge gaps exist. The Hidden Science of Flashback Prevention While standard safety protocols focus on whether flashback arrestors are installed and tested annually, few resources address how these devices interact with the complex physics of gas dynamics under varying conditions. This deeper understanding isn't academic—it's essential for genuine workplace protection. "In 22 years investigating welding accidents, I've found that over 70% of flashback incidents occurred in systems with arrestors that had 'passed' standard testing. The

2. problem wasn't compliance—it was insufficient understanding of system dynamics." — Former SafeWork NSW Inspector The Critical Testing Questions No One Is Addressing How Does Your Testing Account for Sintered Element Degradation? The sintered metal element inside a flash back arrestor—the primary flame-quenching mechanism—undergoes microscopic changes long before failure occurs. These changes, invisible to standard testing methods, progressively reduce safety margins. What You Need to Know: ● Sintered elements develop preferential flow channels over time ● Standard bubble tests won't detect partial sintering degradation ● Pressure drop comparison tests can reveal early degradation ● Thermal cycling accelerates internal damage Implementation Strategy: Create baseline pressure drop measurements for new arrestors and track changes over time. A 15% increase in pressure drop indicates early degradation—even if the arrestor still "passes" basic tests. Does Your Workflow Create Transient Pressure Conditions? Australian workshops with multiple operators or varied applications often experience transient pressure conditions that standard testing doesn't account for. These fluctuations create unique safety challenges. Transient Pressure Scenarios: Workflow Scenario Safety Risk Testing Adaptation Needed

3. Multiple torches on shared supply Pressure surges when valves close simultaneously Dynamic pressure response testing Cutting vs. heating alternation Rapid flow rate changes stress components Cyclic operation testing Manual to automated transitions Inconsistent gas demand patterns Extended duration fluctuation testing Intermittent high-volume operations Cooling alters arrestor characteristics Thermal recovery testing Implementation Strategy: Document workflow patterns and create custom testing protocols that reflect real-world usage—not just standards. Are Your Testing Intervals Aligned With Atmospheric Contaminants? Australian workshops face unique environmental challenges—from dust in the outback to salt air in coastal areas—that degrade arrestors in ways most guides don't mention. Regional Contaminant Risks: ● Coastal: Salt aerosols form microcrystals inside arrestors ● Mining: Dust reduces thermal dissipation and clogs components ● Agricultural: Fertiliser particles corrode internal structures ● High-Humidity: Moisture accelerates oxidation Implementation Strategy: Adjust testing schedules based on environmental exposure. Prioritise internal visual inspections and earlier component replacements in affected zones. How Does Gas Purity Impact Your Testing Requirements?

4. Gas purity varies widely in rural or infrequently serviced areas, and impure gases interact negatively with arrestor components. Critical Purity Concerns: ● Acetylene impurities poison arrestor elements ● Moist oxygen degrades seals and o-rings ● High propylene in propane increases flashback speed ● Solvent residues cause internal build-up Implementation Strategy: Request certificates of analysis from suppliers and increase testing frequency when impurities are suspected. Advanced Testing Methodologies Most Australian Workshops Miss Thermal Recovery Testing: The Overlooked Safety Factor Post-activation performance of arrestors changes significantly. Most Australian operators don’t test how their arrestors behave after a thermal event.

5. Implementation Protocol: ● Simulate activation with controlled heat ● Measure reset and cooling performance ● Document recovery timeframe before full function returns The Vibration Factor: Testing for Mobile and Field Operations Mobile welders—especially in mining and construction—deal with vibration that standard testing ignores. Field Testing Requirements: ● Test vibration resistance at real-world frequencies ● Assess impact and torque integrity post-transport ● Evaluate mounting angle sensitivity Implementation Strategy: Use vibration procedures—especially when reviewing an Oxy acetylene kitafter field use. simulators and include positional testing in your maintenance Flow Capacity Degradation Assessment Flow degradation impacts both safety and productivity—but it’s often overlooked. Testing Protocol: ● Measure flow at multiple pressures ● Compare against manufacturer specs ● Document consistency and trending loss Implementation Strategy: Include quarterly flow testing as part of your routine to maintain optimal system performance.

6. The System Integration Perspective: Testing Beyond the Component How Do Your Flashback Arrestors Interact With Check Valves? Arrestors don't work in isolation. Their function depends heavily on check valves and overall system design. System-Level Testing Includes: ● Cumulative pressure drop testing ● Backflow and timing coordination ● Redundancy checks across safety elements Implementation Strategy: Test the full safety chain as a unit—not component-by-component. Torch-to-Regulator Communication Delays Long hoses introduce lag in pressure response that can affect safety system timing. Key Testing Factors: ● Measure propagation delays across full hose length ● Evaluate arrestor response to delayed feedback ● Assess window of vulnerability during lag Implementation Strategy: Customise testing to your equipment length and usage. Any setup over 10m requires specialised timing tests. Practical Implementation Guide for Advanced Testing Creating a Test Sequence that Quantifies Protection Levels

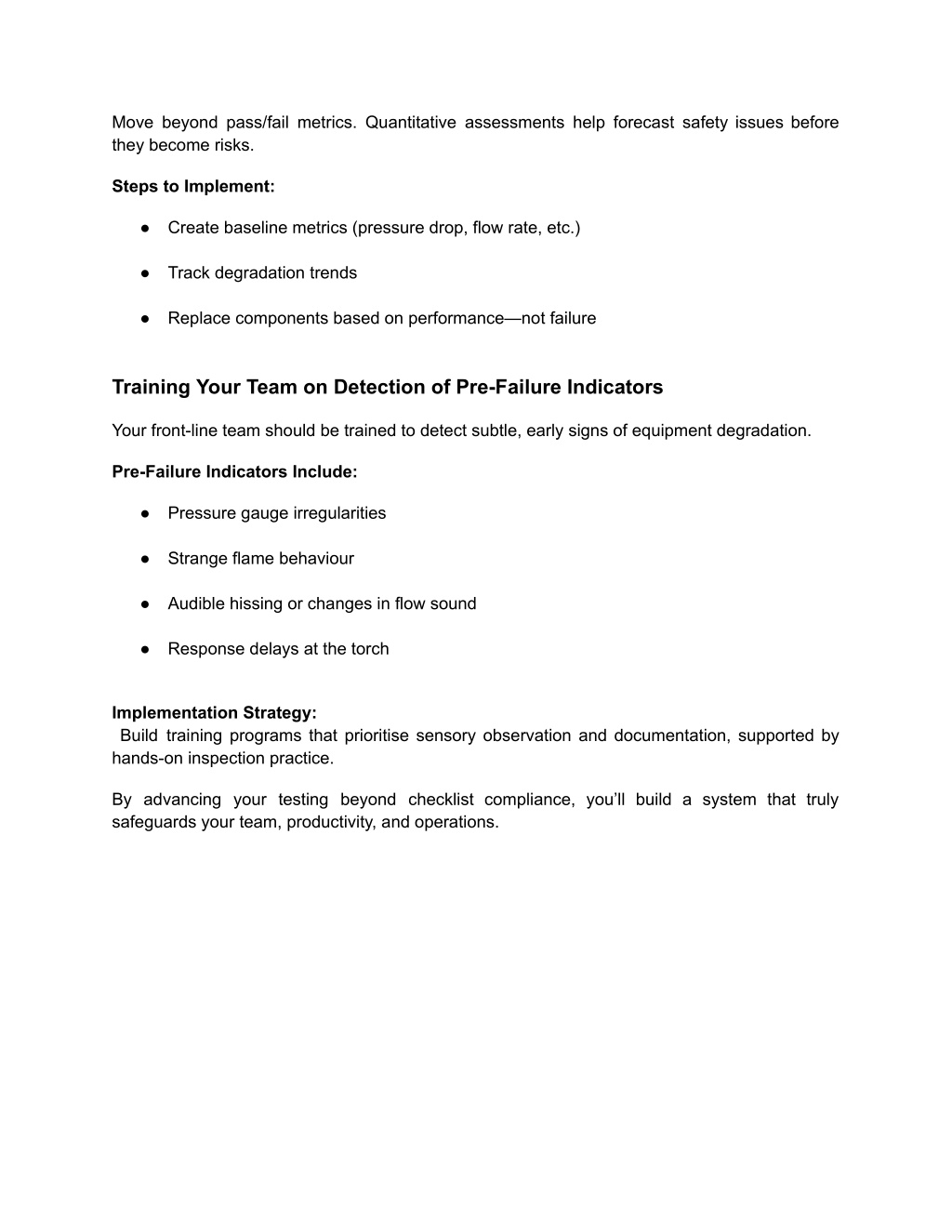

7. Move beyond pass/fail metrics. Quantitative assessments help forecast safety issues before they become risks. Steps to Implement: ● Create baseline metrics (pressure drop, flow rate, etc.) ● Track degradation trends ● Replace components based on performance—not failure Training Your Team on Detection of Pre-Failure Indicators Your front-line team should be trained to detect subtle, early signs of equipment degradation. Pre-Failure Indicators Include: ● Pressure gauge irregularities ● Strange flame behaviour ● Audible hissing or changes in flow sound ● Response delays at the torch Implementation Strategy: Build training programs that prioritise sensory observation and documentation, supported by hands-on inspection practice. By advancing your testing beyond checklist compliance, you’ll build a system that truly safeguards your team, productivity, and operations.

8. Rethinking Australia Flashback Arrestor Testing in Too often, Australian workshops rely on outdated or oversimplified testing procedures that tick the compliance box but miss the deeper, system-wide safety threats. Flashback arrestors are not "fit-and-forget" devices—they require informed testing tailored to your environment, gas quality, and actual workflow conditions. By moving beyond minimum standards and embracing predictive, system-level testing, Australian welders and safety officers can reduce risks, improve performance, and ultimately save lives. At WeldConnect, we’re committed to bridging the gap between compliance and genuine protection. Our testing services are built around real-world use—not just standards—offering customised inspections and expert recommendations backed by decades of industry experience. If you're ready to take your flashback arrestor testing seriously, it’s time to partner with a team that understands what’s really at stake.
