Presentation Transcript
Superpave considerations l.jpg

SuperPave Considerations

Roy D. McQueen, P.E.

Roy D. McQueen & Associates, Ltd.

www.rdmcqueen.com

703 709-2540

For presentation at 2010 FAA Hershey Conference


Overview l.jpg
Overview

  • Review EB 59A

  • Background on Issues

  • Research Results

    • AAPTP

    • ERDC

    • FAA

  • Requirements to Complete Specification


Slide3 l.jpg

1st Eastern Region Airports Conference - 1976


Engineering brief 59a item p 401 plant mix bituminous pavements superpave l.jpg

Engineering Brief 59AITEM P‑401 PLANT MIX BITUMINOUS PAVEMENTS (SUPERPAVE)


References in eb 59a l.jpg
References in EB 59A

  • TAI Superpave Mix Design, Superpave Series No. 2 (SP‑2)

  • TAI Performance Graded Asphalt, Binder Specification and Testing, Superpave Series No. 1 (SP-1)

  • Interim Item P‑401 Plant Mix Bituminous Pavements (SUPERPAVE)


Policy modification to standards l.jpg
Policy: Modification to Standards

  • Gross aircraft weights <100,000 pounds: approval at Regional Office

  • Gross aircraft weights > 100,000 pounds: approval by AAS-100


What s the big differences between faa s superpave marshall l.jpg
What’s the Big Differences Between FAA’s SuperPave & Marshall?

  • The Compactor!

  • Volumetrics measured the same

  • Compaction (bulk sp.g.) measured the same

  • Mix design & acceptance criteria are slightly different

  • It’s still aggregate, sand, binder and air!

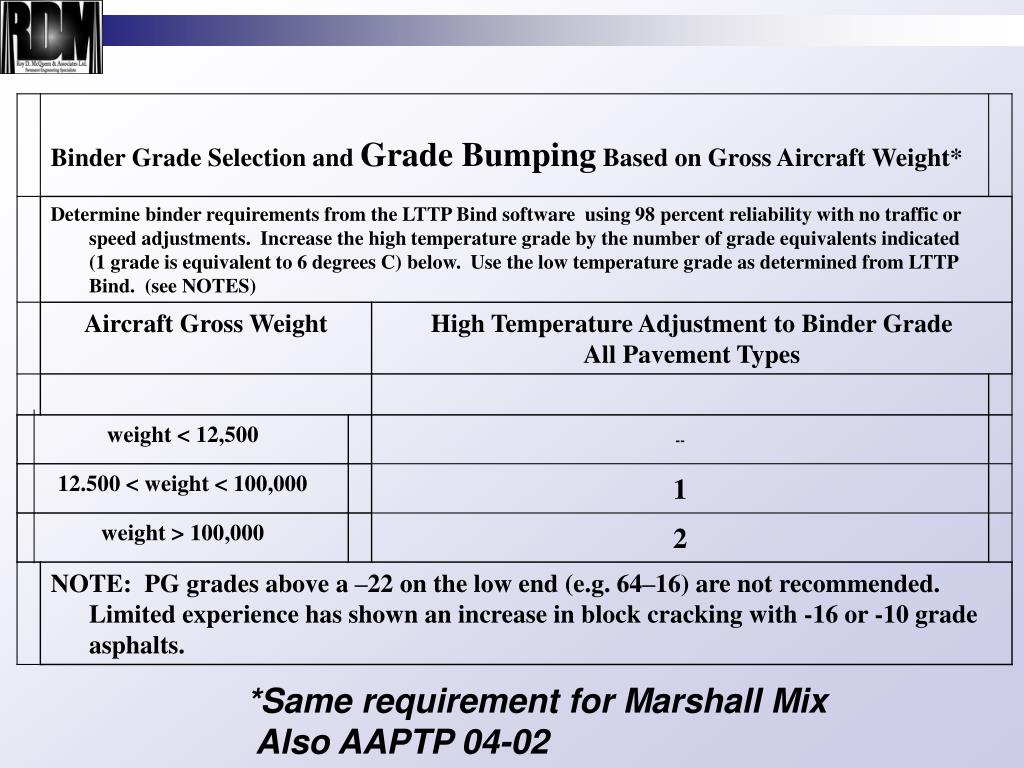

Slide8 l.jpg

*Same requirement for Marshall Mix Marshall?

Also AAPTP 04-02


Aaptp study 04 02 binder selection l.jpg
AAPTP Study 04-02 Binder Selection Marshall?

  • The base high-temperature PG grade should be determined using LTPPBind 3.1, for a surface layer (depth of layer surface = 0 mm), using a reliability of 98 %.

  • The EHEs for both taxiways and runways are calculated using: EHEs = 10.4  (design tire pressure in lb/in2 / 120)2 annual departures.

  • The high-temperature PG grade is then determined using LTPPBind 3.1, using the calculated value for EHEs as the design traffic level.

  • For runways:LTPPBind 3.1 (“fast” traffic condition).

  • For taxiways without stacking, speed adjustment for “slow” traffic

  • For taxiways with some stacking, the high-temperature PG grade should be increased by 6C; for taxiways with frequent stacking, the grade should be increased by 12C.

  • The high-temperature PG grade may be reduced one level (6C) for lifts which are entirely 75 mm or more below the pavement surface. No additional grade reductions should be made.


Pg criteria for polymer modified asphalts l.jpg
PG+ Criteria for Polymer Modified Asphalts Marshall?

  • Rule of “90”

  • “Gray” for sum ~90, e.g., PG 70-22

  • Elastic Recovery (60% to 75%) typical for this region to ensure polymers at proper %

  • Criteria varies by state


Primary superpave mix design criteria l.jpg

> 60,000 lbs. Marshall?

85 Gyrations

4% VTM

VMA: 13% - 14%

VFA: 65% to 78%

Dust to asphalt ratio

Coarse & Fine

FAA > 45

< 60,000 lbs.

60 Gyrations

4% VTM

VMA: 13% - 14%

VFA: 65% to 78%

Dust to asphalt ratio

Coarse & Fine

FAA > 42

Primary SuperPave Mix Design Criteria

  • A coarse gradation is defined as a gradation passing below the restricted zone.

  • The restricted zone is defined in the Asphalt Insitute’s Manual Superpave, SP-2.


Gradation requirements l.jpg
Gradation Requirements Marshall?

  • Runways – same as current P-401

  • Taxiways

    • Control Points

    • Restricted Zone ?



Primary superpave acceptance criteria l.jpg

> 60,000 lbs. Marshall?

2.5% < VTM < 5.5% @ 85 gyrations

Compaction

L = 92.5% Gmm

< 60,000 lbs.

2.5% < VTM < 5.5% @ 60 gyrations

Compaction

L = 92.5% Gmm

Primary SuperPave Acceptance Criteria


Background on issues l.jpg

BACKGROUND Marshall?ON ISSUES


Slide16 l.jpg

  • FAA Standards for production and placement of hot mix asphalt (HMA) pavements have been in place for more than 50 years.

  • So, why change?

    • Because we have to. No one supporting Marshall.

    • Modifications to both Federal and State Highway standard requirements have led to the SuperPave Design process and the use of the Gyratory Compactor

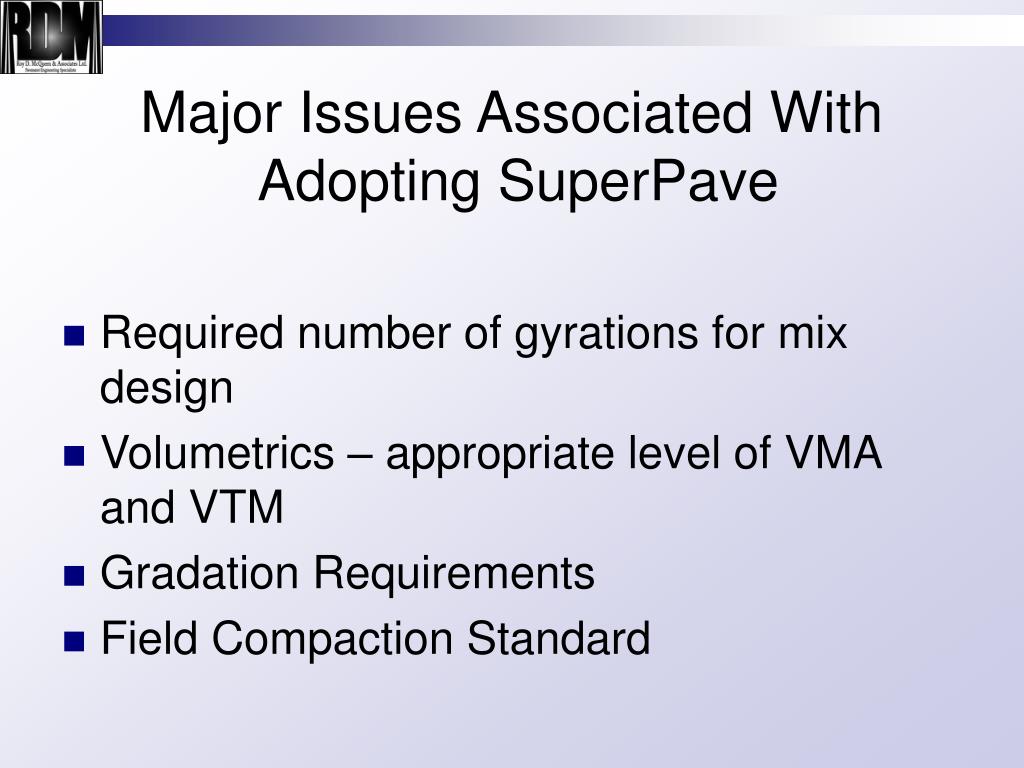

Major issues associated with adopting superpave l.jpg
Major Issues Associated With asphalt (HMA) pavements have been in place for more than 50 years. Adopting SuperPave

  • Required number of gyrations for mix design

  • Volumetrics – appropriate level of VMA and VTM

  • Gradation Requirements

  • Field Compaction Standard

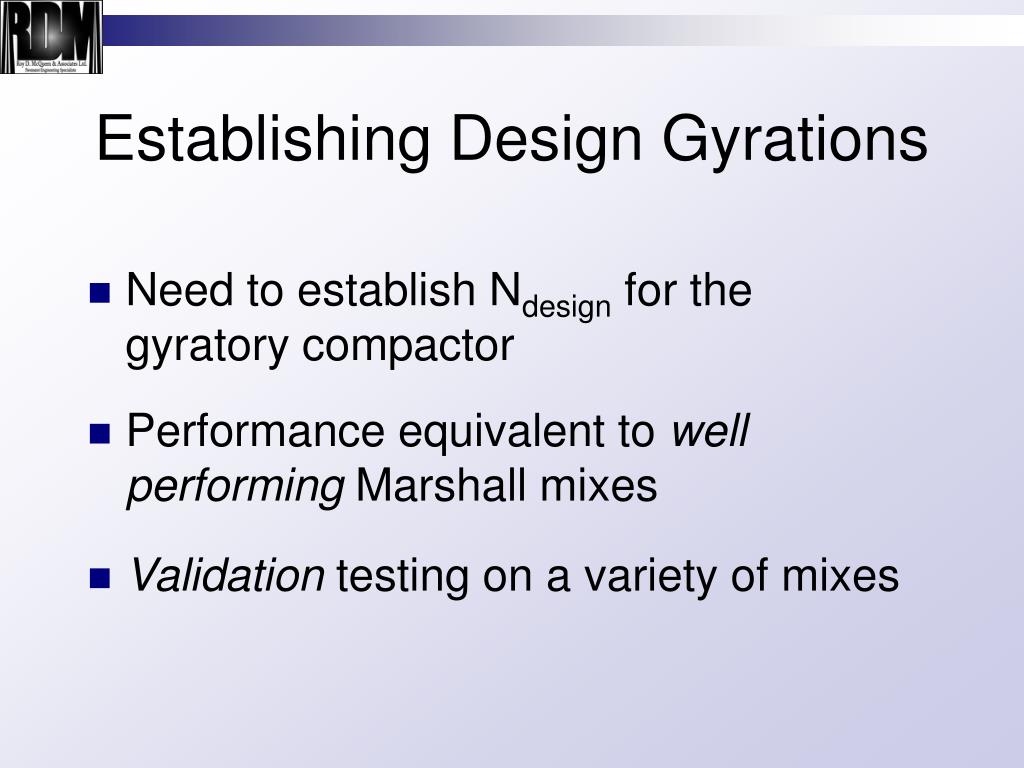

Establishing design gyrations l.jpg
Establishing Design Gyrations asphalt (HMA) pavements have been in place for more than 50 years.

  • Need to establish Ndesign for the gyratory compactor

  • Performance equivalent to well performing Marshall mixes

  • Validation testing on a variety of mixes


Stated differently l.jpg
Stated Differently: asphalt (HMA) pavements have been in place for more than 50 years.

  • Make sure the new stuff works as good as the old!


Average pci at civil airports l.jpg
Average PCI at Civil Airports asphalt (HMA) pavements have been in place for more than 50 years.

79

67

Source: Report DOT/FAA/AR-04-46


Overview of faa p 401 l.jpg
Overview of FAA P-401 asphalt (HMA) pavements have been in place for more than 50 years.

  • 75 blow Marshall for heavy duty

  • Design VTM: 2.8% - 4.2%, 3.5% typical

  • VMA typically 1% higher than EB 59A

  • TSR for moisture susceptibility (75% - 80% min)

  • Compaction function of lab Marshall density

  • PWL acceptance:

    • Density: 90% above 96.3% 98% average

    • Air voids: 90% between 2% and 5%

    • Limits based on actual construction data


Density limit derivation l.jpg
Density Limit Derivation asphalt (HMA) pavements have been in place for more than 50 years.

98%

Zs

90 PWL

10 PD

L

L = 98% - 1.28(1.3%) = 96.3%


Air voids l.jpg
Air Voids asphalt (HMA) pavements have been in place for more than 50 years.

2.8%

3.5%

4.2%

0.7%

0.7%

Zs

Zs

L=2%

U=5%

DL= 2% + (1.28x0.65%) = 2.8%

DU= 5% - (1.28x0.65%) = 4.2%


Primary differences between p 401 marshall and p 401 superpave l.jpg

P-401 Marshall* asphalt (HMA) pavements have been in place for more than 50 years.

90% > 96.3% Marshall

Avg.~ 98% lab density

50 or 75 blows

2.8% - 4.2% design VTM

2% to 5% acceptance

1% higher VMA

Volumetric + Strength test

P-401 Superpave**

90% > 92.5% MTD

Avg.~ 94.5% MTD

60 or 85 Ndes

4% design VTM

2.5% to 5.5% acceptance

1% lower VTM

Strictly volumetric

Primary Differences Between P-401 Marshall and P-401 Superpave

* Limits are based on construction Data

** Limits not Based on construction Data


Major issue n design l.jpg
Major Issue: N asphalt (HMA) pavements have been in place for more than 50 years.design

  • AAPTP Study

  • ERDC Study

  • FAA Study


Summary of aaptp study l.jpg

SUMMARY of AAPTP STUDY asphalt (HMA) pavements have been in place for more than 50 years.


Aaptp 04 03 study l.jpg
AAPTP 04-03 Study asphalt (HMA) pavements have been in place for more than 50 years.

  • Approach for Ndes:

    • Compare In-place Density to Orig Ndes

    • Compare with Marshall for Equivalent Performance

    • Performance Tests

  • Mixes:

    • Included Southwest, West Coast Mixes

    • Not all well-performing – some poor

    • Several Military mixes

    • Performance Test: Flow #

    • Did not use P-401 volumetrics


Slide28 l.jpg

Estimated Ndesign Values Based upon Performance Testing asphalt (HMA) pavements have been in place for more than 50 years.

Airfield Gross Wt. Tire (lbs) p (psi) Ndesign

Jacqueline Cochran Regional Airport 20,000 10,000 75 50

Mineral County Memorial Airport 12,500 6,250 90 50

Oxford-Henderson Airport 30,000 15,000 75 35

Little Rock Air Force Base 155,000 38,750 105 50

Naval Air Station Oceana* 66,000 33,000 240 75

Volk Field 42,500 21,250 215 75

Jackson International Airport 890,000 55,625 200 35

Newark Liberty International Airport 873,000 54,563 200 35

Palm Springs International Airport 800,000 52,500 200 N/A

Spokane International Airport 400,000 100,000 200 N/A

N/A – Insufficient Data to Estimate Appropriate Ndesign Value

* Evaluated mix rutted in the field.

Performance tests inconclusive for civil airport mixes.


N equiv results l.jpg
N asphalt (HMA) pavements have been in place for more than 50 years.equiv Results

  • 75-blow Comparisons

    • Range: 32 to 59

    • Avg. = 49, STD = 10

  • 50-blow Comparisons

    • Range: 25 to 40

    • Avg. = 36, STD = 11

Volumetric criteria different from P-401: VMA 1% lower & VTM 1/2% higher


Slide30 l.jpg

N asphalt (HMA) pavements have been in place for more than 50 years.design Values Based Upon Research

Tire Pressure, psiNdesign

Less than 100 40

100 to 200 55

More than 200 70

Recommended NdesignValues for Designing Airfield Mixes

Tire Pressure, psiNdesign

Less than 100 50

100 to 200 65

More than 200 80

No robust “Phase 2” type validation study

EB 59A N-des may be problematic

To what extent did volumetrics influence results

No variability analysis


Summary of erdc study l.jpg

SUMMARY of ERDC STUDY asphalt (HMA) pavements have been in place for more than 50 years.

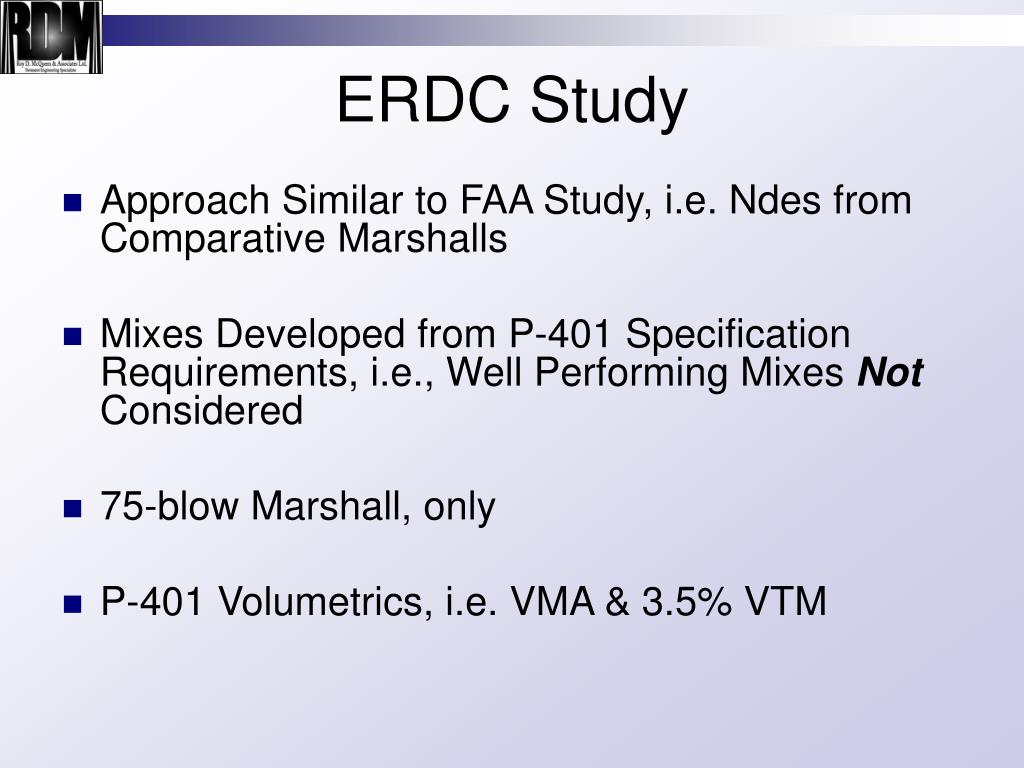

Erdc study l.jpg
ERDC Study asphalt (HMA) pavements have been in place for more than 50 years.

  • Approach Similar to FAA Study, i.e. Ndes from Comparative Marshalls

  • Mixes Developed from P-401 Specification Requirements, i.e., Well Performing Mixes Not Considered

  • 75-blow Marshall, only

  • P-401 Volumetrics, i.e. VMA & 3.5% VTM


Variables l.jpg
Variables asphalt (HMA) pavements have been in place for more than 50 years.

  • Mineralogy: Limestone, Granite, Gravel

  • Aggregate Size: ½, ¾, 1 inch Max

  • Gradation: Coarse & Fine Sides of P-401 Band

  • Sand: 10% Nat’l & 100% Crushed

  • Binder: PG 64-22 & PG 76-22

  • Nequiv Range: 25 to 125

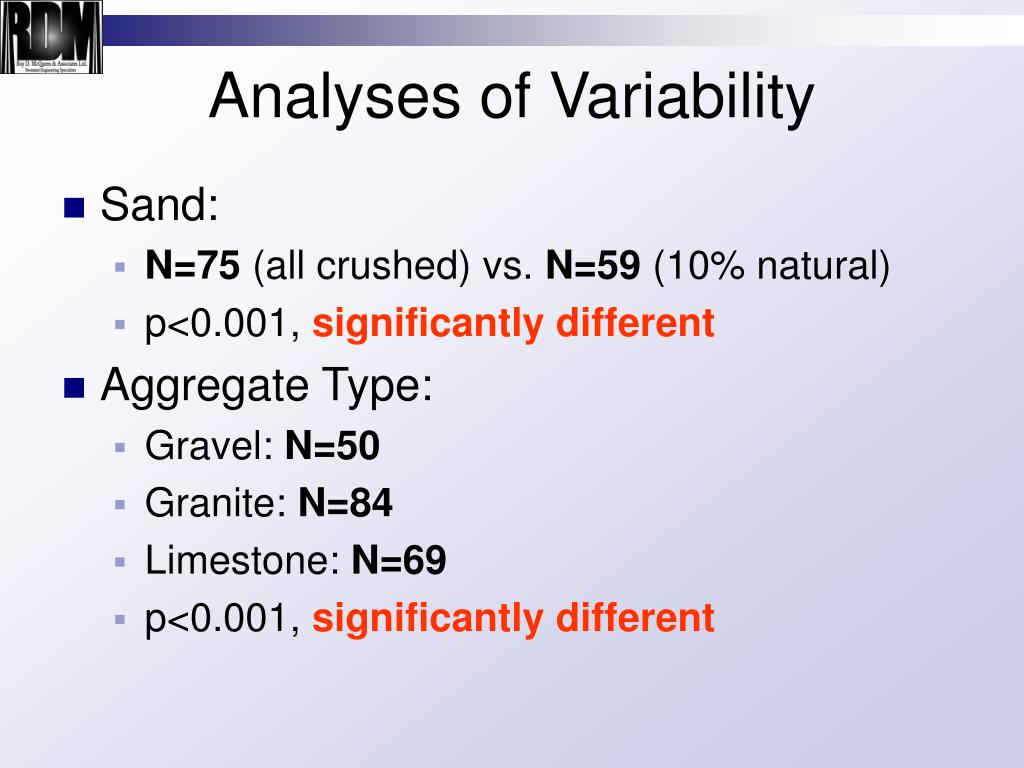

Analyses of variability l.jpg
Analyses of Variability asphalt (HMA) pavements have been in place for more than 50 years.

  • Sand:

    • N=75 (all crushed) vs. N=59 (10% natural)

    • p<0.001, significantly different

  • Aggregate Type:

    • Gravel: N=50

    • Granite: N=84

    • Limestone: N=69

    • p<0.001, significantly different


Anova type analyses 2 l.jpg
ANOVA Type Analyses (2) asphalt (HMA) pavements have been in place for more than 50 years.

  • Aggregate Size:

    • ½ inch: N=72

    • ¾ inch: N=66

    • 1 inch: N=80

    • p=0.051, not significantly different

  • Gradation:

    • Fine: N=80

    • Coarse: N=69

    • p=0.047, significantly (?) different

  • Polymer vs. neat binders not significantly different


Conclusions l.jpg
Conclusions asphalt (HMA) pavements have been in place for more than 50 years.

  • Variability too cumbersome to warrant multiple compaction levels

  • Ndesign based on arithmetic average of 69 with a recommended value of 70

  • + 10 gyrations ----- + 0.5% VTM

  • EB 59A Nequiv criterion may be problematic

  • Validation study scheduled for 2010 - 2012


Summary of faa study l.jpg

SUMMARY of FAA STUDY asphalt (HMA) pavements have been in place for more than 50 years.


Objectives l.jpg
Objectives asphalt (HMA) pavements have been in place for more than 50 years.

  • Establish guidance for N-design

  • Establish specifications for designing HMA using SGC that provides performance equivalent to Marshall mixes

  • Verify on a range of mixes

  • More comprehensive than other studies


Critical issues l.jpg
Critical Issues asphalt (HMA) pavements have been in place for more than 50 years.

  • Primary issue will be N-design levels consistent with 75 Marshall blows

  • Effect on stability & flow

  • SGC could also result in subtle changes in aggregate gradation to meet volumetrics

  • Volumetric and compaction Issues for spec development

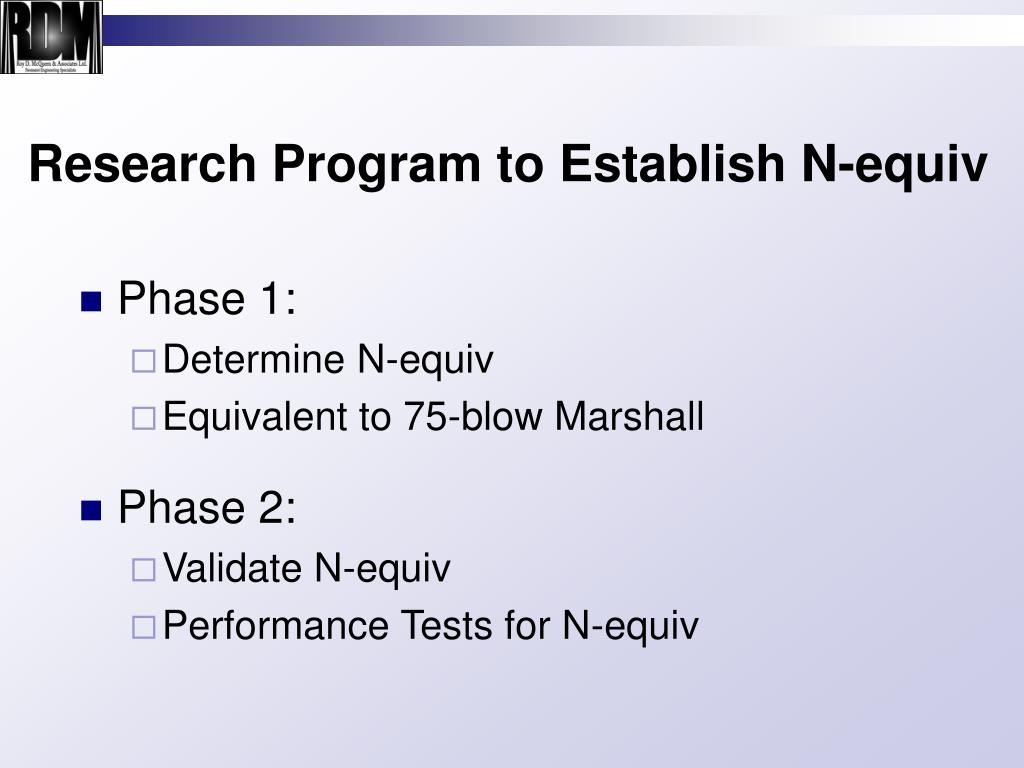

Research program to establish n equiv l.jpg
Research Program to Establish N-equiv asphalt (HMA) pavements have been in place for more than 50 years.

  • Phase 1:

    • Determine N-equiv

    • Equivalent to 75-blow Marshall

  • Phase 2:

    • Validate N-equiv

    • Performance Tests for N-equiv


Phase 1 subtasks completed l.jpg
Phase 1 Subtasks - completed asphalt (HMA) pavements have been in place for more than 50 years.

  • Identify Mixtures and Binders

  • Verify Mix Designs

  • Perform 1st and 2nd Replicates of Gyratory Compaction & Volumetrics – 2 labs

  • Perform Mixture Variation Experiment

  • Compile, Analyze and Summarize Data


Mix variables 1 l.jpg
Mix Variables (1) asphalt (HMA) pavements have been in place for more than 50 years.

  • All well-performing mixes

  • Various mineralogy

    • Gneiss

    • Dolomite

    • Granite

    • Gravel

    • Basalt

    • Argillite

    • Diabase


Mix variables 2 l.jpg
Mix Variables (2) asphalt (HMA) pavements have been in place for more than 50 years.

  • Nominal Maximum Aggregate Size

    • 12.5 mm

    • 19.0 mm

    • 25.0 mm

  • Varying natural sand content (0%, 7.5%, 15%)

  • Binders

    • Neat asphalt

    • Polymers: Elastomeric (SBS) and Plastomeric (Novophalt)


Mix designs l.jpg
Mix Designs asphalt (HMA) pavements have been in place for more than 50 years.

* Phase I limited to PG 76-22


Determining n equivalent l.jpg
Determining N-equivalent asphalt (HMA) pavements have been in place for more than 50 years.


Plot of results w ith 2s error bars l.jpg
Plot of Results w asphalt (HMA) pavements have been in place for more than 50 years.ith +/- 2s error bars


N equivalent results l.jpg
N-equivalent Results asphalt (HMA) pavements have been in place for more than 50 years.

  • Average: 62

  • Minimum: 34

  • Maximum: 99

  • Standard deviation: 16

  • Like other studies – range is large


Phase 2 performance evaluation l.jpg
Phase 2: Performance Evaluation asphalt (HMA) pavements have been in place for more than 50 years.

  • What is affect of asphalt content and/or gradation changes on rut resistance?

  • What is affect on compactibility?

  • What is affect on durability?


Experiment design l.jpg
Experiment Design asphalt (HMA) pavements have been in place for more than 50 years.

  • Test at Nequiv and Ndes

  • Rut resistance

    • AMPT / flow number

    • APA

  • Compactibiltiy from compaction curve

  • Durability from ASTM D 4867 (modified Lottman)

  • Results due June 2010


Faa high tire pressure study l.jpg

FAA High Tire Pressure Study asphalt (HMA) pavements have been in place for more than 50 years.


Background l.jpg
Background asphalt (HMA) pavements have been in place for more than 50 years.

  • Aircraft wheel loads and tire pressures are increasing:

    • L ~ 65,000 lbs.

    • P > 240 psi

  • Reported pavement failures in hot climates overseas

  • Have we reached “the end” with HMA?


Study objectives l.jpg
Study Objectives asphalt (HMA) pavements have been in place for more than 50 years.

Evaluate the rutting performance of asphalt mixes at the extreme boundary of operation with respect to tire pressure, wheel load, temperature and (low) speed.


Study elements l.jpg
Study Elements asphalt (HMA) pavements have been in place for more than 50 years.

  • Full scale testing at NAPTF heated pavements

  • Laboratory tests with different binders and different temperatures:

    • Binder: DSR, viscosity, other.

    • HMA: MSCR, Indirect Tensile (IDT), Dartmouth accelerated pavement tester, NCHRP protocols, other.

    • Under development

  • Combine with SuperPave to improve HMA performance and Ndes = f (p)


Preliminary conclusions l.jpg

Preliminary Conclusions asphalt (HMA) pavements have been in place for more than 50 years.


Slide56 l.jpg

EB 59A N-equiv appears to be problematic asphalt (HMA) pavements have been in place for more than 50 years.

EB 59A --- 85

AAPTP ---- 55 - 65

ERDC ------ 70

FAA --------- 65 - 70

How to handle variations in N-equiv?

% natural Sand

Aggregate Type: Mineralogy or Angularity?

Other Considerations

Volumetrics

Compaction Standard


Other considerations volumetrics l.jpg
Other Considerations - Volumetrics asphalt (HMA) pavements have been in place for more than 50 years.

  • Effect of 1% lower VMA and ½% higher air voids with Superpave:

    • 1.5% lower % AC by volume (~ 0.7% by wt.)

    • Effect of potentially lower %AC on durability


Why is vma important l.jpg
Why is VMA Important? asphalt (HMA) pavements have been in place for more than 50 years.

  • Va & VMA Related and Va is a pay item!

  • Low VMA mixes are sensitive to minor variations in asphalt content

  • Low VMA mixes can become tender

  • Low VMA mixes may not allow for sufficient film thickness to ensure durability


Other considerations compaction l.jpg
Other Considerations - Compaction asphalt (HMA) pavements have been in place for more than 50 years.

  • Effect of using %MTD in lieu of % lab for compaction control:

    • Example 1: 6% in-place air voids

      • 4% laboratory air voids, Va

      • 98% field compaction

    • Example 2: 6% in-place air voids

      • 2% laboratory air voids, Va

      • 96% field compaction


Lessons l.jpg
LESSONS asphalt (HMA) pavements have been in place for more than 50 years.

  • Need to carefully establish Ndesign to provide equivalent performance

  • Be careful with changing volumetric criteria

    • Dry mix – low durability

    • Under-compacted – prone to rutting

    • Combination = Disaster


Ultimate objective of all studies l.jpg
Ultimate Objective of All Studies asphalt (HMA) pavements have been in place for more than 50 years.

New P-401 specification

(while Carl Steinhauer and I are still alive)


Questions l.jpg
Questions? asphalt (HMA) pavements have been in place for more than 50 years.
