mining the genome

Mining the Genome

Filip Železný

ČVUT FEL, Prague

Dept. of Cybernetics

Gerstner Laboratory

intro
Intro
  • Research at ČVUT FEL Dept. of Cybernetics
    • Nature Inspired Technologies
      • machine learning
      • evolutionary computation
    • Agent Computing
    • Robotics
    • Computer Vision
  • EU Projects (6 FP)
    • 14 running in 2005, 9 new starting 2006
machine learning data mining

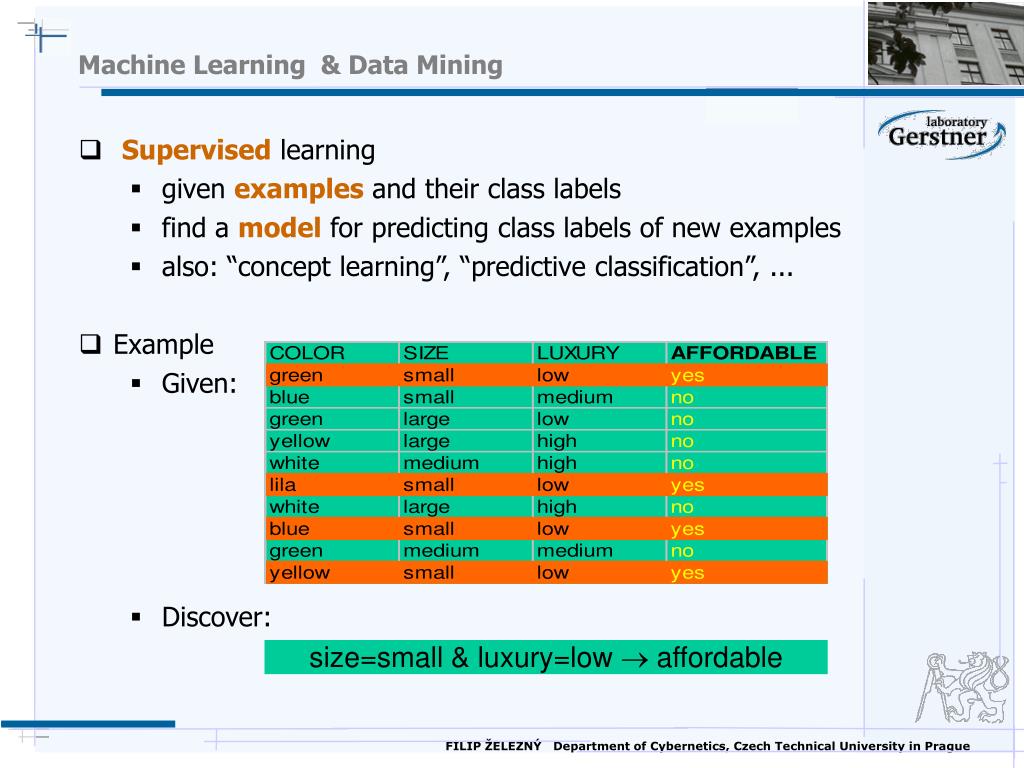

Machine Learning & Data Mining
  • Supervised learning
    • given examples and their class labels
    • find a model for predicting class labels of new examples
    • also: “concept learning”, “predictive classification”, ...
  • Example
    • Given:
    • Discover:

size=small & luxury=low  affordable

machine learning
Machine Learning

Plethora of paradigms

Decision trees

Artificial NeuralNetworks

Support VectorMachines

“Symbolic”

“Subsymbolic”

“Statistical”

Learning = optimization in structure / parameter space

Learning = search

AI techniques employed (gradient descent, heuristic search)

relational learning
Relational Learning

What if examples have a structure?

Not an attribute tuple !

Description spread in multiple tables of a relational database

relational learning7
Relational Learning
  • Relational learning
    • Representing data and rules in relational logic (Prolog)
    • Exploits background knowledge (eg. “charge”)
    • Inductive Logic Programming

carcinogenic(Compound) IF has_atom(Compound, Atom) & type(Atom, carbon) & charge(Atom, Charge) & Charge > 0.0133 & has_atom(Compound, Atom2) & double_bond(Atom1, Atom2)

applications of interest
Applications of Interest

3 hot fields intersection

BIOtechnologies(genomics)

INFORMATIONtechnologies(machine learning)

NANOtechnologies(microarray chips)

background genetics
Background: GENETICS

How does a cell know what to do?

chromosomes
Chromosomes

Chromosomes get copied during mitosis

They carry the assembly instructions?

How?

Chromosomes = proteins + DNA

where is the information ??

slide12
DNA

1953: Jim Watson & Francis Crick

Discover the DNA structure.

That is where the information is.

4-symbol alphabet

Guanin, Adenin, Cytosin, Tymin

Double-helix pairing:

C-G A-T

video

the central dogma of molecular biology
The CENTRAL DOGMA of Molecular Biology
  • Gene = DNA subsequence
  • Genes code for proteins
  • Gene expression
    • DNA piece transcribes to RNA
    • RNA translates into a protein
    • Proteins `do the job’
      • - enzymes
      • - building blocks
      • - ...

video

protein coding
Protein Coding

Codon(3 bases)

DNA strand

aminoacid

Protein

protein structures

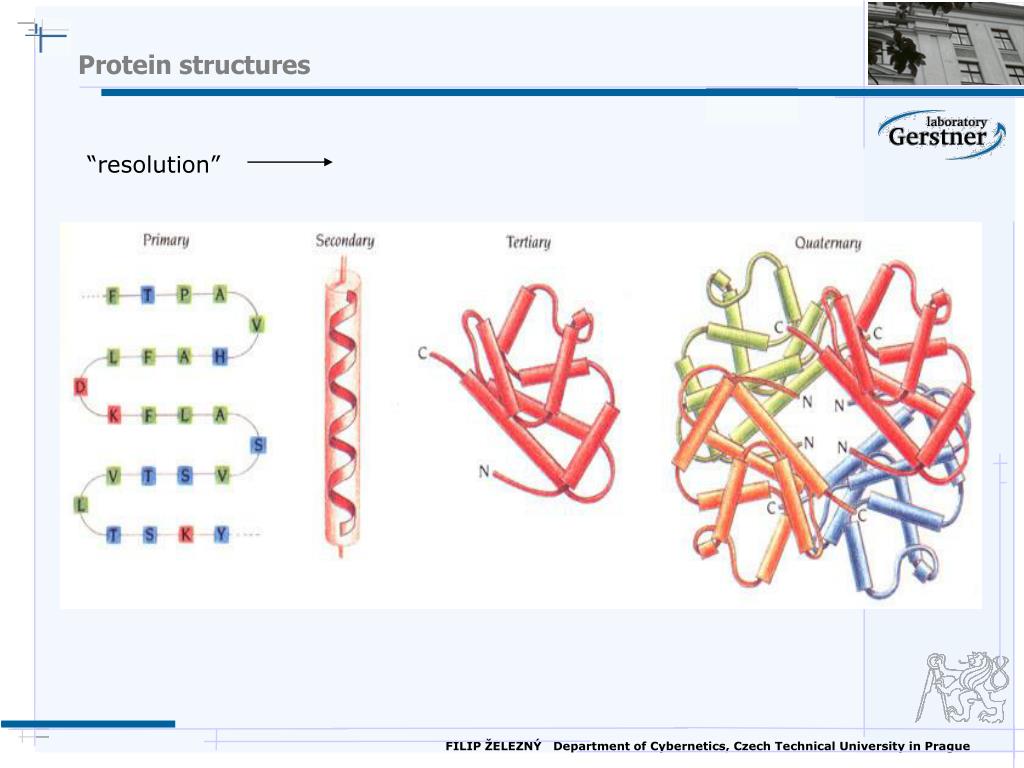

Protein structures

“resolution”

secondary structure prediction
Secondary structure prediction

Two common secondary structures

 - sheet

 - helix

Primary structure determines secondary structure.

Computational problem:Given primary structure, predict if  - sheet or  - helix

NOBODY CAN DO THAT !

secondary structure prediction17
Secondary structure prediction
  • Secondary structure prediction with ILP

[Muggleton 1992]

Using ILP, obtained rulessuch as

alpha0(A,B)  ... position(A,D,O) & not_aromatic(O) & small_or_polar(O) & position(A,B,C) & very_hydrophobic(C) & not_aromatic(C) ...etc

(22 literals)

  • Note the incorporation of background knowledge
  • Accuracy 81%, best at the time
  • Published in JrProtein Engineering
the genome project
The Genome project
  • 1993 – 2003

All human genes sequenced

Celera X NIH race

  • Challenge NOW:

annotate the genes

    • discover functions
    • interactions
    • dynamic pathways

video

genomics research
Genomics research

Verification(targeted assay)

Human intuition

Hypotheses

  • Traditional functional genomics research
  • Hypothesis - driven
    • eg. a gene is suspected to be responsible for ...
    • then tracing its expression in relevant tissues
  • “First hypothesize, then measure”
gene expression microarrays
Gene Expression Microarrays
  • Microarray chip:
    • Measures expression of tens of thousands genes simultaneously: “high-throughput”
    • pioneering technology (mid to late 90’s)
  • A grid carrying synthesized DNA probes
  •  Breakthrough in genomics research?

photo scan

genomics research22

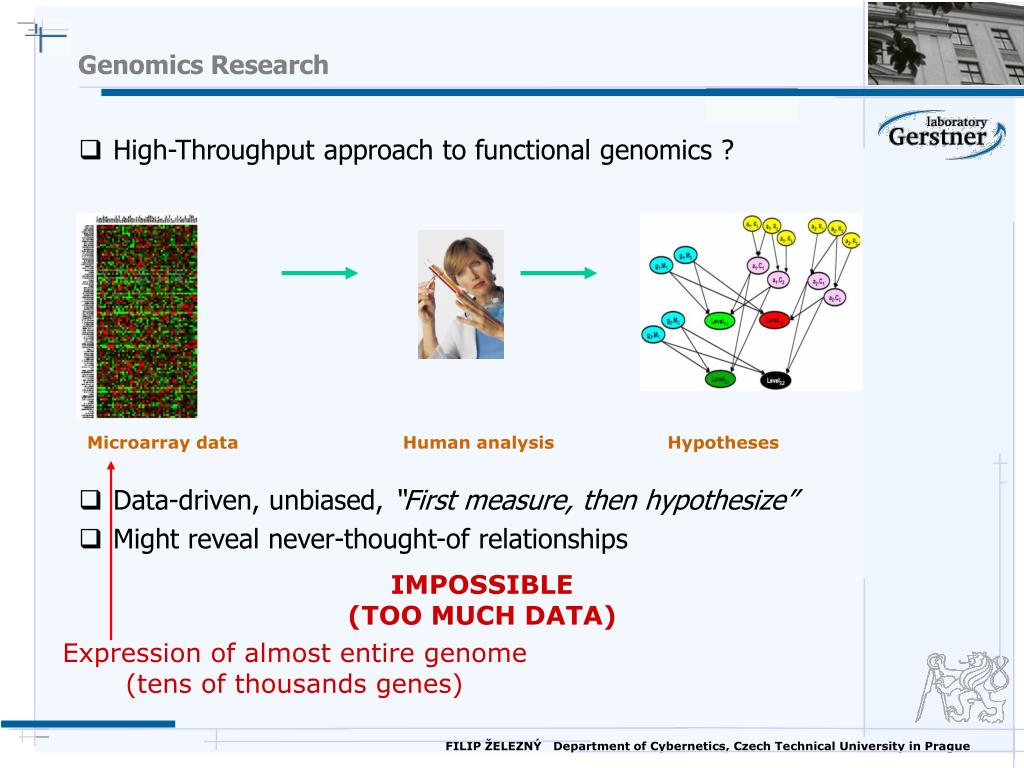

Genomics Research
  • High-Throughput approach to functional genomics ?
  • Data-driven, unbiased, “First measure, then hypothesize”
  • Might reveal never-thought-of relationships

Microarray data

Human analysis

Hypotheses

IMPOSSIBLE (TOO MUCH DATA)

Expression of almost entire genome(tens of thousands genes)

genomics research through machine learning
Genomics Research through Machine Learning
  • AI based High-Throughput functional genomics ?

High-throughputscreening

High-performancecomputing

Microarray data

Machine Learning

Hypotheses

Interpretation

genomics research with ai

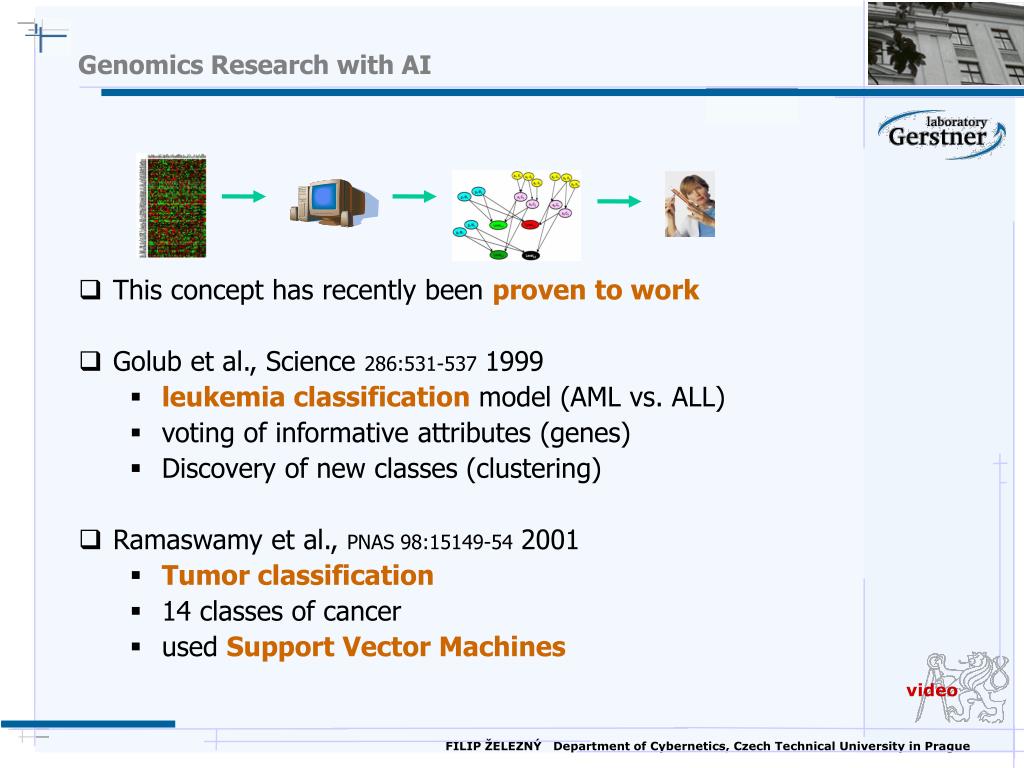

Genomics Research with AI
  • This concept has recently been proven to work
  • Golub et al., Science286:531-537 1999
    • leukemia classification model (AML vs. ALL)
    • voting of informative attributes (genes)
    • Discovery of new classes (clustering)
  • Ramaswamy et al., PNAS 98:15149-54 2001
    • Tumor classification
    • 14 classes of cancer
    • used Support Vector Machines

video

interpretable classifiers

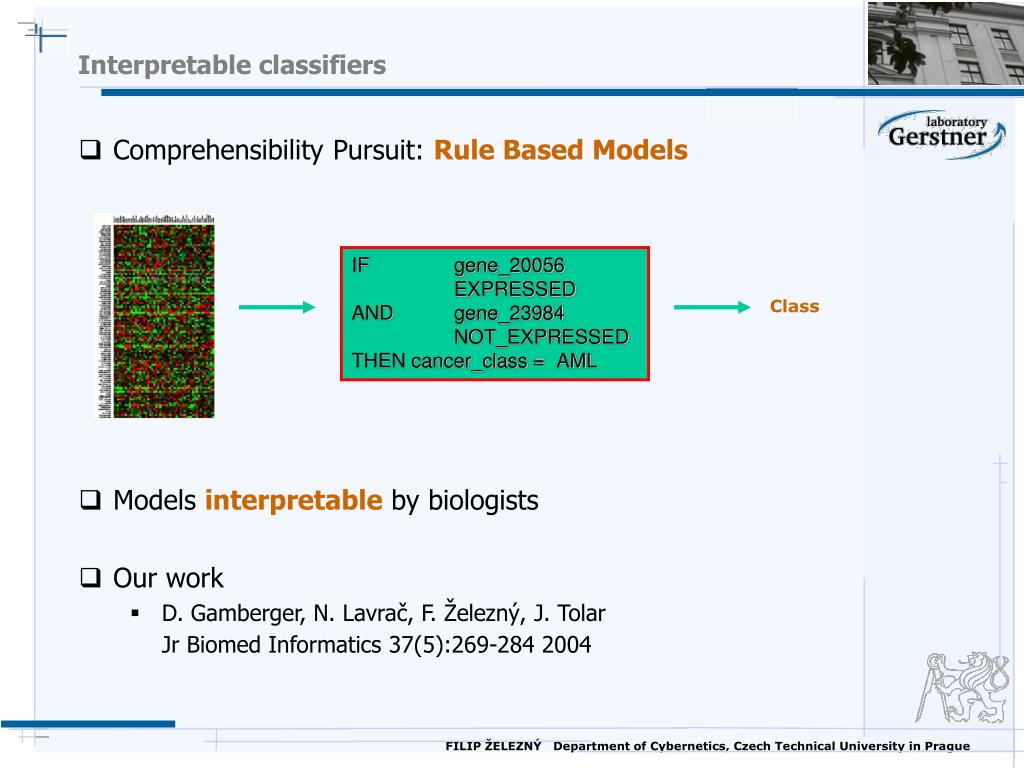

Interpretable classifiers
  • Comprehensibility Pursuit: Rule Based Models
  • Models interpretable by biologists
  • Our work
    • D. Gamberger, N. Lavrač, F. Železný, J. Tolar Jr Biomed Informatics 37(5):269-284 2004

IF gene_20056 EXPRESSEDAND gene_23984 NOT_EXPRESSEDTHEN cancer_class = AML

Class

exploiting background knowledge

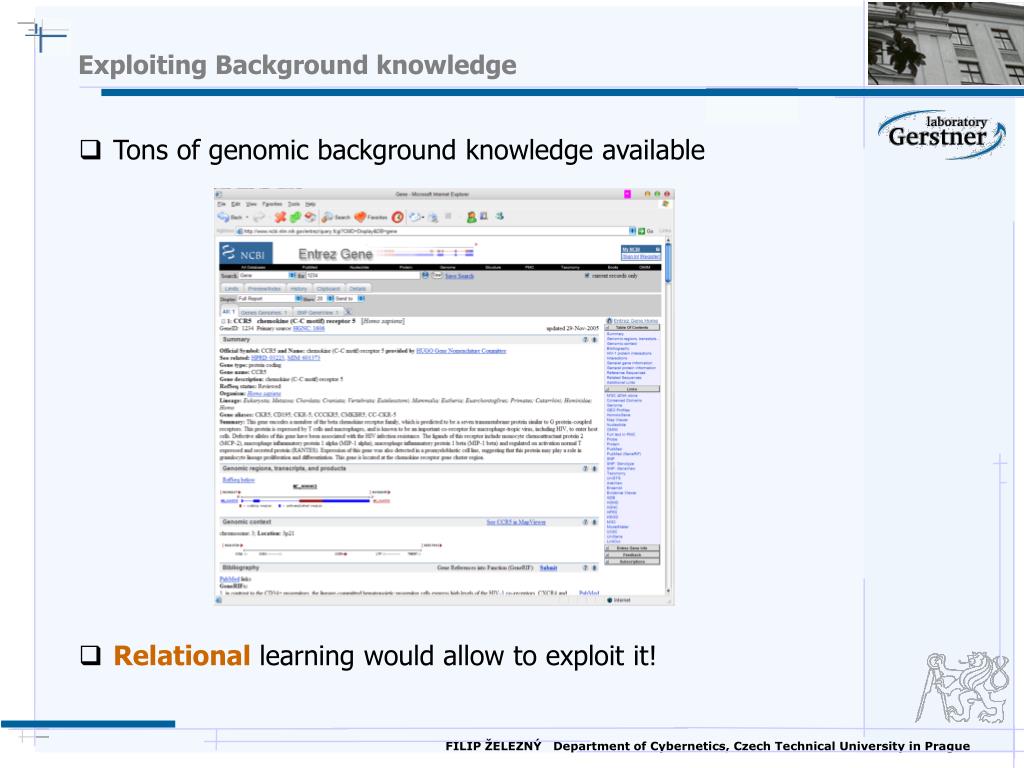

Exploiting Background knowledge
  • Tons of genomic background knowledge available
  • Relational learning would allow to exploit it!
relational genomic data mining

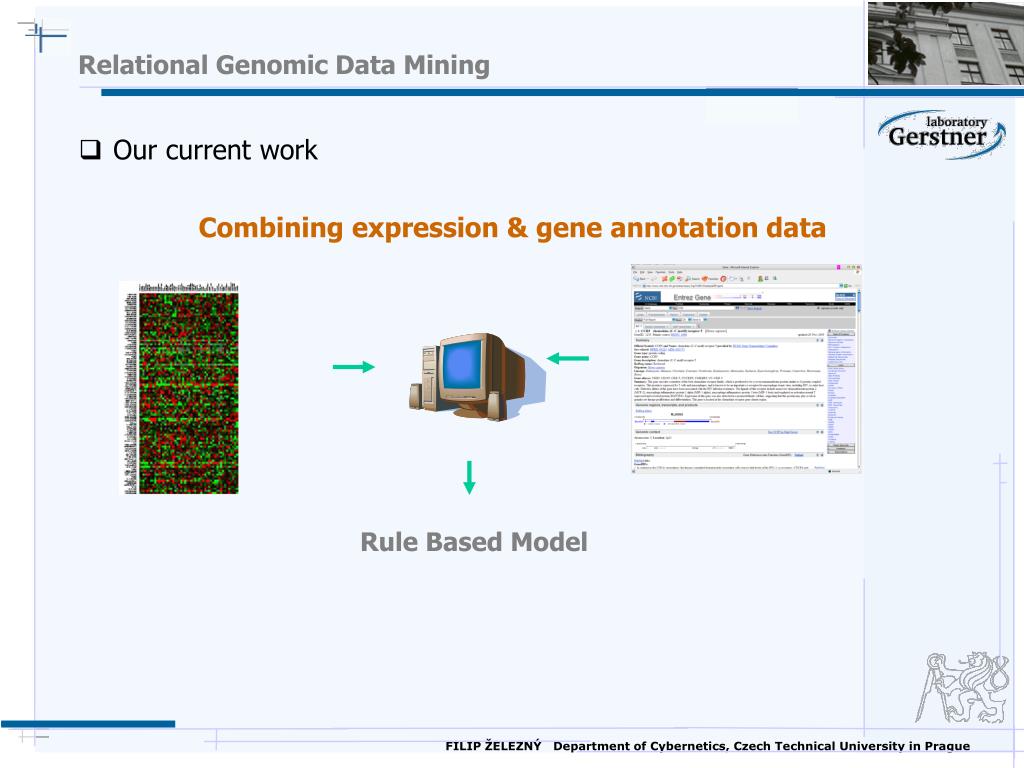

Relational Genomic Data Mining
  • Our current work

Combining expression & gene annotation data

Rule Based Model

relational genomic data mining28
Relational Genomic Data Mining
  • Example rule algorithmically discovered
  • ... open end, no conclusions

expressed_in_all(Gene) IF has_location(Gene, integral_to_membrane) & has_function(Gene, receptor_activity)

Expression of genescoding for proteinslocated in the integral to membrane cell component,whose functions include receptor activity, has a high correlation with the BCR class of acute lymphoblastic leukemia (ALL) and a low correlation with other classes of ALL.
