fundamental flight maneuvers
Fundamental Flight Maneuvers
  • Straight and Level
  • Turns
  • Climbs
  • Descents
four aerodynamic forces

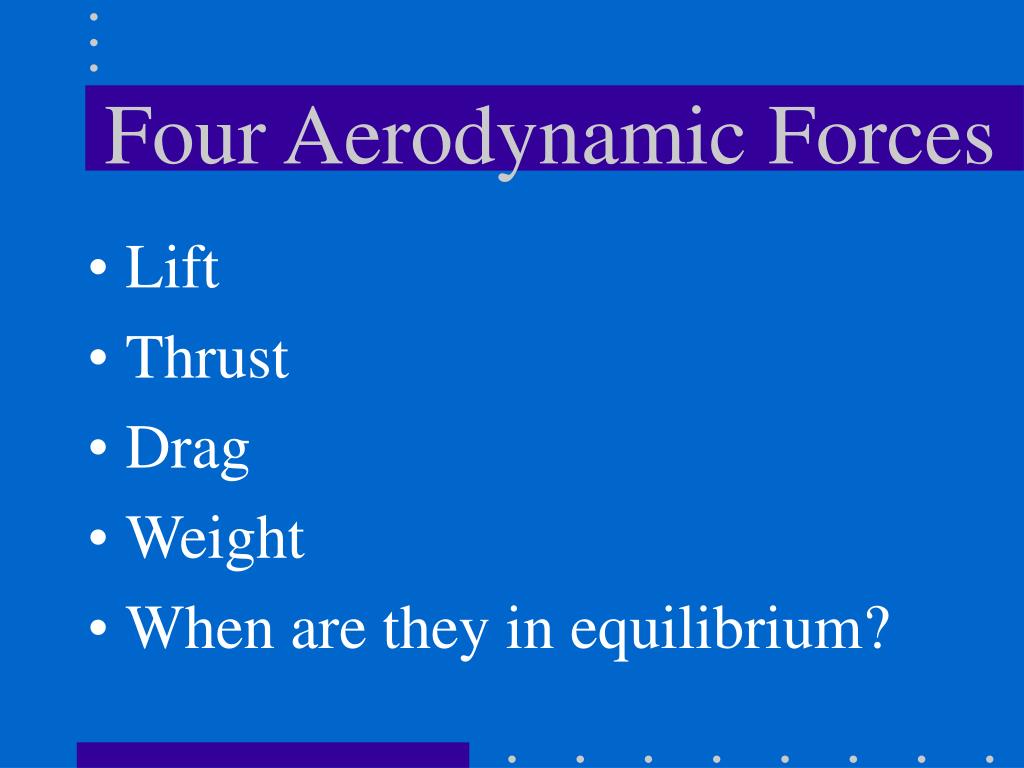

Four Aerodynamic Forces
  • Lift
  • Thrust
  • Drag
  • Weight
  • When are they in equilibrium?
four aerodynamic forces4
Four Aerodynamic Forces
  • In steady-state or unaccelerated straight and level flight
  • What happens when you initiate a climb?
four aerodynamic forces5

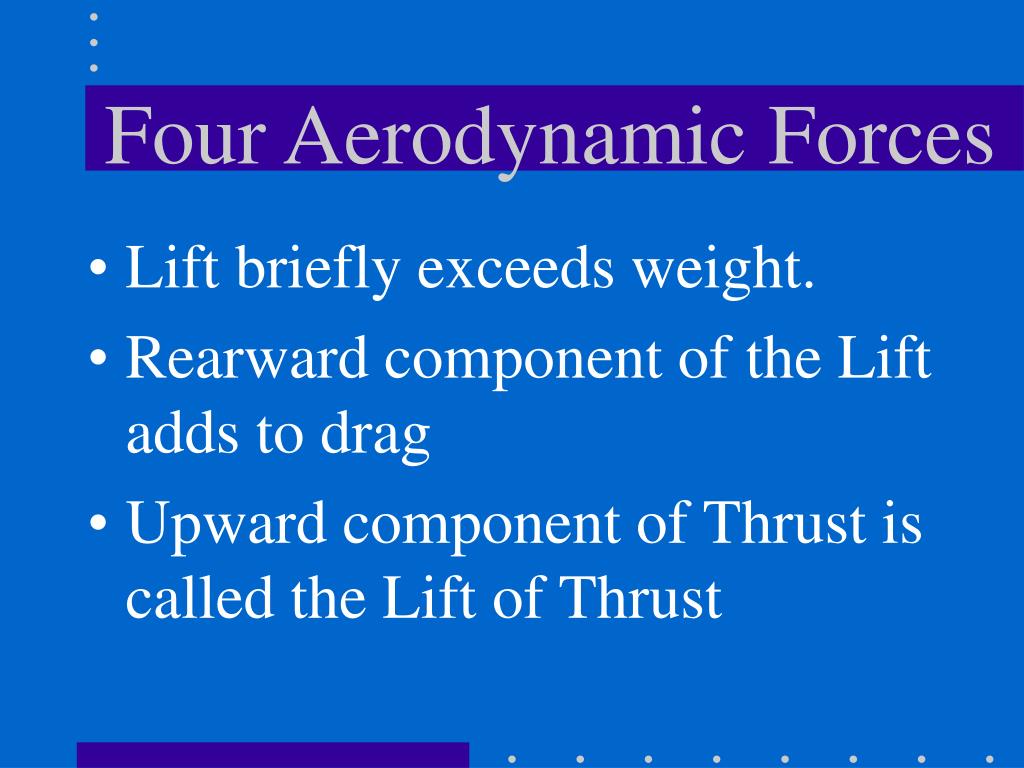

Four Aerodynamic Forces
  • Lift briefly exceeds weight.
  • Rearward component of the Lift adds to drag
  • Upward component of Thrust is called the Lift of Thrust
four aerodynamic forces6
Four Aerodynamic Forces
  • Once the climb is established, the forces are again balanced
slide7

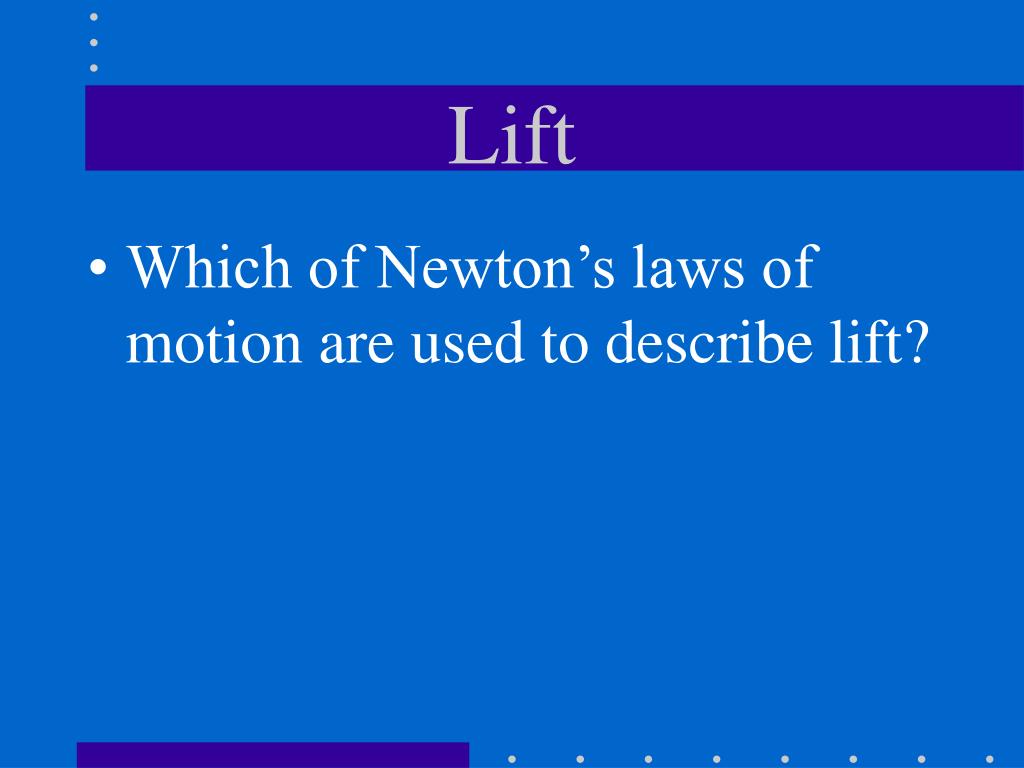

Lift
  • Which of Newton’s laws of motion are used to describe lift?
slide8
Lift
  • Second law of motion says that a force results whenever a mass is accelerated F = ma
  • Third law states for every action there is an equal and opposite reaction
bernoulli s principle
Bernoulli’s Principle
  • As the velocity of a fluid increase, its internal pressure decreases
  • High pressure under the wing and lower pressure above the wing’s surface
slide10
Lift
  • In what direction does lift act?
  • Perpendicular to the relative wind
  • Drag acts parallel to the flight path in the same direction as the relative wind
slide11
Lift
  • Angle of incidence
  • Angle of attack
  • Washout
lift equation
Lift Equation
  • L = CLV2r/2 S
  • If the angle of attack and other factors remain constant and airspeed is doubled lift will be four times greater
controlling lift

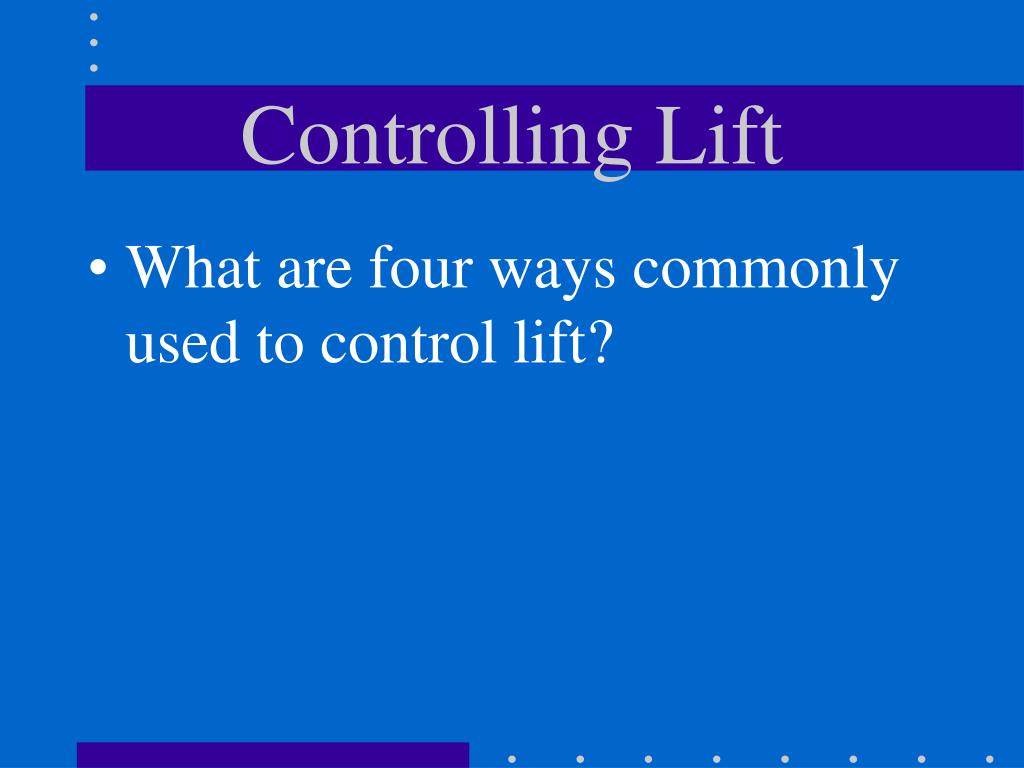

Controlling Lift
  • What are four ways commonly used to control lift?
controlling lift14
Controlling Lift
  • Increase airspeed
  • Change the angle of attack
  • Change the shape of the airfoil
  • Change the total area of the wings
angle of attack

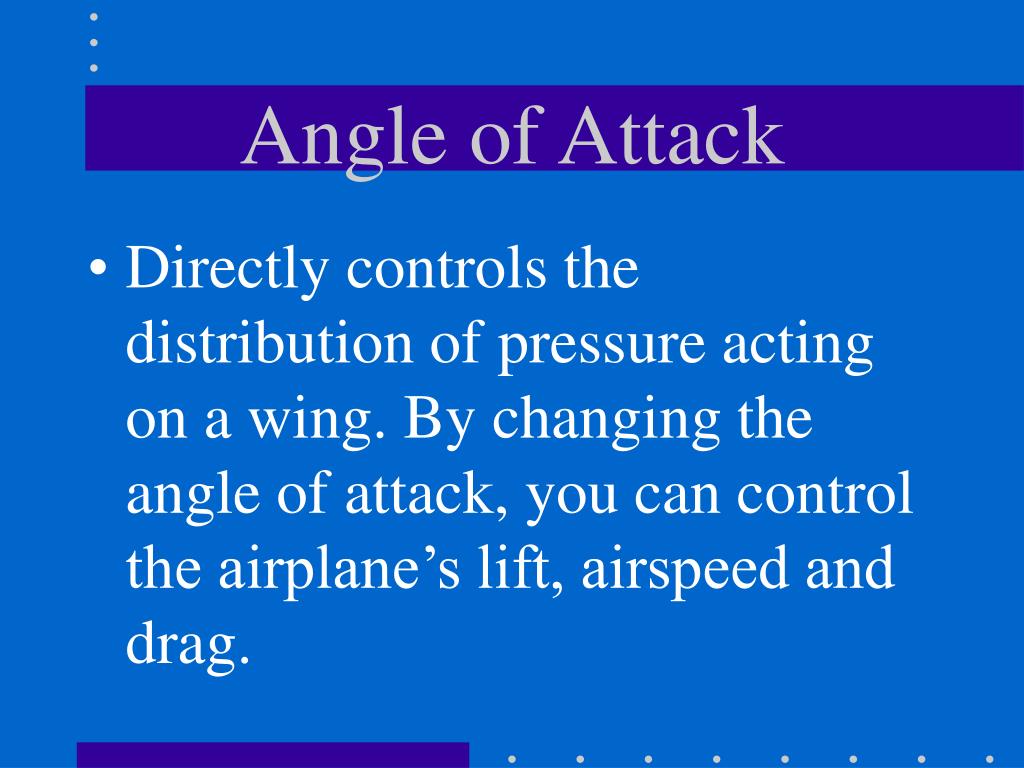

Angle of Attack
  • Directly controls the distribution of pressure acting on a wing. By changing the angle of attack, you can control the airplane’s lift, airspeed and drag.
angle of attack16
Angle of Attack
  • Angle of attack at which a wing stalls remains constant regardless of weight, dynamic pressure, bank angle or pitch attitude.
angle of attack17
Angle of Attack
  • When the angle of attack of a symmetrical airfoil is increased, the center of pressure will remain unaffected.
angle of attack18
Angle of Attack
  • At high angle of attack, pressure increases below the wing, and the increase in lift is accompanied by an increase in induced drag.
flaps

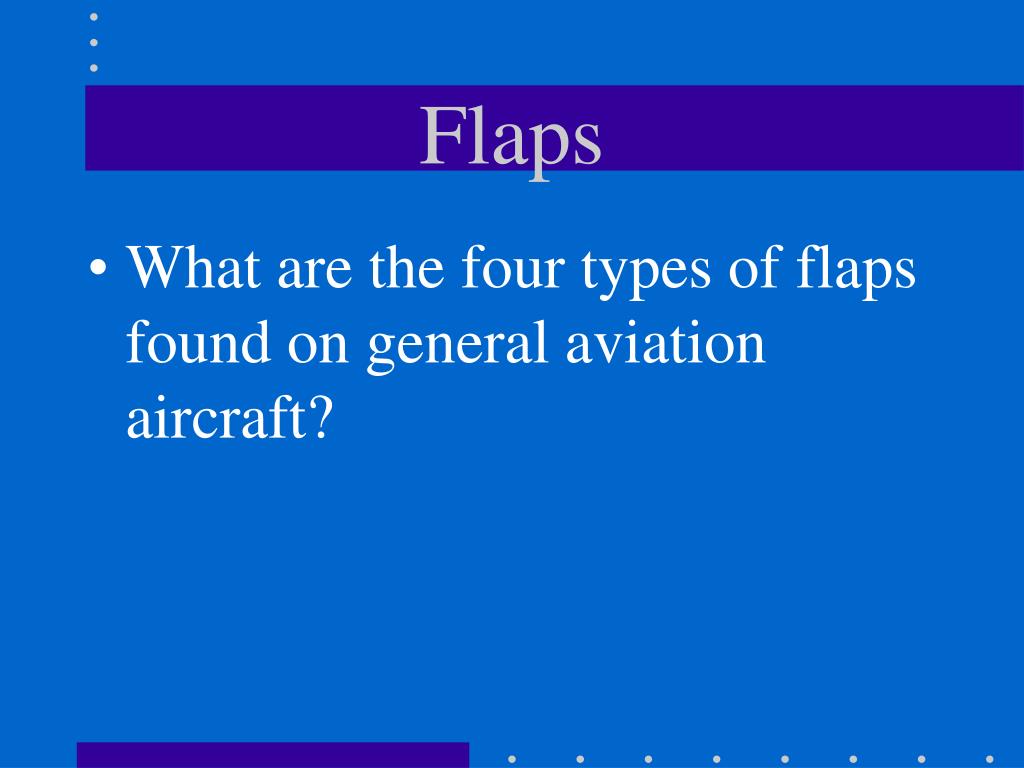

Flaps
  • What are the four types of flaps found on general aviation aircraft?
flaps20
Flaps
  • Plain
  • Split
  • Slotted
  • Fowler
leading edge devices
Leading Edge Devices
  • Slot
  • Slats
  • Leading Edge Flaps
slide24
Drag
  • Induced drag is a by-product of lift and is greatly affected by changes of airspeed.
wing planform

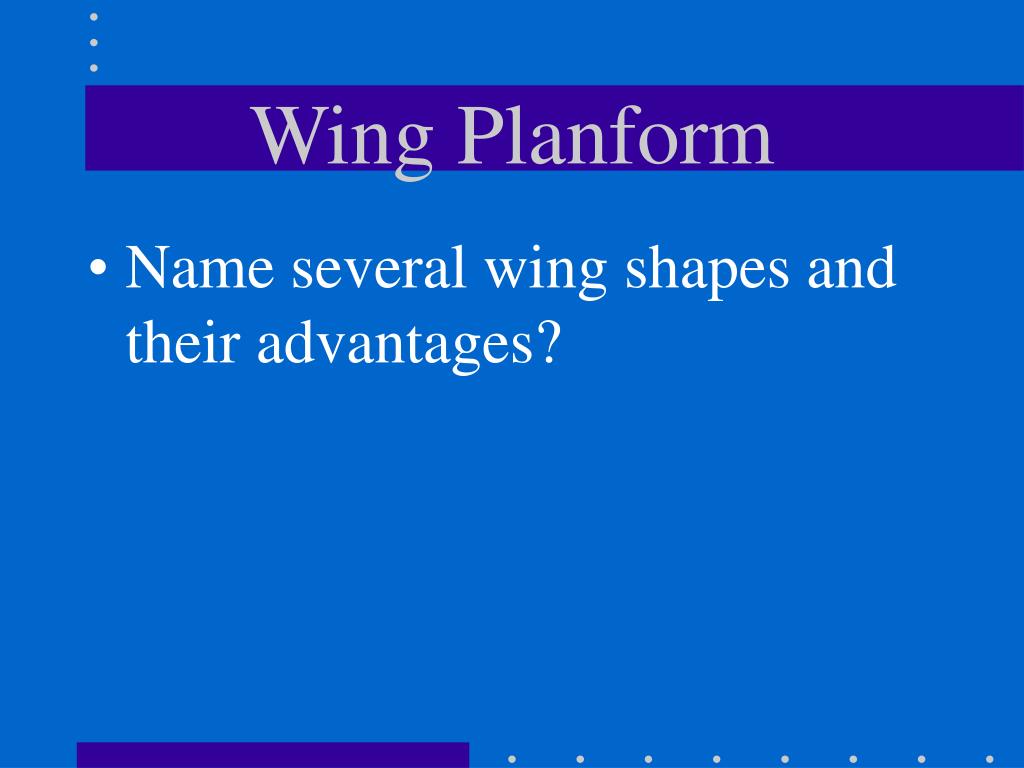

Wing Planform
  • Name several wing shapes and their advantages?
wing planform26
Wing Planform
  • Elliptical - Excellent load distribution for high-G maneuvering and low drag for high speeds
  • Rectangular - stall first at root, least expensive
wing planform27
Wing Planform
  • Tapered - Favorable stall characteristics with good load distribution, saves weight
  • Delta - supersonic flight
wing planform29
Wing Planform
  • How do you find the Aspect Ratio of an airplane?
wing planform30
Wing Planform
  • Found by dividing the wingspan by the average cord.
  • What is a typical aspect ratio for typical training aircraft?
  • Gliders?
wing planform31
Wing Planform
  • Gliders - 20 to 30
  • Training Aircraft - 7 to 9
wing planform32
Wing Planform
  • What is sweep?
  • A line connecting the 25% cord points of all the wing ribs which is not perpendicular to the longitudinal axis of the plane is said to be swept
  • The sweep can be forward but most are back
wing planform33

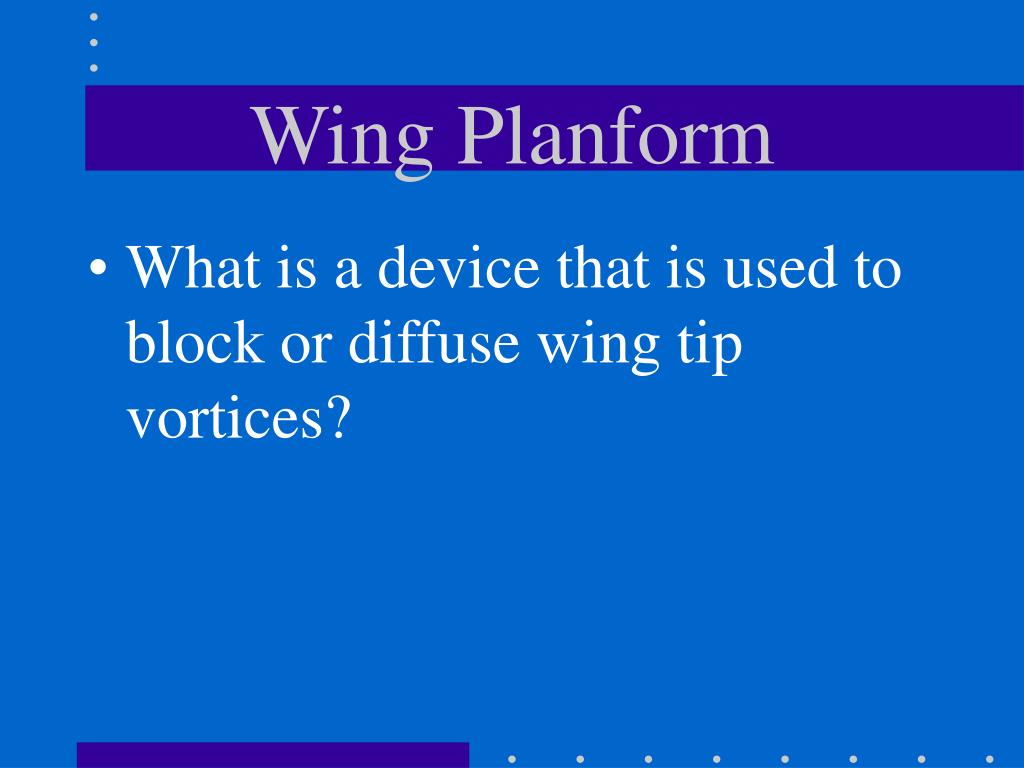

Wing Planform
  • What is a device that is used to block or diffuse wing tip vortices?
wing planform34

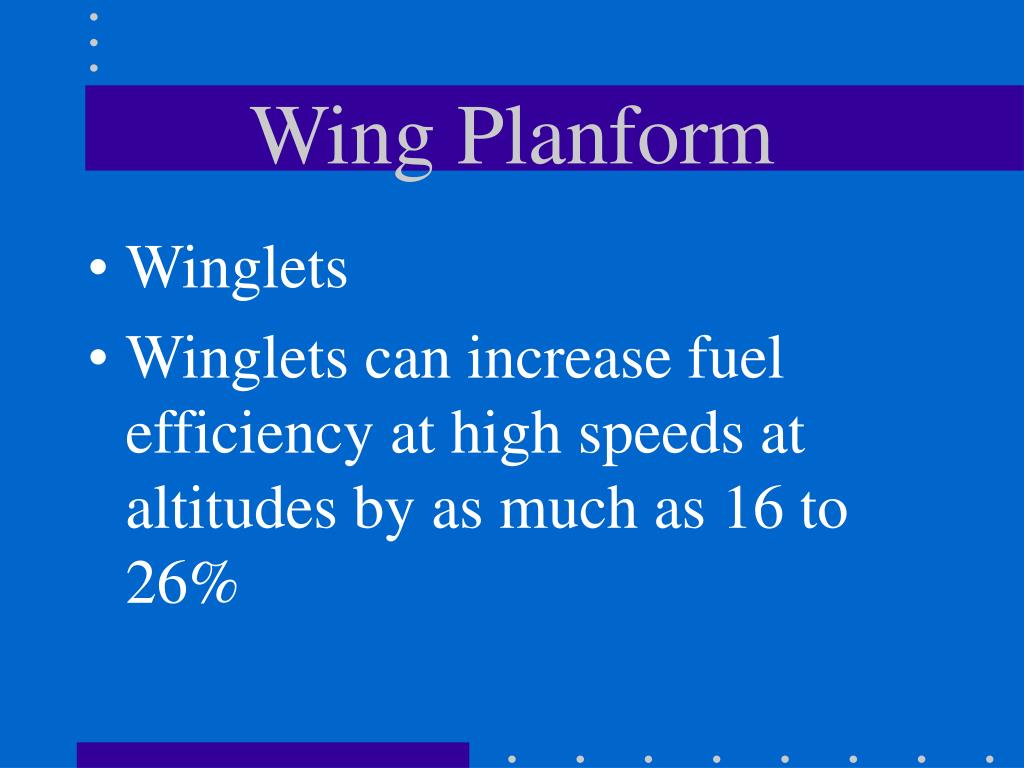

Wing Planform
  • Winglets
  • Winglets can increase fuel efficiency at high speeds at altitudes by as much as 16 to 26%
ground effect
Ground Effect
  • Where is ground effect found?
ground effect37

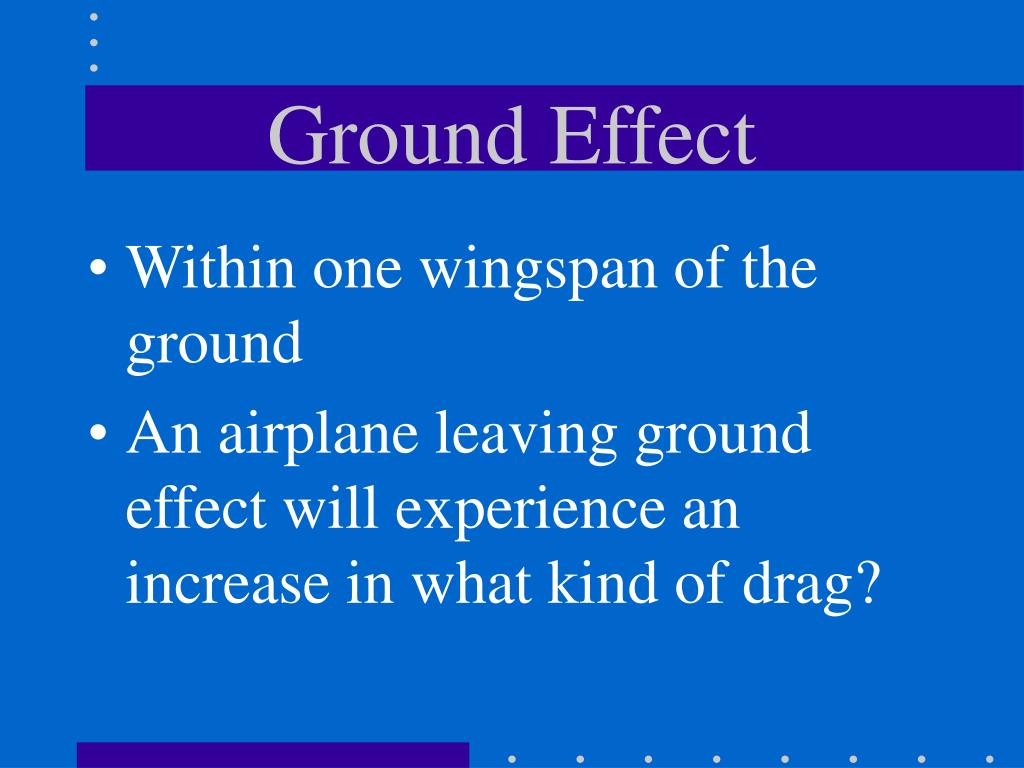

Ground Effect
  • Within one wingspan of the ground
  • An airplane leaving ground effect will experience an increase in what kind of drag?
ground effect38
Ground Effect
  • Induced Drag
  • Induced Drag is only about half of its usual value when the wing is at 10% of its span above the ground
slide39
Drag
  • What kind of drags rate of increase is proportional to the square of the airspeed?
slide40

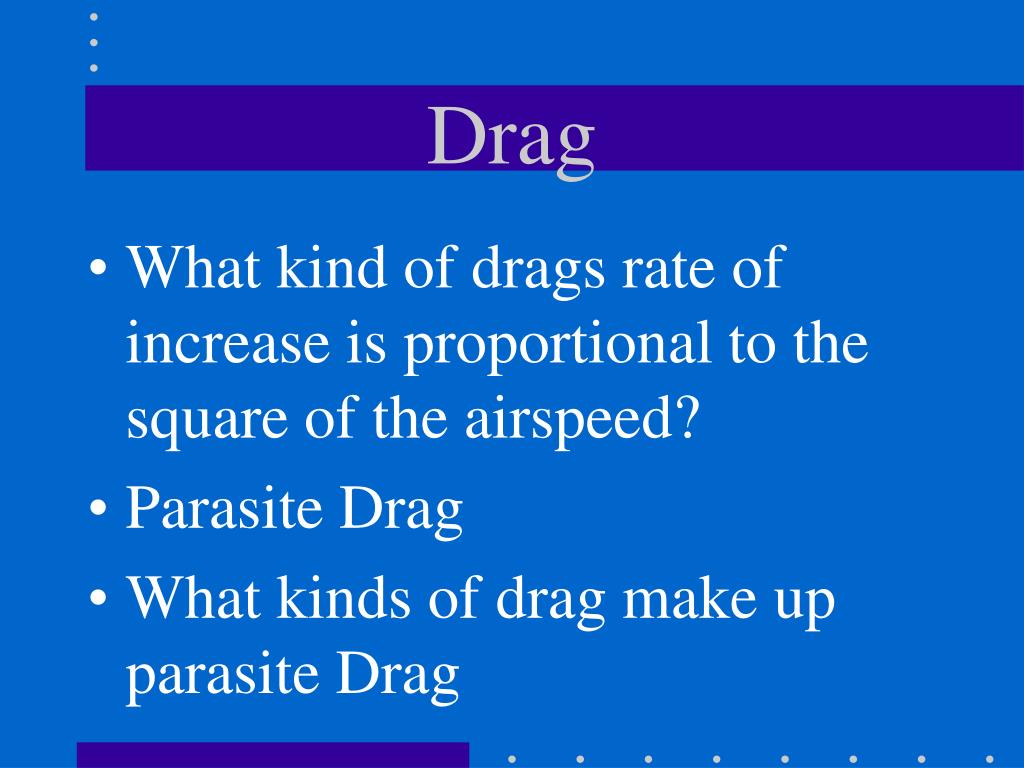

Drag
  • What kind of drags rate of increase is proportional to the square of the airspeed?
  • Parasite Drag
  • What kinds of drag make up parasite Drag
slide41

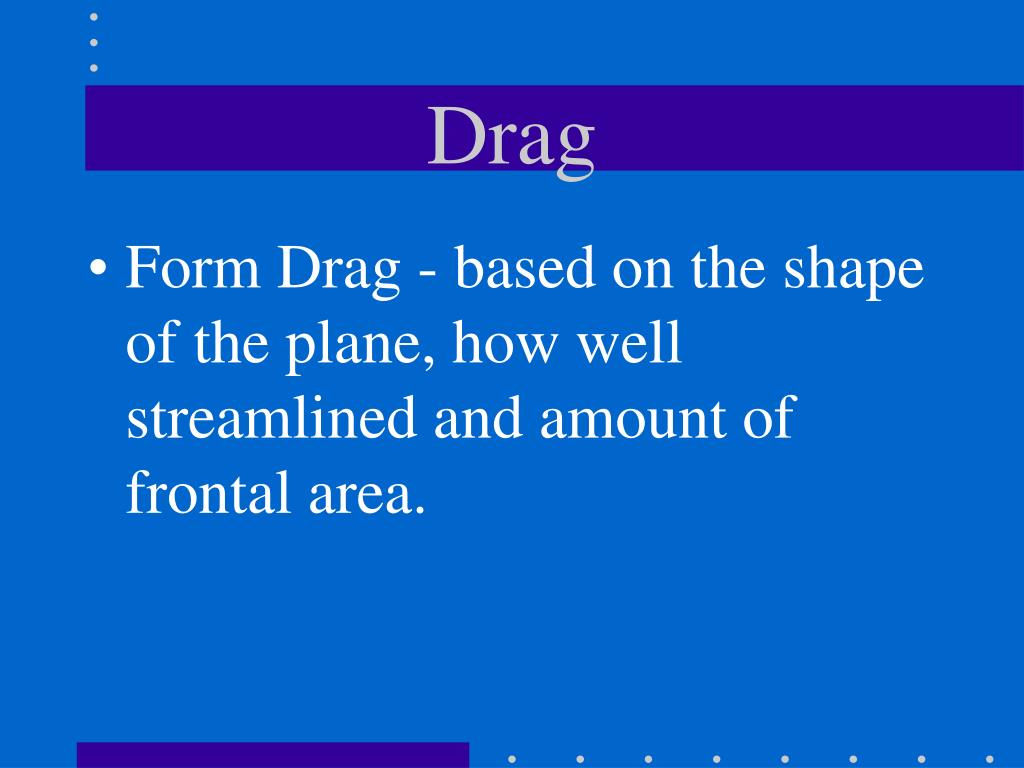

Drag
  • Form Drag - based on the shape of the plane, how well streamlined and amount of frontal area.
slide42
Drag
  • Interference Drag - created when the airflow around one part of the airplane interacts with the airflow around another.
  • Skin Friction Drag - surface friction
total drag
Total Drag
  • The sum of the induced drag and the parasite drag.
  • Total drag is lowest at the airspeed which produces the highest ratio of lift to drag L/Dmax
total drag44

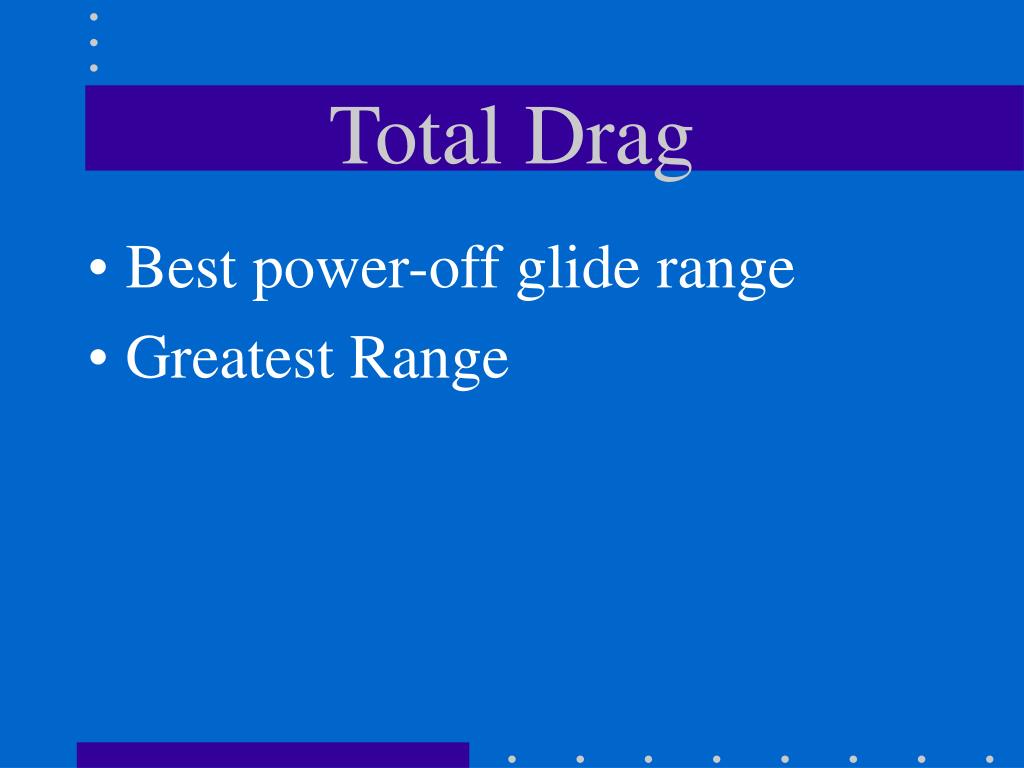

Total Drag
  • Best power-off glide range
  • Greatest Range
high drag devices
High Drag Devices
  • Spoilers
  • Speed Brakes
spoilers

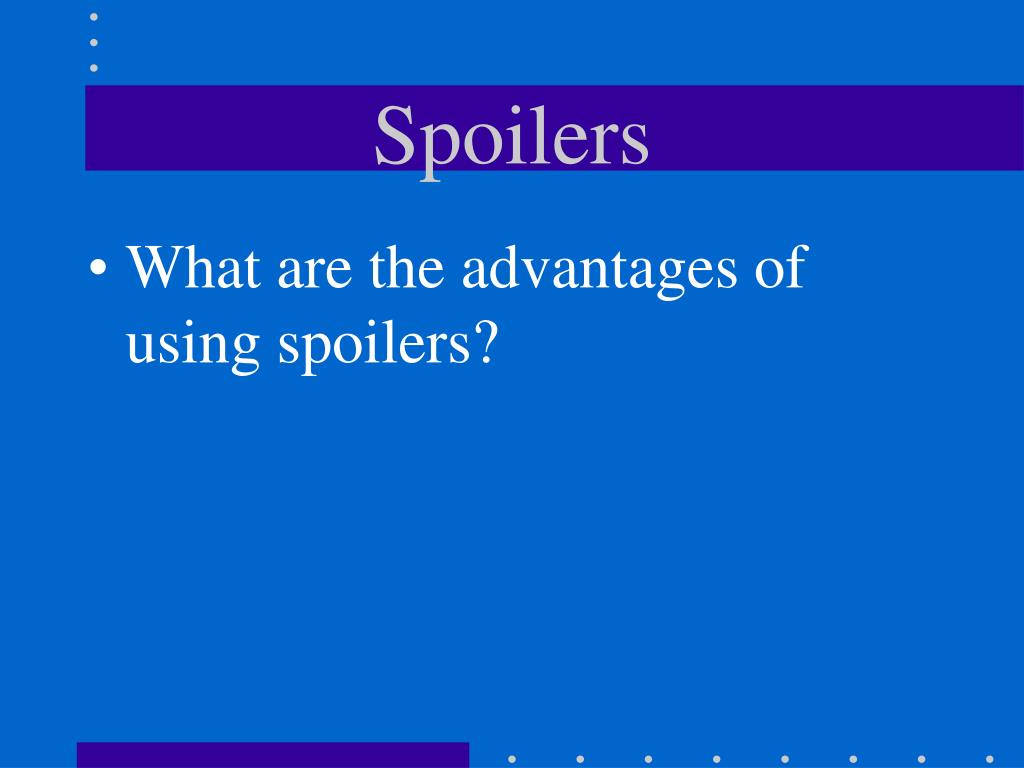

Spoilers
  • What are the advantages of using spoilers?
spoilers47
Spoilers
  • Rapid descent without reducing power, engine stays warm
  • Maintain normal descent speed
  • Help slow to landing gear extension speed
  • Descent rapidly through icing
  • Stay at high altitudes longer
thrust

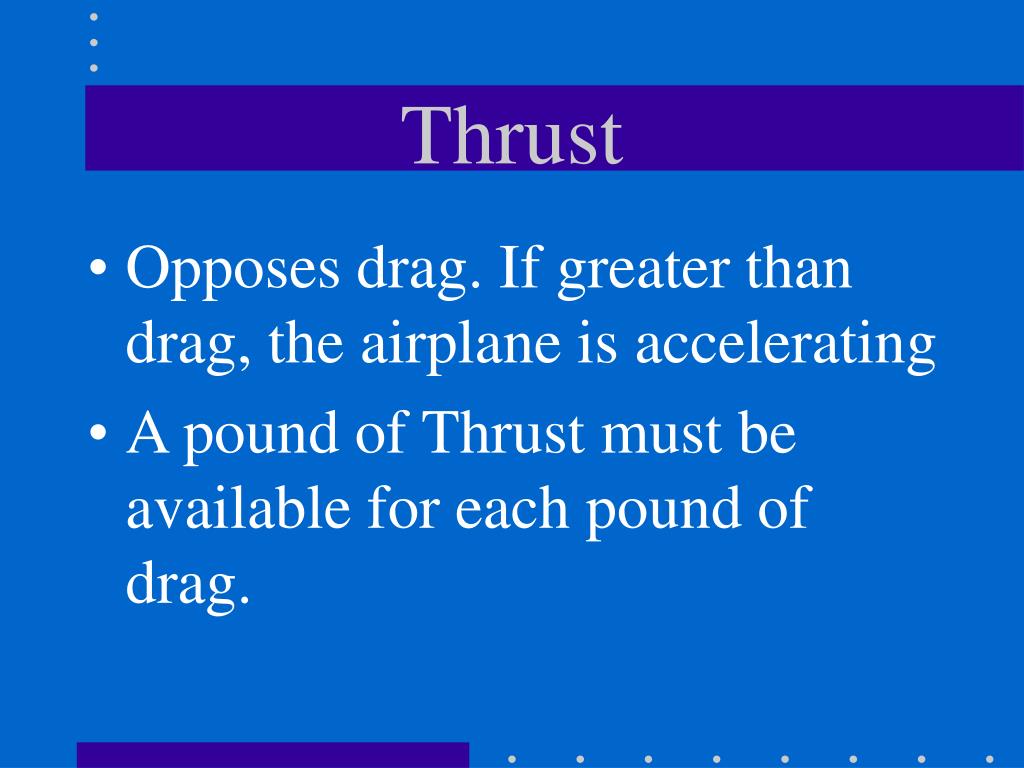

Thrust
  • Opposes drag. If greater than drag, the airplane is accelerating
  • A pound of Thrust must be available for each pound of drag.
thrust49

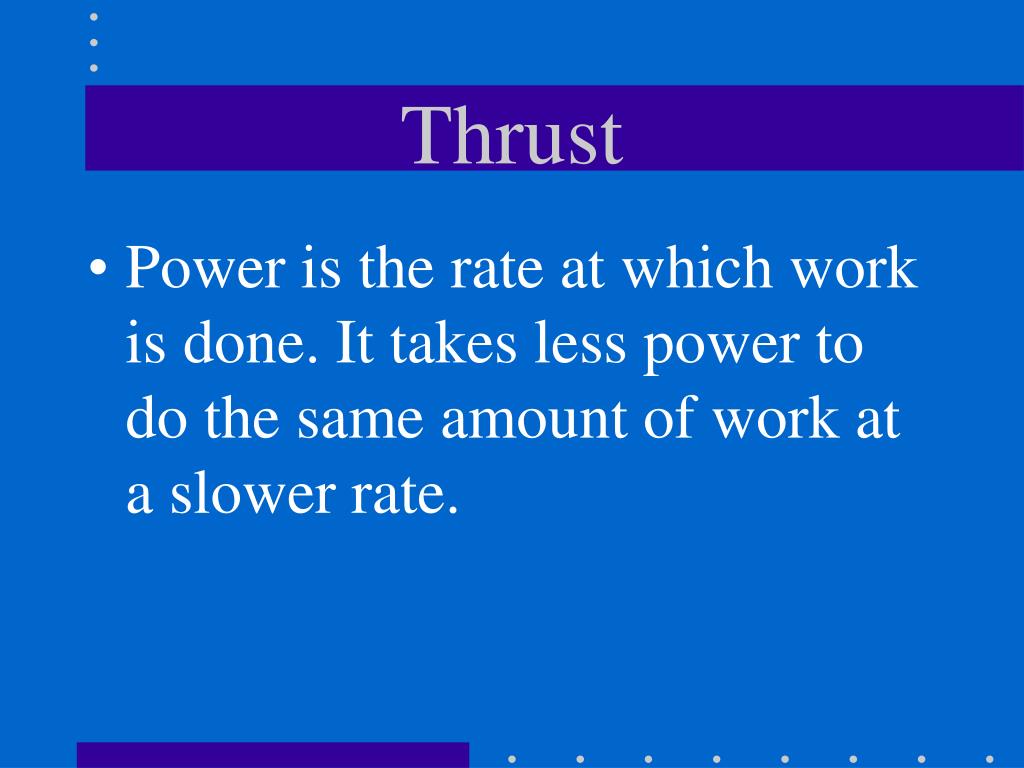

Thrust
  • Power is the rate at which work is done. It takes less power to do the same amount of work at a slower rate.
propeller efficiency
Propeller Efficiency
  • High angle of attack at root, low angle of attack at tip
  • Elliptical planform
  • High Aspect ratio
max level flight speed
Max Level Flight Speed
  • Intersection of the Power or Thrust required curve with the Power or Thrust available curve.
load factor
Load Factor
  • Ratio between the lift generated by the wings at any given time divided by the total weight of the airplane.
load factor53
Load Factor
  • What is the relationship between a heavily loaded airplane and stall speed compared to a lightly loaded airplane?
load factor54
Load Factor
  • A heavily loaded plane stalls at a higher speed than a lightly loaded airplane.
  • It needs a higher angle of attack to generate required lift at any given speed than when lightly loaded.
calculating v a
Calculating VA
  • VA2 = VA W2 / W1
  • VA2 = Maneuvering speed ( at this weight)
calculating v a56
Calculating VA
  • VA = Maneuvering speed at Maximum weight
  • W2 = Actual Airplane Weight
  • W1 = Maximum Weight
v g diagram
V-G Diagram
  • Relates velocity to load factor
  • Applies to one airplane type
  • Valid for a specific weight, configuration and altitude
aircraft stability
Aircraft Stability
  • Static Stability
  • Dynamic Stability
aircraft stability59
Aircraft Stability
  • Longitudinal Stability
  • Stable in pitch or stable about the lateral axis
  • Motion of the plane controlled by the elevators
aircraft stability60
Aircraft Stability
  • Achieved by locating the center of gravity slightly ahead of the center of lift
  • Need a tail down force on the elevator
aircraft stability61
Aircraft Stability
  • Lateral stability
  • Return to wings level following a roll deviation
  • Dihedral
    • Low wing aircraft have more
  • Sweep
aircraft stability62
Aircraft Stability
  • Sweep may be used when dihedral would be inappropriate such as in an aerobatic airplane that needs lateral stability while inverted
aircraft stability63
Aircraft Stability
  • Directional Stability
  • Vertical tail and sides of the fuselage contribute forces which help to keep the longitudinal axis aligned with the relative wind.
flight maneuvers
Flight Maneuvers
  • Straight and Level
  • To maintain altitude while airspeed is being reduced, the angle of attack must be increased
flight maneuvers65
Flight Maneuvers
  • Climbs
  • Transitioning to a climb, angle of attack increases and lift momentarily increases
    • Thrust acts along the flight path
climb performance
Climb Performance
  • Decreases with altitude
  • Absolute Ceiling
  • Service Ceiling
turns
Turns
  • What force turns an airplane?
turns68
Turns
  • The horizontal component of lift.
  • Load Factor and Turns
  • The relationship between angle of bank , load factor, and stall speed is the same for all airplanes
turns69
Turns
  • Rate and radius
  • Steeper bank reduces turn radius and increases the rate of turn, but produces higher load factors
turns70
Turns
  • A given airspeed and bank angle will produce a specific rate and radius of turn in any airplane
  • Adverse Yaw
stalls
Stalls
  • Angle of attack
  • Power-on stalls
  • Power-off stalls
  • Accelerated stall
stalls72
Stalls
  • Secondary stall
  • Cross-controlled stall
  • Elevator trim stall
stalls73
Stalls
  • Total weight, load factor, and CG location affect stall speed
spins
Spins
  • Incipient spin
  • Fully developed spin
  • Spin recovery
  • What type of spin can result if the CG is too far aft and the rotation is around the CG?
spins75
Spins
  • Flat Spin
  • Spin Recovery
spin recovery
Spin Recovery
  • Throttle to idle
  • Neutralize the ailerons
  • Determine the direction or rotation
  • Apply full opposite rudder
spin recovery77
Spin Recovery
  • Apply forward elevator
  • As rotation stops, neutralize the rudder
  • Gradually apply aft elevator to return to level flight
slide79

A. decrease lift, thus enabling a steeper-than- normal approach to be made.

B. decrease the angle of descent without increasing the airspeed.

C. provide the same amount of lift at a slower airspeed

slide80

One of the main functions of flaps during the approach and landing is to

C. provide the same amount of lift at a slower airspeed

slide82

A. The raising of flaps increases the stall speed.

B. The lowering of flaps increases the stall speed.

C. Raising flaps will require added forward pressure on the yoke or stick.

slide83

Which is true regarding the use of flaps during level turns?

A. The raising of flaps increases the stall speed.

slide85

A. center trailing edge, with the stall progression outward toward the wing root and tip.

B. wing root, with the stall progression toward the wing tip.

C. wingtip, with the stall progression toward the wing root.

slide86

A rectangular wing, as compared to other wing planforms, has a tendency to stall first at the

B. wing root, with the stall progression toward the wing tip.

slide87

By changing the angle of attack of a wing, the pilot can control the airplane's

A. lift, airspeed, and CG.

B. lift and airspeed, but not drag.

C. lift, airspeed, and drag.

slide88

By changing the angle of attack of a wing, the pilot can control the airplane's

C. lift, airspeed, and drag.

slide89

The angle of attack of a wing directly controls the

A. amount of airflow above and below the wing.

B. angle of incidence of the wing.

C. distribution of pressures acting on the wing.

slide90

The angle of attack of a wing directly controls the

C. distribution of pressures acting on the wing.

slide92

A. dynamic pressure, but varies with weight, bank angle, and pitch attitude.

B. weight, dynamic pressure, bank angle, or pitch attitude.

C. weight and pitch attitude, but varies with dynamic pressure and bank angle.

slide93

The angle of attack at which a wing stalls remains constant regardless of

B. weight, dynamic pressure, bank angle, or pitch attitude.

slide95

A. Turbulence which causes a decrease in stall speed.

B. High density altitude which increases the indicated stall speed.

C. Turbulence which causes an increase in stall speed.

slide96

The need to slow an aircraft below VA is brought about by the following weather phenomenon:

C. Turbulence which causes an increase in stall speed.

slide97

Stall speed is affected by

A. angle of attack, weight, and air density.

B. weight, load factor, and power.

C. load factor, angle of attack, and power.

slide98

Stall speed is affected by

B. weight, load factor, and power.

slide99

The stalling speed of an airplane is most affected by

A. variations in airplane loading.

B. variations in flight altitude.

C. changes in air density.

slide102

A. airspeed regardless of the attitude with relation to the horizon.

B. angle of attack and attitude with relation to the horizon.

C. angle of attack regardless of the attitude with relation to the horizon.

slide103

An airplane will stall at the same

C. angle of attack regardless of the attitude with relation to the horizon.

slide104

In a rapid recovery from a dive, the effects of load factor would cause the stall speed to

A. not vary.

B. increase.

C. decrease.

slide105

In a rapid recovery from a dive, the effects of load factor would cause the stall speed to

B. increase.

slide106

Recovery from a stall in any airplane becomes more difficult when its

A.elevator trim is adjusted nosedown.

B.center of gravity moves forward.

C.center of gravity moves aft

slide109

A. Power-off stalls occur at higher airspeeds with the gear and flaps down.

B. In a 60° bank the airplane stalls at a lower airspeed with the gear up.

C. Power-on stalls occur at lower airspeeds in shallower banks.

slide110

(Refer to figure 2.) Select the correct statement regarding stall speeds.

C. Power-on stalls occur at lower airspeeds in shallower banks.

slide112

A. 10 knots higher in a 45° bank, power-on stall, than in a wings-level stall.

B. 10 knots higher in a power-on, 60° bank, with gear and flaps up, than with gear and flaps down.

C. 25 knots lower in a power-off, flaps-up, 60° bank, than in a power-off, flaps-down, wings-level configuration.

slide113

Refer to figure 2.) Select the correct statement regarding stall speeds. The airplane will stall

B. 10 knots higher in a power-on, 60° bank, with gear and flaps up, than with gear and flaps down.
