Why Choose a Vertical Straight Line Drawing Machine

1. Why Choose a Vertical Straight Line Drawing Machine for Wire Processing?

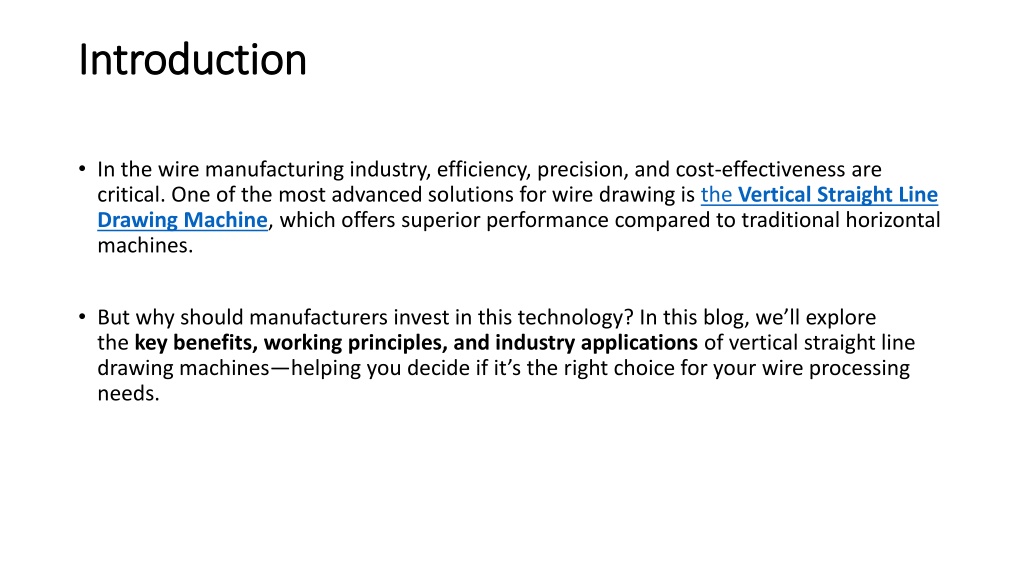

2. Introduction • In the wire manufacturing industry, efficiency, precision, and cost-effectiveness are critical. One of the most advanced solutions for wire drawing is the Vertical Straight Line Drawing Machine, which offers superior performance compared to traditional horizontal machines. • But why should manufacturers invest in this technology? In this blog, we’ll explore the key benefits, working principles, and industry applications of vertical straight line drawing machines—helping you decide if it’s the right choice for your wire processing needs.

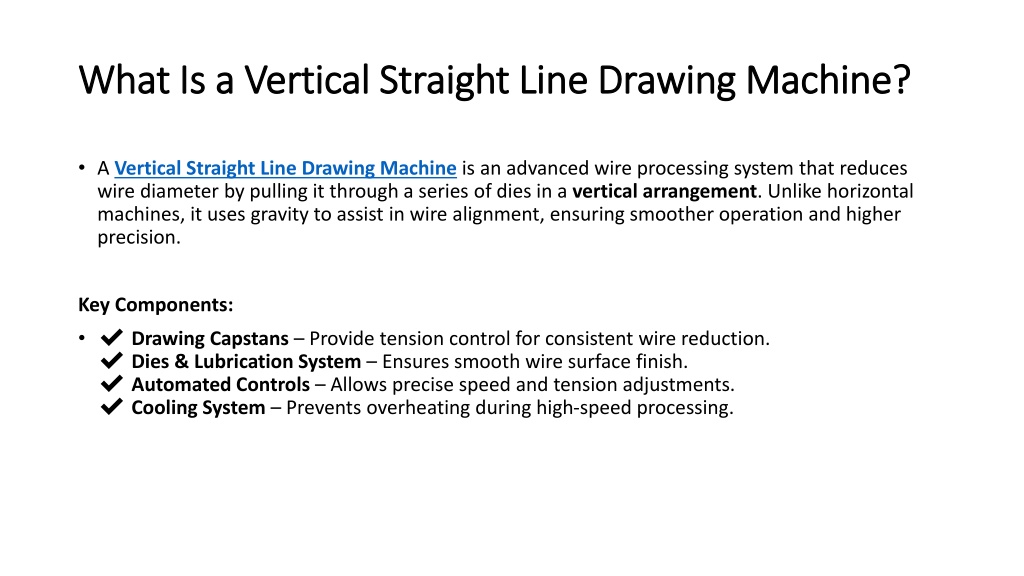

3. What Is a Vertical Straight Line Drawing Machine? • A Vertical Straight Line Drawing Machine is an advanced wire processing system that reduces wire diameter by pulling it through a series of dies in a vertical arrangement. Unlike horizontal machines, it uses gravity to assist in wire alignment, ensuring smoother operation and higher precision. Key Components: • ✔ Drawing Capstans – Provide tension control for consistent wire reduction.✔ Dies & Lubrication System – Ensures smooth wire surface finish.✔ Automated Controls – Allows precise speed and tension adjustments.✔ Cooling System – Prevents overheating during high-speed processing.

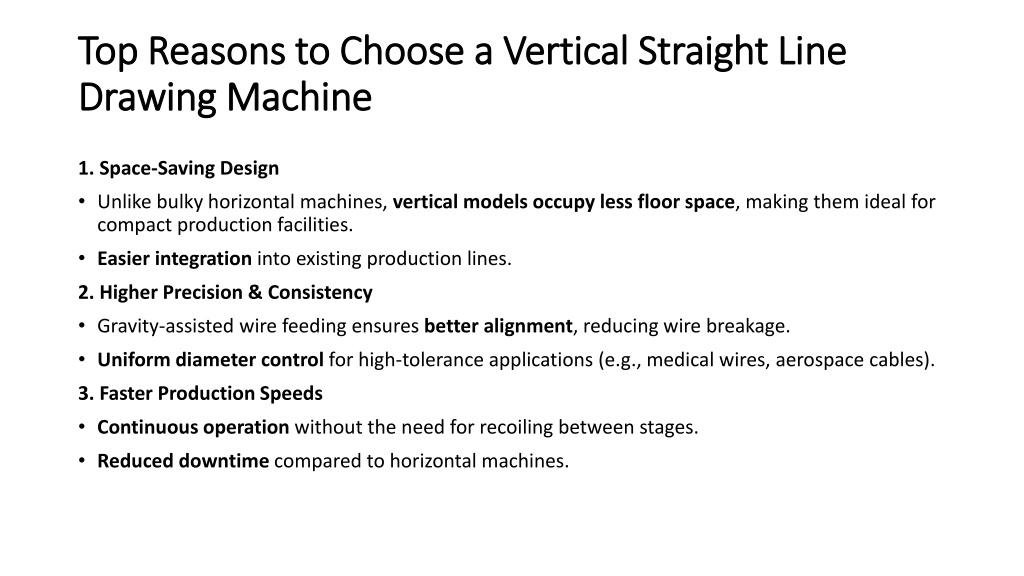

4. Top Reasons to Choose a Vertical Straight Line Drawing Machine 1. Space-Saving Design • Unlike bulky horizontal machines, vertical models occupy less floor space, making them ideal for compact production facilities. • Easier integration into existing production lines. 2. Higher Precision & Consistency • Gravity-assisted wire feeding ensures better alignment, reducing wire breakage. • Uniform diameter control for high-tolerance applications (e.g., medical wires, aerospace cables). 3. Faster Production Speeds • Continuous operation without the need for recoiling between stages. • Reduced downtime compared to horizontal machines.

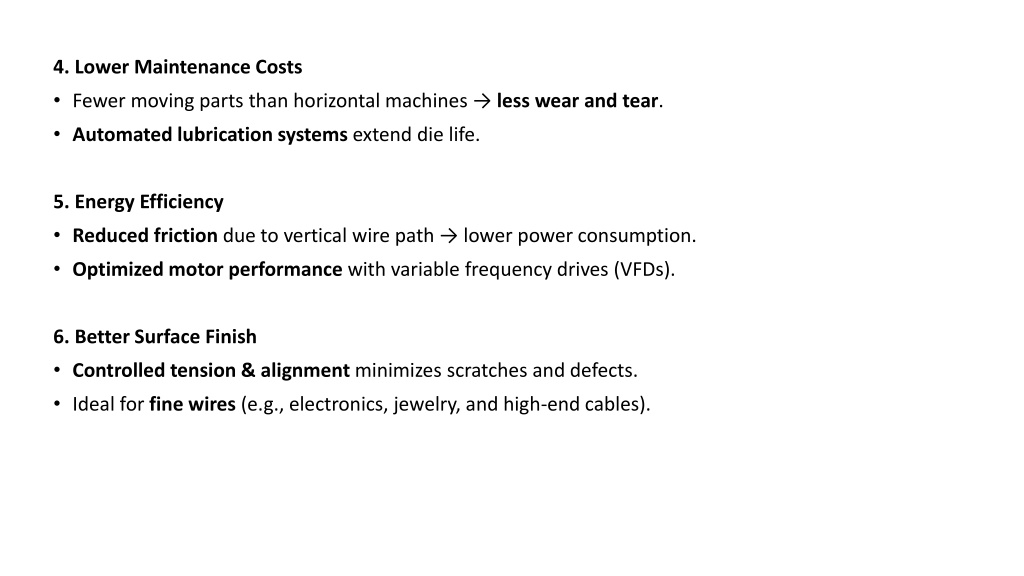

5. 4. Lower Maintenance Costs • Fewer moving parts than horizontal machines → less wear and tear. • Automated lubrication systems extend die life. 5. Energy Efficiency • Reduced friction due to vertical wire path → lower power consumption. • Optimized motor performance with variable frequency drives (VFDs). 6. Better Surface Finish • Controlled tension & alignment minimizes scratches and defects. • Ideal for fine wires (e.g., electronics, jewelry, and high-end cables).

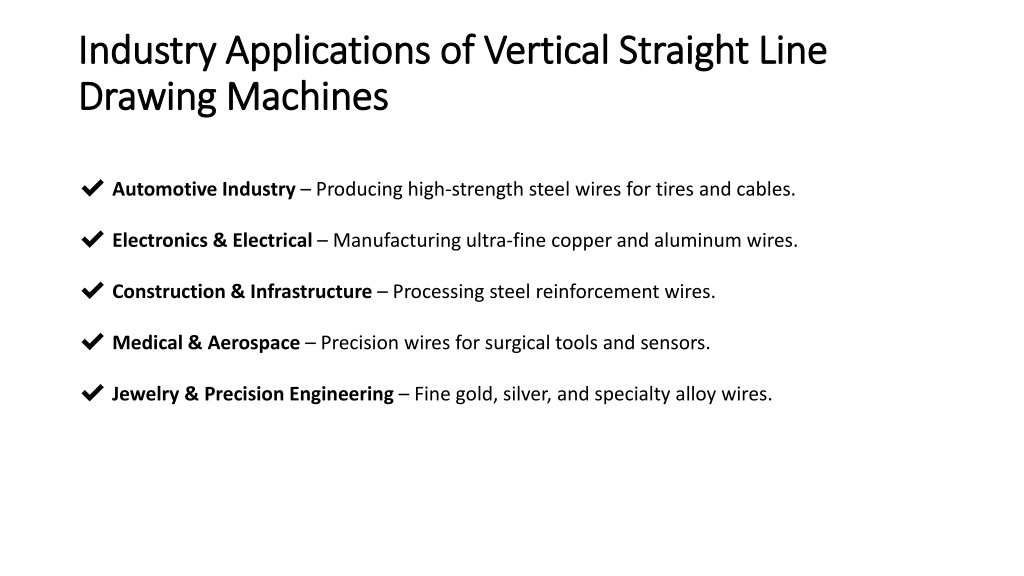

6. Industry Applications of Vertical Straight Line Drawing Machines ✔ Automotive Industry – Producing high-strength steel wires for tires and cables.✔ Electronics & Electrical – Manufacturing ultra-fine copper and aluminum wires.✔ Construction & Infrastructure – Processing steel reinforcement wires.✔ Medical & Aerospace – Precision wires for surgical tools and sensors.✔ Jewelry & Precision Engineering – Fine gold, silver, and specialty alloy wires.

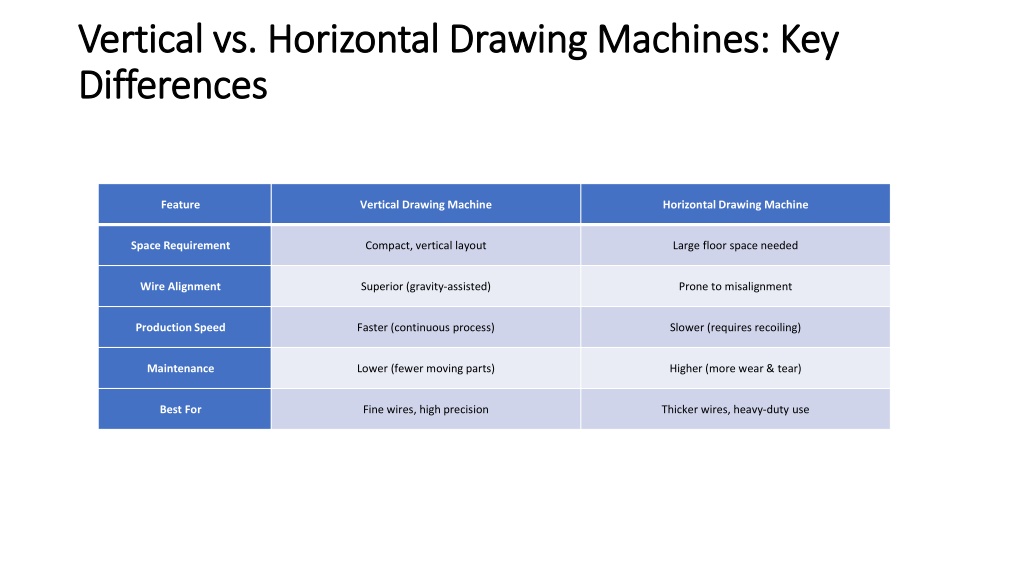

7. Vertical vs. Horizontal Drawing Machines: Key Differences

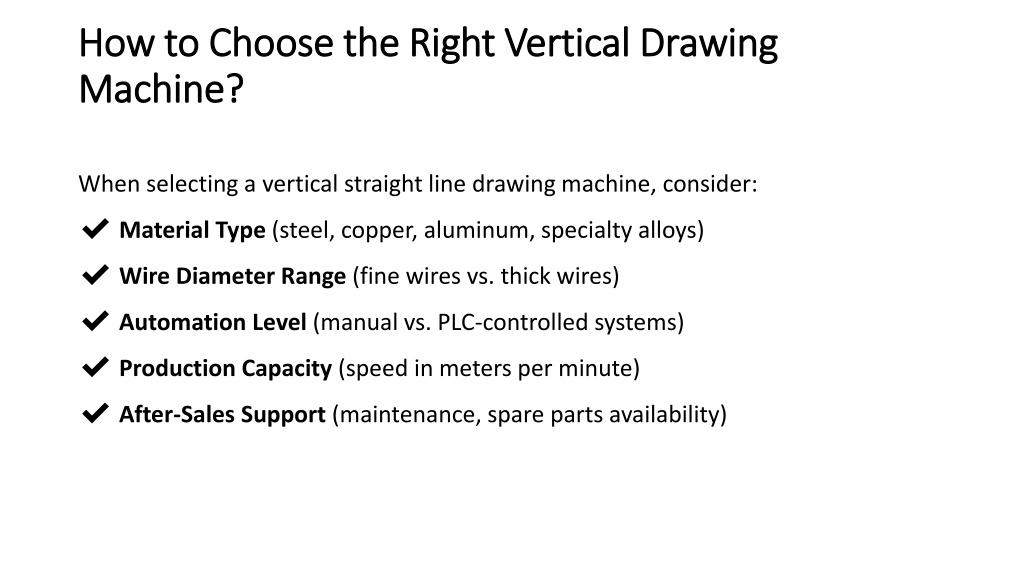

8. How to Choose the Right Vertical Drawing Machine? When selecting a vertical straight line drawing machine, consider:✔ Material Type (steel, copper, aluminum, specialty alloys)✔ Wire Diameter Range (fine wires vs. thick wires)✔ Automation Level (manual vs. PLC-controlled systems)✔ Production Capacity (speed in meters per minute)✔ After-Sales Support (maintenance, spare parts availability)

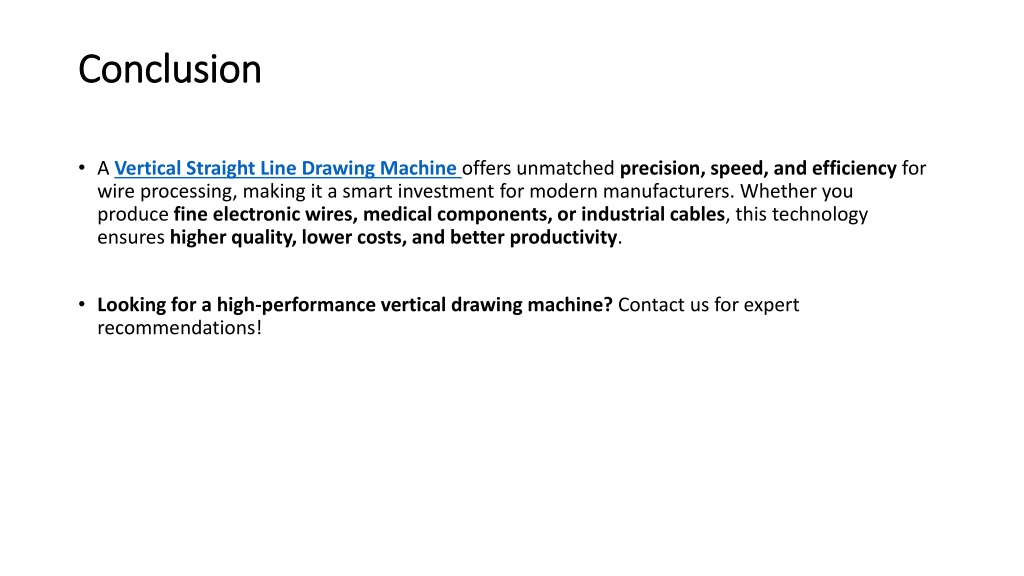

9. Conclusion • A Vertical Straight Line Drawing Machineoffers unmatched precision, speed, and efficiency for wire processing, making it a smart investment for modern manufacturers. Whether you produce fine electronic wires, medical components, or industrial cables, this technology ensures higher quality, lower costs, and better productivity. • Looking for a high-performance vertical drawing machine? Contact us for expert recommendations!
