1. How Scan to BIM Improves Clash Detection in Construction?

3. In the quick moving construction field precision and coordination is key to a successful project. As 3D laser scanning BIM has become increasingly important, scan to BIM has emerged as a tool to produce accurate digital models to aid in clash detection and workflows. • This article describes how scan to BIM services improve Revit clash detection, reduce rework and increase collaboration between architects, engineers and contractors. See how scan to BIM modelling by SmartCADD improves the productivity and accuracy of AEC projects. • Overview: Scan to BIM and Clash Detection • Scan to BIM What is it? This is a process using 3D laser scanning BIM to capture real building data and turn it into BIM models for design, renovation and facility management. • Role in Clash Detection: With Scan to BIM, as-built data is fed into BIM platforms like Revit to identify early system conflicts between structural, architectural and MEP systems. • Key Benefits: A reliable digital twin of existing structures improves accuracy, reduces rework, saves time and collaboration. • Tools Used: Autodesk Revit, Navisworks, and Leica scanners are used for 3D scan to BIM and revit clash detection. • Applications: Ideal for renovations, retrofits and other complicated projects requiring precise coordination with little chance of error.

4. The Scan to BIM Process • Scan to BIM begins with 3D laser scanning BIM. A high-precision scanners like LiDAR collect millions of data points to produce a point cloud which is a digital representation of the geometry of a building. Using software like Autodesk ReCap or Leica Cyclone this point cloud is processed into BIM platforms like Revit for detailed scan to BIM modeling services. Such models reflect the as-built conditions to the millimeter level and are used for design, planning and clash detection. The process involves several key steps: • Site Scanning: Use 3D laser scanning BIM to capture existing conditions such as structural, architectural and MEP elements. • Point Cloud Processing: Aligning & cleaning scan data to eliminate noise & improve accuracy. • BIM Model Creation: Processed data is converted to intelligent 3D models with building elements such as walls, pipes, and ducts defined. • Integration and Analysis: Performing Revit clash detection & coordinating multidisciplinary design using platforms such as Revit or Navisworks. • As-built data captured by scan to BIM services replaces the need for old 2D drawings or manual measurements to reduce errors and enable model coordination.

5. Why Clash Detection Matters in Construction Clash detection also known as model coordination is the process of identifying conflicts between building elements such as a pipe intersecting a structural beam—before construction begins. In traditional workflows, clashes often go unnoticed until installation, leading to costly rework, delays, and safety risks. For example, misaligned MEP systems in dense areas like mechanical floors can cause significant disruptions if not addressed early. Scan to BIM transforms model coordination by providing a digital twin of the existing structure, allowing teams to overlay design models and identify conflicts in a virtual environment. This proactive approach minimizes on-site issues, ensuring smoother project execution and better resource allocation. For in-depth insights on resolving clashes in BIM projects, read: Explore the Various Effective Strategies for Revit Clash Detection in BIM Projects. How Scan to BIM Enhances Clash Detection 1. Accurate As-Built Data for Reliable Models 3D scan to BIM captures real world conditions better than manual surveys or out of date drawings. Scans to BIM services create accurate BIM models so model coordination matches site conditions. For example, a 3D laser scanning BIM process can pick up small deviations like a column misaligned that otherwise cause clashes during MEP installation.

6. 2. Early Conflict Identification with Revit Revit model coordination in combination with proposed designs enables teams to compare as built models to proposed designs. Tools such as Navisworks analyse federated models and highlight hard (physical overlap) and soft (insufficient clearance) clashes. Resolving these issues early on in the design phase saves teams money on site adjustments. For example, in a retrofit project, you can use 3D scan to BIM to check new HVAC systems match existing structural elements. 3. Streamlined Coordination Across Disciplines Construction projects involve several stakeholders including architects, structural engineers and MEP specialists submitting their models. Scan to BIM aggregates these into a federated model allowing coordination. Model coordination flags interdisciplinary conflicts like a duct versus a fire sprinkler to encourage collaboration and reduce Requests for Information (RFIs): 4. Reduced Rework and Cost Savings By catching clashes early scan to BIM services reduce Rework that can drive up project costs. For instance detecting a pipe misalignment before installation saves time and materials. In industry studies, effective model coordination can save up to 10% of project cost by preventing delays and change orders. Please read out detailed guide on How MEP Clash Detection Services Save Time and Money By Preventing Construction Conflicts? 5. Enhanced Visualization and Decision-Making Making 3D scanner for BIM delivers 3D models of conflicts to stakeholders. Tools such as Revit and Navisworks produce clash reports detailing issues by trade or location. Such clarity helps teams make sound decisions based on knowing how designs will perform under real world conditions and project requirements.

7. Real-World Applications of Scan to BIM  • In complex projects such as renovations, retrofits and large-scale infrastructure Scan to BIM comes to the rescue. For example: • Heritage Renovations: A 16th-century building project used scan to BIM modeling services to produce a LOD 400 model that avoided any clashing of modern MEP systems with historical elements. • Data Center Projects: 3D laser scanning BIM captured as-built conditions for Revit model coordination to new electrical installations against existing facilities to avoid rework. • These examples demonstrate how scan to BIM guarantees precision and coordination even in difficult conditions. • Read our insightful blog on How Scan to BIM Increases Accuracy in Restoring Historic Structures? • Best Practices for Implementing Scan to BIM in Model Coordination • Define Project Goals: Mention the required LOD along with scope for scan to BIM modelling services. • Choose the Right Tools: Use proven scanners (for example Leica BLK360) and BIM platforms (for example Revit, Navisworks). • Train Teams: Provide staff with point cloud processing and Revit model coordination skills. • Collaborate Early: All parties involved in 3D scan to BIM process should align models and resolve clashes proactively. • Regular Clash Checks: Conduct regular model coordination reviews to keep model accuracy throughout the project lifecycle.

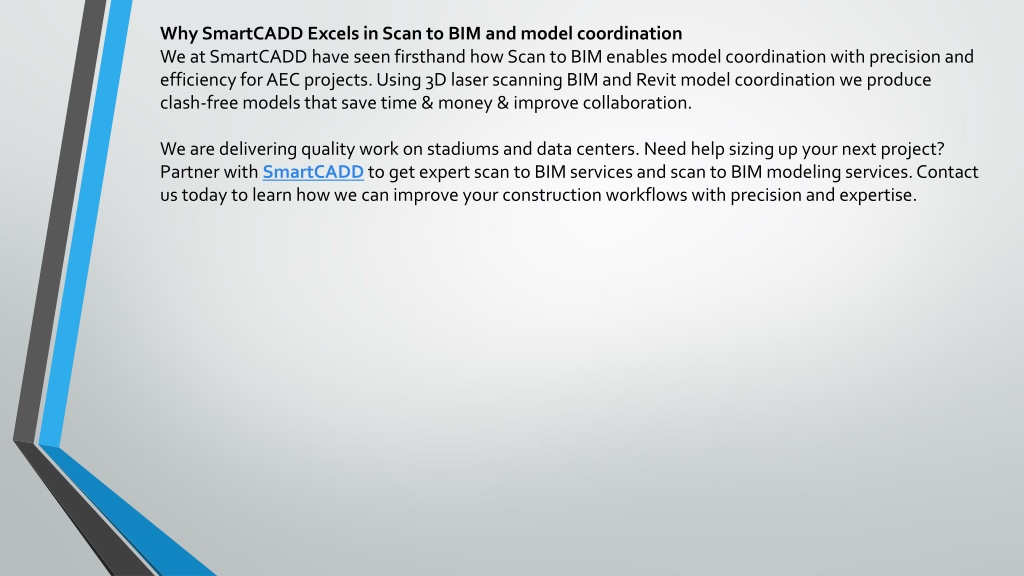

8. Why SmartCADD Excels in Scan to BIM and model coordination We at SmartCADD have seen firsthand how Scan to BIM enables model coordination with precision and efficiency for AEC projects. Using 3D laser scanning BIM and Revit model coordination we produce clash-free models that save time & money & improve collaboration.  We are delivering quality work on stadiums and data centers. Need help sizing up your next project? Partner with SmartCADD to get expert scan to BIM services and scan to BIM modeling services. Contact us today to learn how we can improve your construction workflows with precision and expertise.
