Tips for Using An Inline Natural Gas Flow Meter

The flow meter that is gas-only operates typically in an environment with steady specific heat. So when the test gas is in this state the meter may not be used. For instance, since the critical point for the liquefaction of ethylene is 50kg/cm2 or 9.9 degrees, when the pressure exceeds 30kg/cm2, meter readings was unstable.

Silverinstrumentscom
Download Presentation

Tips for Using An Inline Natural Gas Flow Meter

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

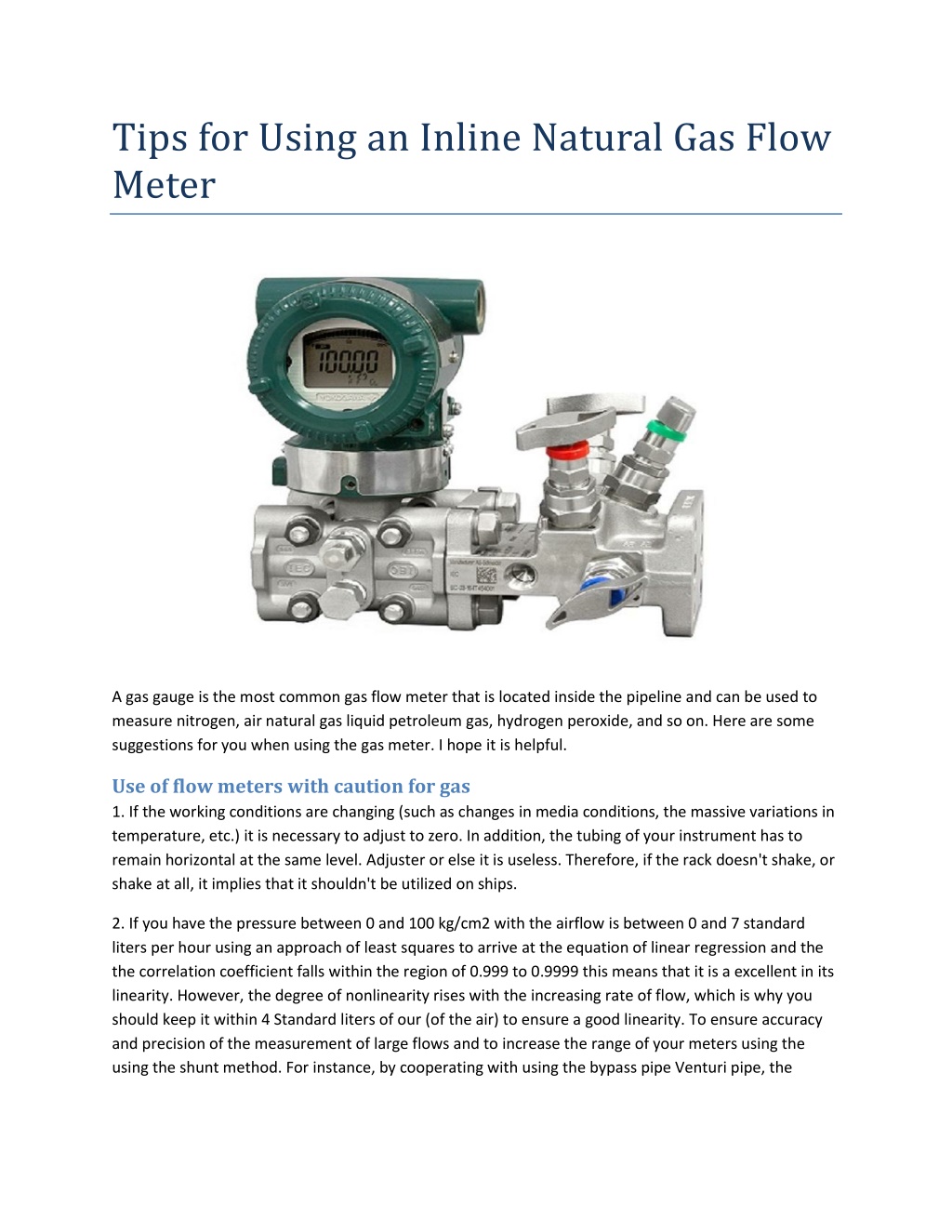

  1. Tips for Using an Inline Natural Gas Flow Meter A gas gauge is the most common gas flow meter that is located inside the pipeline and can be used to measure nitrogen, air natural gas liquid petroleum gas, hydrogen peroxide, and so on. Here are some suggestions for you when using the gas meter. I hope it is helpful. Use of flow meters with caution for gas 1. If the working conditions are changing (such as changes in media conditions, the massive variations in temperature, etc.) it is necessary to adjust to zero. In addition, the tubing of your instrument has to remain horizontal at the same level. Adjuster or else it is useless. Therefore, if the rack doesn't shake, or shake at all, it implies that it shouldn't be utilized on ships. 2. If you have the pressure between 0 and 100 kg/cm2 with the airflow is between 0 and 7 standard liters per hour using an approach of least squares to arrive at the equation of linear regression and the the correlation coefficient falls within the region of 0.999 to 0.9999 this means that it is a excellent in its linearity. However, the degree of nonlinearity rises with the increasing rate of flow, which is why you should keep it within 4 Standard liters of our (of the air) to ensure a good linearity. To ensure accuracy and precision of the measurement of large flows and to increase the range of your meters using the using the shunt method. For instance, by cooperating with using the bypass pipe Venturi pipe, the

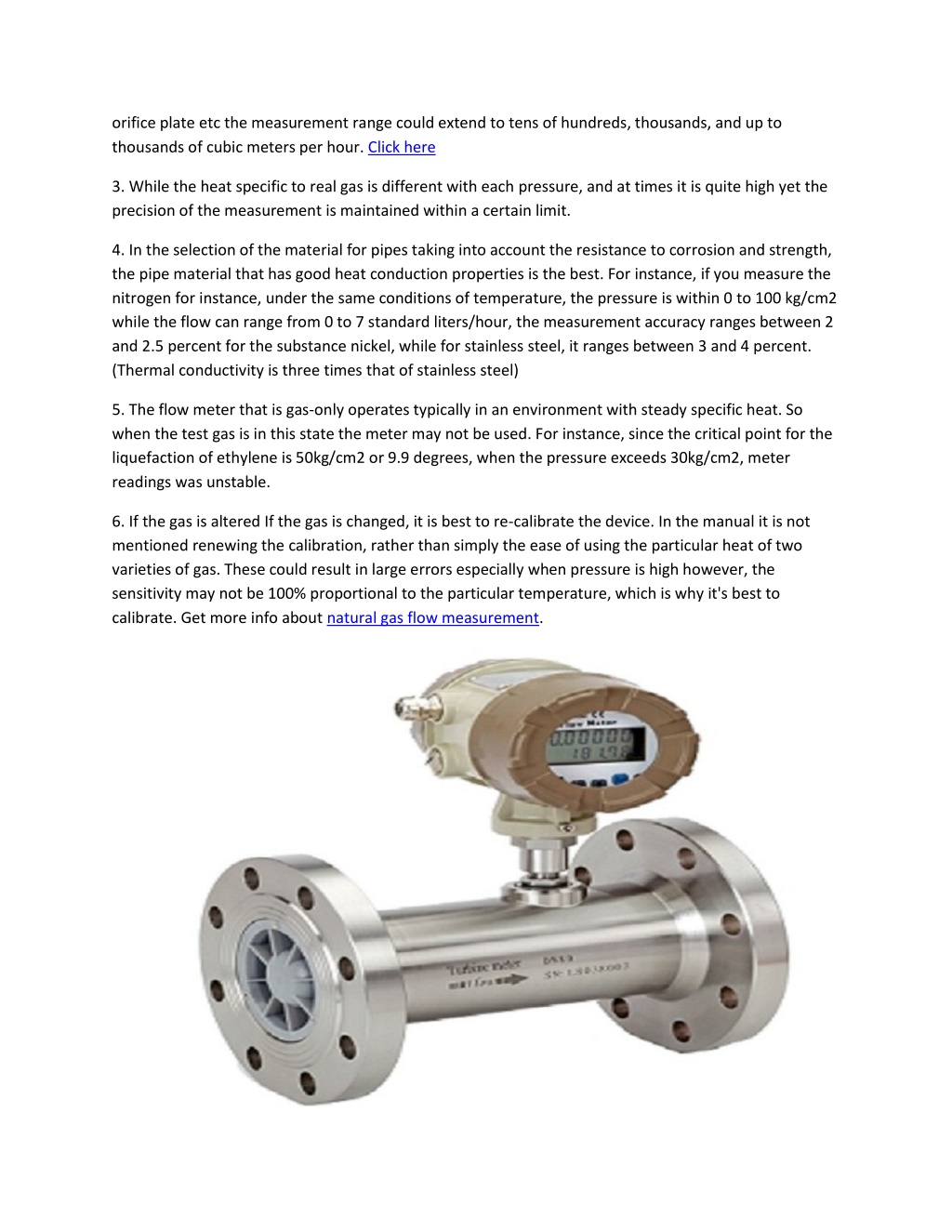

  2. orifice plate etc the measurement range could extend to tens of hundreds, thousands, and up to thousands of cubic meters per hour. Click here 3. While the heat specific to real gas is different with each pressure, and at times it is quite high yet the precision of the measurement is maintained within a certain limit. 4. In the selection of the material for pipes taking into account the resistance to corrosion and strength, the pipe material that has good heat conduction properties is the best. For instance, if you measure the nitrogen for instance, under the same conditions of temperature, the pressure is within 0 to 100 kg/cm2 while the flow can range from 0 to 7 standard liters/hour, the measurement accuracy ranges between 2 and 2.5 percent for the substance nickel, while for stainless steel, it ranges between 3 and 4 percent. (Thermal conductivity is three times that of stainless steel) 5. The flow meter that is gas-only operates typically in an environment with steady specific heat. So when the test gas is in this state the meter may not be used. For instance, since the critical point for the liquefaction of ethylene is 50kg/cm2 or 9.9 degrees, when the pressure exceeds 30kg/cm2, meter readings was unstable. 6. If the gas is altered If the gas is changed, it is best to re-calibrate the device. In the manual it is not mentioned renewing the calibration, rather than simply the ease of using the particular heat of two varieties of gas. These could result in large errors especially when pressure is high however, the sensitivity may not be 100% proportional to the particular temperature, which is why it's best to calibrate. Get more info about natural gas flow measurement.

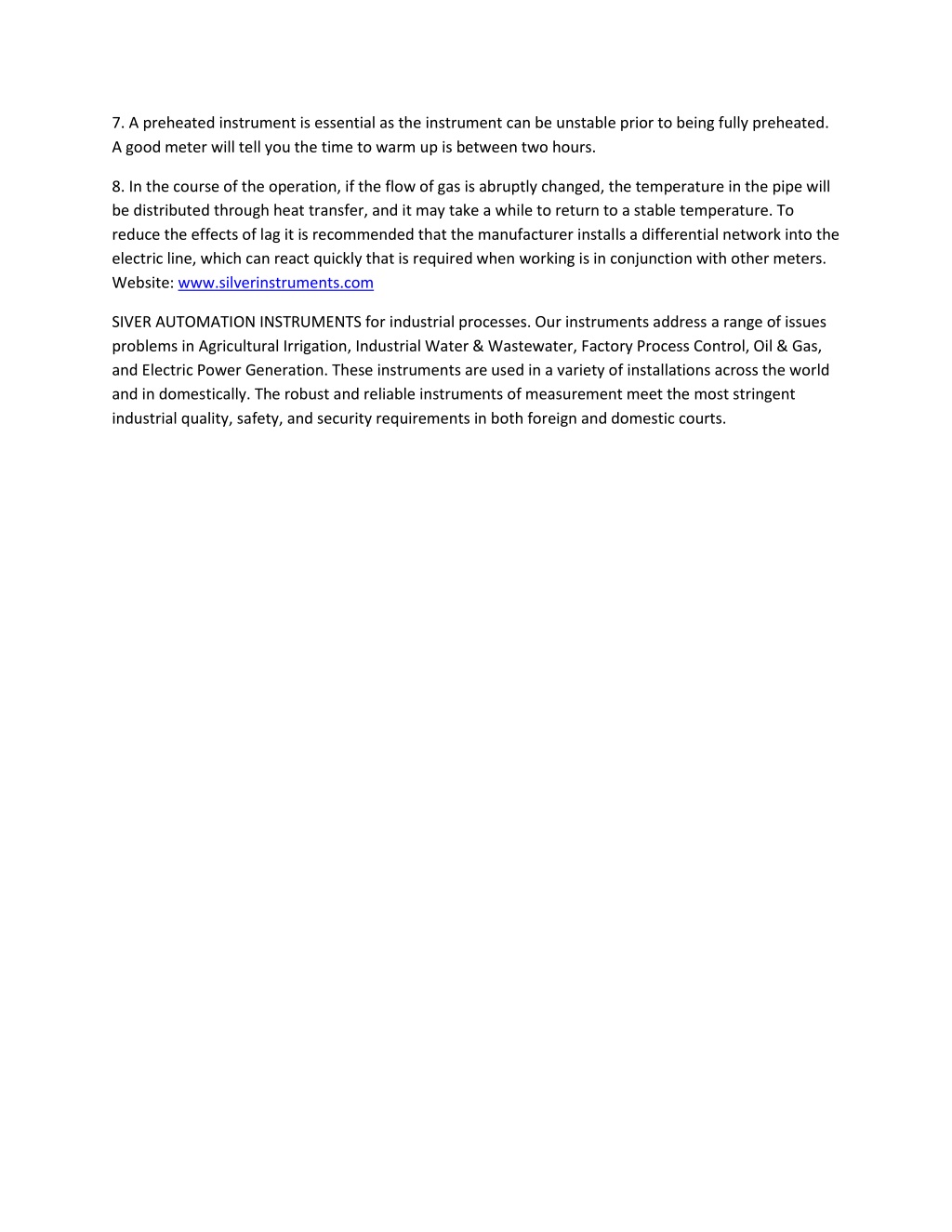

  3. 7. A preheated instrument is essential as the instrument can be unstable prior to being fully preheated. A good meter will tell you the time to warm up is between two hours. 8. In the course of the operation, if the flow of gas is abruptly changed, the temperature in the pipe will be distributed through heat transfer, and it may take a while to return to a stable temperature. To reduce the effects of lag it is recommended that the manufacturer installs a differential network into the electric line, which can react quickly that is required when working is in conjunction with other meters. Website: www.silverinstruments.com SIVER AUTOMATION INSTRUMENTS for industrial processes. Our instruments address a range of issues problems in Agricultural Irrigation, Industrial Water & Wastewater, Factory Process Control, Oil & Gas, and Electric Power Generation. These instruments are used in a variety of installations across the world and in domestically. The robust and reliable instruments of measurement meet the most stringent industrial quality, safety, and security requirements in both foreign and domestic courts.
