Swing barrier gate turnstile

A swing barrier gate turnstile is a type of access control device commonly used in security systems to manage the flow of people through a physical barrier. It is often employed in areas where controlled entry and exit are necessary, such as in public transportation facilities, office buildings, stadiums, and other secure environments.

Siddharth28
Download Presentation

Swing barrier gate turnstile

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

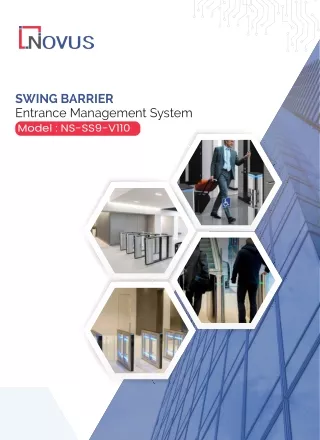

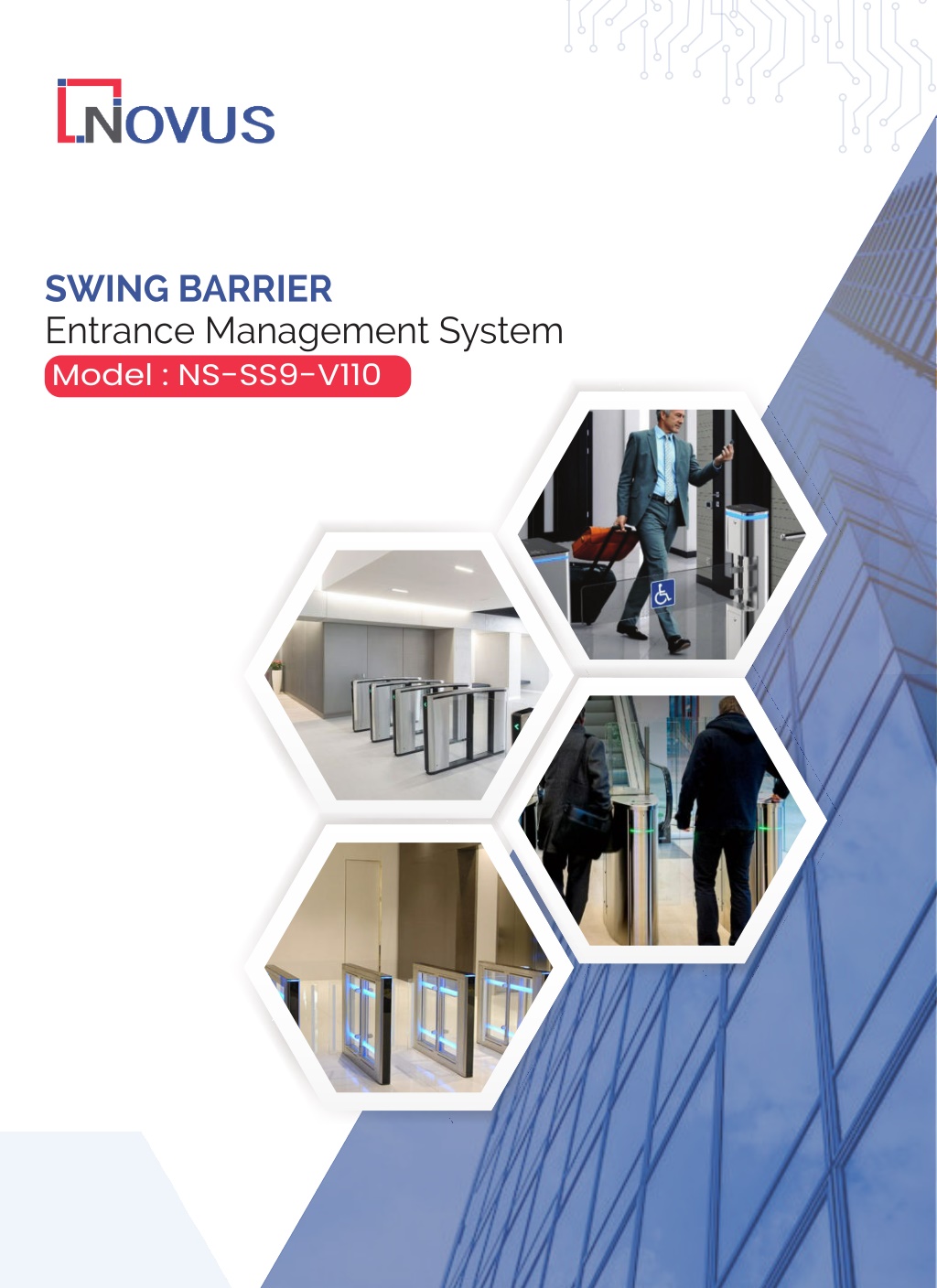

  1. SWING BARRIER Entrance Management System Model : NS-SS9-V110

  2. Swing Turnstile NS-SS9-V110 Overview We provide a Swing Turnstile that uses a swinging barrier to manage pedestrian entry. It has got seamless surface finish and enchanting ance, making it one of the most sought-after products in the marketplace. Swing Turn- stile is commonly used in vari- ous areas, including office buildings, public stations, cor- porate offices, and among others appear- ???????? ???????? Active infrared detectors prevent unauthorized access. Supports both single and bi-directional passage Stainless steel build ensures long-term performance. LED displays guide users with clear direction. Adjustable width for diverse access needs. Brushless motor and Anti-collision Integrated Mechanism Compact Dimensions of for space optimization. 600mm (≤1200mm optional) for flexibility. Durable SUS 304 with precise thickness. Driven by powerful Brushless DC Motor. Rapid 0.2s response ensures efficient throughput 4 pairs of active infrared detectors enhance security www.novusapl.com 01

  3. Technical Specifications Product Size 1200*280*960mm Material SUS 304 stainless steel Material Thickness Top:1.2mm+body1.0mm Pass Width 600mm (≤1200mm optional) Passage Direction Single directional / Bi-directional Throughput Rate 30p/m Reaction Time Acoustic Alarm 0.2S Buzzer Alarm LED Single/ Triple color LED (optional) Driving Voltage DC24V 6.25A Power Input AC110~220V±10% -20~+70 C 4 pairs of active infrared intrusion detector Brushless DC Motor Brushless Anti-collision Integrated Mechanism Supercapacitor (12V/3A) LED direction indication 60 kg Working Temperature Sensor Motor Mechanism Back up power Indication Weight IP Rating MCBF Tourque motor 44 6 + Million Higher Disclaimer: Brief product specifications are mentioned, that may change without prior notice, please check with OEM before purchase. Images are shown for reference only; the actual product may differ due to product enhancement. www.novusapl.com 02
