Know more on Drum Flaker Surface Material, Manufacturing Process and applications

It is a continuous process to cool an incoming molten product by applying it in a thin layer to a revolving Drum on which the material cools, Solidifies and is flaked. Cooling Drum Flakers are utilized in food, chemical, environmental, and pharmaceutical applications for products such as acetic acid, calcium chloride, caustic soda, edible oils, fatty acids, polyethylene glycol, steric acid, waxes and zinc stearate.<br>

Shweta47
Download Presentation

Know more on Drum Flaker Surface Material, Manufacturing Process and applications

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

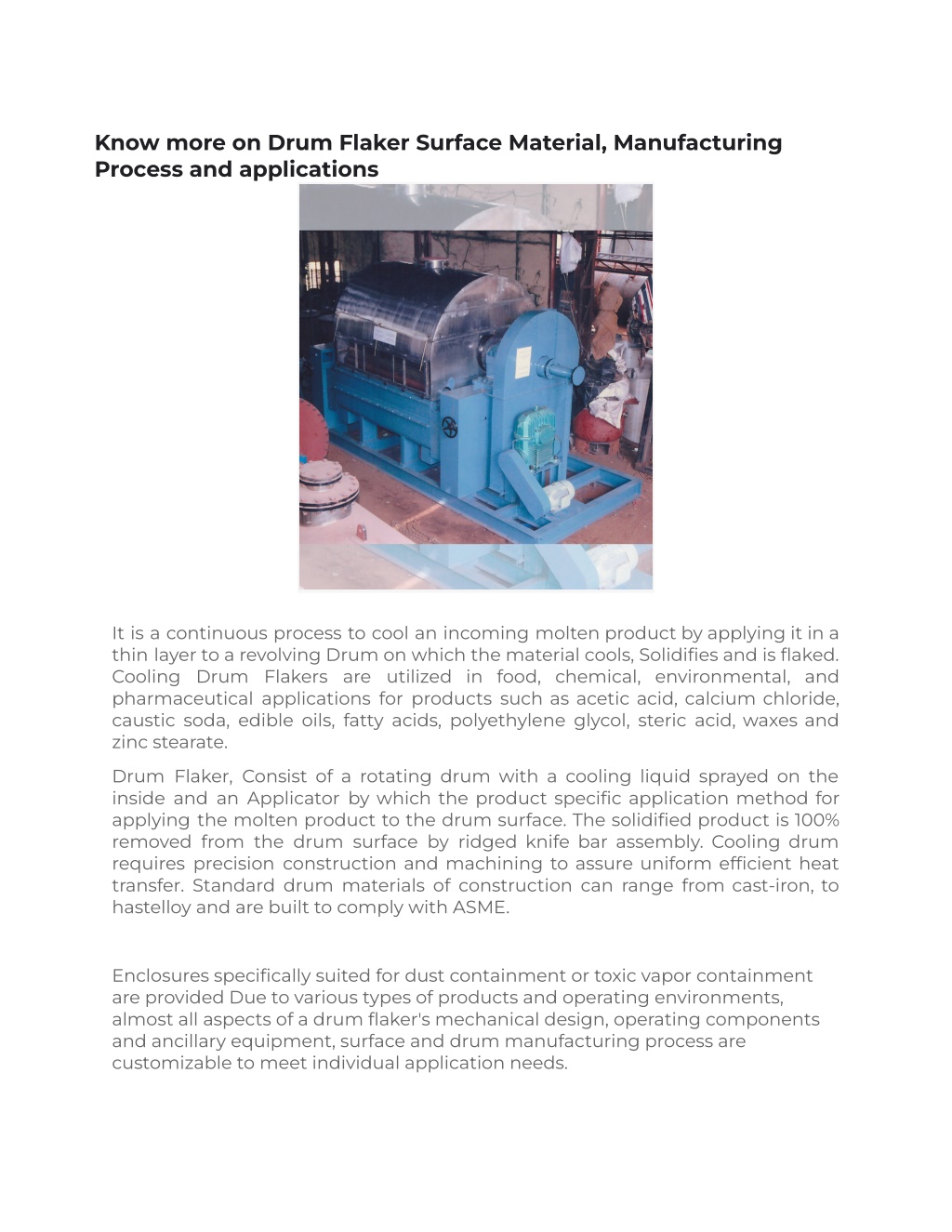

  1. Know more on Drum Flaker Surface Material, Manufacturing Process and applications It is a continuous process to cool an incoming molten product by applying it in a thin layer to a revolving Drum on which the material cools, Solidifies and is flaked. Cooling Drum Flakers are utilized in food, chemical, environmental, and pharmaceutical applications for products such as acetic acid, calcium chloride, caustic soda, edible oils, fatty acids, polyethylene glycol, steric acid, waxes and zinc stearate. Drum Flaker, Consist of a rotating drum with a cooling liquid sprayed on the inside and an Applicator by which the product specific application method for applying the molten product to the drum surface. The solidified product is 100% removed from the drum surface by ridged knife bar assembly. Cooling drum requires precision construction and machining to assure uniform efficient heat transfer. Standard drum materials of construction can range from cast-iron, to hastelloy and are built to comply with ASME. Enclosures specifically suited for dust containment or toxic vapor containment are provided Due to various types of products and operating environments, almost all aspects of a drum flaker's mechanical design, operating components and ancillary equipment, surface and drum manufacturing process are customizable to meet individual application needs.

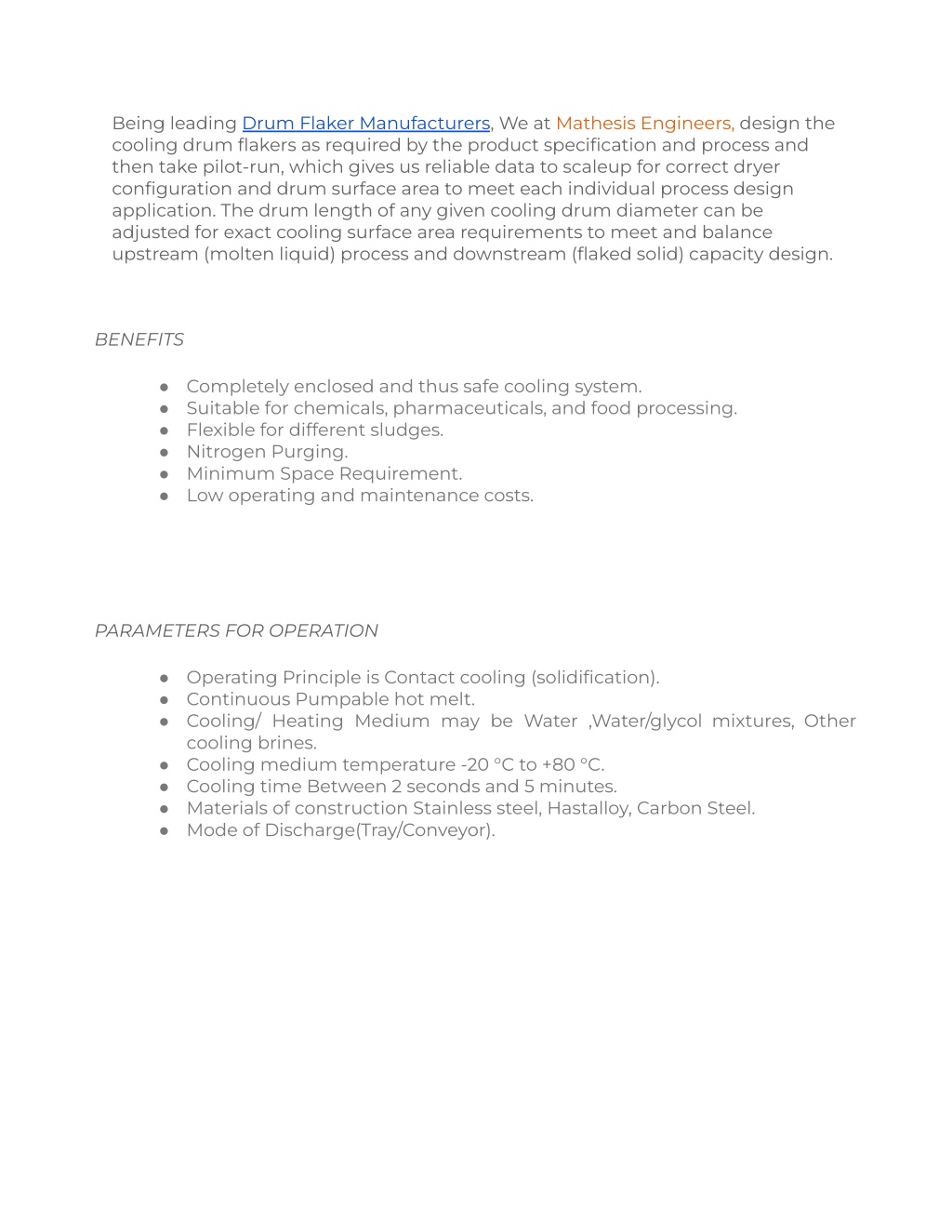

  2. Being leading Drum Flaker Manufacturers, We at Mathesis Engineers, design the cooling drum flakers as required by the product specification and process and then take pilot-run, which gives us reliable data to scaleup for correct dryer configuration and drum surface area to meet each individual process design application. The drum length of any given cooling drum diameter can be adjusted for exact cooling surface area requirements to meet and balance upstream (molten liquid) process and downstream (flaked solid) capacity design. BENEFITS Completely enclosed and thus safe cooling system. Suitable for chemicals, pharmaceuticals, and food processing. Flexible for different sludges. Nitrogen Purging. Minimum Space Requirement. Low operating and maintenance costs. ● ● ● ● ● ● PARAMETERS FOR OPERATION Operating Principle is Contact cooling (solidification). Continuous Pumpable hot melt. Cooling/ Heating Medium may be Water ,Water/glycol mixtures, Other cooling brines. Cooling medium temperature -20 °C to +80 °C. Cooling time Between 2 seconds and 5 minutes. Materials of construction Stainless steel, Hastalloy, Carbon Steel. Mode of Discharge(Tray/Conveyor). ● ● ● ● ● ● ●
