Know about Drum Flakers, design, capacity, working principle

Molten material is solidified with flakers. The material is further treated or packed into containers for shipment after being processed on flakers and forming films or easily handled flakes. The fact that flakers provide a continuous process is a major benefit. Direct immersion into a trough or indirect immersion utilizing doctor/applicator rollers are both used to apply the hot material to the cooling drum. After a partial revolution, the cooling drum removes the solidified and cooled product in the form of flakes or film from the molten liquid.<br>

Shweta47
Download Presentation

Know about Drum Flakers, design, capacity, working principle

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

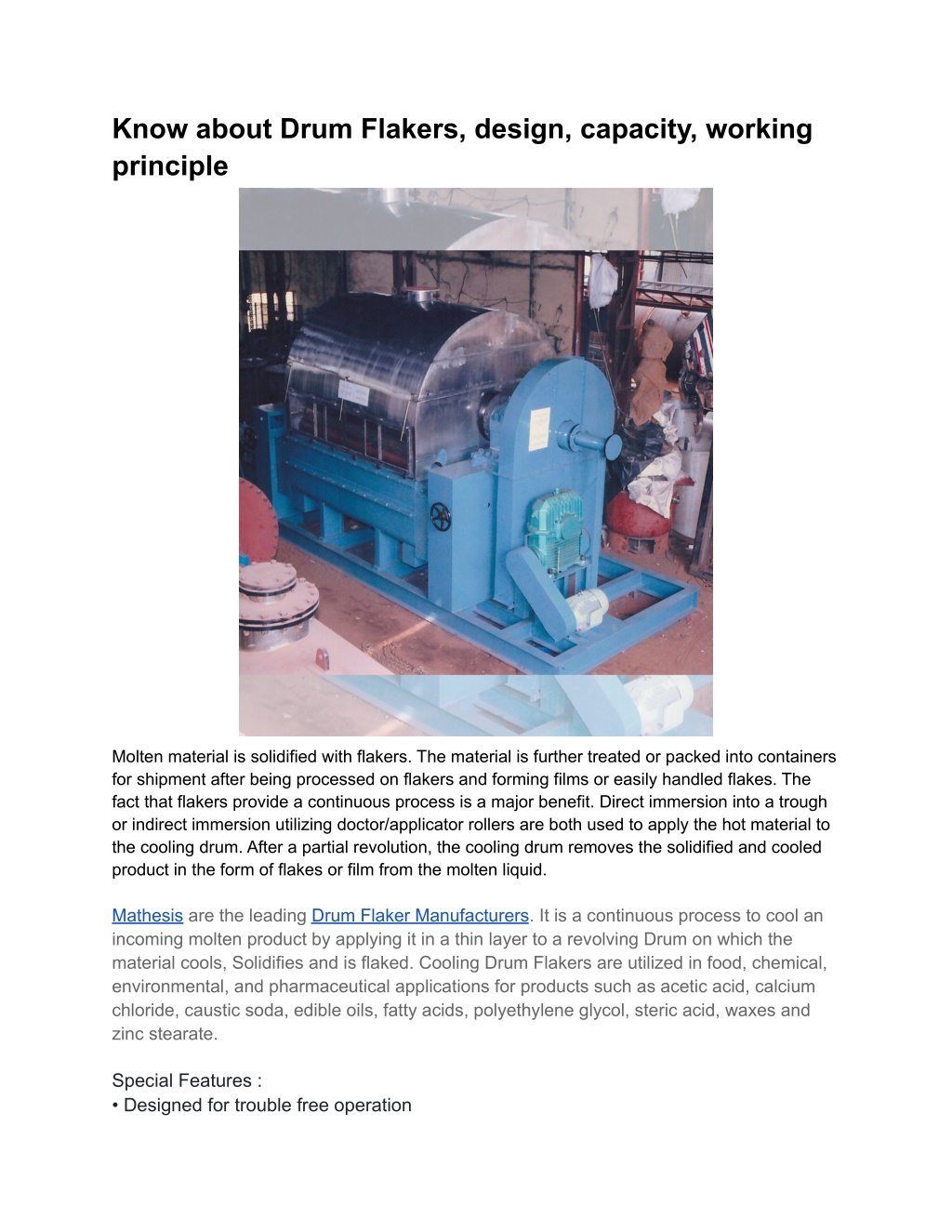

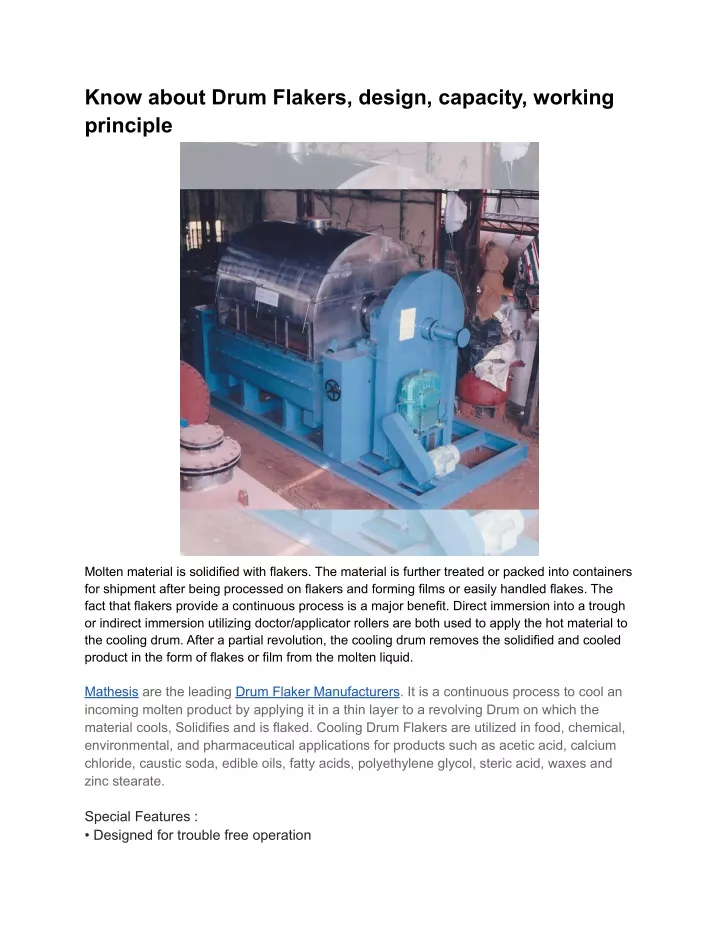

  1. Know about Drum Flakers, design, capacity, working principle Molten material is solidified with flakers. The material is further treated or packed into containers for shipment after being processed on flakers and forming films or easily handled flakes. The fact that flakers provide a continuous process is a major benefit. Direct immersion into a trough or indirect immersion utilizing doctor/applicator rollers are both used to apply the hot material to the cooling drum. After a partial revolution, the cooling drum removes the solidified and cooled product in the form of flakes or film from the molten liquid. Mathesis are the leading Drum Flaker Manufacturers. It is a continuous process to cool an incoming molten product by applying it in a thin layer to a revolving Drum on which the material cools, Solidifies and is flaked. Cooling Drum Flakers are utilized in food, chemical, environmental, and pharmaceutical applications for products such as acetic acid, calcium chloride, caustic soda, edible oils, fatty acids, polyethylene glycol, steric acid, waxes and zinc stearate. Special Features : • Designed for trouble free operation

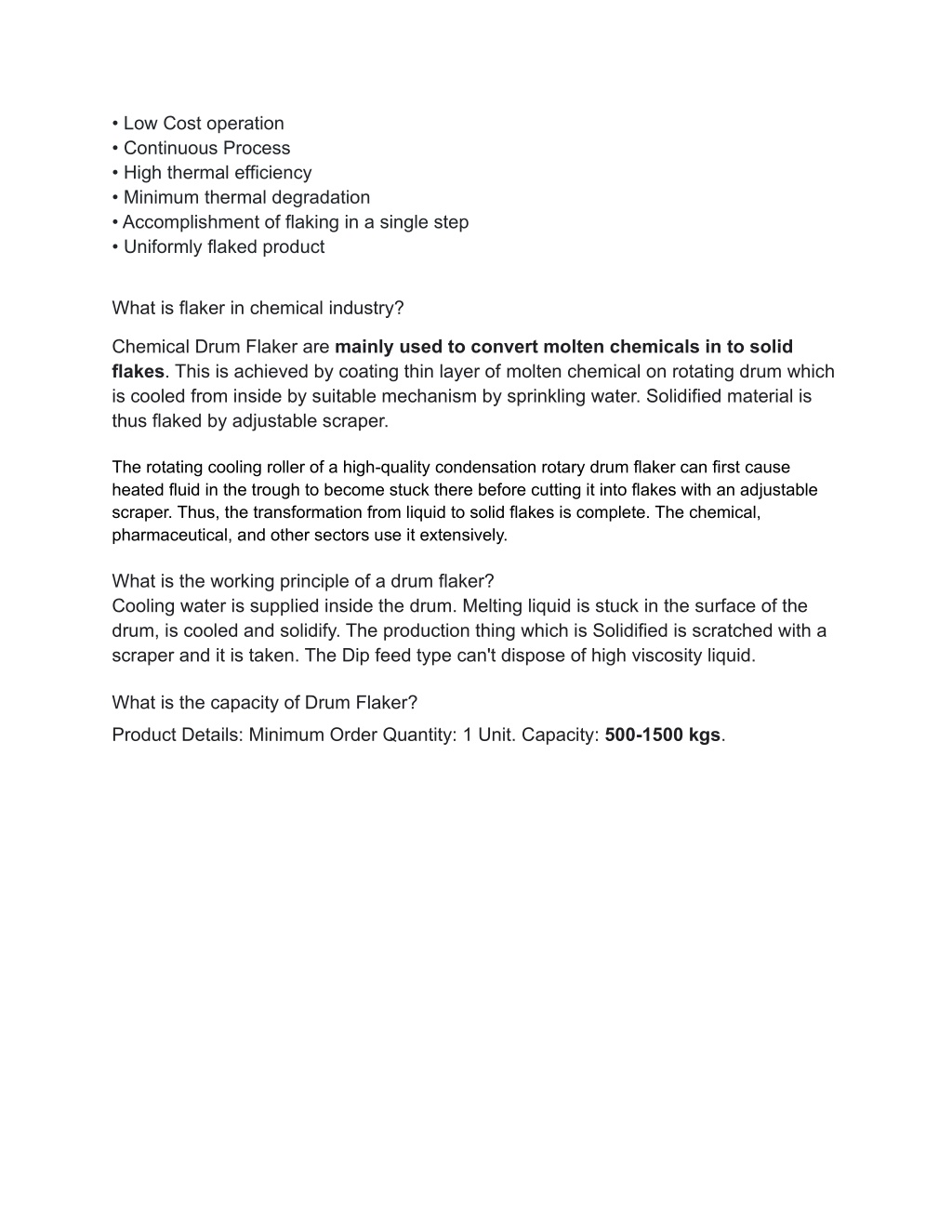

  2. • Low Cost operation • Continuous Process • High thermal efficiency • Minimum thermal degradation • Accomplishment of flaking in a single step • Uniformly flaked product What is flaker in chemical industry? Chemical Drum Flaker are mainly used to convert molten chemicals in to solid flakes. This is achieved by coating thin layer of molten chemical on rotating drum which is cooled from inside by suitable mechanism by sprinkling water. Solidified material is thus flaked by adjustable scraper. The rotating cooling roller of a high-quality condensation rotary drum flaker can first cause heated fluid in the trough to become stuck there before cutting it into flakes with an adjustable scraper. Thus, the transformation from liquid to solid flakes is complete. The chemical, pharmaceutical, and other sectors use it extensively. What is the working principle of a drum flaker? Cooling water is supplied inside the drum. Melting liquid is stuck in the surface of the drum, is cooled and solidify. The production thing which is Solidified is scratched with a scraper and it is taken. The Dip feed type can't dispose of high viscosity liquid. What is the capacity of Drum Flaker? Product Details: Minimum Order Quantity: 1 Unit. Capacity: 500-1500 kgs.
