LL-CV Series offers customizable LED lighting for vertical farms, tissue culture, and fluorescent retrofits. Mix-and-match spectra, dimmable controls, and IP66 waterproofing ensure optimal illumination and efficiency for any cultivation setup. Explore seamless integration today! To know more visit: https://www.valoya.com/ll-cv-series/
E N D

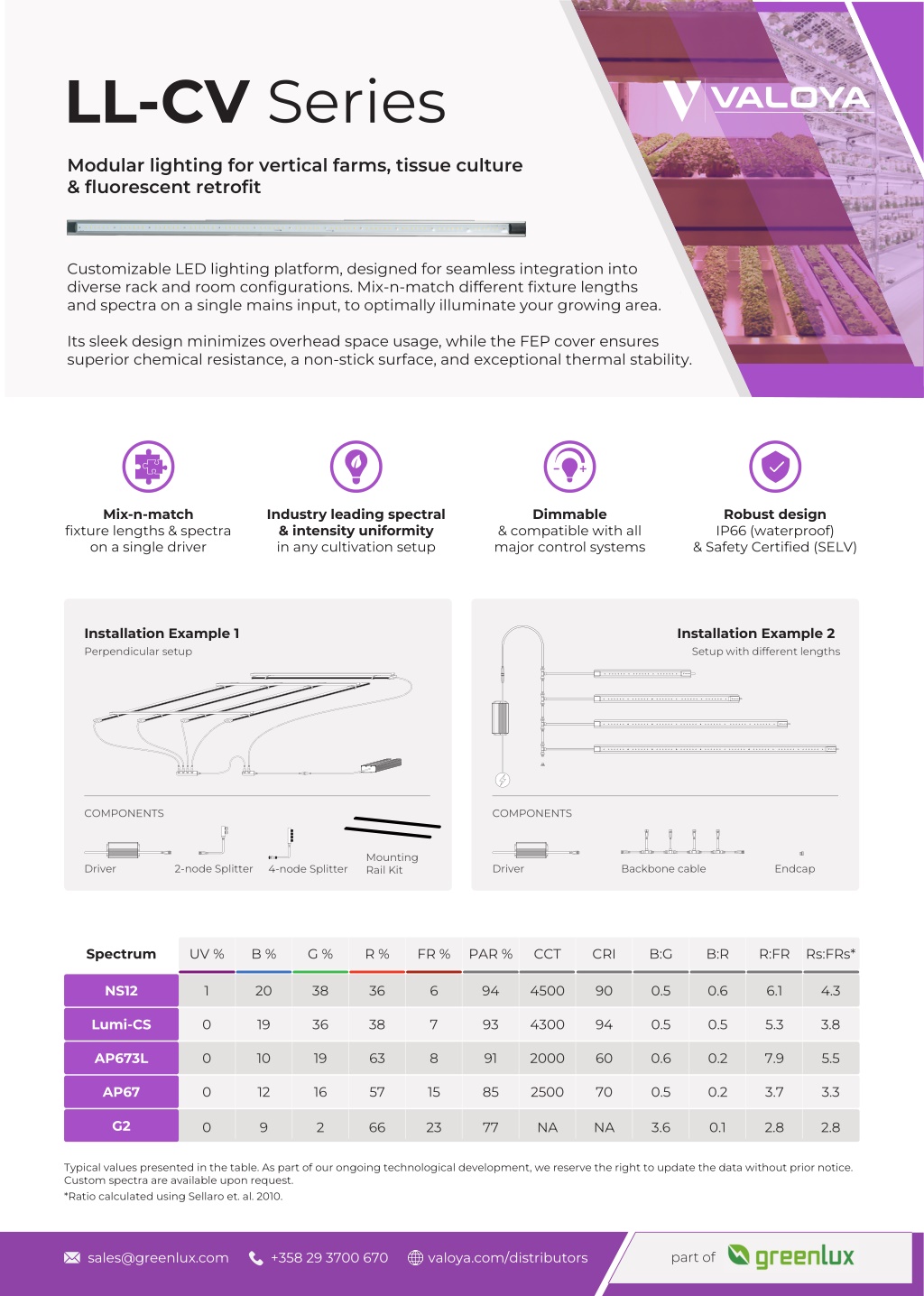

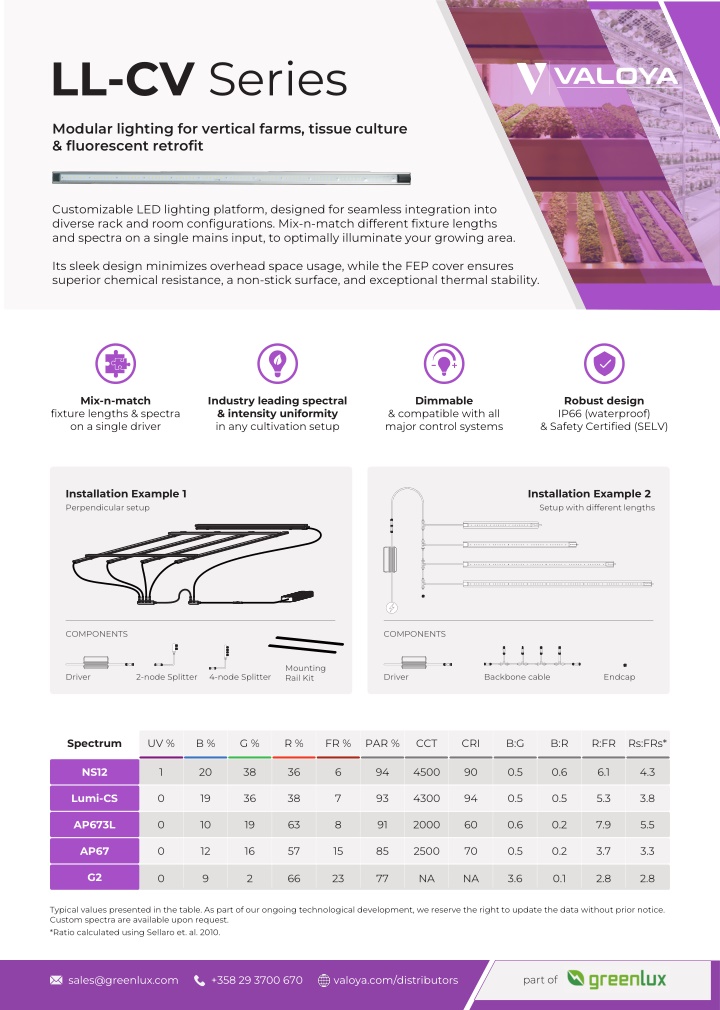

LL-CV Series Modular lighting for vertical farms, tissue culture & fluorescent retrofit Customizable LED lighting platform, designed for seamless integration into diverse rack and room configurations. Mix-n-match different fixture lengths and spectra on a single mains input, to optimally illuminate your growing area. Its sleek design minimizes overhead space usage, while the FEP cover ensures superior chemical resistance, a non-stick surface, and exceptional thermal stability. Mix-n-match fixture lengths & spectra on a single driver Industry leading spectral & intensity uniformity in any cultivation setup Dimmable & compatible with all major control systems Robust design IP66 (waterproof) & Safety Certified (SELV) Installation Example 1 Perpendicular setup Installation Example 2 Setup with different lengths COMPONENTS COMPONENTS Mounting Rail Kit Driver 2-node Splitter Driver Backbone cable Endcap 4-node Splitter Spectrum UV % B % G % R % FR % PAR % CCT CRI B:G B:R R:FR Rs:FRs* NS12 1 20 38 36 6 94 4500 90 0.5 0.6 6.1 4.3 Lumi-CS 0 19 36 38 7 93 4300 94 0.5 0.5 5.3 3.8 AP673L 0 10 19 63 8 91 2000 60 0.6 0.2 7.9 5.5 AP67 0 12 16 57 15 85 2500 70 0.5 0.2 3.7 3.3 G2 0 9 2 66 23 77 NA NA 3.6 0.1 2.8 2.8 Typical values presented in the table. As part of our ongoing technological development, we reserve the right to update the data without prior notice. Custom spectra are available upon request. *Ratio calculated using Sellaro et. al. 2010. part of sales@greenlux.com +358 29 3700 670 valoya.com/distributors

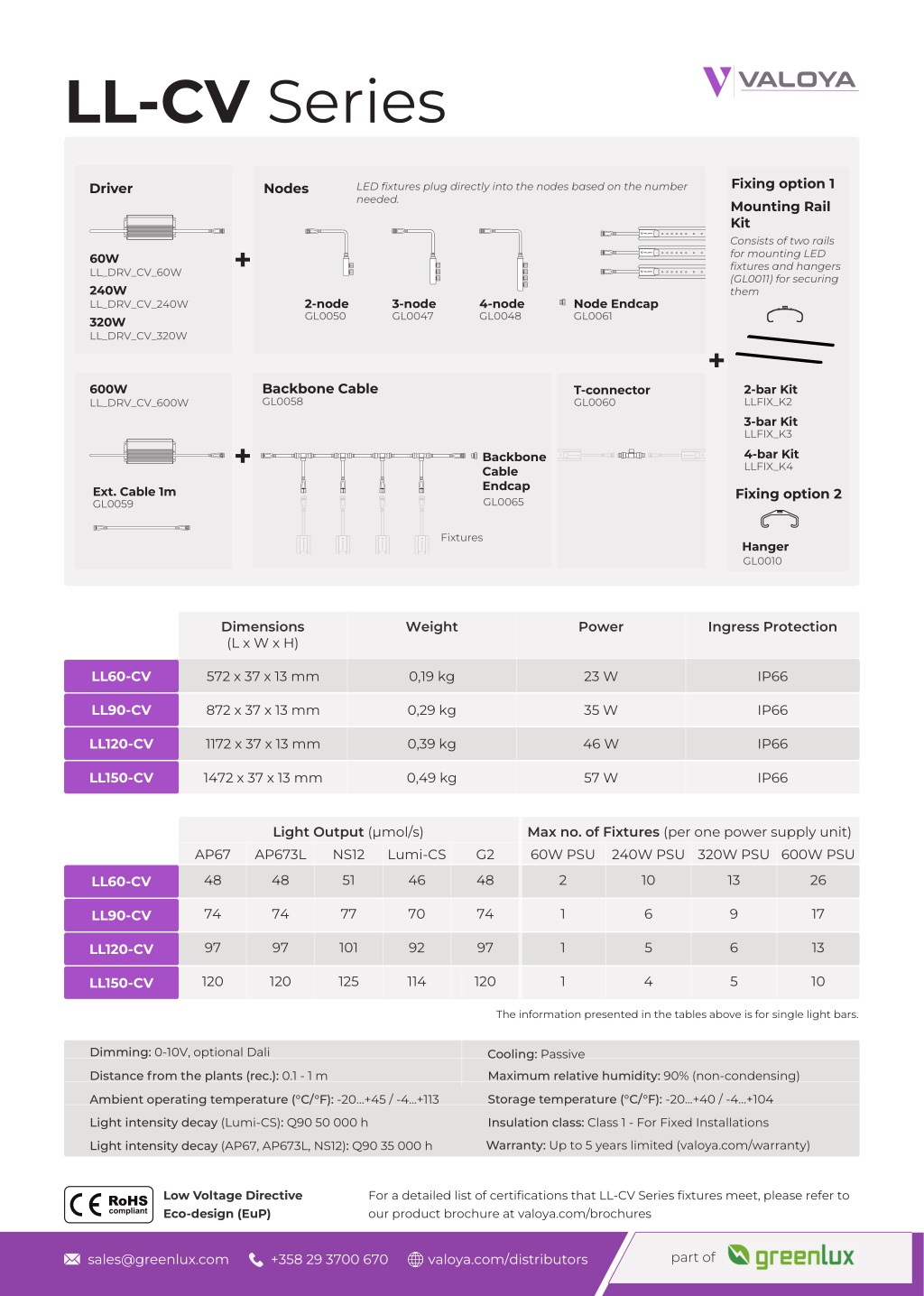

LL-CV Series Fixing option 1 Driver Nodes LED fixtures plug directly into the nodes based on the number needed. Mounting Rail Kit Consists of two rails for mounting LED fixtures and hangers (GL0011) for securing them + 60W LL_DRV_CV_60W 240W LL_DRV_CV_240W 2-node GL0050 3-node GL0047 4-node GL0048 Node Endcap GL0061 320W LL_DRV_CV_320W + Backbone Cable 600W LL_DRV_CV_600W 2-bar Kit LLFIX_K2 T-connector GL0060 GL0058 3-bar Kit LLFIX_K3 + 4-bar Kit LLFIX_K4 Backbone Cable Endcap GL0065 Ext. Cable 1m GL0059 Fixing option 2 Fixtures Hanger GL0010 Dimensions (L x W x H) Weight Power Ingress Protection LL60-CV 572 x 37 x 13 mm 0,19 kg 23 W IP66 LL90-CV 872 x 37 x 13 mm 0,29 kg 35 W IP66 LL120-CV 1172 x 37 x 13 mm 0,39 kg 46 W IP66 LL150-CV 1472 x 37 x 13 mm 0,49 kg 57 W IP66 Light Output (µmol/s) AP673L NS12 Max no. of Fixtures (per one power supply unit) 60W PSU 240W PSU AP67 Lumi-CS G2 320W PSU 600W PSU 48 48 51 46 48 2 10 13 26 LL60-CV 74 74 77 70 74 1 6 9 17 LL90-CV 97 97 101 92 97 1 5 6 13 LL120-CV 120 120 125 114 120 1 4 5 10 LL150-CV The information presented in the tables above is for single light bars. Dimming: 0-10V, optional Dali Cooling: Passive Distance from the plants (rec.): 0.1 - 1 m Maximum relative humidity: 90% (non-condensing) Storage temperature (°C/°F): -20...+40 / -4…+104 Ambient operating temperature (°C/°F): -20…+45 / -4…+113 Light intensity decay (Lumi-CS): Q90 50 000 h Insulation class: Class 1 - For Fixed Installations Warranty: Up to 5 years limited (valoya.com/warranty) Light intensity decay (AP67, AP673L, NS12): Q90 35 000 h Low Voltage Directive Eco-design (EuP) For a detailed list of certifications that LL-CV Series fixtures meet, please refer to our product brochure at valoya.com/brochures part of sales@greenlux.com +358 29 3700 670 valoya.com/distributors
