oracle tricks and techniques in supporting systems administration

Oracle Tricks and Techniques in Supporting Systems Administration

Jon Finke

Rensselaer Polytechnic Institute

SANS 2000

introduction
Introduction
  • NOT how to be a Database Administrator
  • Why use Oracle (or other RDBMS)
    • Automation
    • Data Management
    • Access Control
    • Build in Business Rules
    • Auditing
    • Date Handling

Jon Finke - SANS 2000

slide3

Information Flow

  • HR
  • Department
  • Classification
  • Account Maint
  • Disk Volumes
  • Kerberos ID
  • DCE Principles
  • Registrar
  • Major
  • Level
  • People
  • Name
  • Class/Status
  • Address
  • Unix Accounts
  • Uid, Gid, etc
  • Status, Expiration
  • Alumni Dev
  • Grad Year
  • ID Office
  • Sponsor
  • Status/Expiration
  • Directories
  • PH, LDAP
  • Phone Book

/etc/passwd

Jon Finke - SANS 2000

overview
Overview
  • Relational Database Design
  • Access Control
  • Database Views
  • Data Propagation
  • Stored Procedures and Packages
  • Database Triggers
  • Oracle Signals and Pipes
  • Web Interfaces

Jon Finke - SANS 2000

simon
SIMON
  • Creates and Expires user accounts at RPI
  • Tools to maintain system files
    • passwd, group, hosts, aliases, printcap
  • Accounting/Billing
    • Printing, Disk, Contract work
  • Directory Services
    • Phone Book, ph, ldap, finger

Jon Finke - SANS 2000

simple relations
Simple Relations
  • Goal: /etc/passwd
    • Maintain Login Information
    • Supporting Information
  • Goal: /etc/group
    • Maintain Group Information
    • Maintain Group Membership
  • How to REALLY do it.

Jon Finke - SANS 2000

etc passwd
/etc/passwd

root:*:0:0:Mr Big:/bin/sh:/

finkej:*:123:40:Jon Finke:/bin/sh:/home/finkej

doylel:*:125:40:Lori Doyle:/bin/sh:/home/doylel

  • Username and Password
  • Uid and Gid
  • Finger Name
  • Shell
  • Home Directory Path

Jon Finke - SANS 2000

database tables
Database Tables
  • Table and Owner Name
  • Table Space
  • Grants (ACLs)
  • Comments
  • Columns
    • Data Type
    • Data Length
    • Indexes

Jon Finke - SANS 2000

logins table
LOGINS Table

Jon Finke - SANS 2000

slide10
SQL

SELECT column1, column2, …

FROM table1, …

WHERE condition 1

ORDER BY column...

Jon Finke - SANS 2000

generate etc passwd
Generate /etc/passwd

Declare

Cursor Get_PW is

Select Username, Unixuid, Unixgid, PWHash, Gecos,

Shell, Path

from Logins

order by Unixuid;

Begin

For PW in Get_PW loop

putline(PW.Username || ‘:’ || PW.PWHash || ‘:’ ||

PW.Unixuid || ‘:’ || PW.UnixGid || ‘:’ ||

PW.Gecos || ‘:’ || PW.Path || ‘:’ ||

PW.Shell);

end loop;

End;

Jon Finke - SANS 2000

logins extended
Logins Extended
  • Owner
  • Initial Password
  • Account Type
  • Budget
  • Expire Date
  • Mail Delivery
  • Change Propagation

Jon Finke - SANS 2000

logins table13
LOGINS Table

Jon Finke - SANS 2000

etc group
/etc/group

wheel:*:0:

user:*:40:

staff:*:60:finkej

catowner:*:80:finkej,doylel

  • Group Name
  • Group ID
  • Password
  • Member list

Jon Finke - SANS 2000

group problems
Group Problems
  • Groups with more than one user.
  • Users in more than one group.
  • Allow for username changes.
  • Platform and Host specific groups.
  • Automatically remove expired users.

Jon Finke - SANS 2000

group table
GROUP Table

Jon Finke - SANS 2000

group members table
GROUP_MEMBERS Table

Jon Finke - SANS 2000

group relations
Group Relations

Groups

user - 40

Logins

root - 0

Group_Members

60 - 123

Groups

staff - 60

Logins

finkej - 123

Group_Members

60 - 123

Groups

catowner - 80

Group_Members

80 - 125

Logins

doylel - 125

Groups

wheel - 0

wheel:*:0:

user:*:40:

staff:*:60:finkej

catowner:*:80:finkej,doylel

root:*:0:0:Mr Big:/bin/sh:/

finkej:*:123:40:Jon Finke:/bin/sh:/home/finkej

doylel:*:125:40:Lori Doyle:/bin/sh:/home/doylel

Jon Finke - SANS 2000

generate etc group
Generate /etc/group

Declare

Cursor Get_Groups is

Select Group_Name, Group_Id, Group_Index

from Groups order by Group_Id;

Cursor Get_Members (Gindex Number) is

Select L.Username from Logins L, Group_Members GM

where GM.Group_Index = Gindex

and GM.Unixuid = L.Unixuid;

Delim varchar2(1); -- Delimiter between usernames

Begin

For G in Get_Groups loop

DB_Out.put(G.Group_Name || ‘:*:’ || G.Group_Id );

Delim := ‘:’;

For GM in Get_Members(G.Group_Index) loop

DB_Out.put(Delim || GM.Username);

Delim := ‘,’;

end loop;

DB_OUT.new_line;

end loop;

End;

Jon Finke - SANS 2000

slide20
oops…..
  • Uid is a BAD database key
    • Can’t reuse UID space
    • Harder to change a user’s UID
  • Username is too small
    • Kerberos allows longer names

Jon Finke - SANS 2000

access control
Access Control
  • Types of Access
    • Select
    • Update (Table or Column)
    • Insert
    • Delete
    • Reference
    • Index
    • Modify

Jon Finke - SANS 2000

access control22
Access Control
  • Individual
    • grant SELECT on LOGINS to OPS$FINKEJ
  • Group (Role)
    • Create role ID_ADMIN
    • grant select on LOGINS to ID_ADMIN
    • grant ID_ADMIN to OPS$FINKEJ
  • public

Jon Finke - SANS 2000

oracle authentication
Oracle Authentication
  • Oracle ID and Password
  • Operating System Authentication
    • OPS$
  • Advanced Authentication
    • Kerberos
    • SecurID
    • etc

Jon Finke - SANS 2000

views
Views
  • Provides an alternate “window” into existing tables.
  • Looks like a table, but does NOT have any data in it.
  • Can be used to enhance access control.
  • Can provide isolation from table definitions changes.

Jon Finke - SANS 2000

simple view
Simple View

Create view ETC_PASSWD as

SELECT Username, Uid, Gid,

Gecos, ‘/bin/sh’,

’/home/’ || username

FROM LOGINS;

Grant select on ETC_PASSWD to PUBLIC;

Jon Finke - SANS 2000

user view
User View

create view MY_LOGINS as

Select USERNAME, UID, GID, GECOS,

EXPIRE_DATE, MAIL_FWD

from LOGINS

where USERNAME=lower(substr(USER,5))

and substr(USER,1,4)=‘OPS$’;

grant select,update(GECOS,MAIL_FWD)

on MY_LOGINS to public;

Jon Finke - SANS 2000

complex view
Complex View

create view ETC_PASSWD as

Select L.USERNAME, L.UID, L.GID,

L.GECOS, S.SHELL,

‘/home/’ || L.USERNAME

from L.LOGINS, S.SOURCE_INFO

where L.SOURCE = S.SOURCE;

Jon Finke - SANS 2000

data propagation
Data Propagation
  • All NEW entries since “last time”
  • All Changed entries since “last time”
  • Numeric, Date or Flag
  • Brute Force Compare
  • Rollback transactions
  • Fail Safe operations

Jon Finke - SANS 2000

data propagation numeric
Data Propagation: Numeric
  • Ever Increasing Sequence Number
  • Easy to pass numeric values around
  • Easy to compare values in programs
  • Requires supporting tables
  • Internal System Only
    • Numbers are meaningless to humans

Jon Finke - SANS 2000

sequences
Sequences
  • Look like a table
    • CURRVAL
    • NEXTVAL
  • Start and End Points
  • Increment by
  • Cycle

Jon Finke - SANS 2000

using sequences
Using Sequences

Select Transcount.Nextval from Dual

Insert into Logins

(Username, Unixuid, When_Inserted)

Values (‘finkej’, 123, Transcount.Nextval);

Update Groups

set When_Member_Updated = Transcount.Nextval

where Group_Index = 275;

Jon Finke - SANS 2000

find group version
Find GROUP “version”

Select max(Greatest(when_inserted,

when_updated,

when_marked_for_delete,

when_member_updated))

From Groups;

Jon Finke - SANS 2000

get new logins
Get “NEW” logins

Select Last_Done_At

into Start_Val

from Propagations

where Target = ‘LOGINS-ACCOUNTS’;

Select max(When_Inserted)

into End_Val

from Logins;

Select Username, Unixuid

from Logins

where When_Inserted > Start_Val

and When_Inserted <= End_Val;

…..

Update Propagations

set Last_Done_At = End_Val

where Target = ‘LOGINS-ACCOUNTS;

Jon Finke - SANS 2000

data propagation date
Data Propagation: Date
  • Date Representation
    • Y2K Issues
  • Not Unique
    • Smallest Unit
  • Harder to compare inside of applications
  • Interfacing with other data easier

Jon Finke - SANS 2000

between databases
Between Databases

Select Max(Activity_Date)

into Last_Update

from Employees;

Select Emp_Name, Emp_Id, Emp_Act_Date

into Ename, Eid, EAD

from HR.Emp_Table@ADMIN_DB

where Emp_Act_Date >= Activity Date;

Update Employees

set Name = Ename,

When_Updated = transcount.nextval,

Activity_Date = EAD

where HR_Emp_Id = Eid;

Jon Finke - SANS 2000

data propagation flag
Data Propagation: Flag
  • Single downstream function
  • Does not provide ordering
  • Very easy to implement
  • Can be very fast

Jon Finke - SANS 2000

using flags
Using Flags

Declare

Cursor Creation_List is

Select Username, Unixuid, Rowid

from Logins

where Create_Needed = ‘Y’;

Begin

For L in Creation_List loop

Create_Login(L.Username, L.Unixuid);

Update Logins

set Create_Needed = NULL

where Rowid = L.ROWID;

end Loop;

End;

Jon Finke - SANS 2000

brute force compare
Brute Force Compare
  • Needs a Unique Key
  • Requires a full scan of the entire data
  • Helps to load the data into Oracle first.
  • Method of last resort, but often works.

Jon Finke - SANS 2000

rollback
Rollback
  • Changes must be committed
  • or Rolled Back.

Jon Finke - SANS 2000

stored procedures and packages
Stored Procedures and Packages
  • PL/SQL
    • Procedural extension to SQL
  • Simple Procedure or Function
  • Package
    • Set of procedures and functions
    • maintains state
  • Stored and executed by database server

Jon Finke - SANS 2000

pl sql
PL/SQL
  • Variables and Constants
  • SQL built in functions
    • String, Numeric, Date
  • Conditionals
  • Looping Constructs
  • Exception Handling
  • Records

Jon Finke - SANS 2000

add group user
Add_Group_User

Procedure Add_Group_User(Uname in varchar2,

Gname in varchar2) is

U_Uid number; -- Users Uid

Grp_Index number; -- Group identifier

Begin

Select Unixuid into U_Uid

from LOGINS where Username = Uname;

Select Group_Index into Grp_Index

from Groups where Group_Name = Gname;

Insert into Group_Members

(Unixuid, Group_Index, When_Inserted)

Values (U_Uid, Grp_Index, Transcount.Nextval;

Update Groups

set When_Member_Updates = Transcount.Nextval

where Group_Index = Grp_Index;

Exception

When No_Data_Found then

...

End;

Jon Finke - SANS 2000

packages
Packages
  • Package Specification
    • Public Types and Items
    • Procedure and Function Declarations
  • Package Body
    • Private Types and Items
    • Procedure and Function Definitions
    • Initialize Code

Jon Finke - SANS 2000

demo getpwent
Demo.GetPwEnt

Create or Replace Package DEMO as

Procedure GETPWENT(Uname out varchar2, Uid out Number);

end Demo;

Create or Replace Package Body DEMO as

Cursor PW_List is

Select Username, Unixuid

from Logins

order by Unixuid;

Procedure GETPWENT(Uname out varchar2, Uid out Number) is

Begin

if not PW_List%IsOpen then

Open PW_List;

end if;

Fetch PW_List into Uname, Uid;

if Pw_List%Not_Found then

Close Pw_List;

end if;

End GetPwEnt;

End Demo;

Jon Finke - SANS 2000

database triggers
Database Triggers
  • PL/SQL invoked
    • On Insert
    • On Update
    • On Delete
  • Applications can NOT bypass triggers
  • Great for adding business rules, auditing.

Jon Finke - SANS 2000

record login source changes
Record Login.Source Changes

Create or Replace Trigger LOGINS_UPDATE

Before Update of SOURCE,GECOS

on LOGINS for each row

Begin

if :Old.Source != :New.Source

then

:New.Prev_Source := :Old.Source;

Select Sysdate

into :New.Source_Change_Date

from Dual;

end if;

End;

Jon Finke - SANS 2000

oracle signals and pipes
Oracle Signals and Pipes
  • DBMS_ALERT
    • Register, Remove
    • Signal
    • WaitOne, WaitAny
  • DBMS_PIPE
    • Create_Pipe
    • Pack_Message, Send_Message
    • Receive_Message, Unpack_Message
    • Close_Pipe, Purge

Jon Finke - SANS 2000

queue pw change

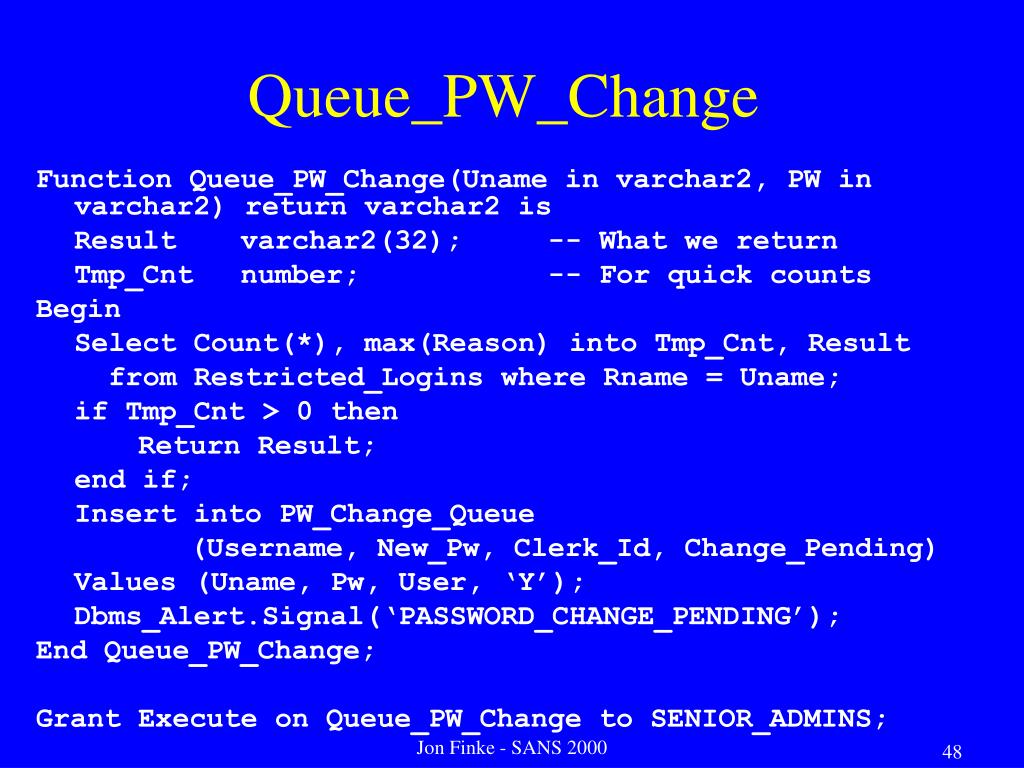

Queue_PW_Change

Function Queue_PW_Change(Uname in varchar2, PW in varchar2) return varchar2 is

Result varchar2(32); -- What we return

Tmp_Cnt number; -- For quick counts

Begin

Select Count(*), max(Reason) into Tmp_Cnt, Result

from Restricted_Logins where Rname = Uname;

if Tmp_Cnt > 0 then

Return Result;

end if;

Insert into PW_Change_Queue

(Username, New_Pw, Clerk_Id, Change_Pending)

Values (Uname, Pw, User, ‘Y’);

Dbms_Alert.Signal(‘PASSWORD_CHANGE_PENDING’);

End Queue_PW_Change;

Grant Execute on Queue_PW_Change to SENIOR_ADMINS;

Jon Finke - SANS 2000

process pw queue
Process_PW_Queue

Function Wait_For_PW_Signal return number is

Result Number;

Message Varchar2(255);

Timeout Number := 3600; -- Cycle every hour

Signal Varchar2(64);

begin

Signal := ‘PASSWORD_CHANGE_PENDING’;

Dbms_Alert.Register(Signal);

Dbms_Alert.Waitone(Signal, Message, Result, Timeout);

Dbms_Alert.Close(Signal);

Return Result;

End Wait_For_Pw_Signal;

Jon Finke - SANS 2000

queue student pw change
Queue_Student_Pw_Change

Function Queue_Student_Pw_Change (Uname in varchar2, PW in varchar2) return varchar2 is

Target_Src varchar2(32);

Begin

Select Source into Target_Source

from Logins Where username = Uname;

if Target_Source != ‘PRIMARY-STU’ then

Return ‘Not Student’;

end if;

Return Get_Pw_Change(Uname, PW);

end Queue_Student_PW_Change;

Grant Execute on Queue_Student_Pw_Change

to STUDENT_ADMINS;

Jon Finke - SANS 2000

web interface
Web Interface
  • Lots of Options and Versions
    • OAS 2, OAS 3, Application Server, etc
    • CGI-BIN + Perl, etc.
  • Different User Models
    • Anonymous Queries/Surveys
    • Self Subscription
    • External Authentication

Jon Finke - SANS 2000

oas 3 packages custom interface
OAS 3 Packages + Custom Interface
  • Oracle Account for every user
  • Kerberos enabled secure web server
    • Apache with Raven, etc.
  • Locally written CGI-BIN interface program
    • Verifies Kerberos and connects to Oracle
    • Loads Selected CGI-BIN variable into package
    • Calls standard entry point
    • Passes results back to browser

Jon Finke - SANS 2000

sisweb package
SISWeb Package
  • Only part granted to public for execution
  • Add_Par(Name, Val);
  • Add_Env(Name, Val);
  • Entry(progname);
  • ShowPage;

Jon Finke - SANS 2000

web support packages
Web Support Packages
  • htp, htf
    • Generate HTML primitives
  • WebSis_Utils
    • Get_Val, Get_Env
    • Get_Gecos
    • Comp_Vals
    • Check_And_Set_Vals
    • Sis_Intro

Jon Finke - SANS 2000

voice mailbox
Voice_Mailbox

Procedure Voice_Mailbox is

Cursor Get_Vm is

Select Mailbox, Password, Name from My_Voice_Mailbox;

Result Get_Vm%RowType;

Tcom varchar2(64) := ‘Tcom@RPI.EDU’;

begin

Websis_Util.Sis_Intro(‘Student Voice Mailbox’);

htp.center(htf.strong(‘Voice Mailbox information for ‘ ||

Websis_Util.Get_Gecos));

Open Get_Vm;

Fetch Get_Vm into Result;

if Get_Vm%NotFound then

htp.strong(‘No voice mailbox found.’);

htp.p(‘Please contact ‘ || htf.mailto(Tcom,Tcom));

return;

end if;

htp.p(‘Your voice mailbox is ‘ || Result.Mailbox);

htp.p(‘ and the password is ‘ || Result.Password);

htp.p(‘For hints on using your voice mail box, );

htp.anchor(‘http://www.rpi.edu/tele/vm.html’,’click here.’);

end Voice_Mailbox;

Jon Finke - SANS 2000

voice mailbox56
Voice Mailbox

Jon Finke - SANS 2000

forward
Forward
  • Check for Changes (SUBMIT)
    • Validate new address
    • Update database
  • Display HTML Form
    • Display current forward values
    • Display appropriate buttons

Jon Finke - SANS 2000

slide58

Procedure Forward is

Uname varchar2(8); Fwd varchar2(80); New_Fwd varchar2(80);

Begin

Websis_Utils.Sis_Intro(‘RCS Username Email Forwarding’);

Select Username,Mail_Delivery

into Uname, Fwd from My_Logins;

htp.center(‘RCS email forwarding for ‘ || Uname || ‘@rpi.edu’);

Sub_Val := Websis_Utils.Get_Val(‘SUBMIT’);

if Sub_Val = ‘Remove Forward’ then

Update My_Logins set Mail_Delivery=Null;

Fwd := Null;

elsif Sub_Val = ‘Set Forward’ then

New_Fwd := Websis_Utils.Get_Val(‘FWD’);

if Validate_Forward(New_Fwd) then

Update My_Logins set Mail_Delivery=New_Fwd;

Fwd := New_Fwd;

end if;

end if;

htp.p(‘Email to ‘ || uname || ‘@rpi.edu is’);

Jon Finke - SANS 2000

slide59

htp.formOpen(‘forward.cgi’);

If Fwd is Null then

htp.p(‘Not currently forwarded. To forward email, enter the destination address in the box below and click the ’);

htp.italic(‘Set Forward’); htp.p(‘ button.’); htp.br;

htp.formText(‘FWD’,80,80);

htp.formSubmit(‘SUBMIT’,’Set Forward’);

else

htp.p(‘being forwarded to ‘ || fwd || ‘,’);

htp.p(‘To change the forward of your email, enter the destination address in the box below and click the ‘);

htp.italic(‘Set Forward’); htp.p(‘ button. To remove the current forward, click the ‘);

htp.italic(‘Remove Forward’); htp.p(‘ button.’); htp.br;

htp.formText(‘FWD’,80,80,fwd);

htp.formSubmit(‘SUBMIT’,’Set Forward’);

htp.formSubmit(‘SUBMIT’,’Remove Forward’);

end if;

htp.formClose;

End Forward;

Jon Finke - SANS 2000

forward window
Forward Window

Jon Finke - SANS 2000

oracle tricks and techniques in supporting systems administration61
Oracle Tricks and Techniques in Supporting Systems Administration

Jon Finke

finkej@rpi.edu

http://www.rpi.edu/~finkej/Papers.html

Jon Finke - SANS 2000
