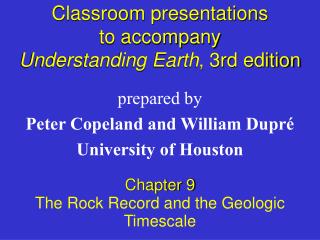

Classroom presentations to accompany Understanding Earth, 3rd edition

prepared by

Peter Copeland and William Dupré

University of Houston

Chapter 9

The Rock Record and the Geologic Timescale


Slide2 l.jpg

Geologic Time

William E. Ferguson


Geologic time l.jpg

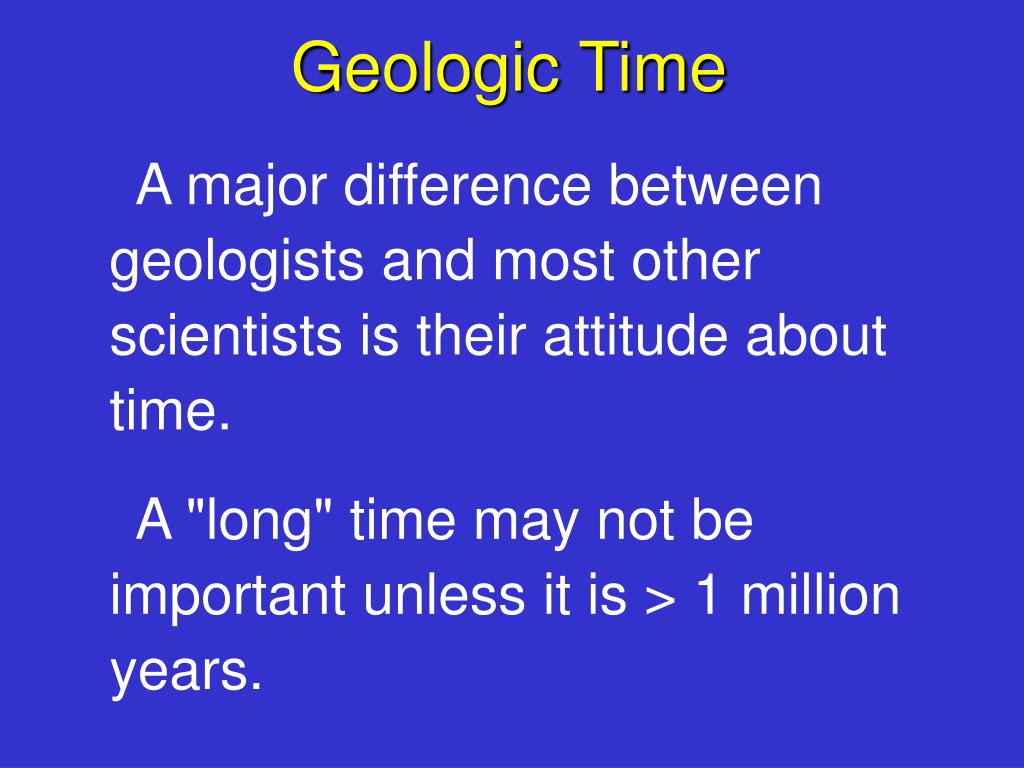

Geologic Time

A major difference between geologists and most other scientists is their attitude about time.

A "long" time may not be important unless it is > 1 million years.


Two ways to date geologic events l.jpg
Two ways to date geologic events

1) relative dating (fossils,

structure)

2) absolute dating (isotopic, tree

rings, etc.)



Some geologic processes can be documented using historical records brown is new land from 1887 1988 l.jpg
Some geologic processes can be documented using historical records(brown is new land from 1887-1988)

Fig. 9.2


Slide7 l.jpg

Ammonite Fossils records

Petrified Wood

Chip Clark

Fig. 9.4

Tom Bean


Steno s laws l.jpg
Steno's Laws records

Nicolaus Steno (1669)

  • Principle of Superposition

  • Principle of Original Horizontality

  • Principle of Lateral Continuity

Laws apply to both sedimentary and volcanic rocks.


Principle of superposition l.jpg

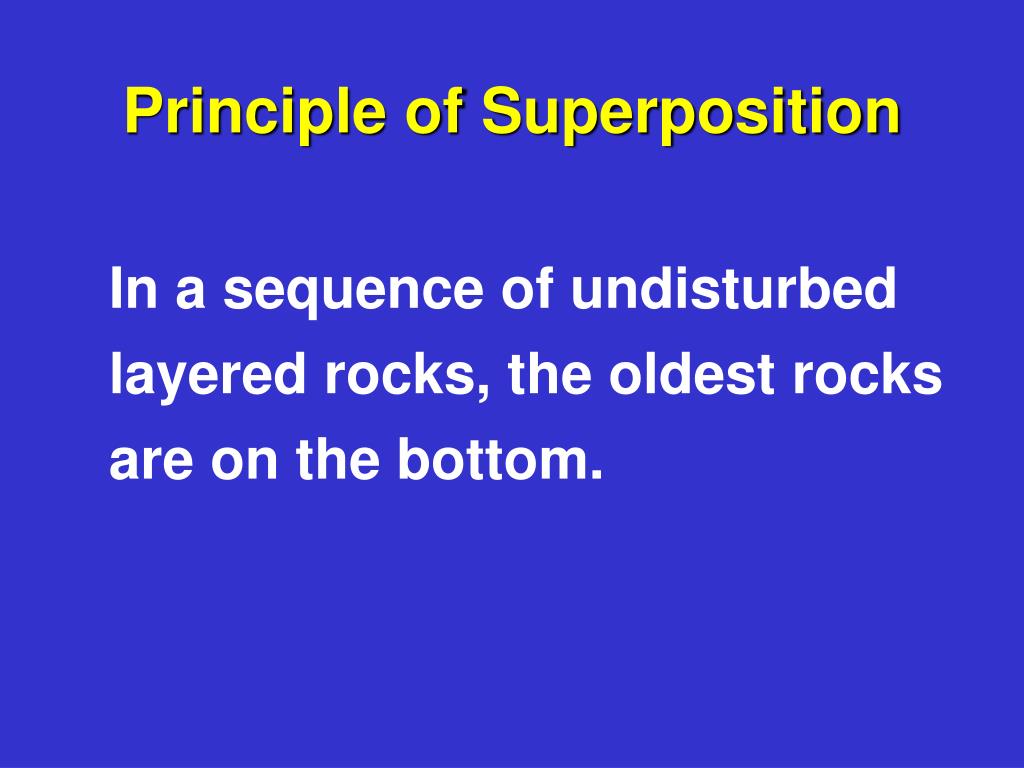

Principle of Superposition records

In a sequence of undisturbed layered rocks, the oldest rocks are on the bottom.


Principle of superposition10 l.jpg

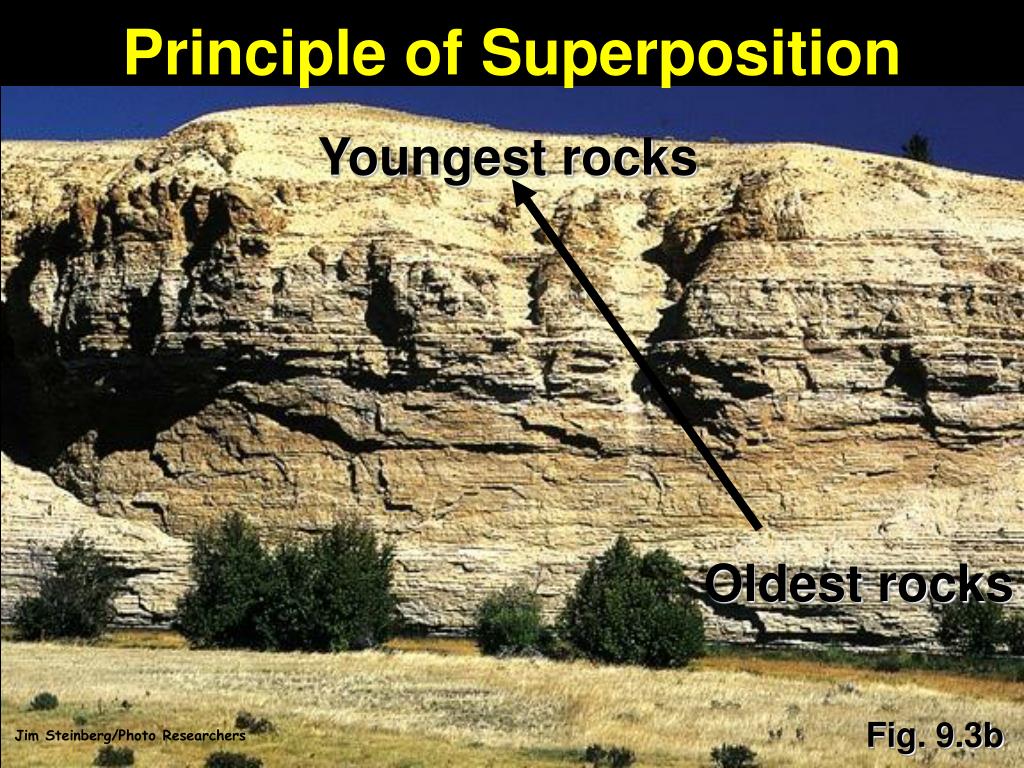

Principle of Superposition records

Youngest rocks

Oldest rocks

Fig. 9.3b

Jim Steinberg/Photo Researchers


Principle of original horizontality l.jpg
Principle of Original Horizontality records

Layered strata are deposited horizontal or nearly horizontal or nearly parallel to the Earth’s surface.



Principle of lateral continuity l.jpg
Principle of Lateral Continuity records

Layered rocks are deposited in continuous contact.






Unconformity l.jpg
Unconformity records

A buried surface of erosion





Subsidence and sedimentation of e over c l.jpg

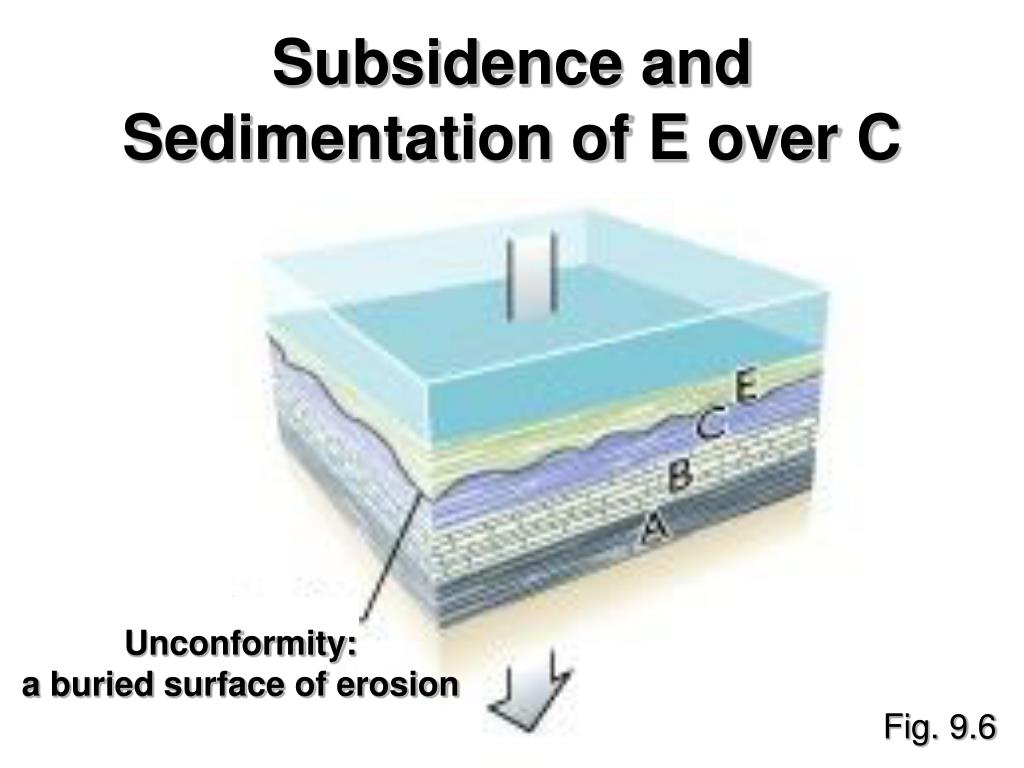

Subsidence and Sedimentation of E over C records

Unconformity:

a buried surface of erosion

Fig. 9.6



Slide24 l.jpg

The Great Unconformity of the Grand Canyon records

Fig. 9.7

Geoscience Features Picture Libraryc




South rim of the grand canyon27 l.jpg
South rim of the Grand Canyon records

250 million years old

Paleozoic Strata

550 million years old

1.7 billion years old

Precambrian


South rim of the grand canyon28 l.jpg
South rim of the Grand Canyon records

250 million years old

550 million years old

1.7 billion years old

Nonconformity



Nonconformity in the grand canyon30 l.jpg
Nonconformity in the Grand Canyon records

Tapeats Sandstone

(~550 million years old)

Vishnu Schist

(~1700 million years old)





Subsidence and subsequent deposition buries erosional surface l.jpg

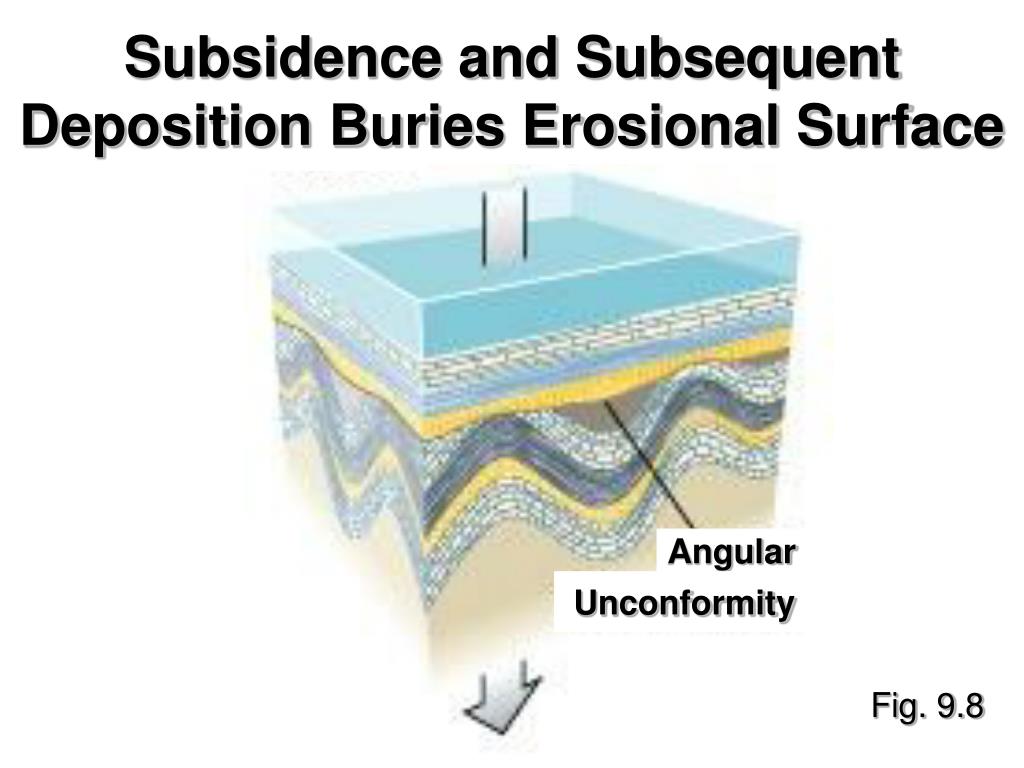

Subsidence and Subsequent Deposition Buries Erosional Surface

Angular

Unconformity

Fig. 9.8


Formation of an angular unconformity l.jpg
Formation of an SurfaceAngular Unconformity

Fig. 9.8


Cross cutting relationships l.jpg
Cross-cutting Relationships Surface

Fig. 9.9


Slide37 l.jpg

Fig. 9.10 Surface

Schlumberger Executive Communications




Reconstructing relative sequence of events l.jpg
Reconstructing Relative Sequence Surfaceof Events

Fig. 9.12


Generalized stratigraphic section of rocks exposed in the grand canyon l.jpg
Generalized Stratigraphic Section of Rocks Exposed in the Grand Canyon

after: Beus & Moral (1990)



The geologic time scale l.jpg
The Geologic time scale Grand Canyon

  • Divisions in the worldwide stratigraphic column based on variations in preserved fossils

  • Built using a combination of stratigraphic relationships, cross-cutting relationships, and absolute (isotopic) ages


The geologic time scale44 l.jpg
The Geologic Time Scale Grand Canyon

Fig. 9.13


Absolute geochronology l.jpg
Absolute geochronology Grand Canyon

  • Add numbers to the stratigraphic column based on fossils.

  • Based on the regular radioactive decay of some chemical elements.


Isotopes l.jpg
Isotopes Grand Canyon

Different forms of the same

element containing the same

number of protons, but varying

numbers of neutrons.

i.e.:

235U, 238U 87Sr, 86Sr 14C, 12C



Half life l.jpg
Half-life Grand Canyon

The half-life of a radioactive isotope is defined as the time required for half of it to decay.



Isotopic dating l.jpg
Isotopic dating Grand Canyon

  • Radioactive elements (parents) decay to nonradioactive (stable) elements (daughters).

  • The rate at which this decay occurs is constant and knowable.

  • Therefore, if we know the rate of decay and the amount present of parent and daughter, we can calculate how long this reaction has been proceeding.



Geologically useful decay schemes l.jpg
Geologically Useful Decay Schemes Grand Canyon

Parent Daughter Half-life (years)

235U 207Pb 4.5 x 109

238U 206Pb 0.71 x 109

40K 40Ar 1.25 x 109

87Rb 87Sr 47 x 109

14C 14N 5730


Uniformitarianism l.jpg
Uniformitarianism Grand Canyon

The present is the key to the past.

Natural laws do not change—

however, rates and intensity of

processes may.

— James Hutton


Calculating relative plate motion l.jpg
Calculating Relative Plate Grand CanyonMotion

Fig. 9.16


Slide55 l.jpg

1871 Grand Canyon

Fig. 9.17


Slide56 l.jpg

1968 Grand Canyon

Fig. 9.17


Slide57 l.jpg

Fig. 9.18 Grand Canyon



Paleontology l.jpg
Paleontology Grand Canyon

The study of life in the past based on fossilized plants and animals.

Fossil: Evidence of past life

Fossils preserved in sedimentary rocks are used to determine: 1) Relative age 2) Environment of deposition


Many methods have been used to determine the age of the earth l.jpg
Many methods have been used to Grand Canyondetermine the age of the Earth

1) Bible: In 1664, Archbishop Usher of Dublin used chronology of the Book of Genesis to calculate that the world began on Oct. 26, 4004 B.C.

2) Salt in the Ocean: (ca. 1899) Assuming the oceans began as fresh water, the rate at which rivers are transporting salts to the oceans would lead to present salinity in ~100 m.y.


Many methods have been used to determine the age of the earth61 l.jpg
Many methods have been used to Grand Canyondetermine the age of the Earth

3) Sediment Thickness: Assuming the rate of deposition is the same today as in the past, the thickest sedimentary sequences (e.g., Grand Canyon) would have been deposited in ~ 100 m.y.

4) Kelvin’s Calculation: (1870): Lord Kelvin calculated that the present geothermal gradient of ~30°C/km would result in an initially molten earth cooled for 30 – 100 m.y.


Flawed assumptions l.jpg
Flawed assumptions Grand Canyon

• Bible is not a science text or history book

• Salt is precipitated in sedimentary formations

• Both erosion and non-deposition are major parts of the sedimentary record

• Radioactivity provides another heat source


The heat inside the earth l.jpg
The heat inside the Earth Grand Canyon

The discovery of radioactivity at the turn of the century by Bequerel, Curie, and Rutherford not only provided the source of the heat to override Kelvin’s calculations but provided the basis for all later quantitative estimates of the ages of rocks.


Oldest rocks on earth l.jpg
Oldest rocks on Earth Grand Canyon

Slave Province, Northern Canada

  • Zircons in a metamorphosed granite dated at 3.96 Ga by the U-Pb method

    Yilgarn block, Western Australia

  • Detrital zircons in a sandstone dated at 4.10 Ga by U-Pb method.

    Several other regions dated at 3.8 Ga by various methods including Minnesota, Wyoming, Greenland, South Africa, and Antarctica.


Age of the earth l.jpg
Age of the Earth Grand Canyon

Although the oldest rocks found on Earth are 3.96 Ga (or even 4.1), we believe that the age of the Earth is approximately 4.6 Ga. All rocks of the age 4.6 to 4.0 Ga have been destroyed (the rock cycle) or are presently covered by younger rocks.


Age of the earth66 l.jpg
Age of the Earth Grand Canyon

This is based on the age of rocks brought back from the Moon (4.4 Ga), and meteorites (4.6 Ga), that are thought to be good representatives of the early solar system as well as more complicated geochemical modeling. This data suggests that the present chemical composition of the crust must have evolved for more than 4.5 Ga.


Double it and add 1 l.jpg
Double it and add 1 Grand Canyon

number of number of number of D/P

half-lives parents daughters

0 64 0 0

1 32 32 1

2 16 48 3

3 8 56 7

4 4 60 15

5 2 62 31


The geologic timescale and absolute ages l.jpg
The geologic timescale Grand Canyonand absolute ages

Isotopic dating of intebedded volcanic rocks allows assignment of an absolute age for fossil transitions


The big assumption l.jpg
The big assumption Grand Canyon

The half-lives of radioactive isotopes are the same as they were billions of years ago.


Test of the assumption l.jpg
Test of the assumption Grand Canyon

Meteorites and Moon rocks (that are thought to have had a very simple history since they formed), have been dated by up to 10 independent isotopic systemsall of which havegiven the same answer. However, scientists continue to critically evaluate this data.


Frequently used decay schemes have half lives which vary by a factor of 100 l.jpg
Frequently used decay schemes Grand Canyonhave half-lives which vary by a factor of > 100

parent daughter half life (years)

235U 207Pb 4.5 x 109

238U 206Pb 0.71 x 109

40K 40Ar 1.25 x 109

87Rb 87Sr 47 x 109

147Sm 144Nd 106 x 109


What if the rates have varied l.jpg
What if the rates have varied? Grand Canyon

What we think happened:

rate

of

decay

 time


What if the rates have varied73 l.jpg
What if the rates have varied? Grand Canyon

What we know didn’t happen:

rate

of

decay

 time


Best initial d 0 l.jpg
Best initial Grand CanyonD = 0

Two ways around this problem:

1) Choose minerals with no initial daughter.

2) Use a method that tells you the initial concentration of D and P.


Minerals with no initial daughter l.jpg
Minerals with no initial daughter Grand Canyon

  • 40K decays to 40Ar (a gas)

  • Zircon: ZrSiO4

    ion radius (Å)

    Zr4+ 0.92

    U4+ 1.08

    Pb2+ 1.37
