  1. A Comprehensive Guide On Sprockets

  2. What are sprockets? Sprockets has a profiled wheel with teeth that mash with chain or other indented material. It is used in machinery either to transmit rotational motion between two shafts. Steel sprockets have the highest persistence.

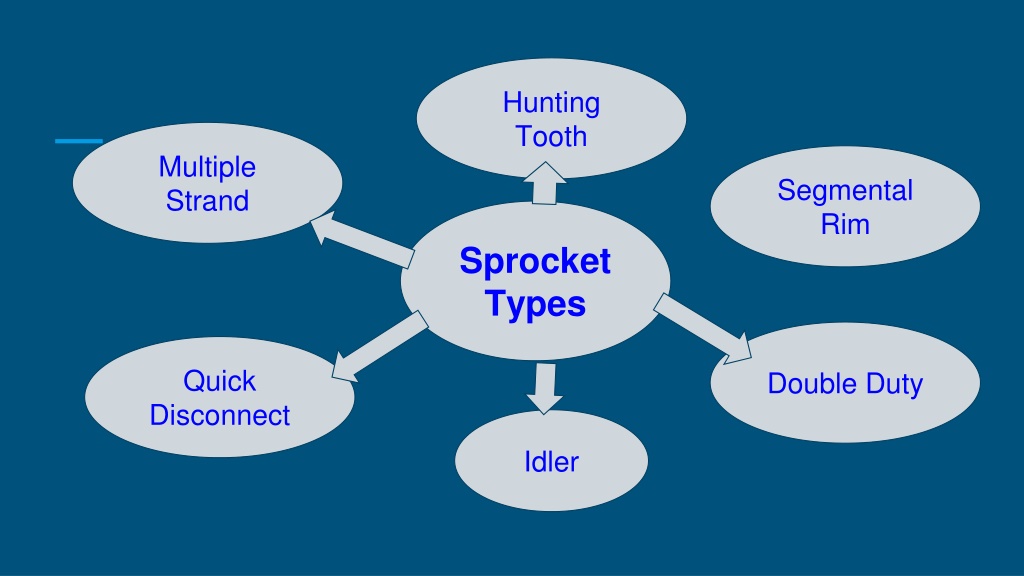

  3. Hunting Tooth Multiple Strand Segmental Rim Sprocket Types Double Duty Quick Disconnect Idler

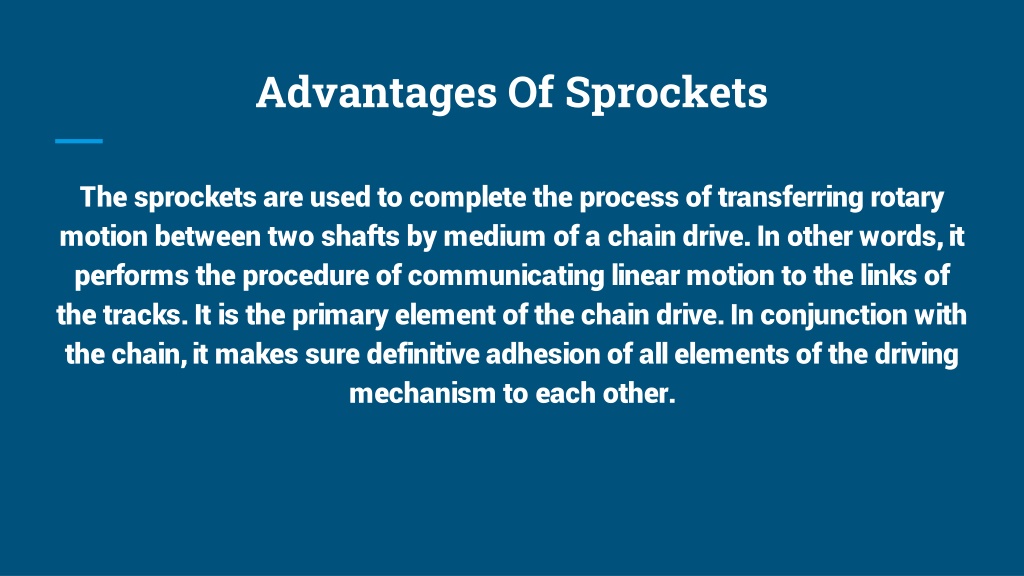

  4. Advantages Of Sprockets The sprockets are used to complete the process of transferring rotary motion between two shafts by medium of a chain drive. In other words, it performs the procedure of communicating linear motion to the links of the tracks. It is the primary element of the chain drive. In conjunction with the chain, it makes sure definitive adhesion of all elements of the driving mechanism to each other.

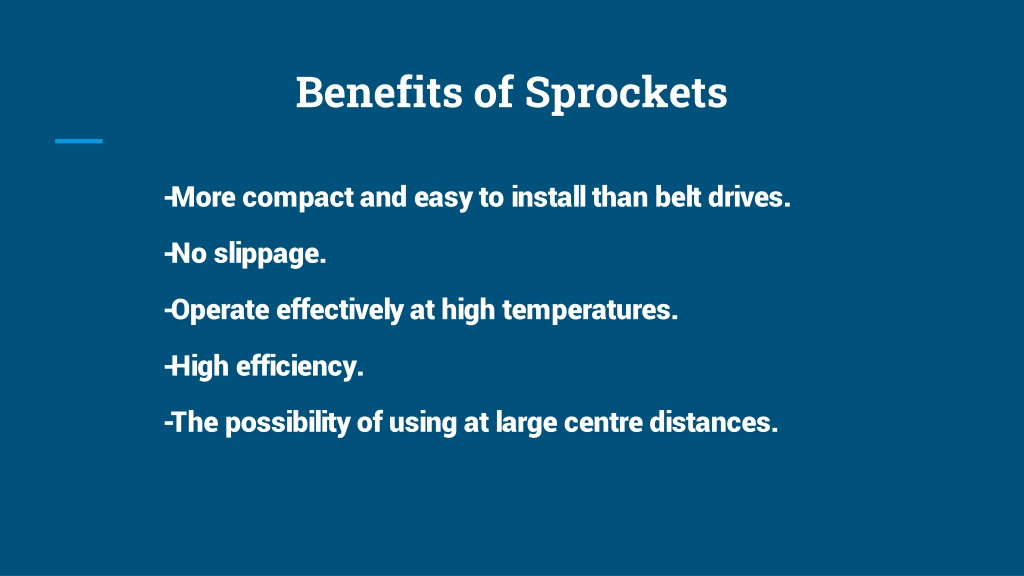

  5. Benefits of Sprockets -More compact and easy to install than belt drives. -No slippage. -Operate effectively at high temperatures. -High efficiency. -The possibility of using at large centre distances.

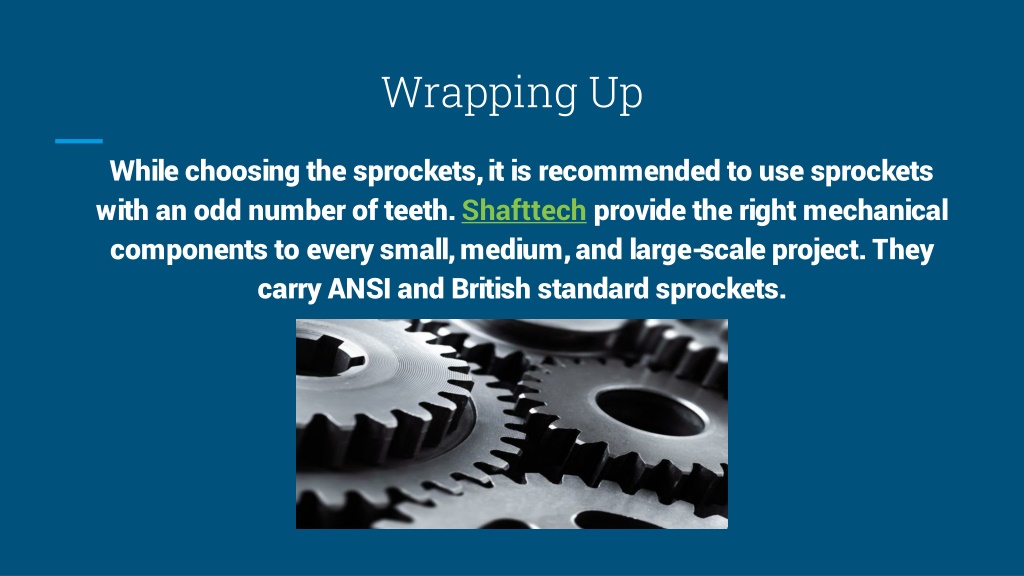

  6. Wrapping Up While choosing the sprockets, it is recommended to use sprockets with an odd number of teeth. Shafttech provide the right mechanical components to every small, medium, and large-scale project. They carry ANSI and British standard sprockets.

  7. Get in Touch With Us Visit:https://shafttech.com/ Call: (65) 6635-5660 Email: sales@ShaftTech.com Fax: (65) 6481-1508
